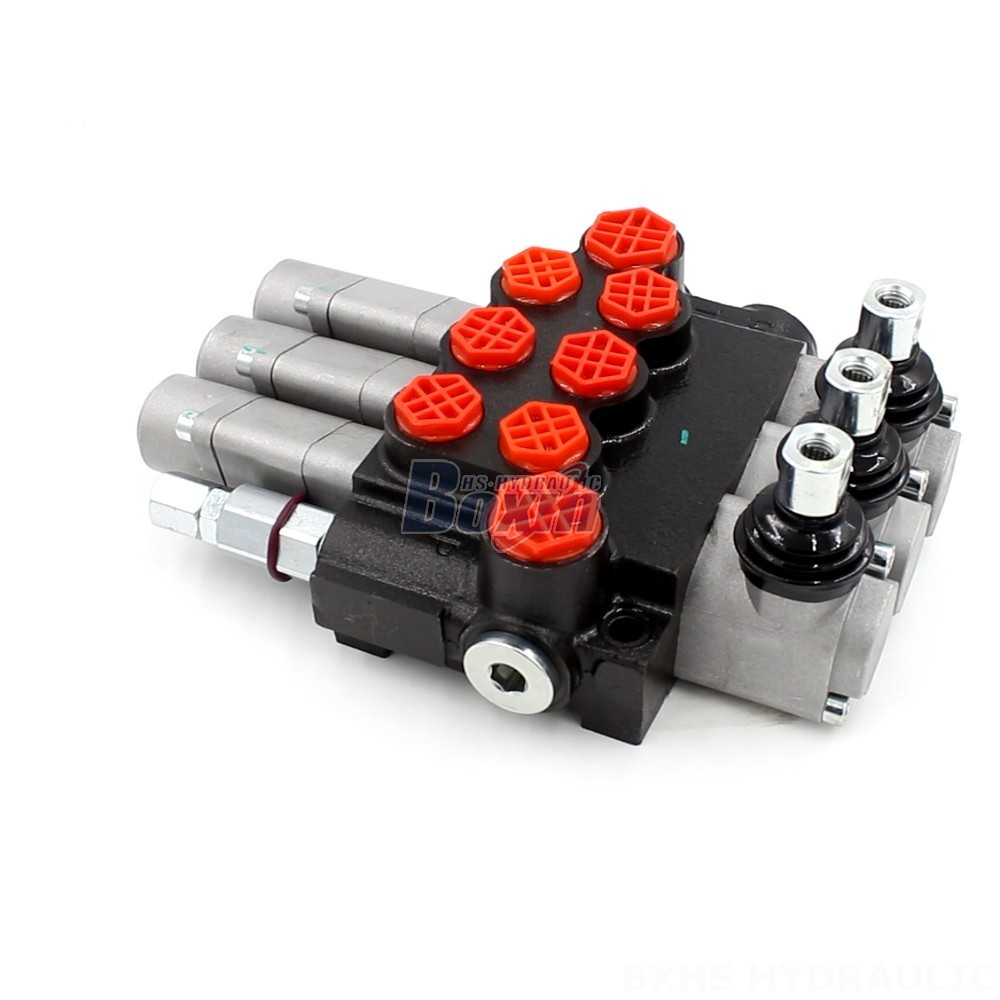

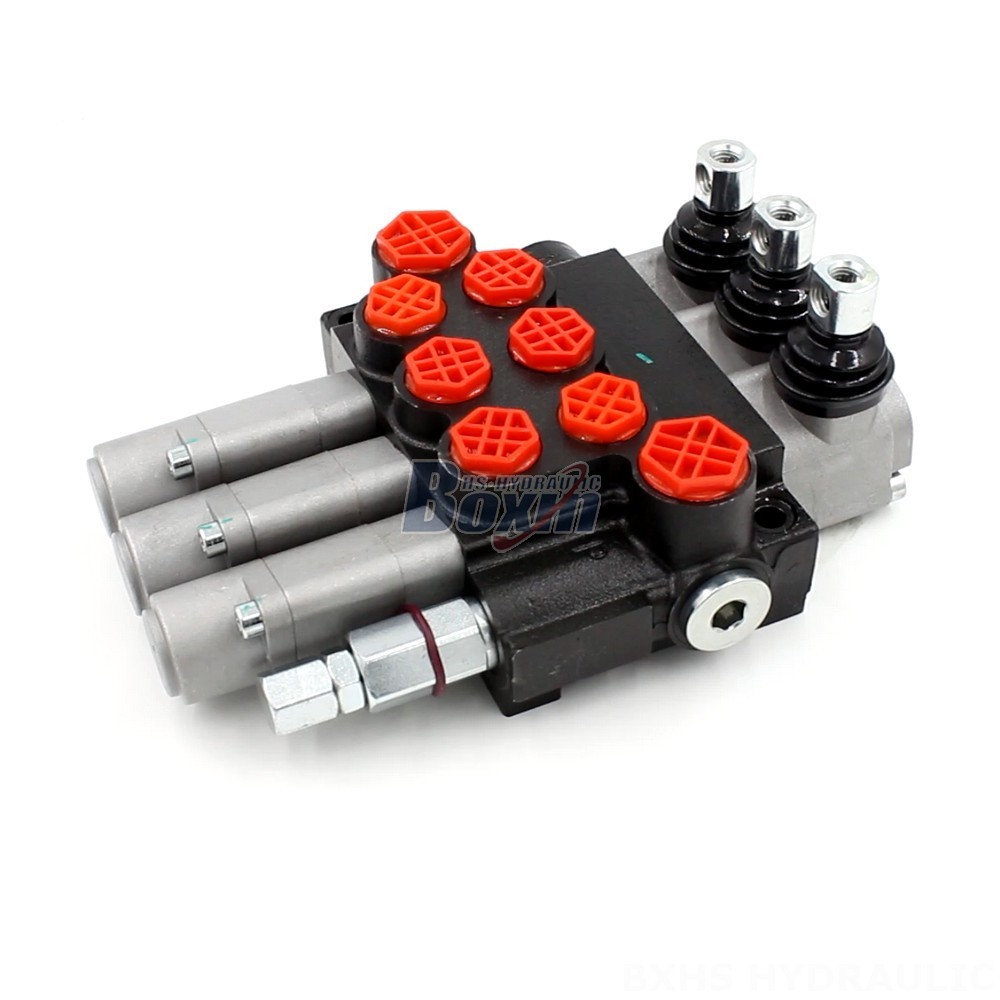

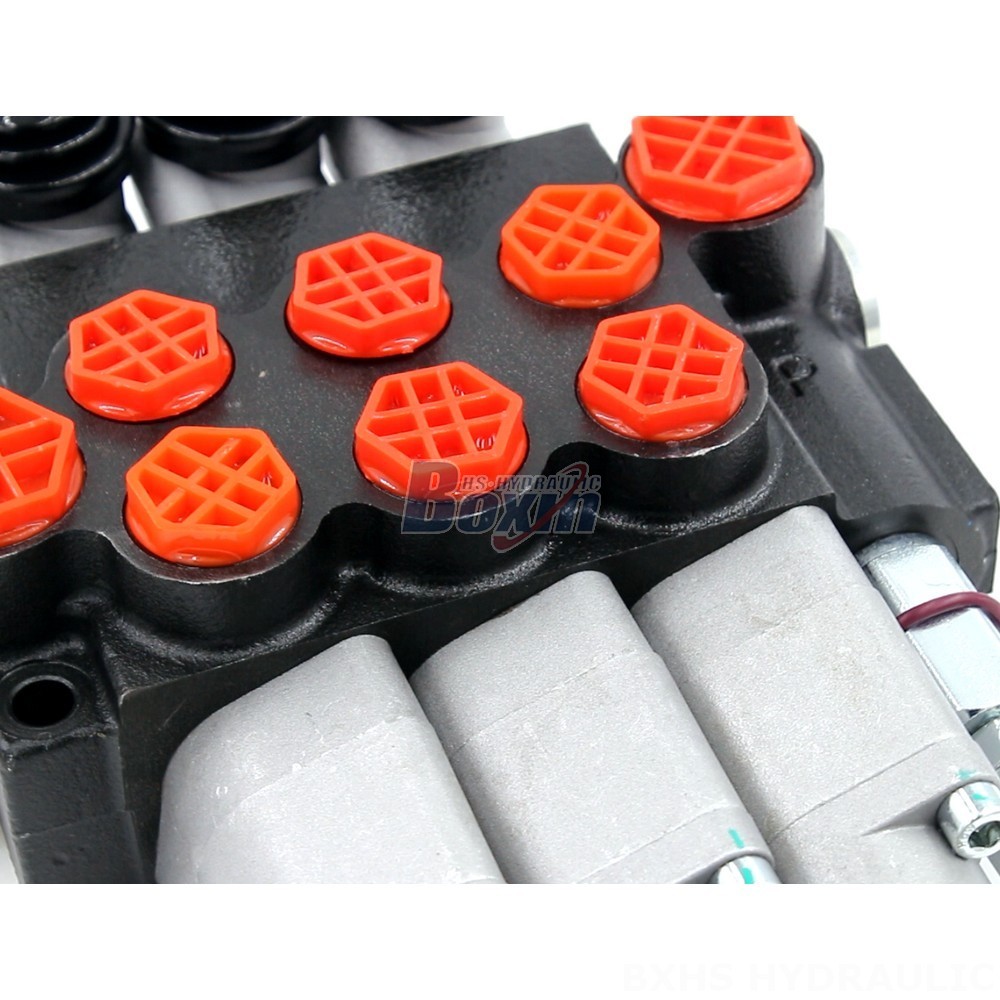

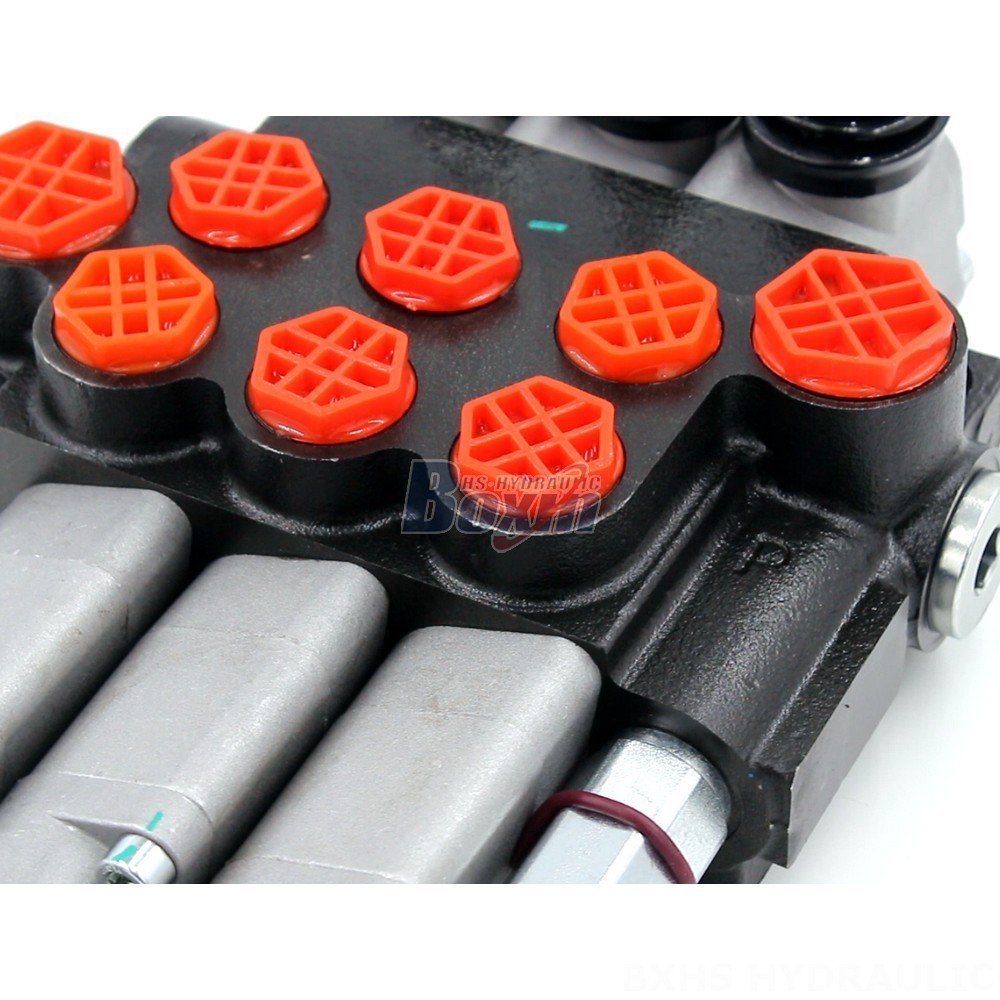

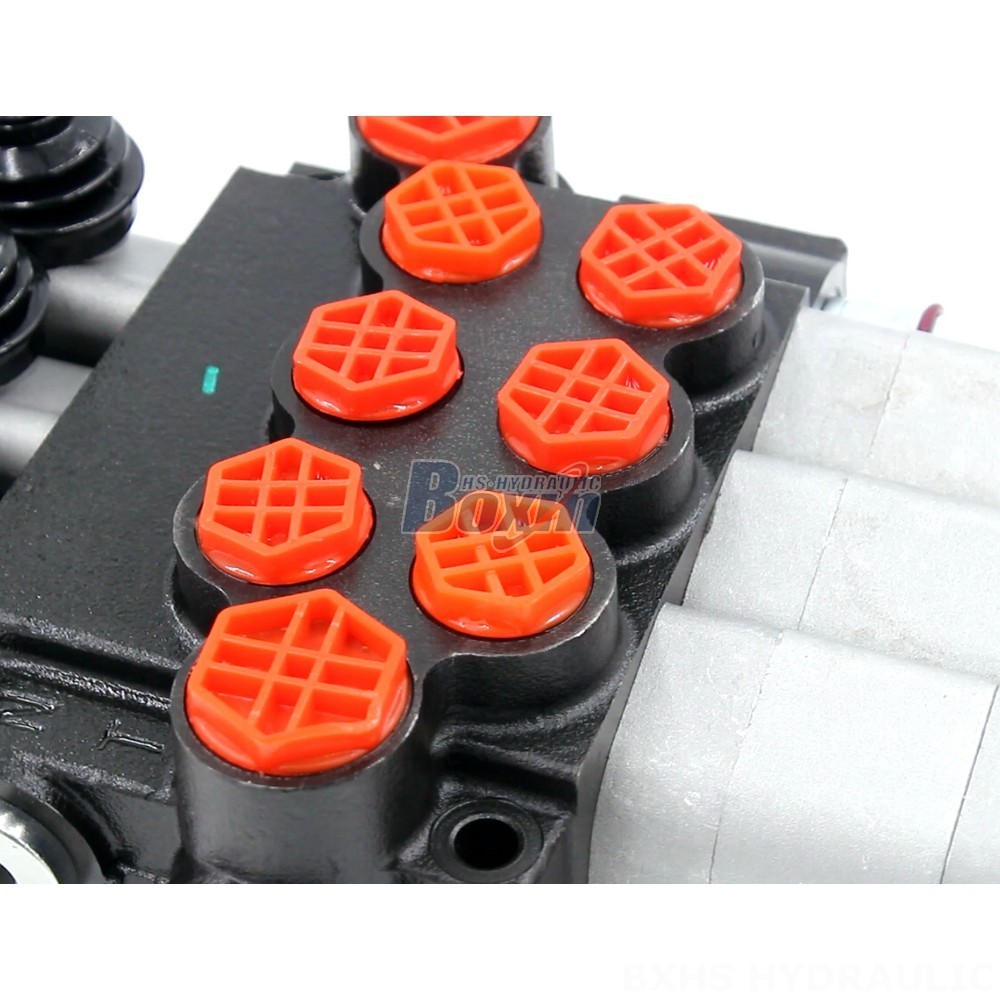

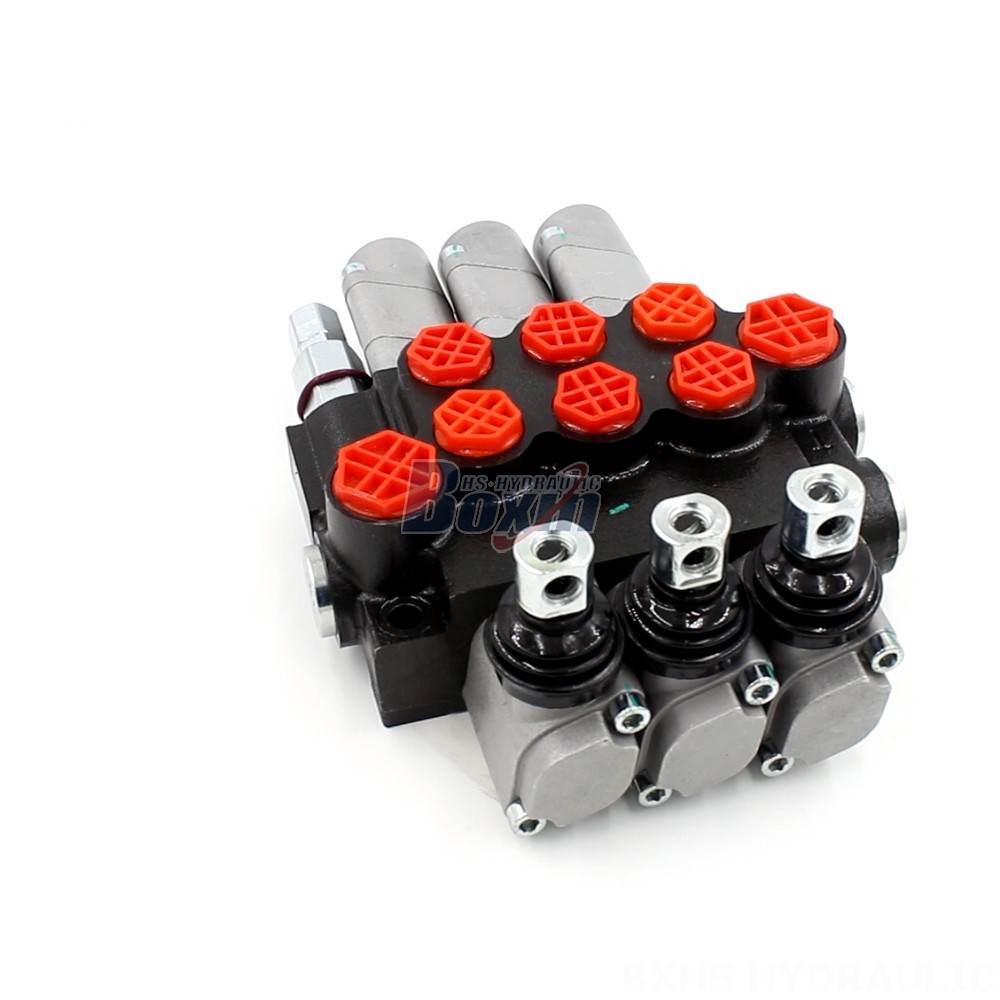

The P40-G12-G38-3QTW Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. With its robust monoblock design, manual control, and flow rate of 40 L/min (10.5 US gpm), this valve ensures precise and reliable control of hydraulic systems.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Product Features:**
- Manual control for precise operation
- 3 spool design for versatile hydraulic system configurations
- Monoblock construction for durability and compact size
- Rated flow of 40 L/min (10.5 US gpm) for efficient performance
- Maximum pressure of 250 bar (3600 psi) for demanding applications
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for reliable operation in diverse environments
**Applications:**
This directional valve is ideal for a wide range of applications, including:
- Material Handling: Telehandlers, forklifts, stackers, aerial platforms
- Construction and Earth Moving: Motor graders, excavators, skid steer loaders, wheel loaders, backhoe loaders
- Agriculture: Tractors, harvesters, irrigation systems
- Industrial Vehicles: Dumpers, concrete boom pumps, pave rollers, rotary drilling equipment, crushers, stone cutters
