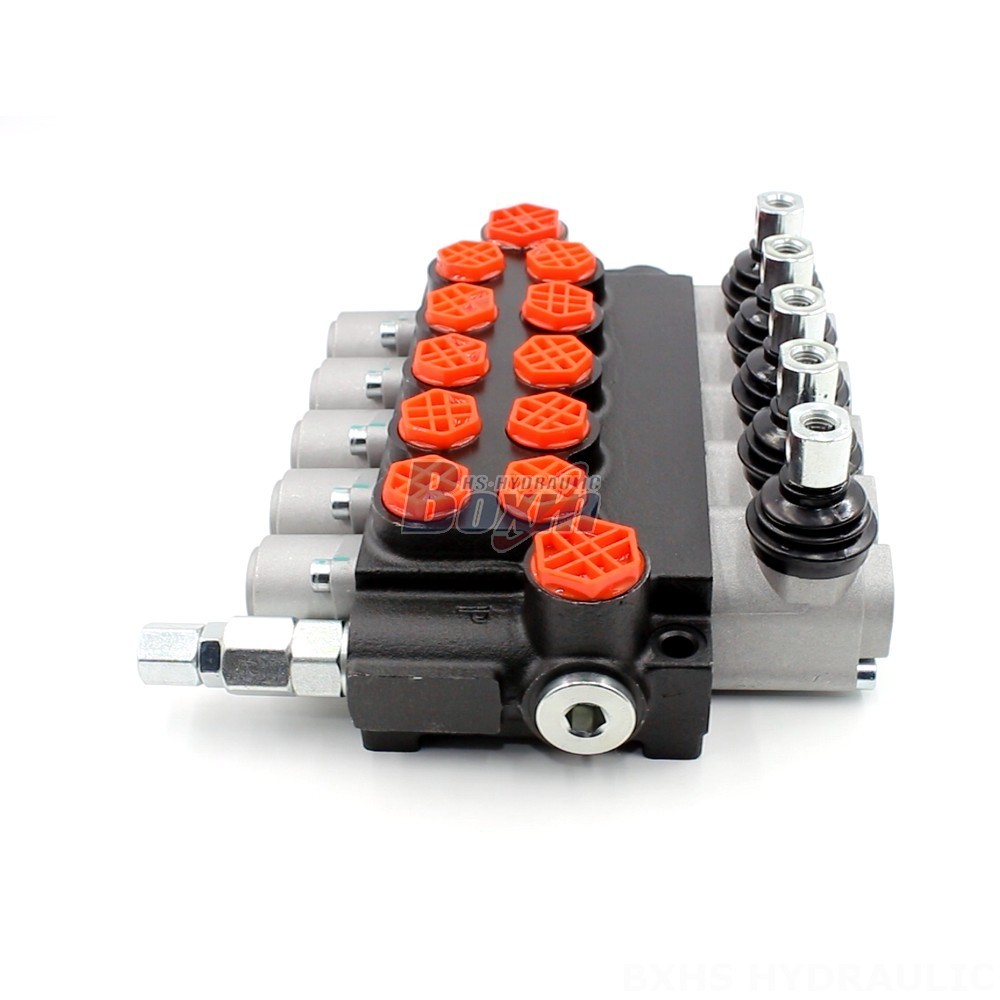

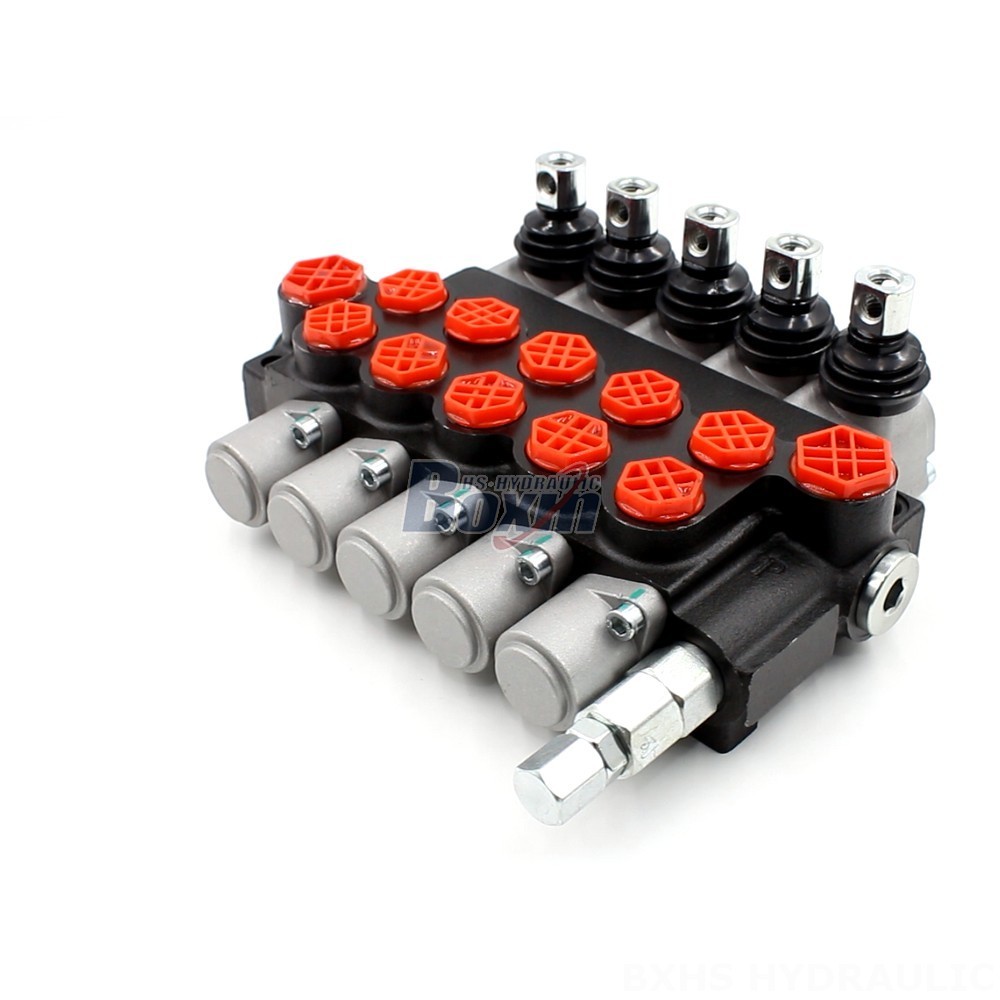

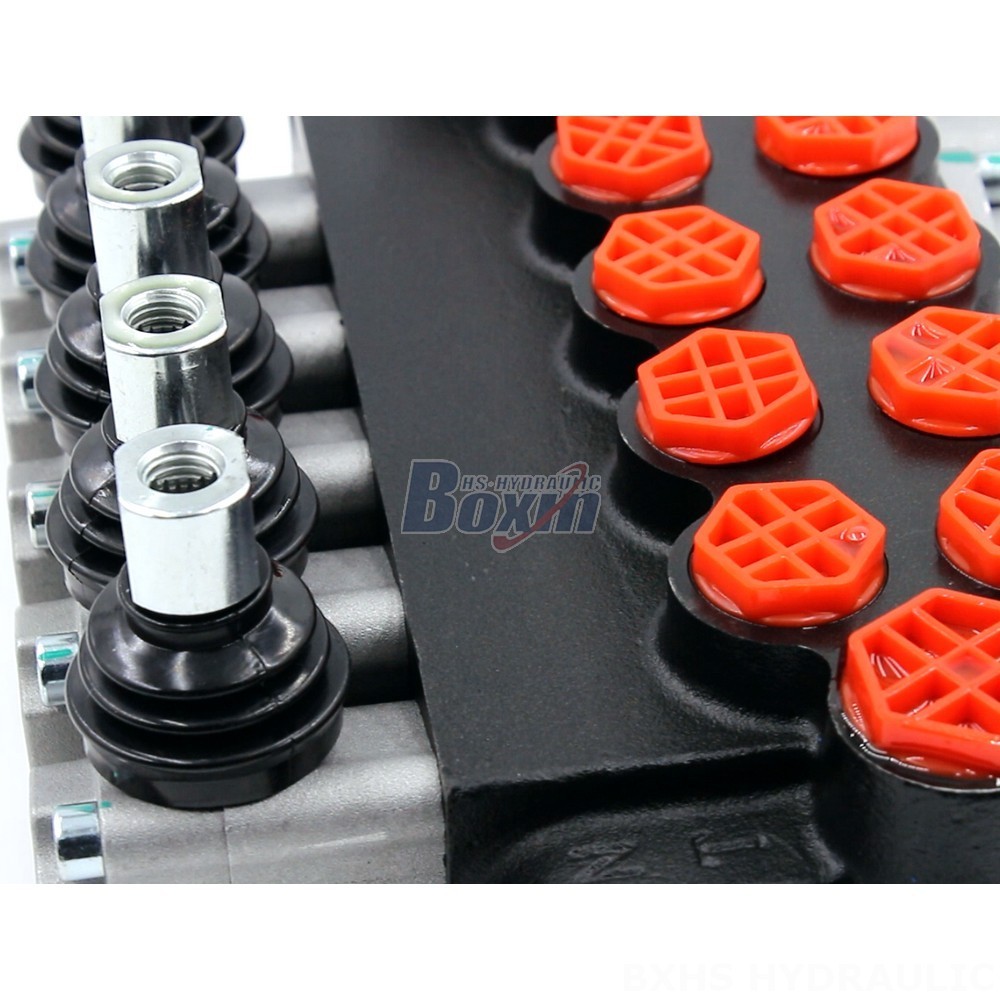

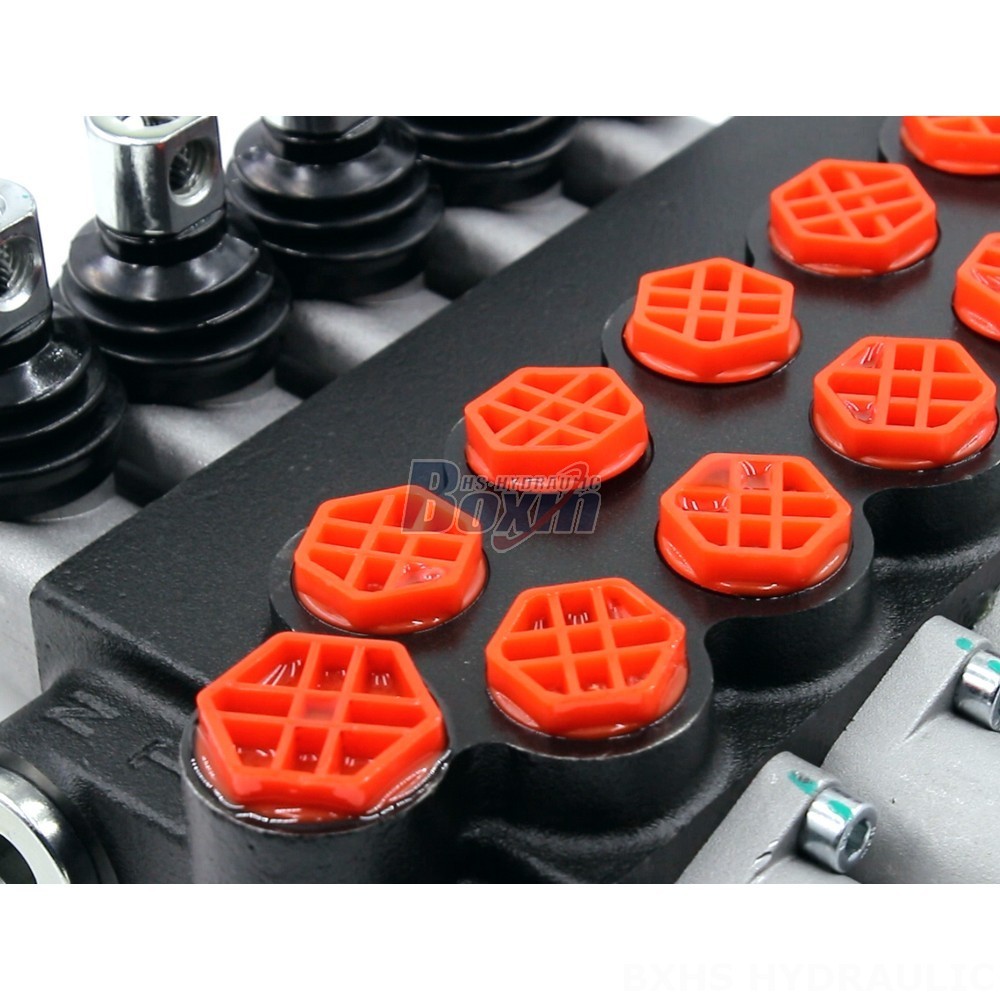

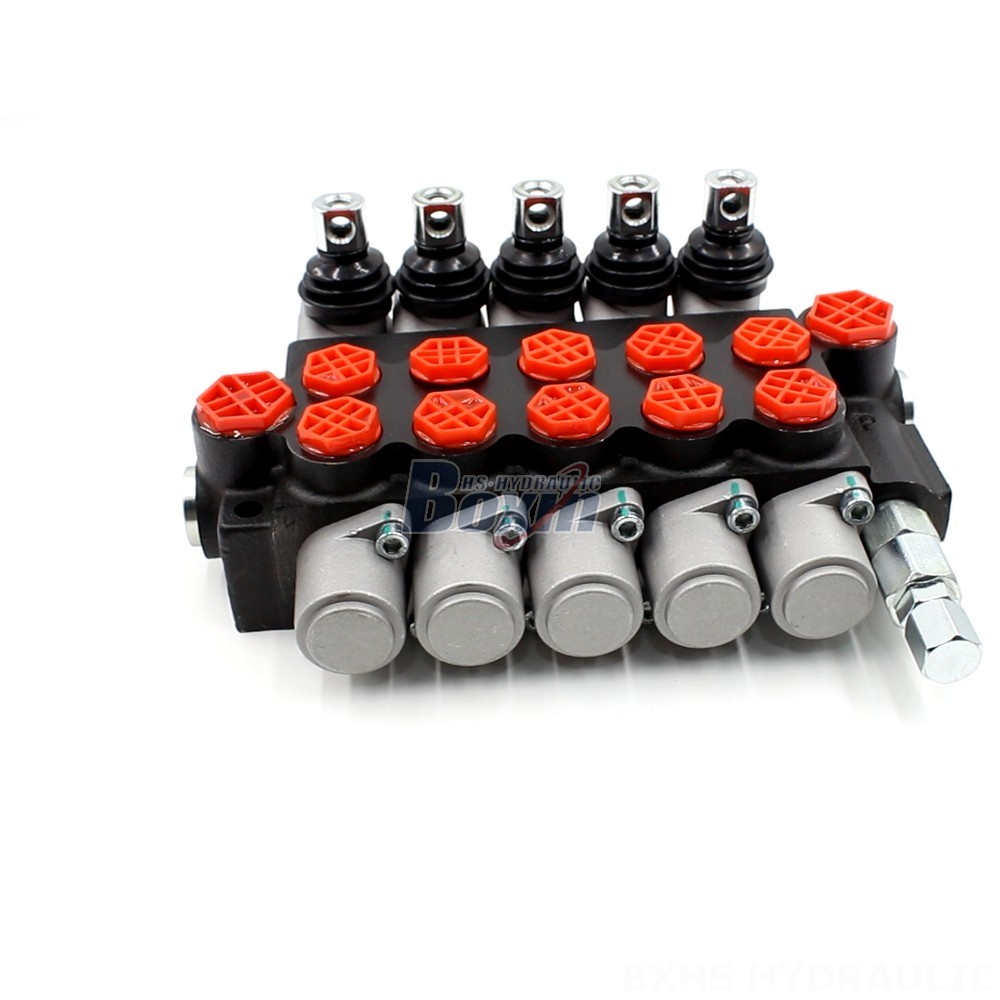

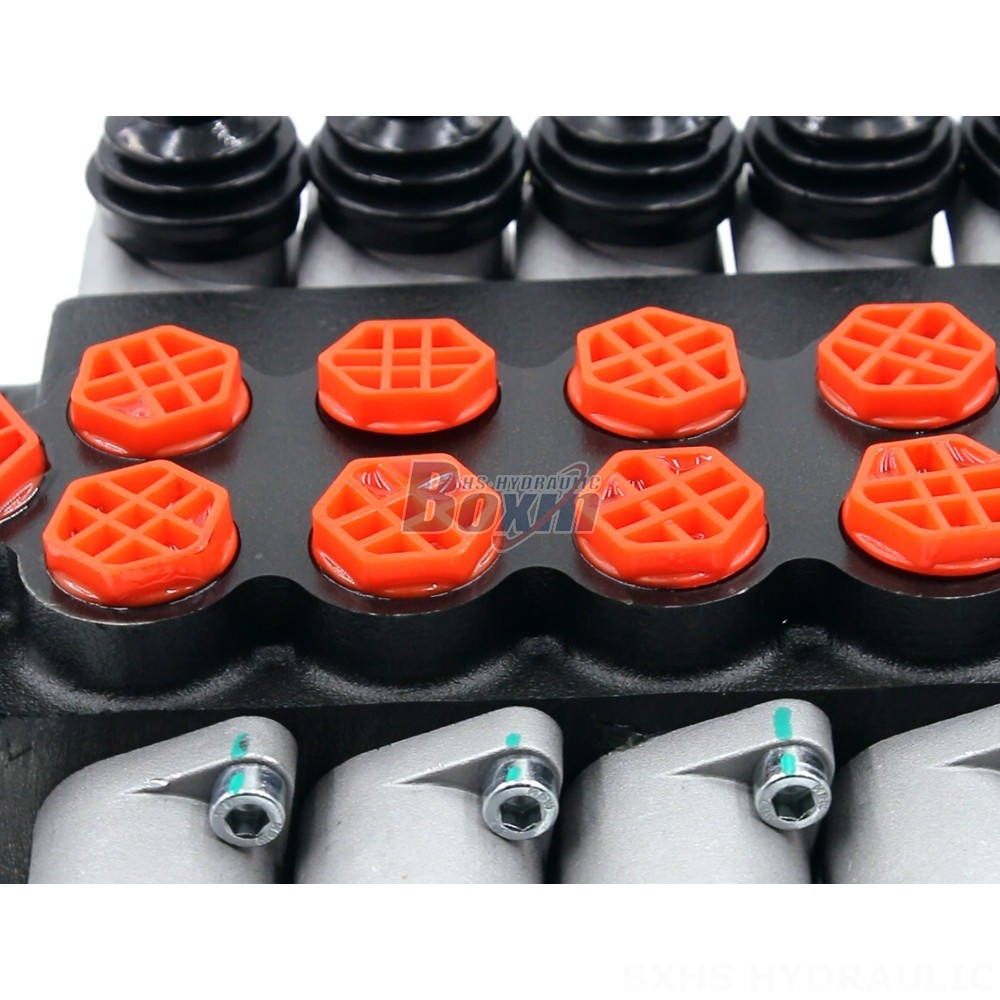

The P40-G12-G38 5-Spool Hydraulic Directional Valve is a high-performance valve designed for a wide range of applications in material handling, construction, earth moving, agriculture, and industrial vehicles. With its manual control, monoblock valve design, and rated flow of 40 L/min, this valve offers precise and reliable control of hydraulic systems.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-G38 5-Spool Hydraulic Directional Valve is a robust and durable valve that can withstand harsh operating conditions. It features a maximum pressure of 250 bar and an operating viscosity range of 15 - 75 mm²/s. The valve also has a wide ambient temperature range of -40°C to +80°C, making it suitable for use in various environments.
The P40-G12-G38 5-Spool Hydraulic Directional Valve is commonly used in various applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and wheel loaders. Its versatility and high performance make it an ideal choice for demanding hydraulic applications.
