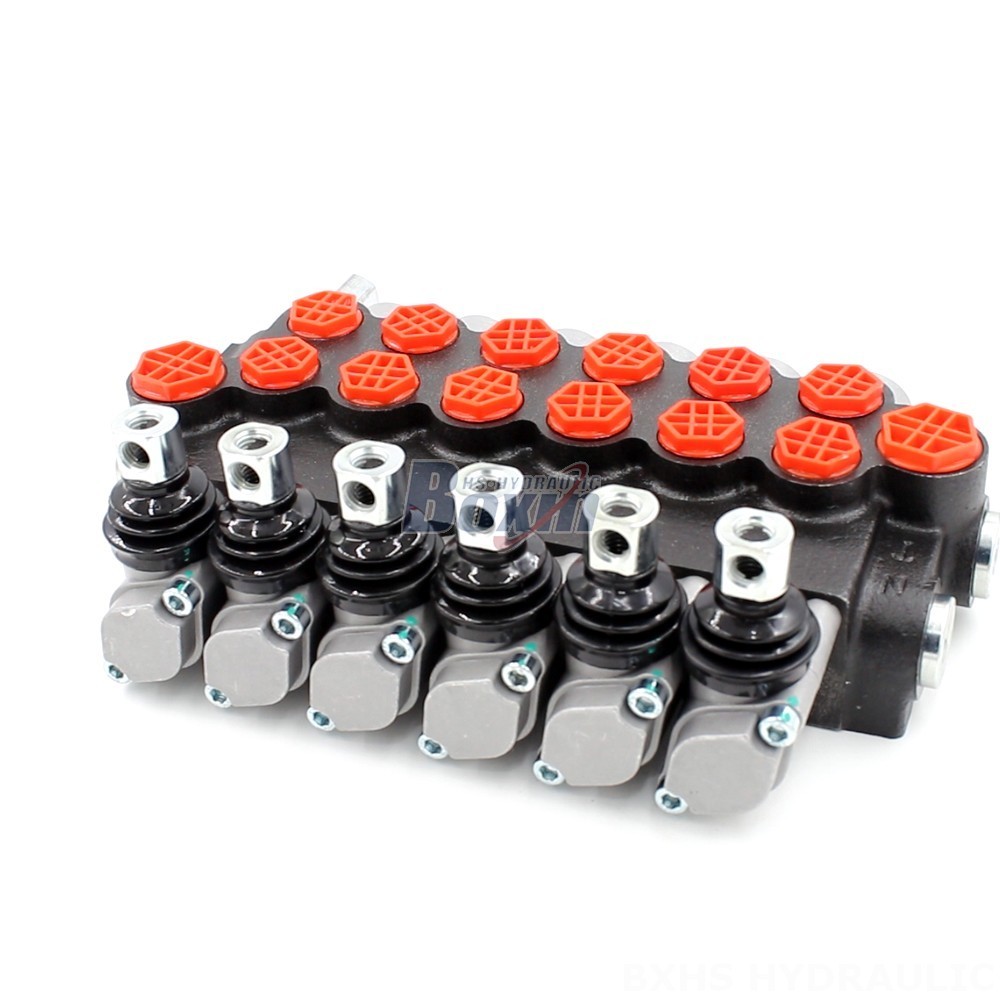

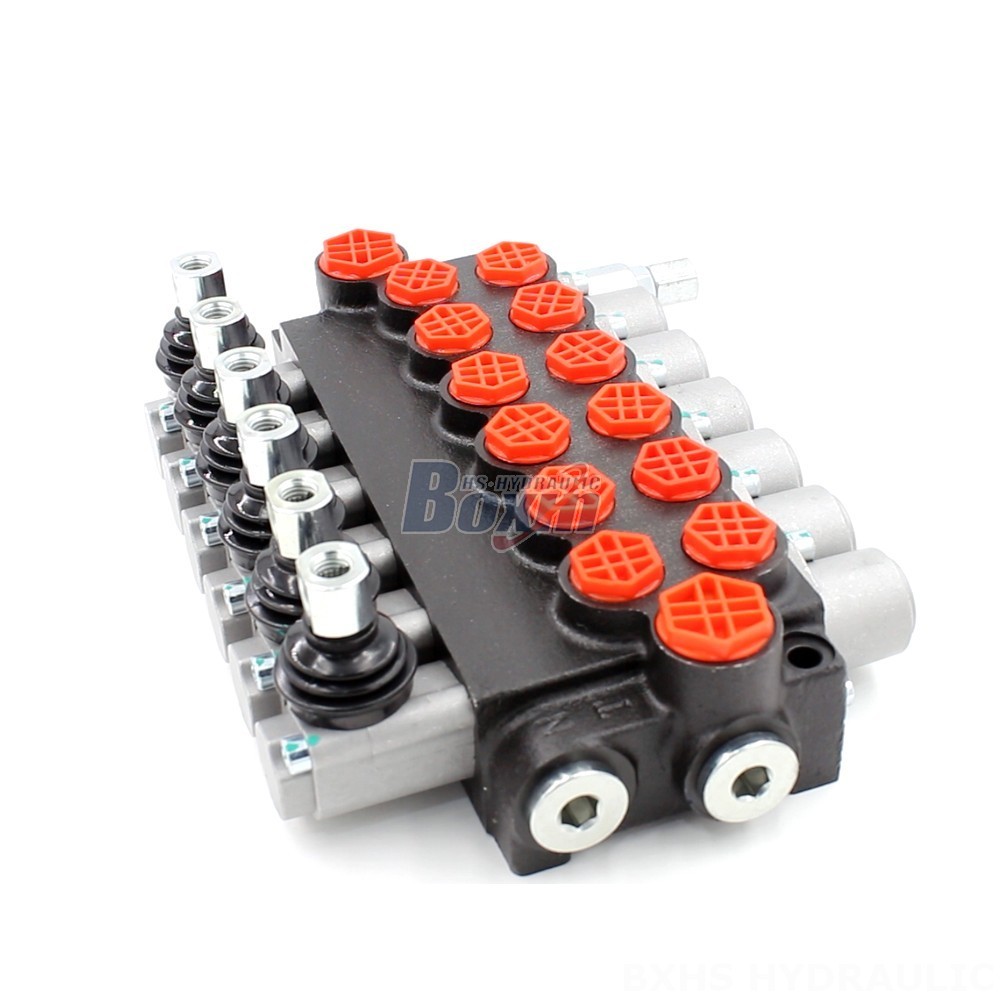

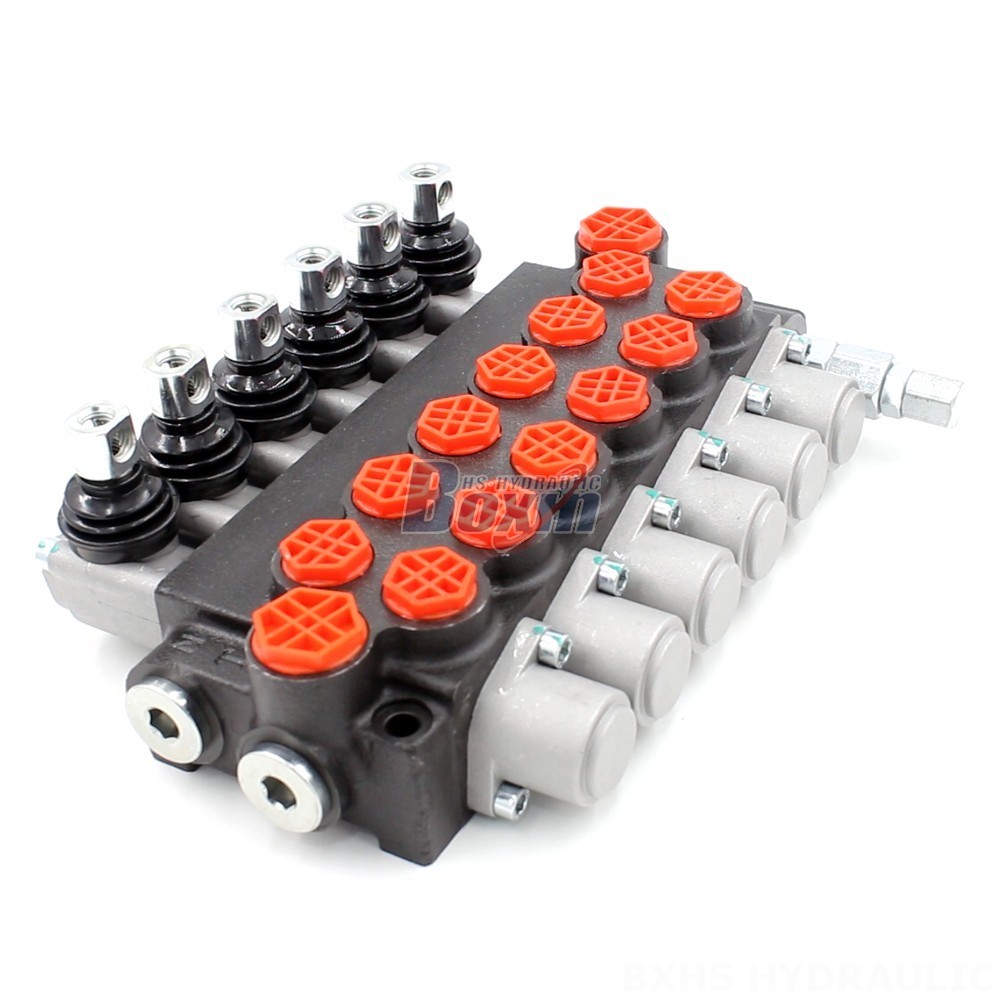

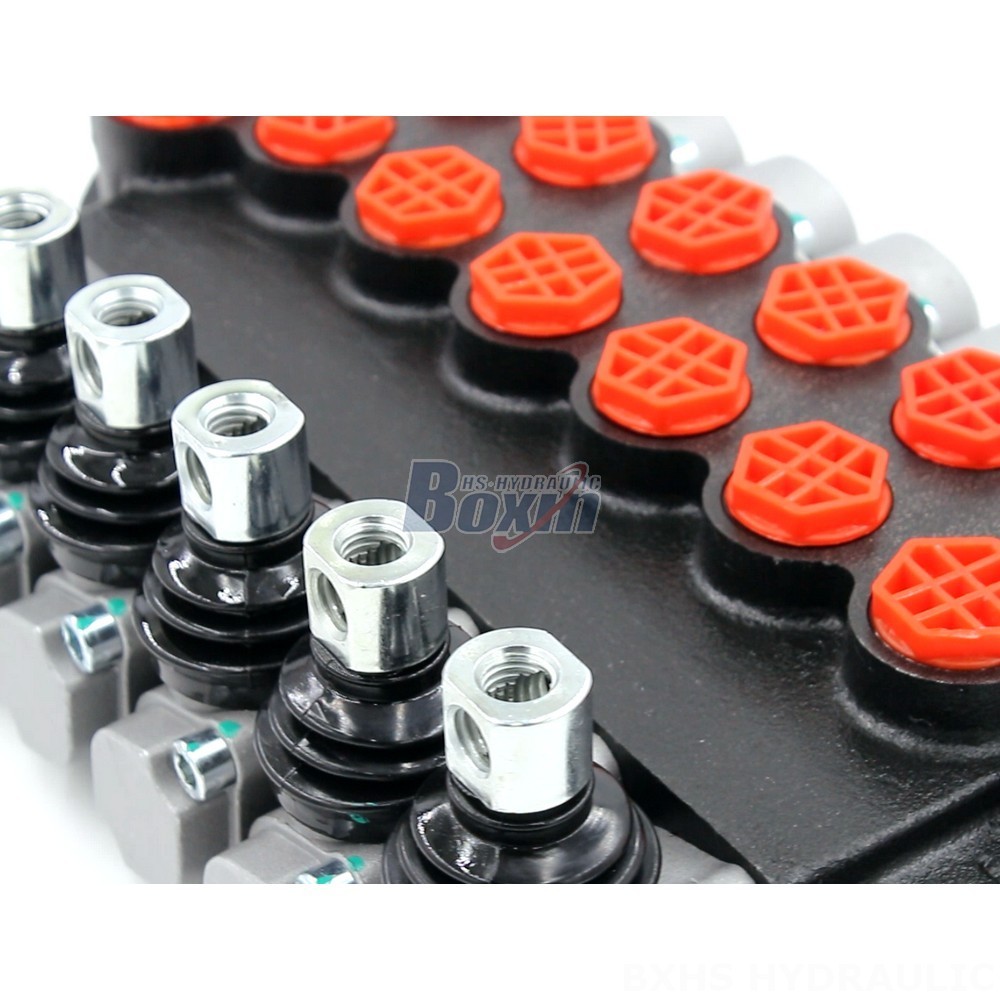

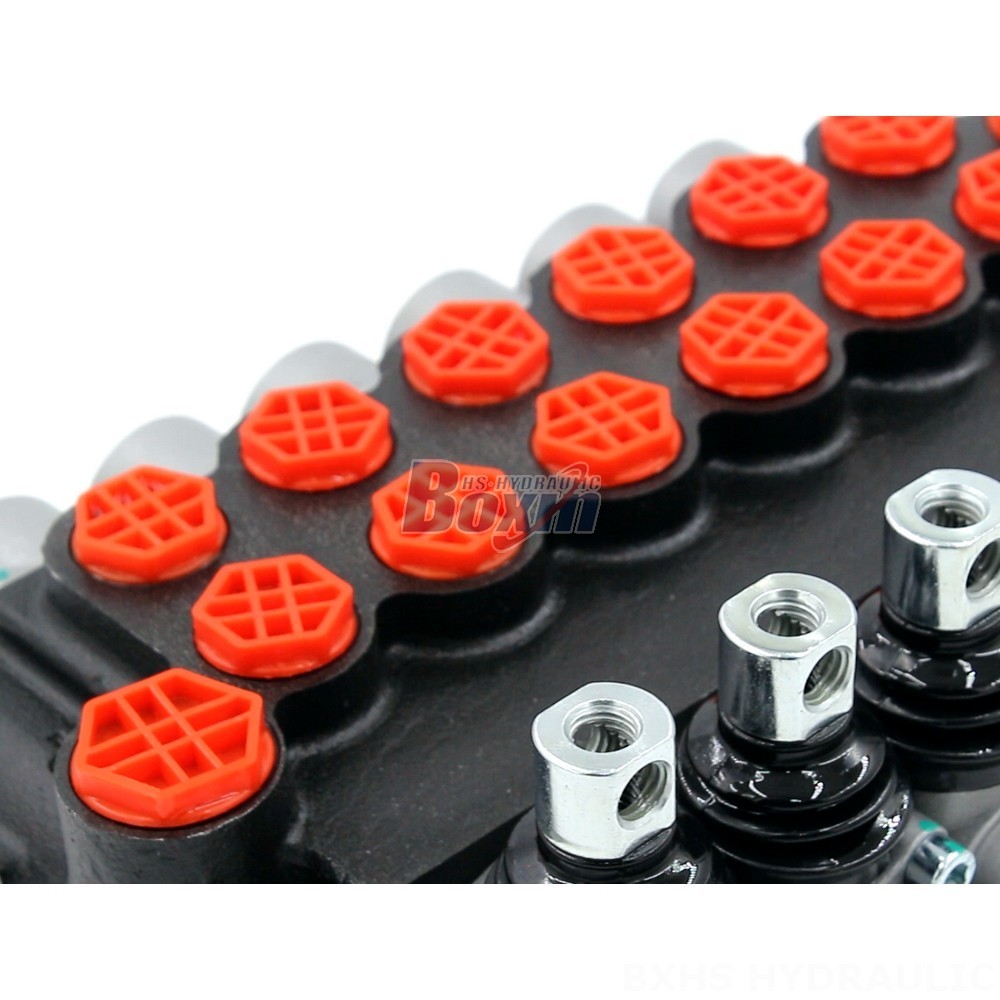

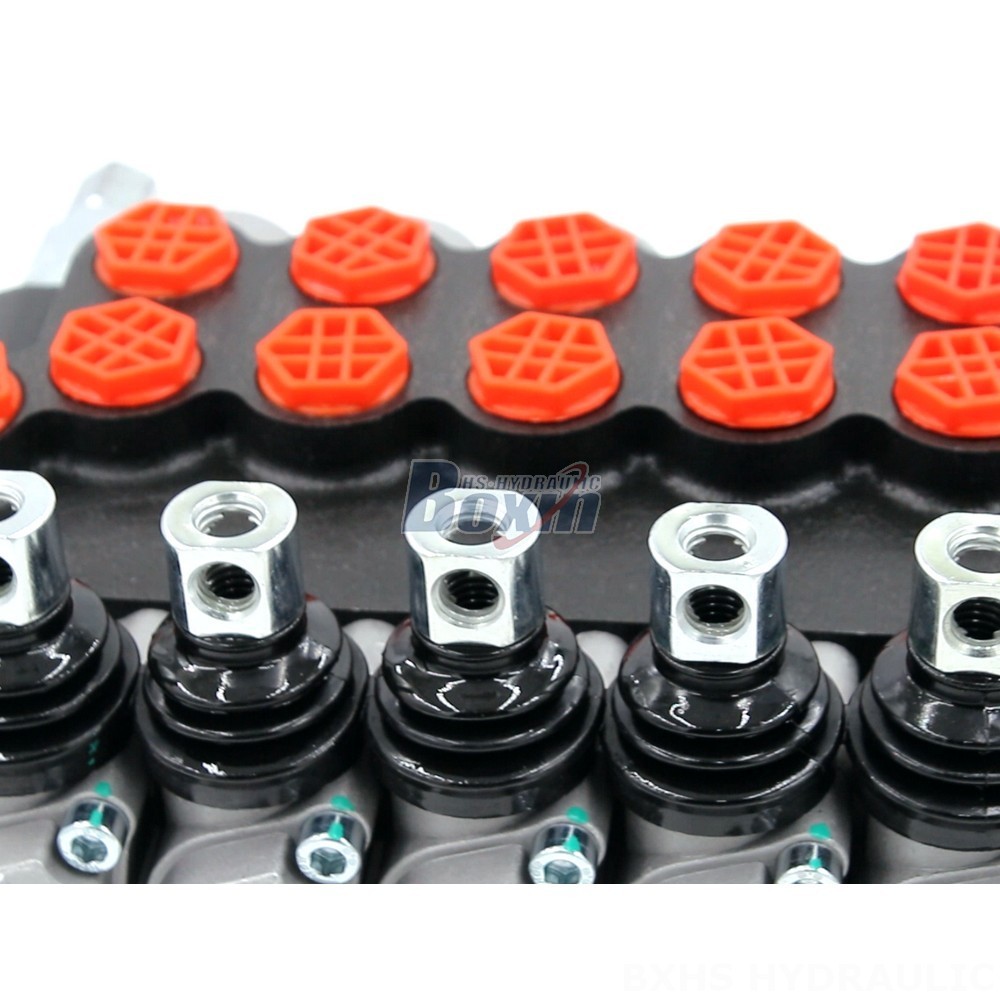

The P40 Series 6-section manual control hydraulic valve is a robust and reliable solution for various applications in construction, material handling, agriculture, and industrial vehicles. This monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar, ensuring efficient operation for a wide range of equipment.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series hydraulic valve is designed for demanding applications and features a compact, robust design with a 6-section monoblock construction. It offers manual control for precise operation and is rated for a flow of 40 L/min and a maximum pressure of 250 bar. The valve is suitable for a wide range of operating viscosities and temperatures, making it ideal for various environments. Applications include telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini- and midi- excavators, and skid steer loaders.
