P40-G12-G38 Hydraulic Valve: Trusted Choice for Industrial Applications

Metode Kontrol:Buku Panduan

Spul:4 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:24*23*13

Kelas kotor:9.00 kg

Ketersediaan: Tersedia

975 Pandangan Mencari Produk Ini

P40-G12-G38 Hydraulic Valve: Trusted Choice for Industrial Applications

P40-G12-G38 Hydraulic Valve: Trusted Choice for Industrial Applications

P40-G12-G38 Hydraulic Valve: Trusted Choice for Industrial Applications drawing image

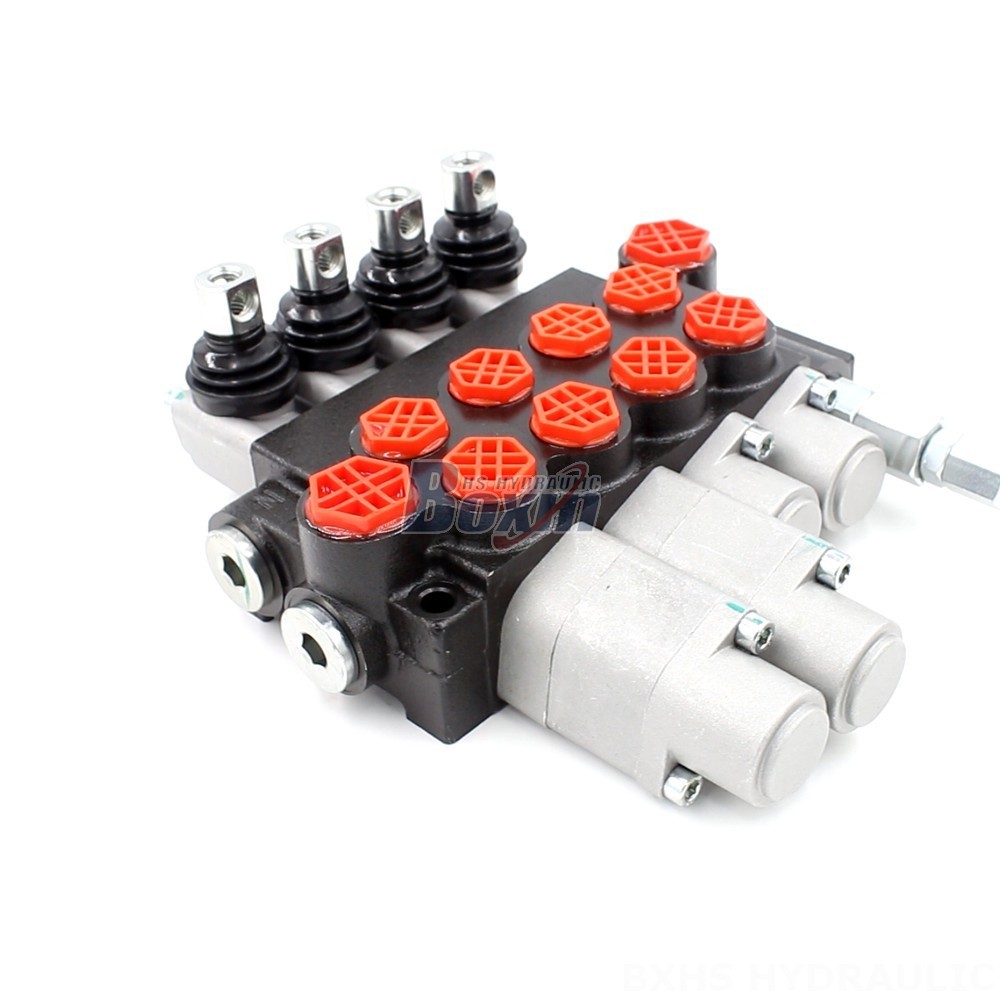

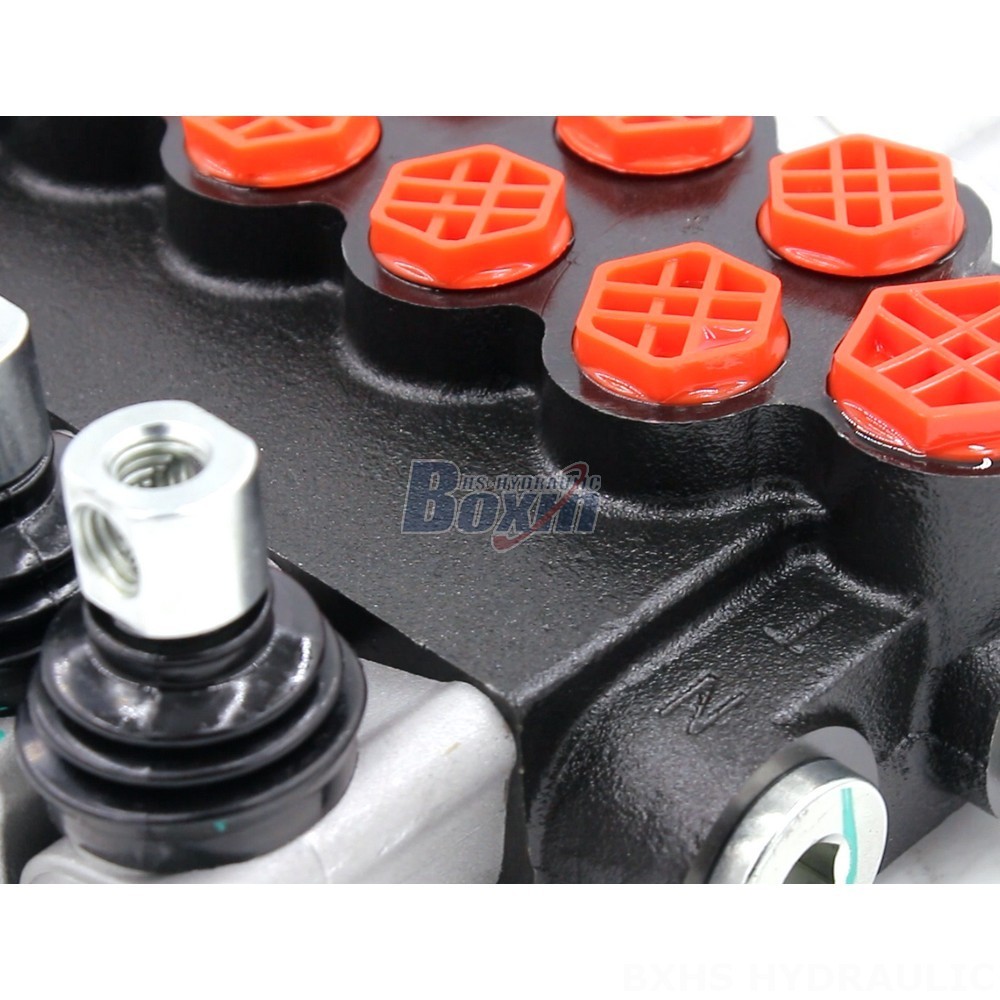

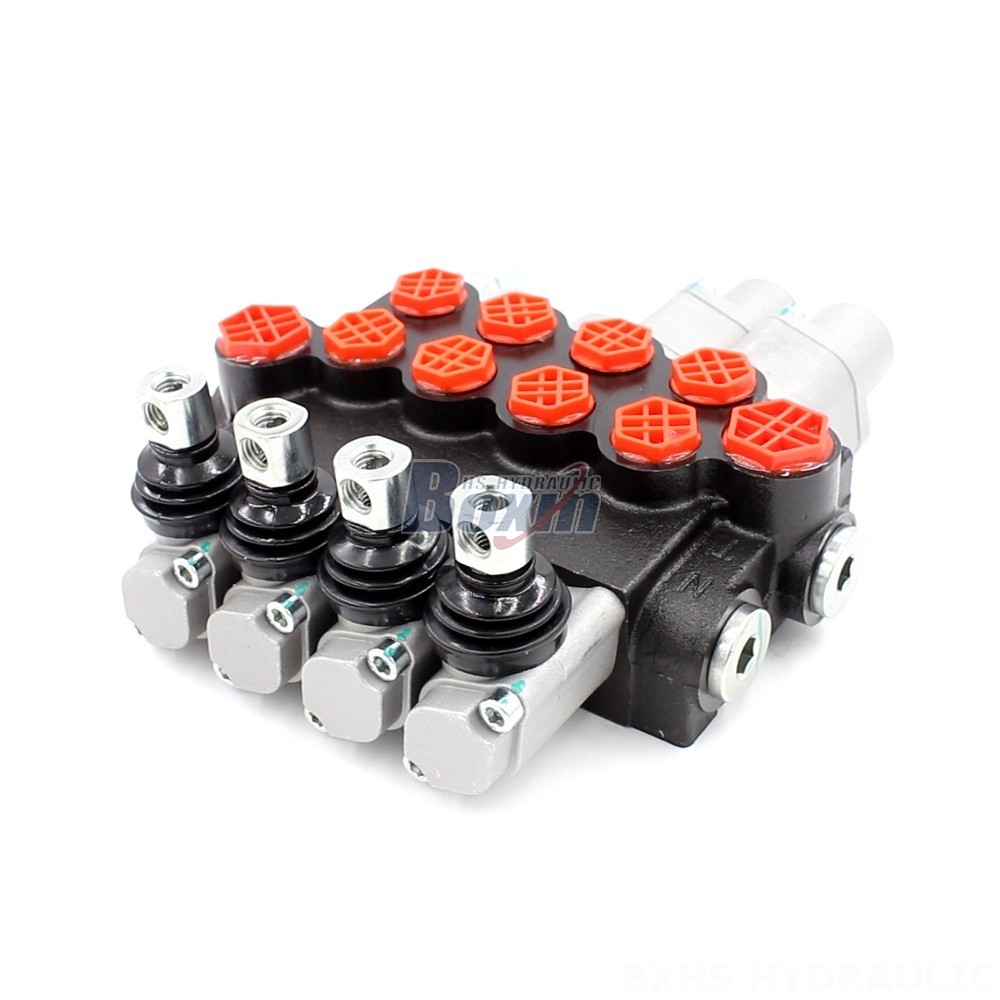

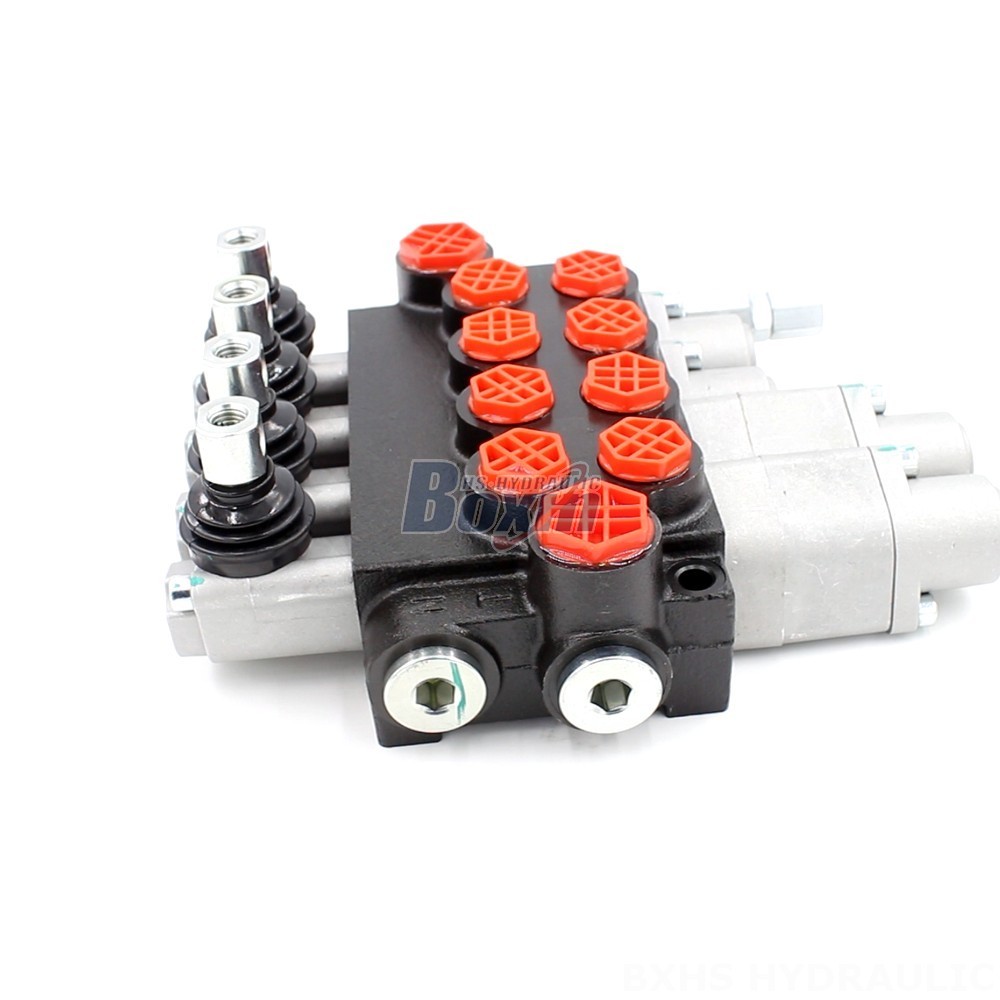

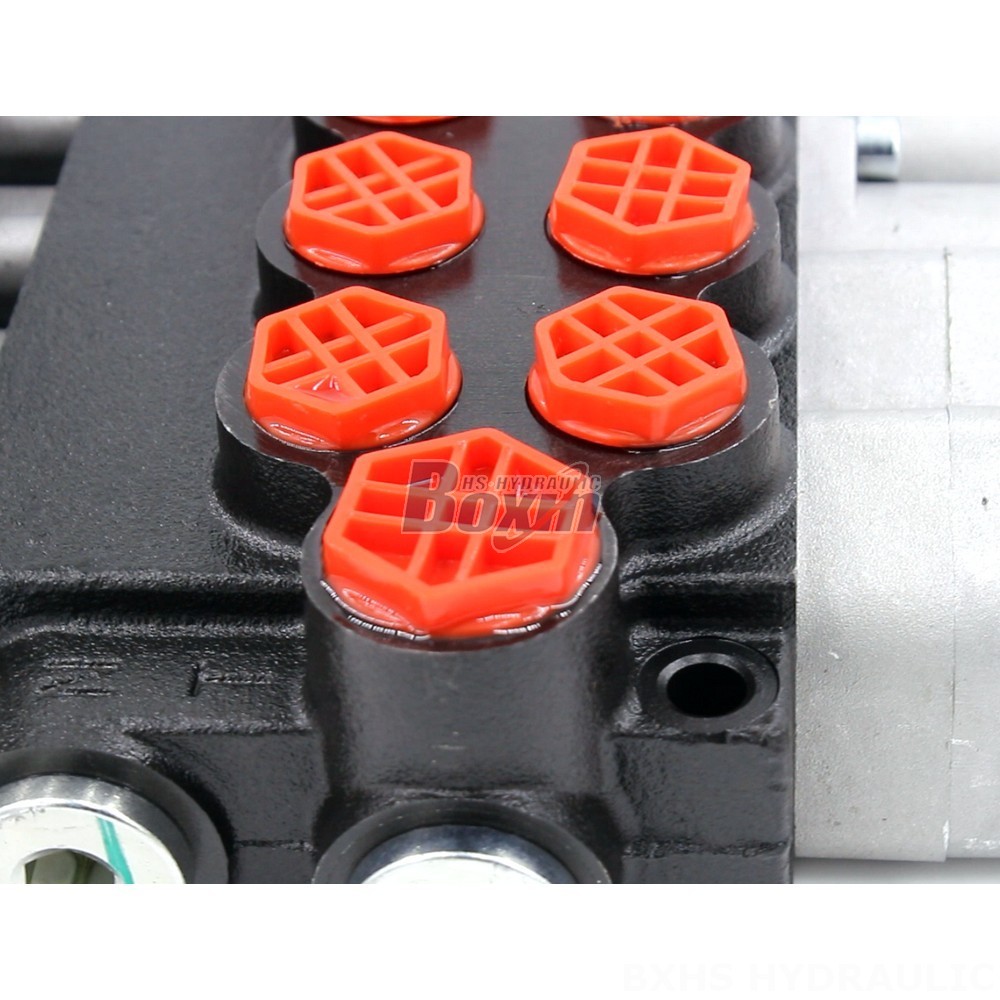

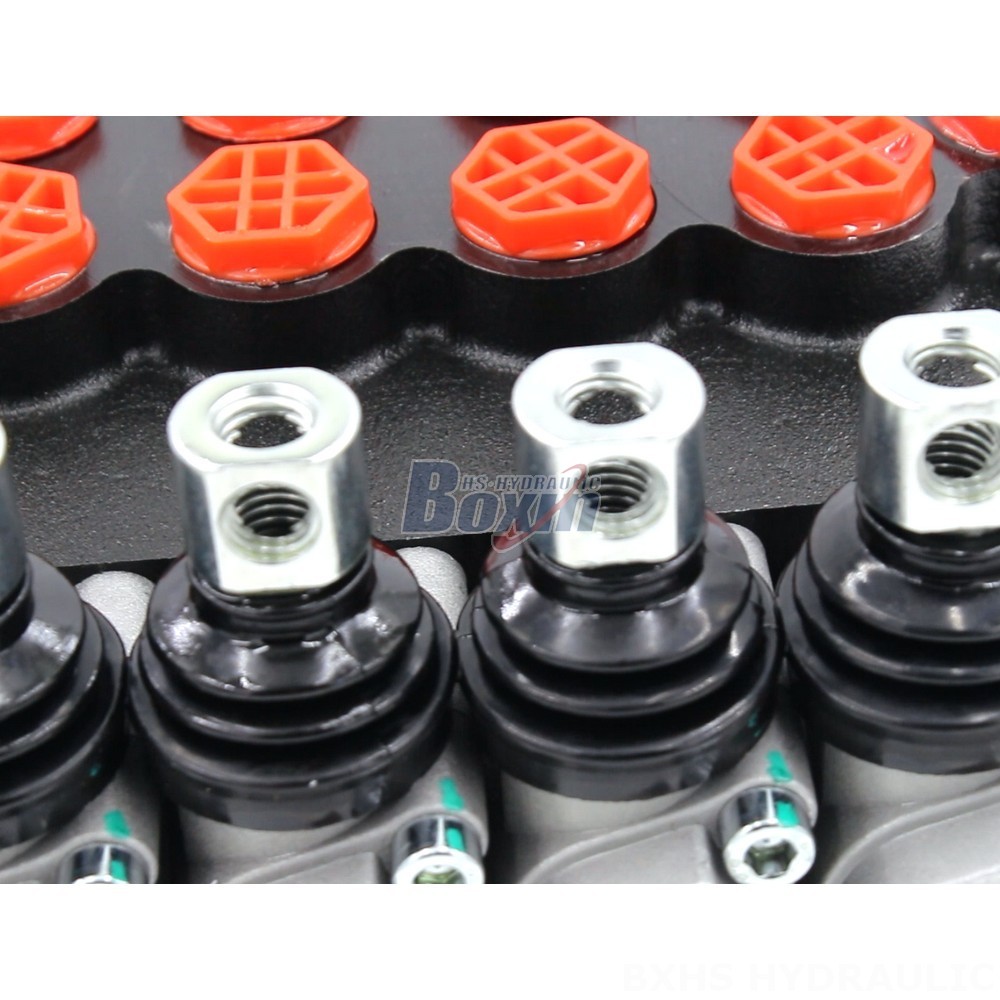

The P40-G12-G38 Hydraulic Valve is a robust and reliable 4-section, manually controlled monoblock valve designed for a wide range of industrial applications, including construction, material handling, agriculture, and industrial vehicles. It offers high performance and durability with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi).

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-G38 Hydraulic Valve is a premium choice for demanding applications. It features a robust monoblock construction with 4 sections, providing excellent control and responsiveness. The manual control method ensures precise operation and ease of use. This valve is designed to handle high flow rates up to 40 L/min (10.5 US gpm) and withstand pressures up to 250 bar (3600 psi). With its wide operating viscosity range (15-75 mm²/s) and ambient temperature range (-40°C to +80°C), the valve is suitable for a variety of environments. It is specifically designed for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. This makes it a versatile and reliable choice for a wide range of industrial equipment.
