P40-G12-G38 Hydraulic Valve | Wholesale Prices & Direct Factory Supply

Metode Kontrol:Buku Panduan

Spul:3 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:24*21*13

Kelas kotor:7.00 kg

Ketersediaan: Tersedia

1032 Pandangan Mencari Produk Ini

P40-G12-G38 Hydraulic Valve | Wholesale Prices & Direct Factory Supply

P40-G12-G38 Hydraulic Valve | Wholesale Prices & Direct Factory Supply

P40-G12-G38 Hydraulic Valve | Wholesale Prices & Direct Factory Supply drawing image

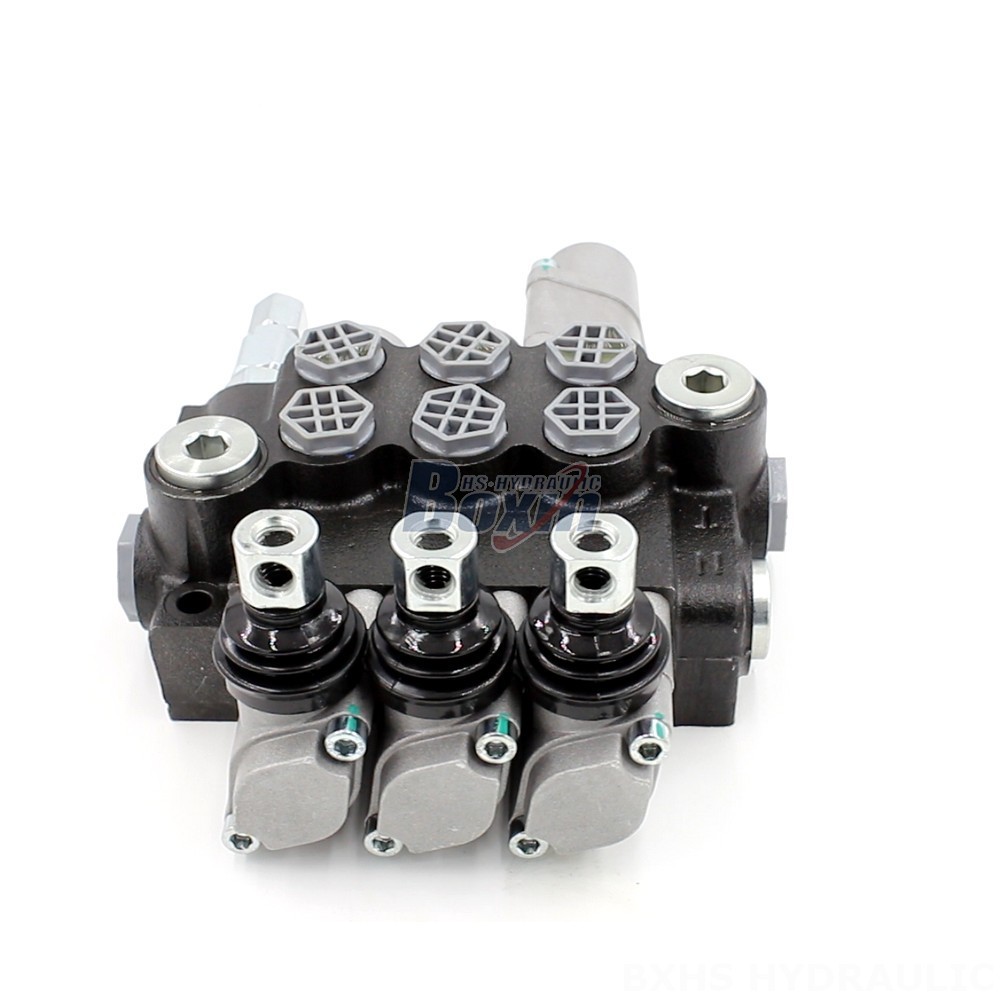

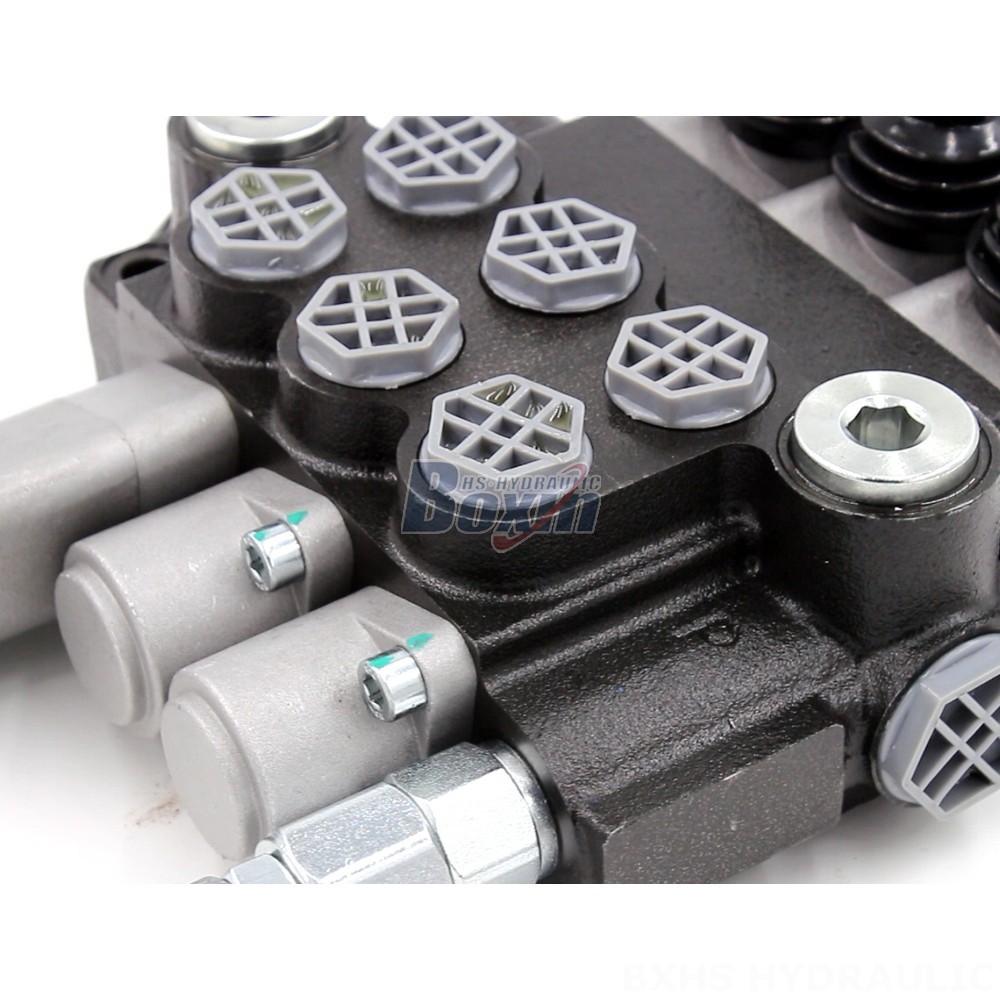

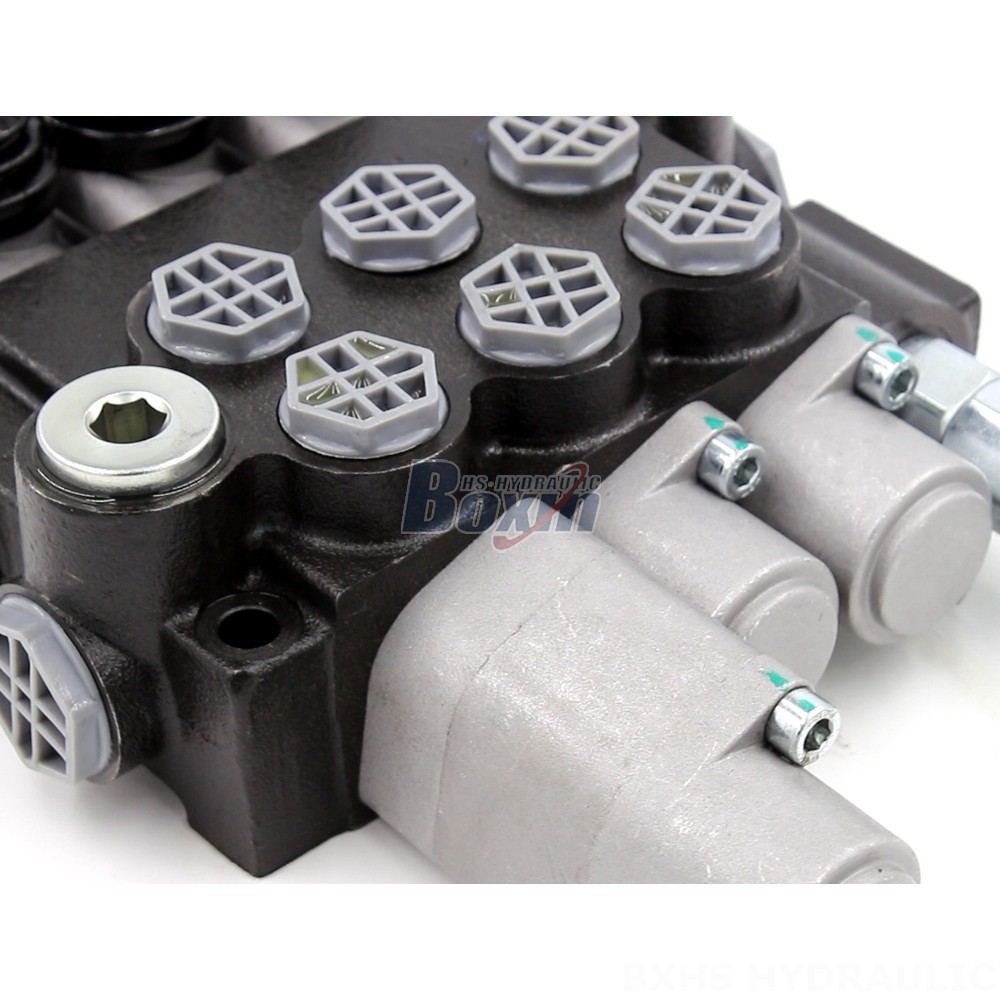

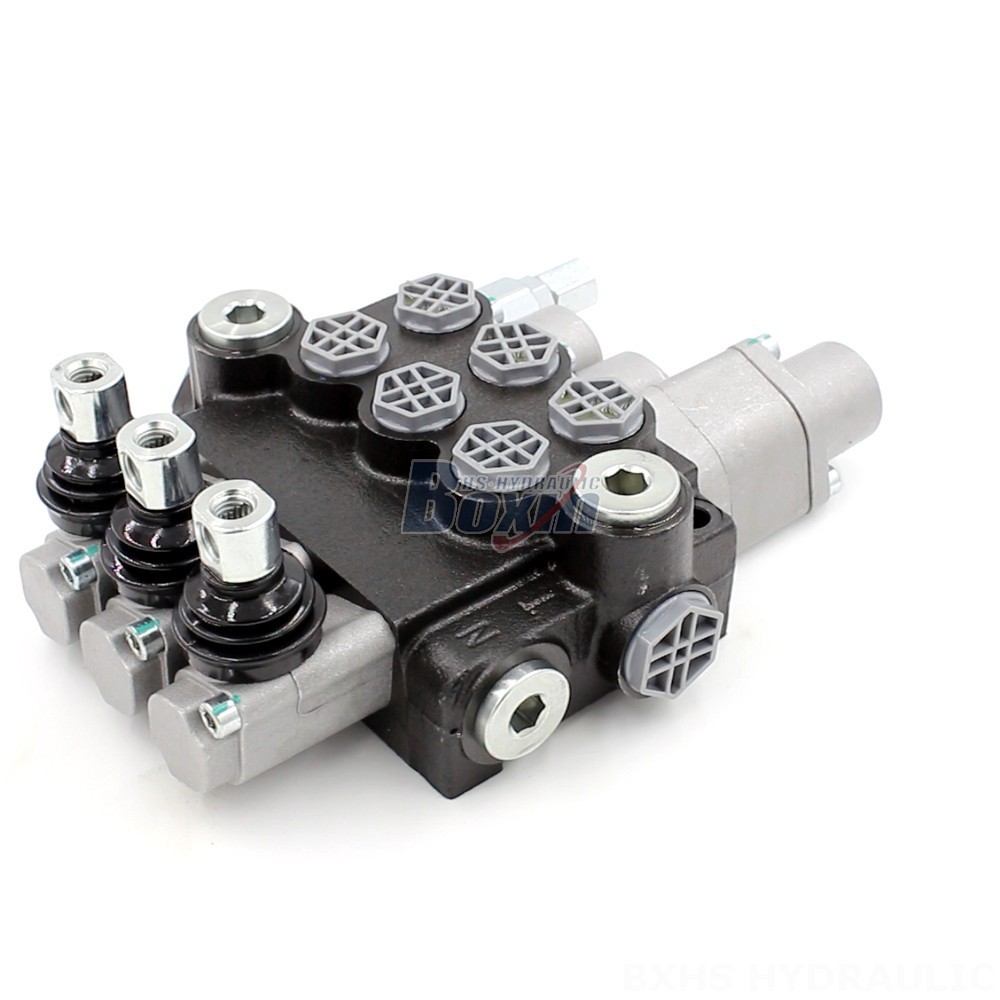

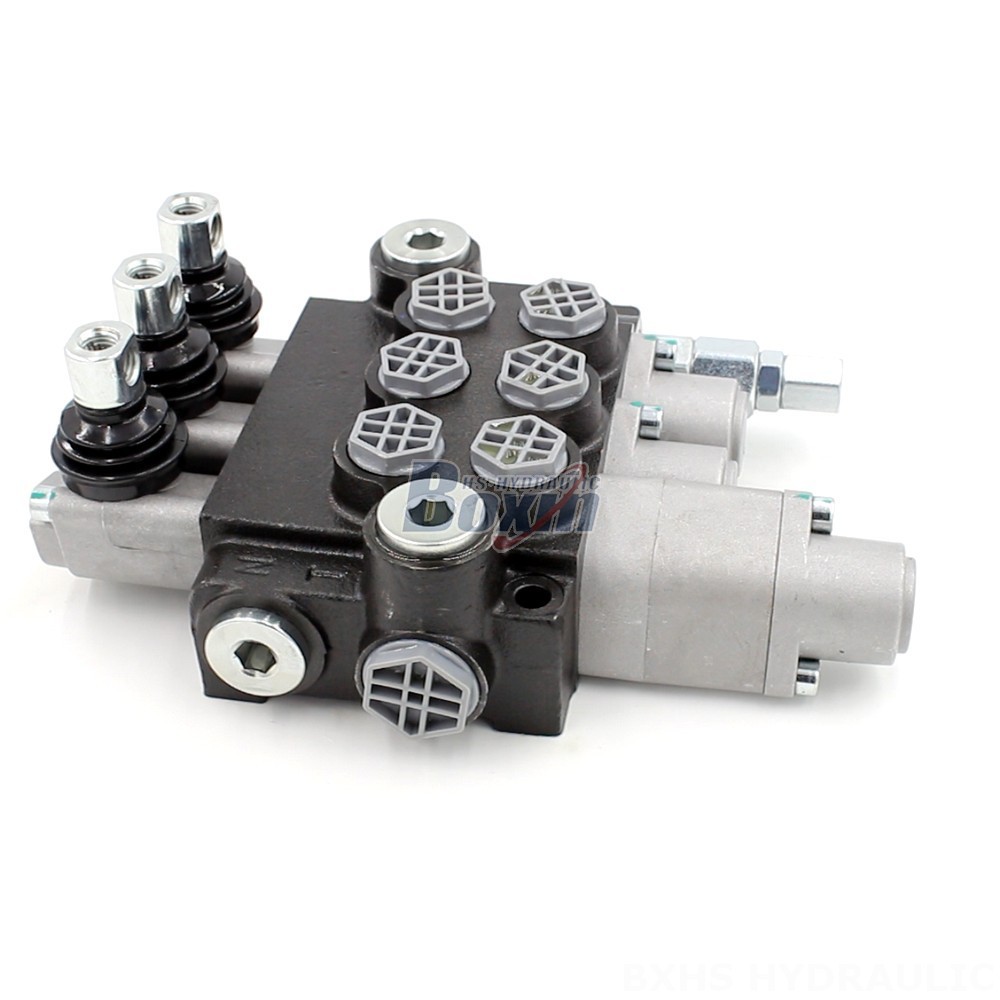

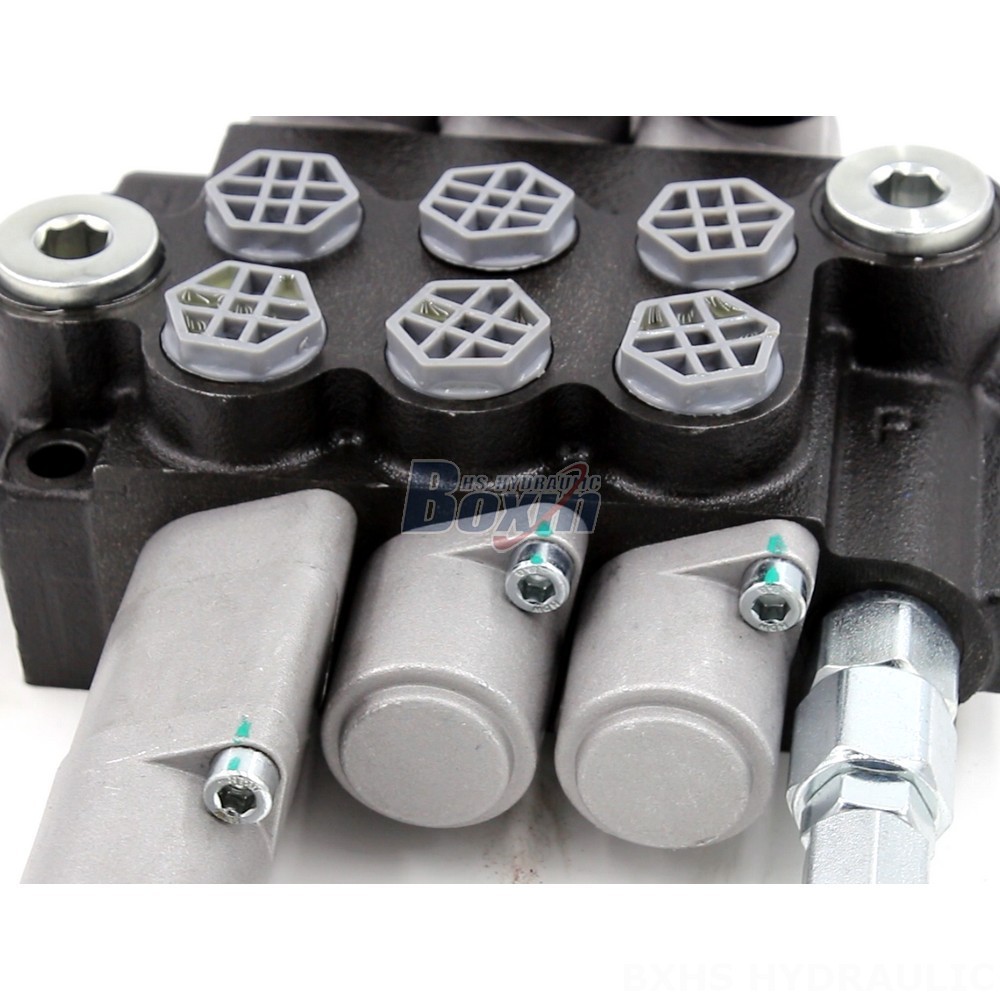

The P40-G12-G38 hydraulic valve is a 3-section, monoblock valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This manual valve offers reliable control and high flow rates, making it ideal for telehandlers, forklifts, excavators, loaders, and more. Available at wholesale prices with direct factory supply.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-G38 is a high-performance hydraulic valve from the P40 series, known for its durability and reliability. Featuring a 3-section, monoblock design, this valve offers exceptional control over hydraulic systems in various applications. With a maximum pressure rating of 250 bar (3600 psi) and a rated flow of 40 L/min (10.5 US gpm), this valve ensures smooth and efficient operation. Its robust construction allows for reliable performance across a wide temperature range (-40°C to +80°C/-40°F to +176°F). This versatile valve is compatible with various equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, midi-excavators, skid steer loaders, and compact wheel loaders. Directly sourced from the manufacturer, this valve is available at competitive wholesale prices, making it an ideal choice for businesses seeking high-quality hydraulic components at affordable prices.
