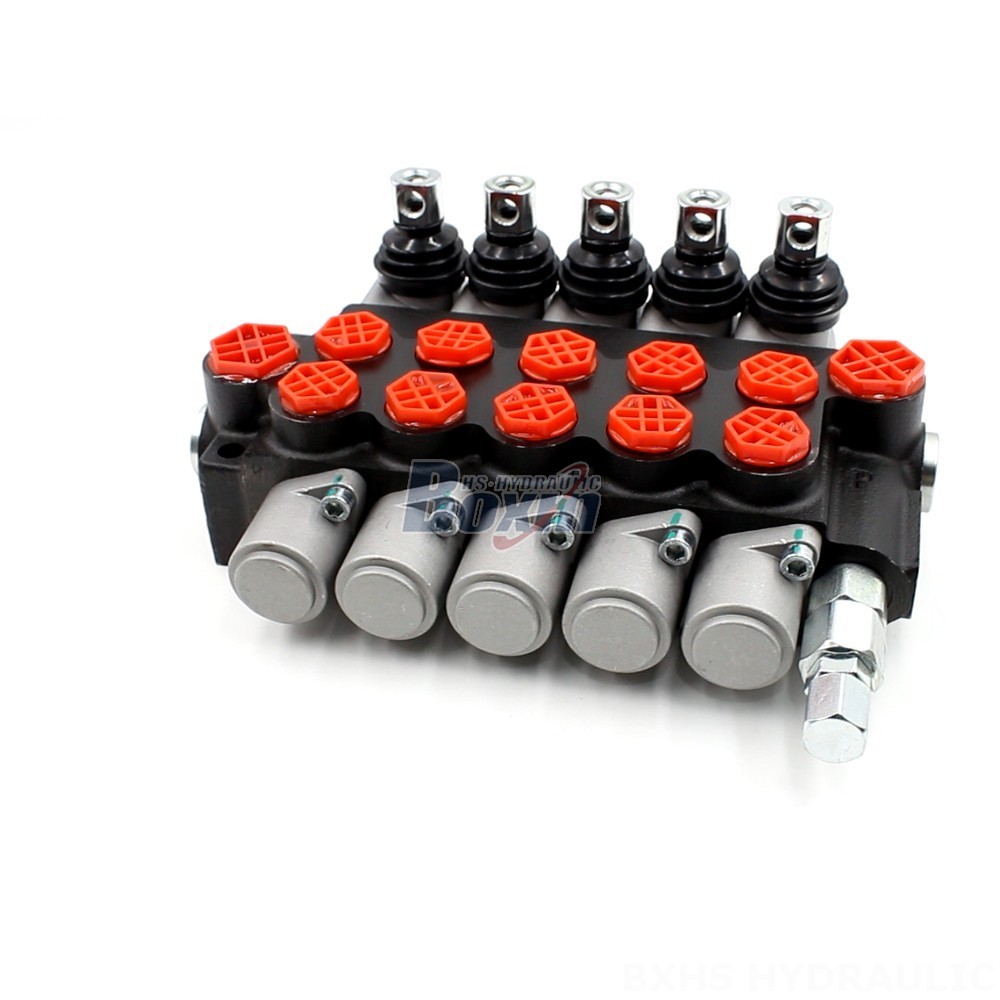

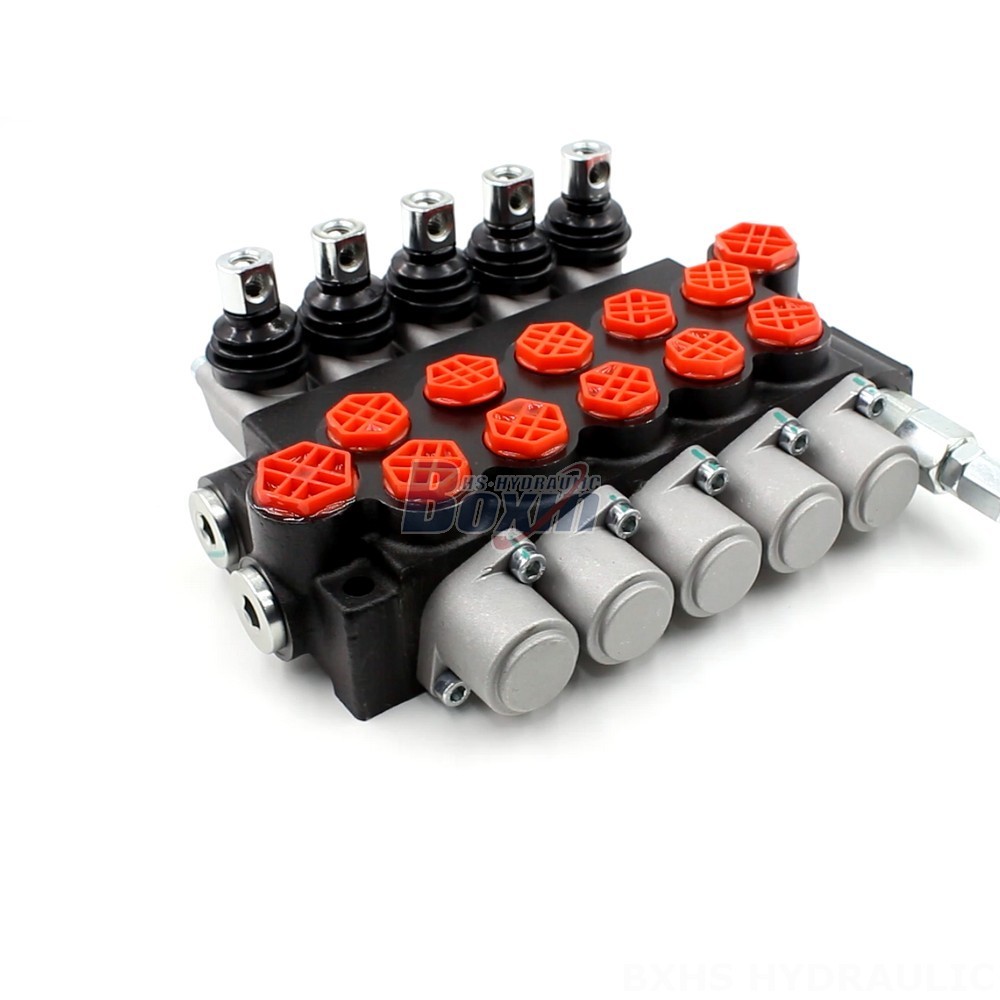

This P40 Series 5 Spool Manual Monoblock Directional Valve is a high-performance hydraulic component designed for use in a wide range of applications, including construction, agriculture, and material handling. It offers a rated flow of 40 L/min, a max pressure of 250 bar, and a robust design for reliable operation.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-G38 Manual 5 Spool Monoblock Directional Valve is a robust and reliable hydraulic component designed for demanding applications. Featuring a 5 section, manual control method, and a rated flow of 40 L/min, this valve is suitable for a wide range of machinery including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, and compact wheel loaders. It offers a maximum pressure of 250 bar and operates within a viscosity range of 15 - 75 mm²/s, ensuring consistent performance across diverse conditions. This valve is ideal for manufacturers and businesses seeking high-quality, durable hydraulic components for their equipment.
