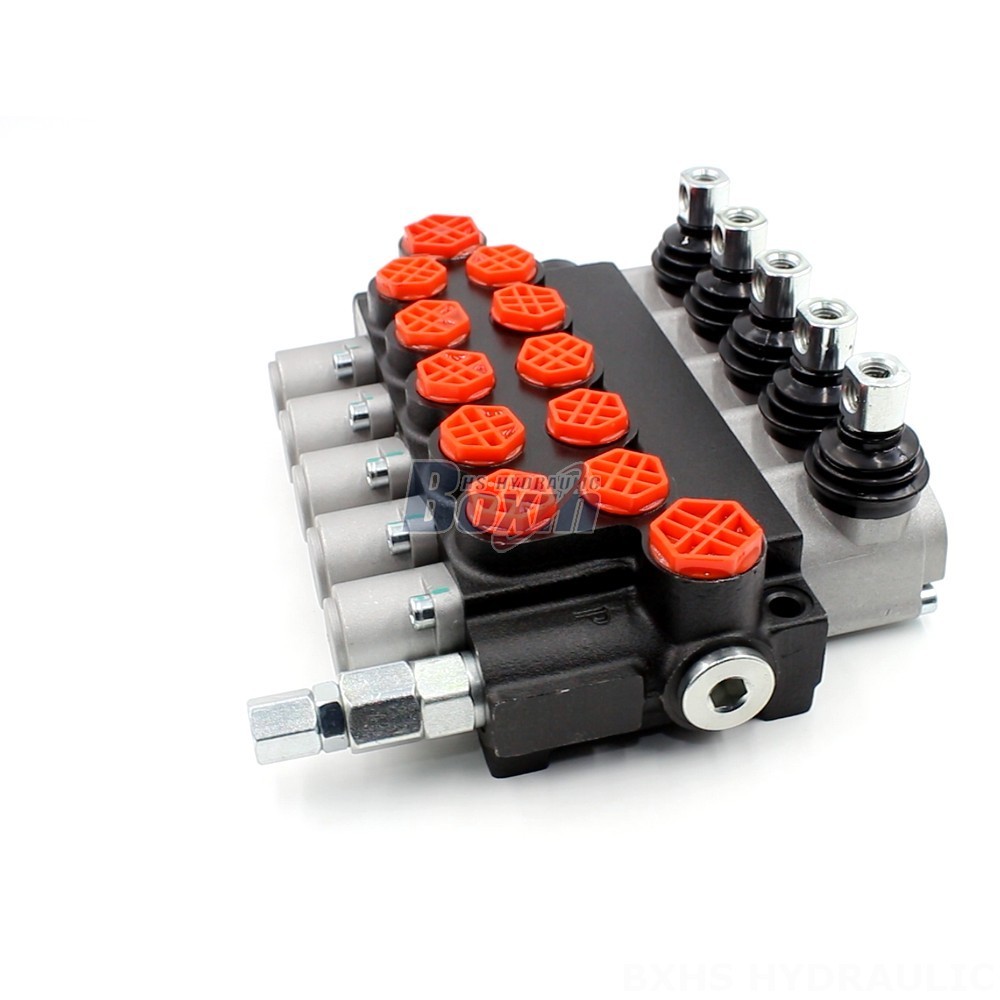

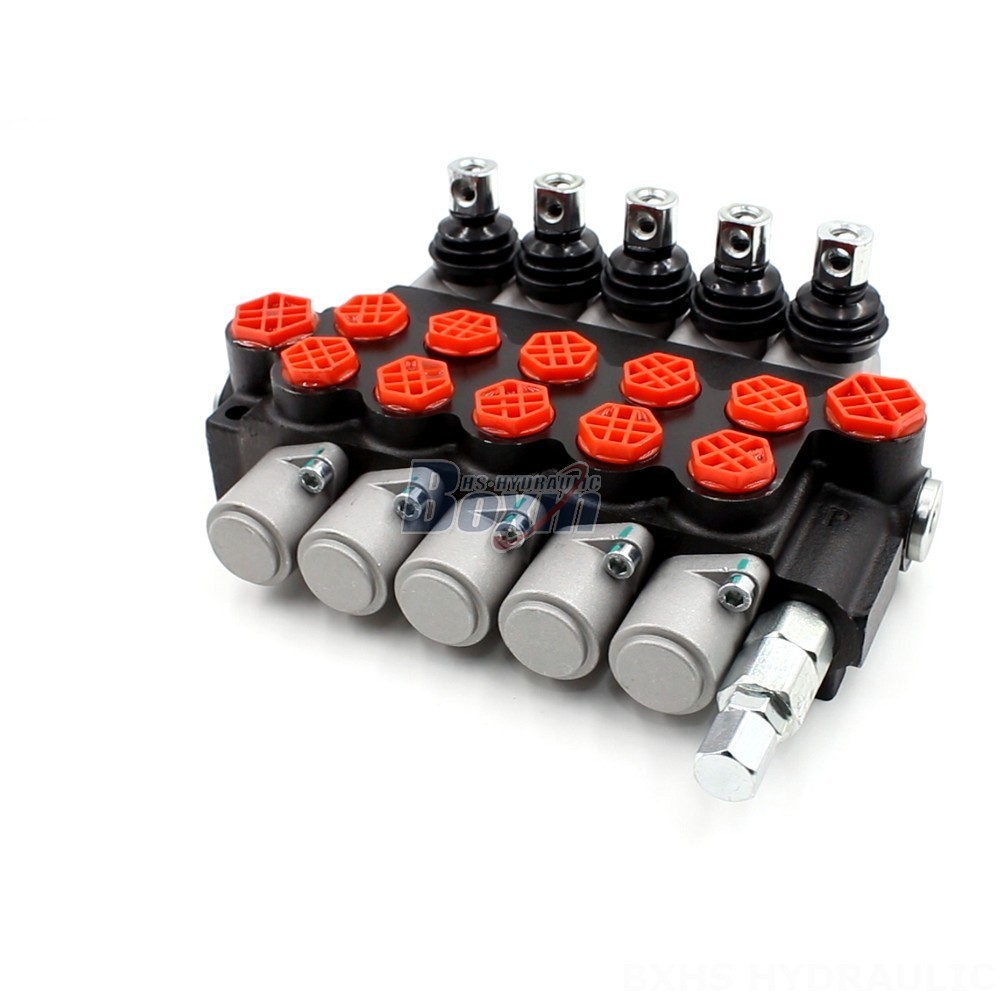

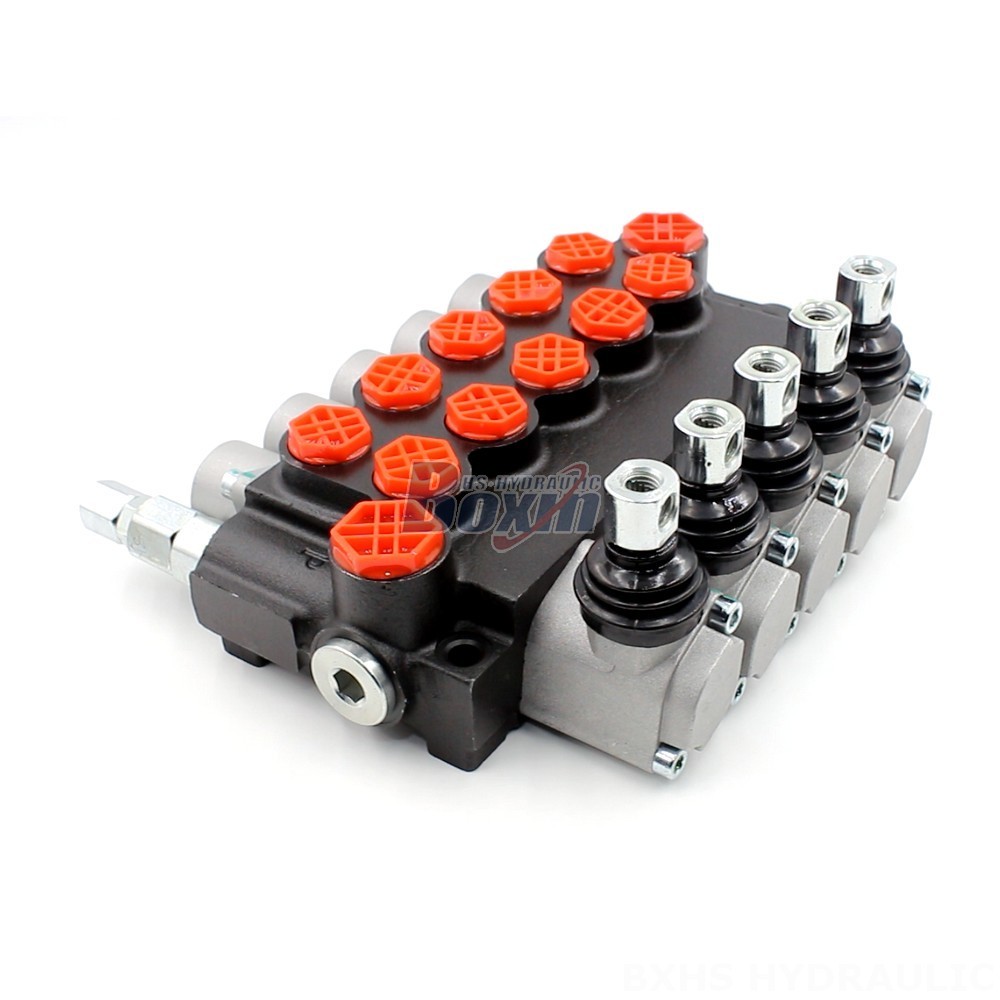

The P40-G12-G38 Manual Directional Control Valve is a versatile hydraulic component designed to control the flow of hydraulic fluid in a variety of industrial applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve offers reliable performance in demanding conditions.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Key Features of the P40-G12-G38 Manual Directional Control Valve:**
- **Manual control:** Allows for precise and responsive flow control.
- **Monoblock valve:** Compact and robust design for durability and reliability.
- **High flow capacity:** Rated flow of 40 L/min for efficient operation.
- **High pressure capability:** Maximum pressure of 250 bar for demanding applications.
- **5 section, 5 spool:** Versatile configuration for a wide range of control requirements.
- **Wide range of applications:** Suitable for material handling, construction, agriculture, and industrial vehicles.
- **OEM, ODM, and Private Label services:** Available to meet specific customer requirements and branding needs.
- **Distribution and wholesale opportunities:** Open to partnering with distributors, wholesalers, and agents for global market reach.
