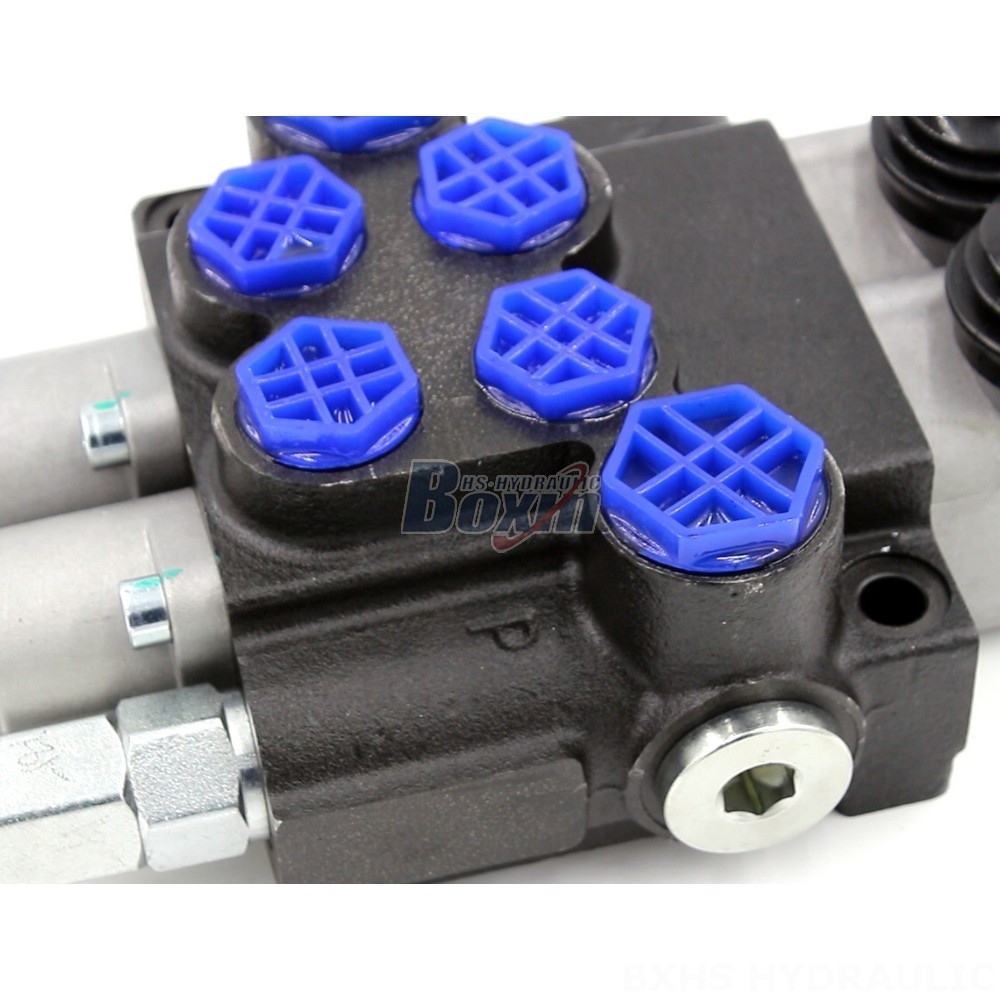

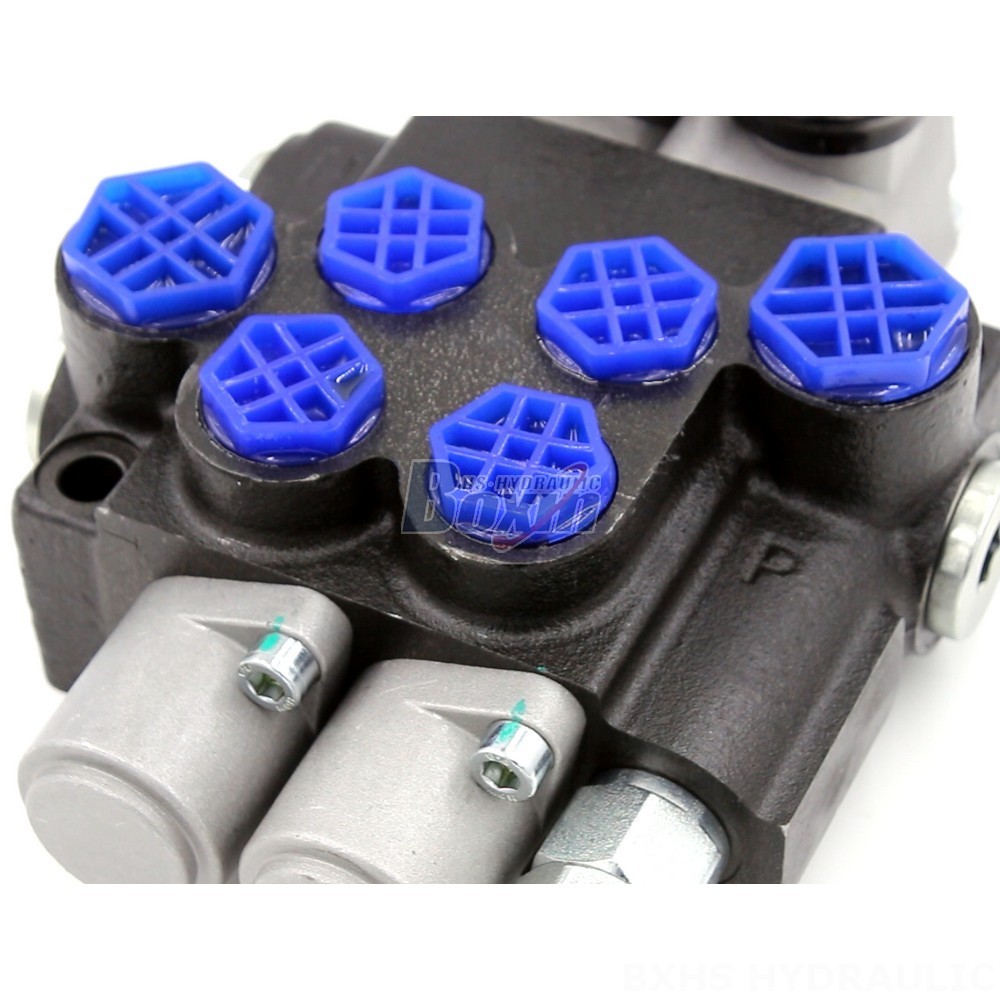

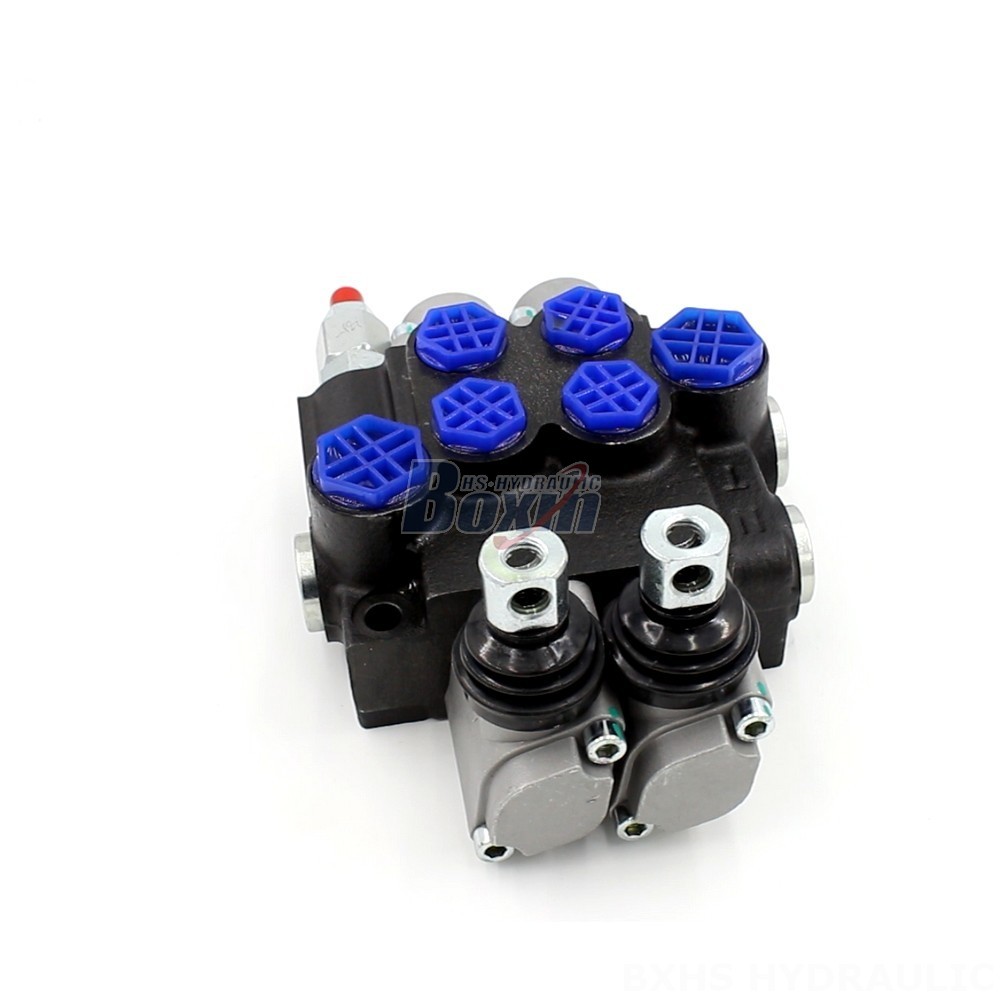

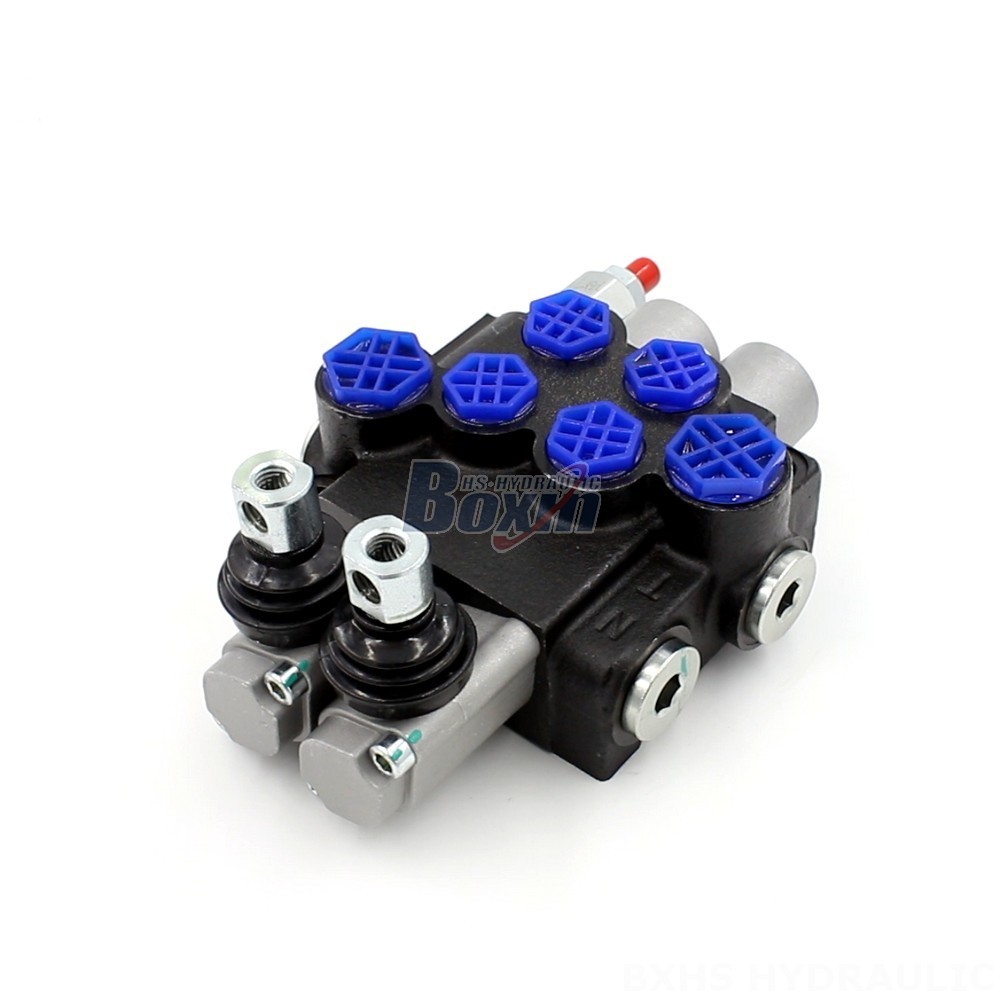

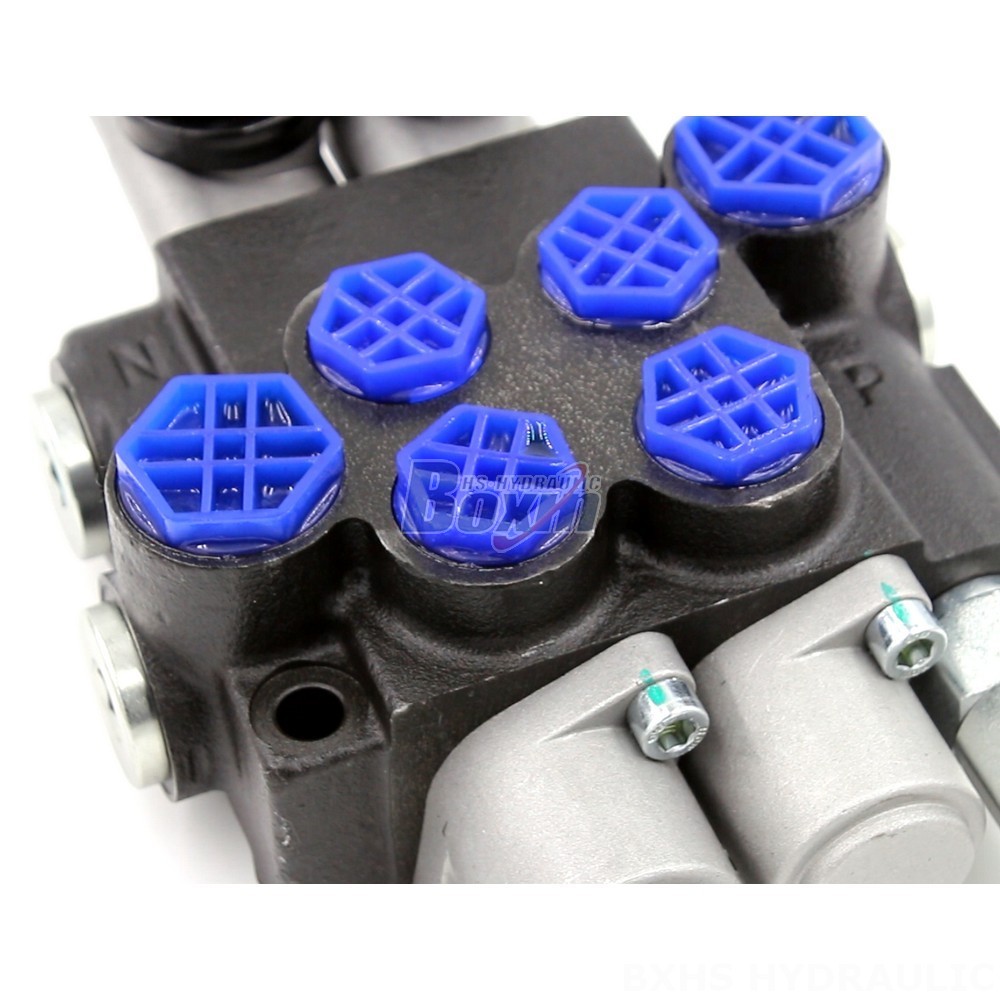

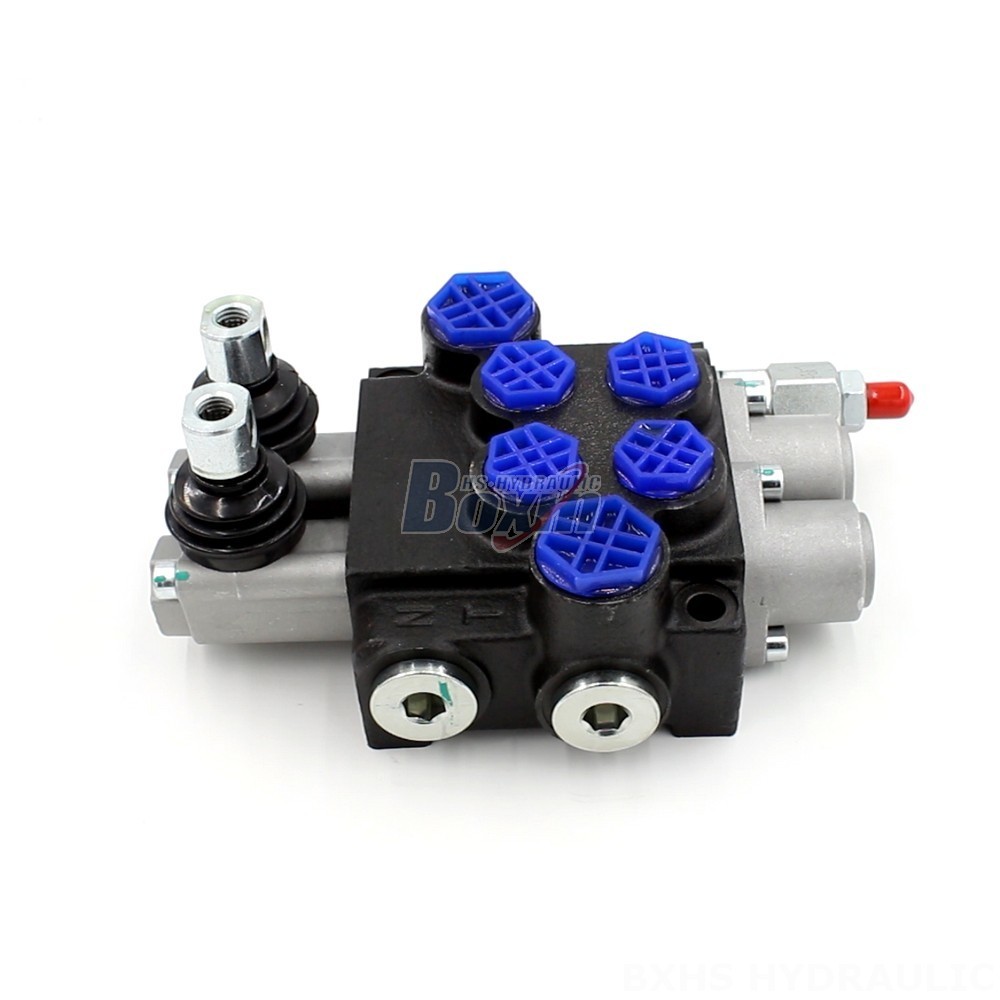

P40-G12-G38-OT 2-Spool Directional Valve | Factory Direct & Customizable

Metode Kontrol:Buku Panduan

Spul:2 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:23*18*13

Kelas kotor:5.50 kg

Ketersediaan: Tersedia

1068 Pandangan Mencari Produk Ini

P40-G12-G38-OT 2-Spool Directional Valve | Factory Direct & Customizable

P40-G12-G38-OT 2-Spool Directional Valve | Factory Direct & Customizable

P40-G12-G38-OT 2-Spool Directional Valve | Factory Direct & Customizable drawing image

The Steering Unit P40-G12-G38-OT 2-Spool Directional Valve is a robust and reliable hydraulic valve designed for a variety of applications in material handling, construction, agriculture, and industrial vehicles. This monoblock valve features manual control, a 40 L/min rated flow, and a maximum pressure of 250 bar, making it suitable for demanding operating conditions. Available for factory direct purchase and customization, this valve is perfect for OEM and ODM needs.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-G38-OT 2-Spool Directional Valve is a high-performance hydraulic component designed for precise steering control in various applications. This 2-section monoblock valve features a manual control method, providing operators with direct control over the steering system. With a rated flow of 40 L/min and a maximum pressure of 250 bar, the valve is capable of handling demanding workloads. Its wide operating viscosity range of 15 - 75 mm²/s ensures optimal performance across different operating temperatures. The valve's durable construction and robust design allow it to withstand harsh environments and demanding operating conditions. The P40 Series valve is ideal for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, and other industrial vehicles. This versatile valve is available for factory direct purchase and offers customization options to meet specific requirements. As a manufacturer, we provide OEM and ODM services, offering wholesale pricing for bulk orders. We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
