Produksi & Pengiriman
Waktu Produksi 15-30 Hari
964 Pandangan Mencari Produk Ini

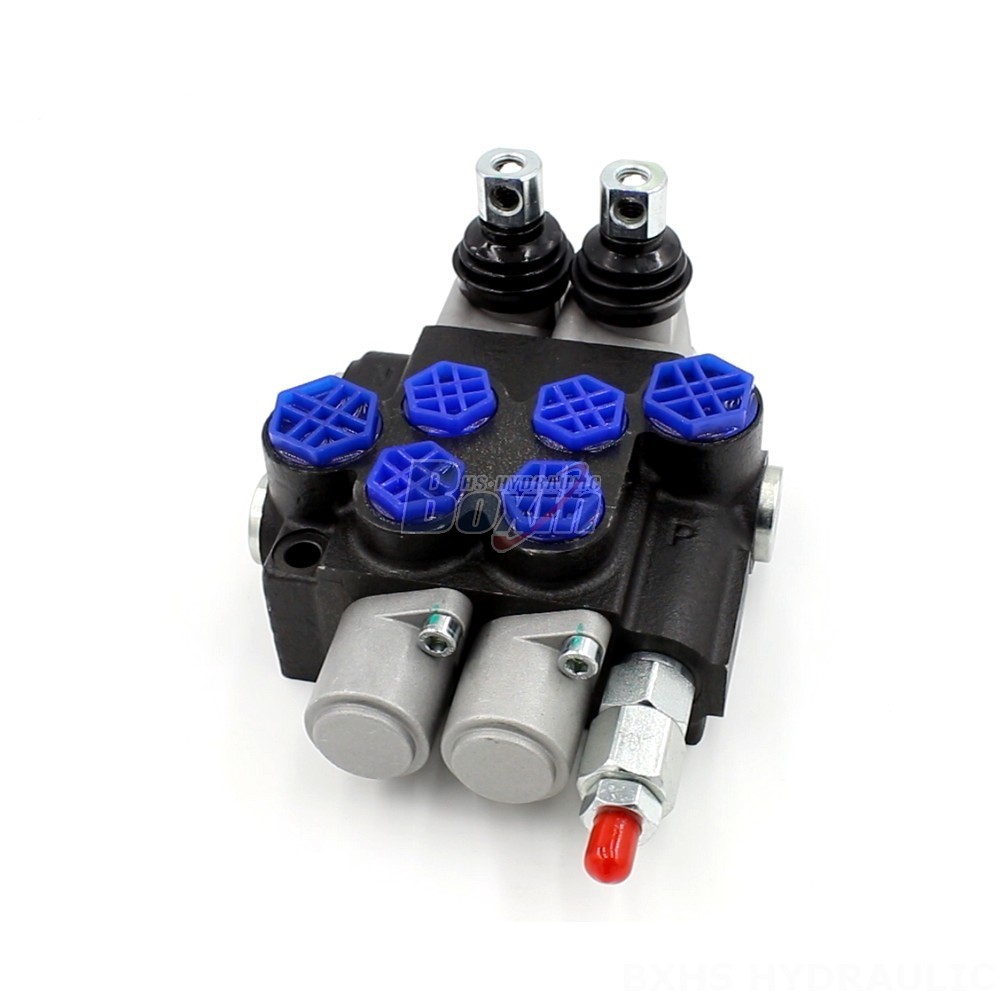

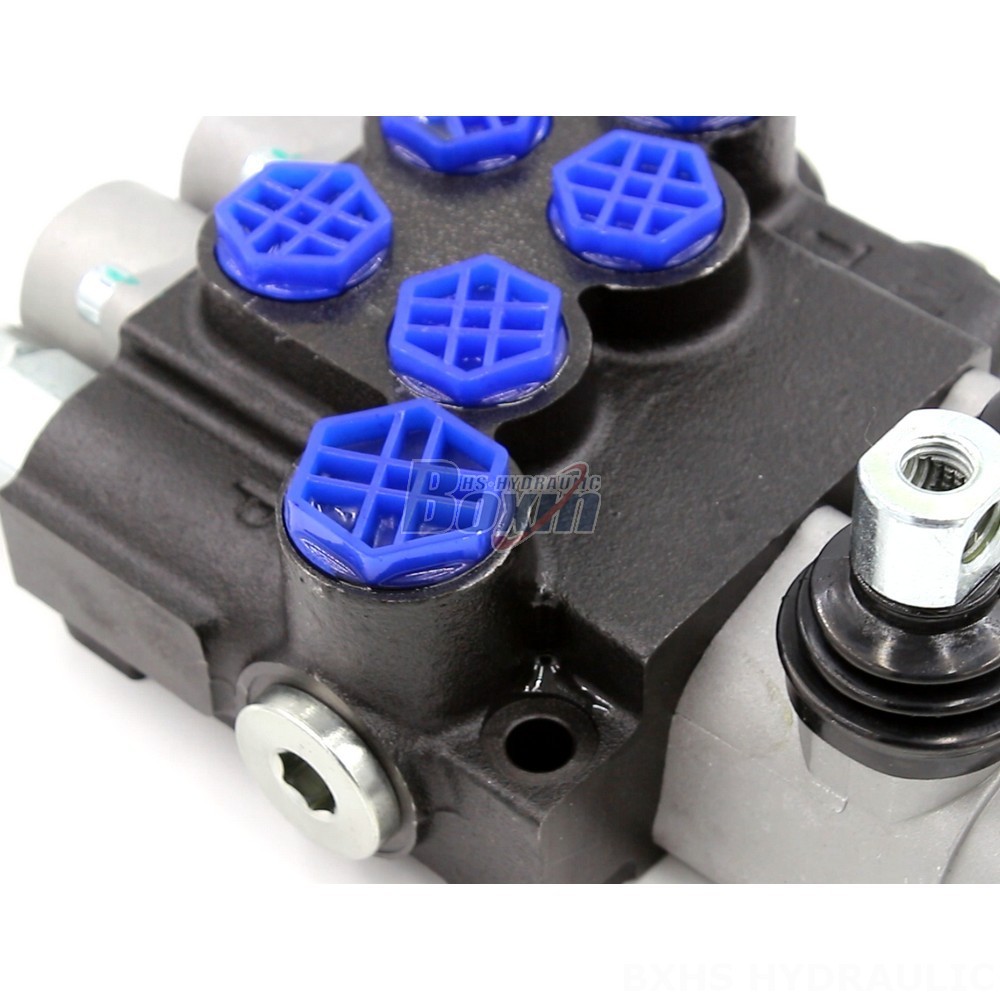

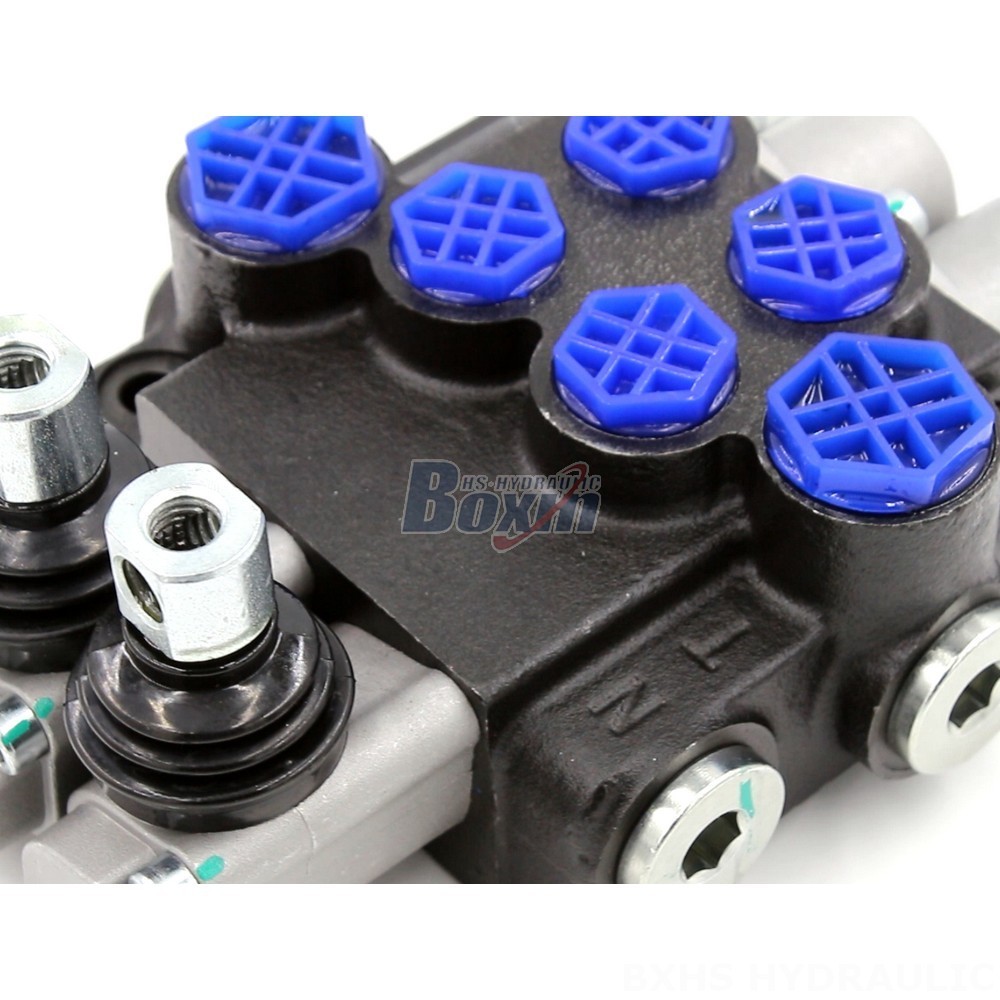

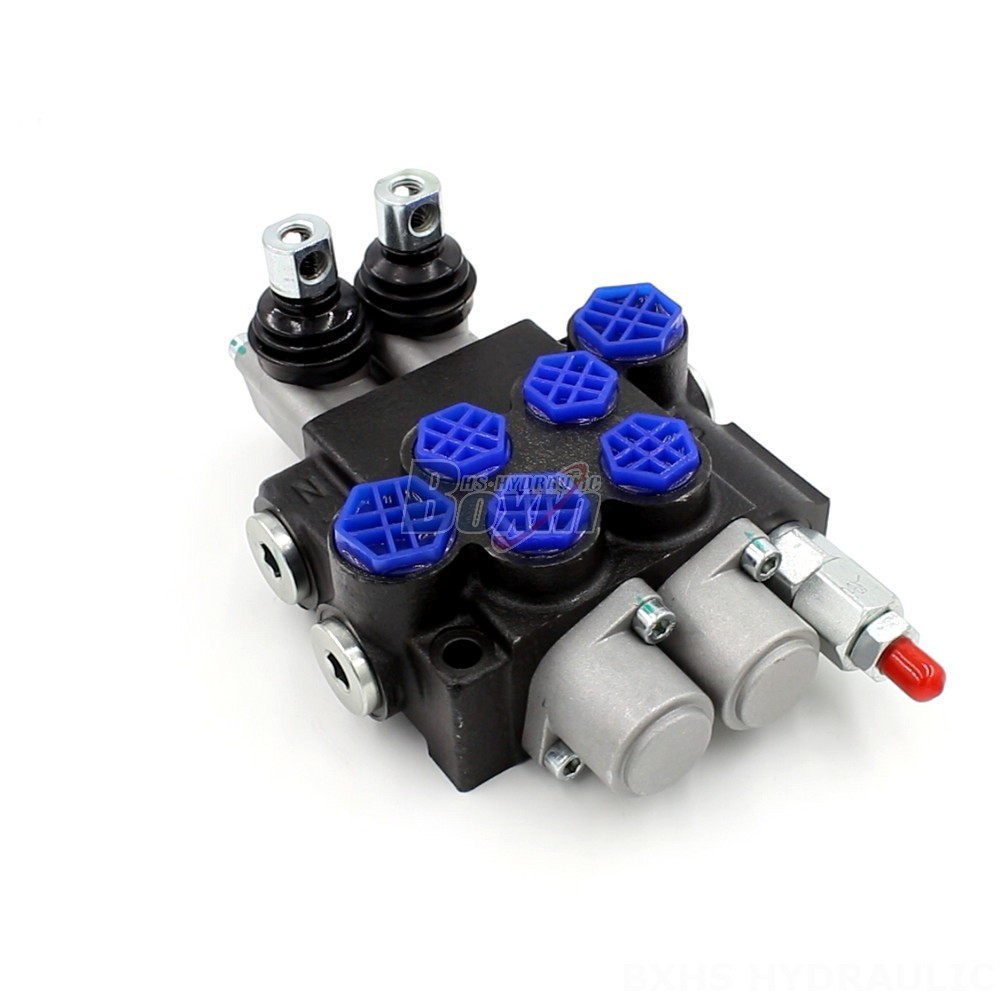

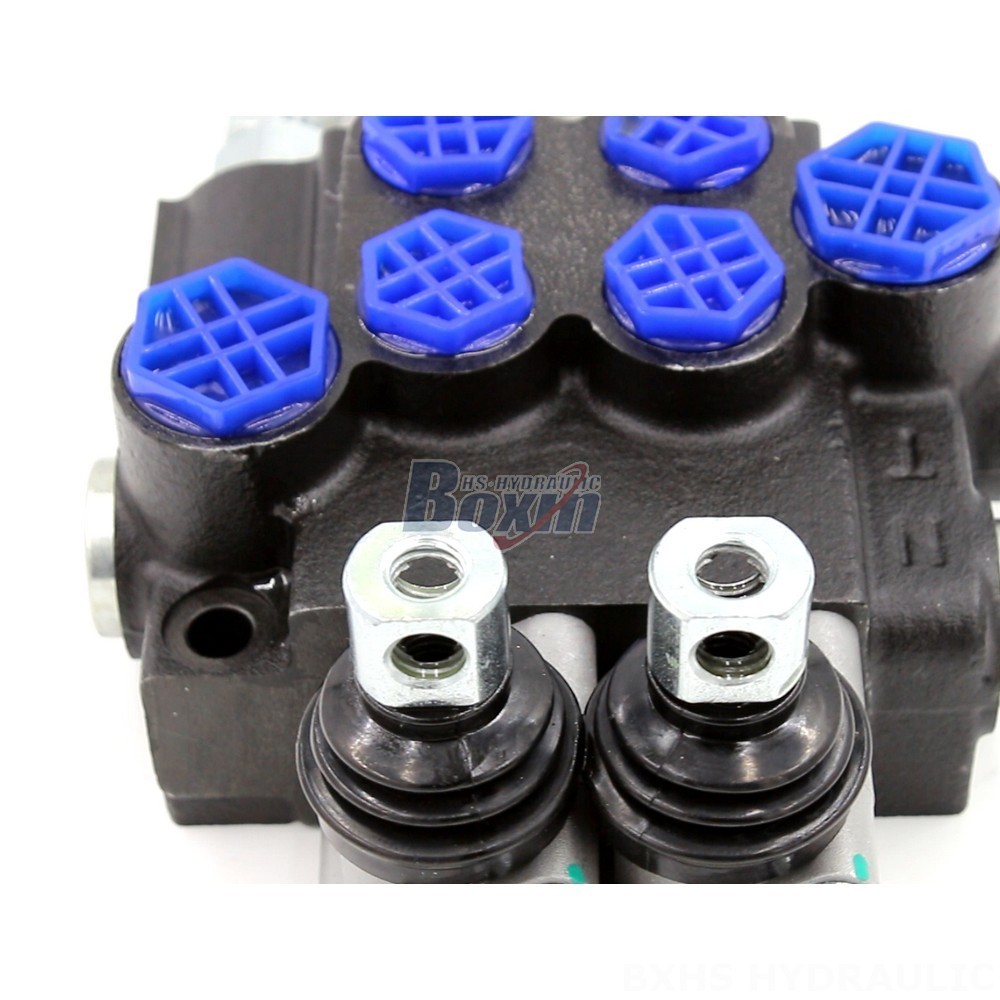

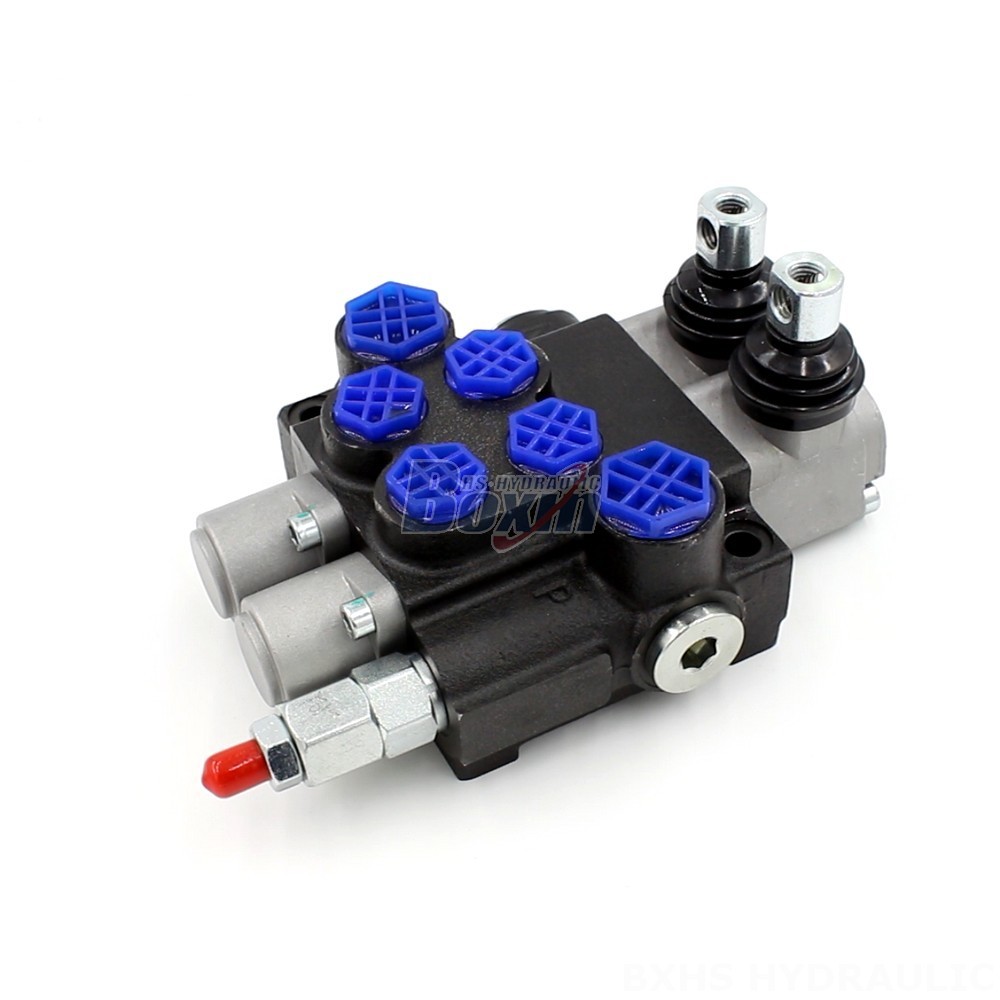

Introducing the P40-G12-G38-OT Monoblock Directional Valve, a high-performance hydraulic component designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles. With its advanced engineering and robust construction, this valve delivers exceptional flow rates of up to 40 L/min (10.5 US gpm) and can withstand pressures of up to 250 bar (3600 psi). The P40-G12-G38-OT features a compact monoblock design and utilizes a 2-section, 2-spool configuration for precise and efficient flow control. Its wide operating viscosity range (15 - 75 mm²/s) and temperature tolerance (-40°C to +80°C) ensure reliable performance in diverse operating environments.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40-G12-G38-OT Monoblock Directional Valve: Factory Direct Supply & Wholesale Pricing**
**Product Specifications:**
- Control Method: Manual
- Section: 2 Section
- Structure Type: Monoblock valve
- Rated Flow: 40 L/min (10.5 US gpm)
- Max Pressure: 250 bar (3600 psi)
- Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
- Spool: 2 Spool
- Series: P40 Series
- Application Area: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
- Applicable Model: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER
**Features and Benefits:**
- High flow capacity and pressure tolerance for demanding applications
- Monoblock design for compact installation and reduced leakage potential
- Precision flow control with 2-section, 2-spool configuration
- Wide operating viscosity range and temperature tolerance for versatility
- Durable construction for long-lasting performance
- Factory direct supply and wholesale pricing for cost-effective solutions
As a leading manufacturer of hydraulic products, we offer a comprehensive range of directional valves, including the P40-G12-G38-OT Monoblock Directional Valve. Our commitment to quality and customer satisfaction ensures that you receive high-performance products at competitive prices.
Contact us today to discuss your specific requirements and experience the benefits of factory-direct supply and wholesale pricing.
