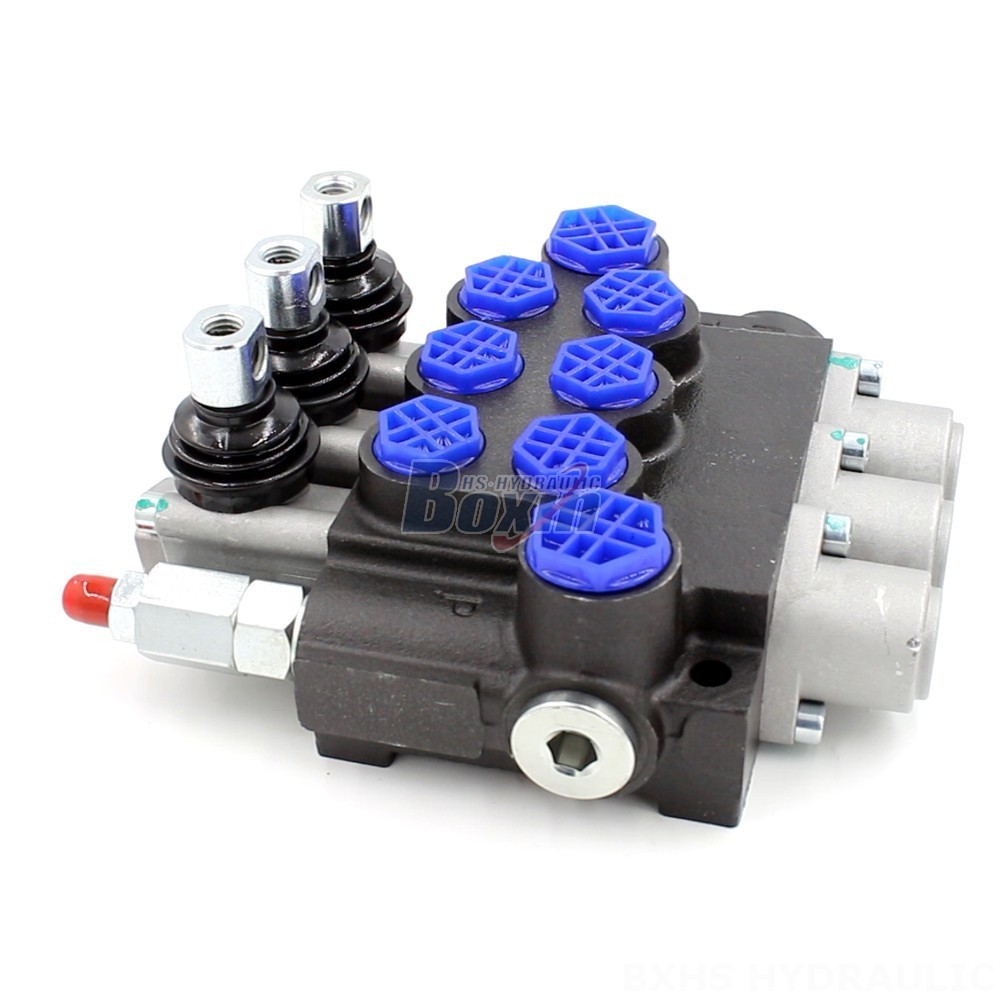

The P40-G12-G38-OT Monoblock Valve is a high-performance hydraulic valve designed for use in a wide range of applications. It features a durable and efficient design, with a rated flow of 40 L/min and a maximum pressure of 250 bar. The valve is suitable for use with a variety of fluids, including hydraulic oil, and has an operating viscosity range of 15 - 75 mm²/s. The valve is also temperature resistant, with an ambient temperature range of -40°C to +80°C.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-G38-OT Monoblock Valve is a 3-section, 3-spool valve that is ideal for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. The valve is designed to control the flow of hydraulic fluid in a system, and can be used to direct the fluid to different parts of the system. The valve is made from high-quality materials and is built to last. It is also easy to install and maintain.
**Key Features:**
* Durable and efficient design
* Rated flow of 40 L/min
* Maximum pressure of 250 bar
* Operating viscosity range of 15 - 75 mm²/s
* Ambient temperature range of -40°C to +80°C
* 3-section, 3-spool valve
* Suitable for use with a variety of fluids
* Easy to install and maintain
