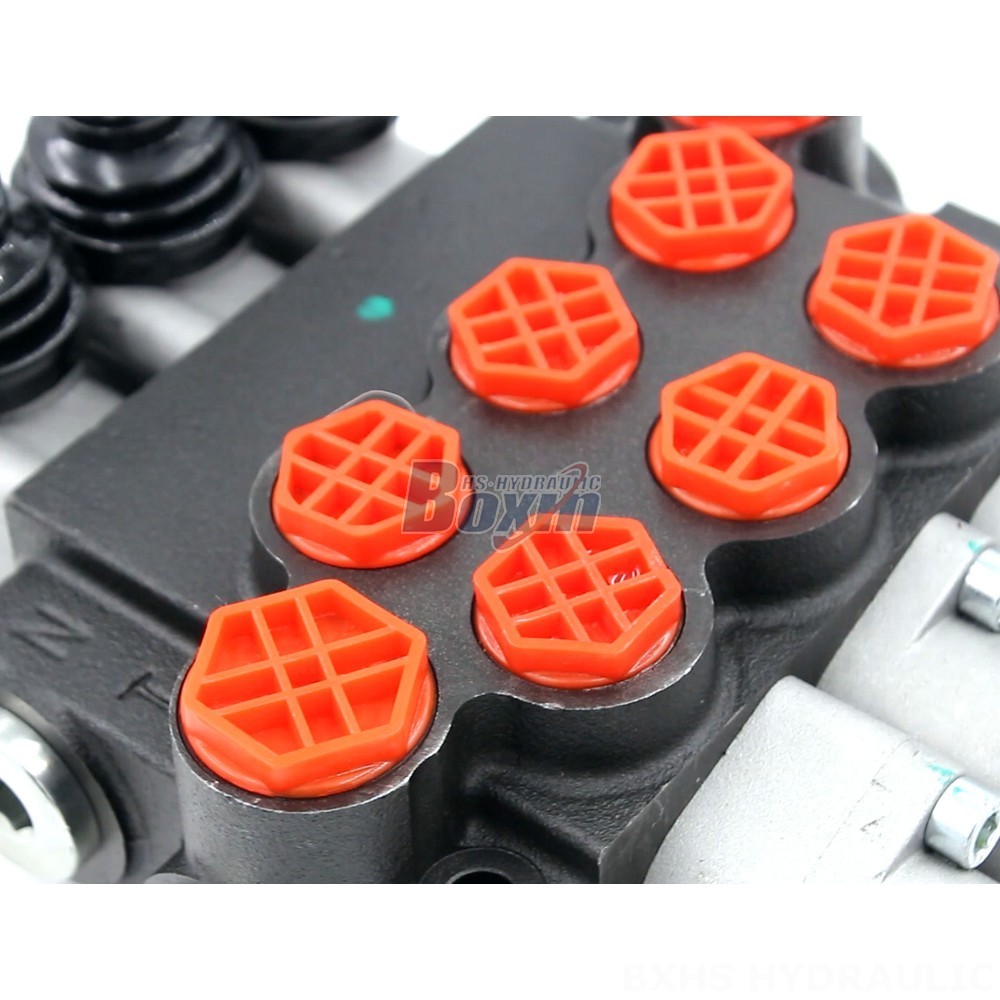

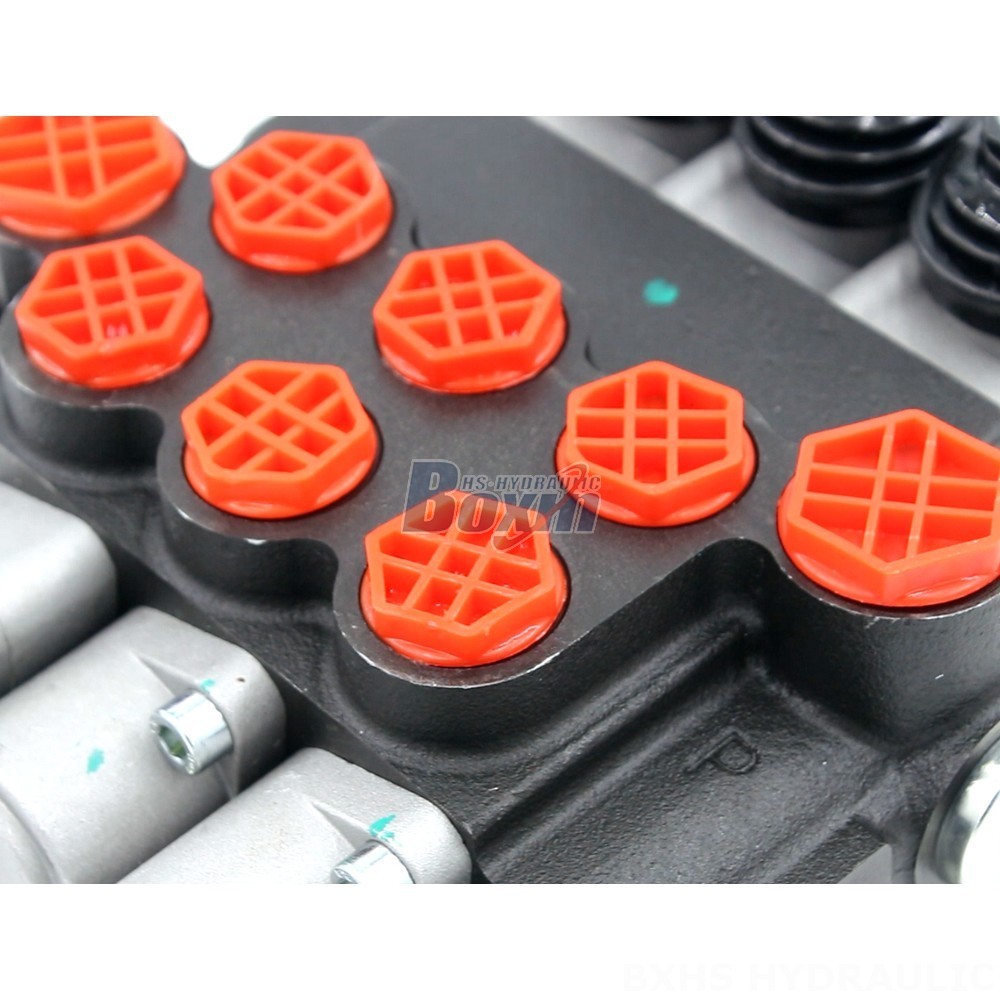

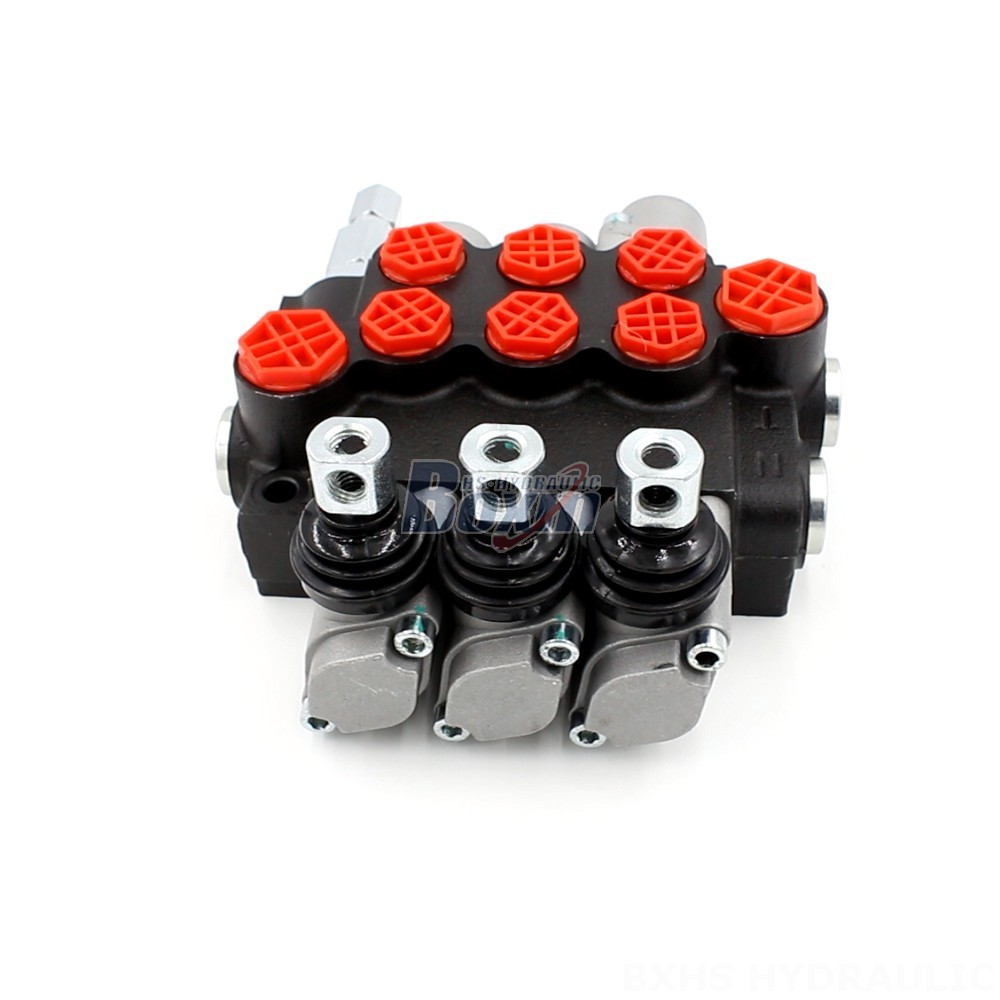

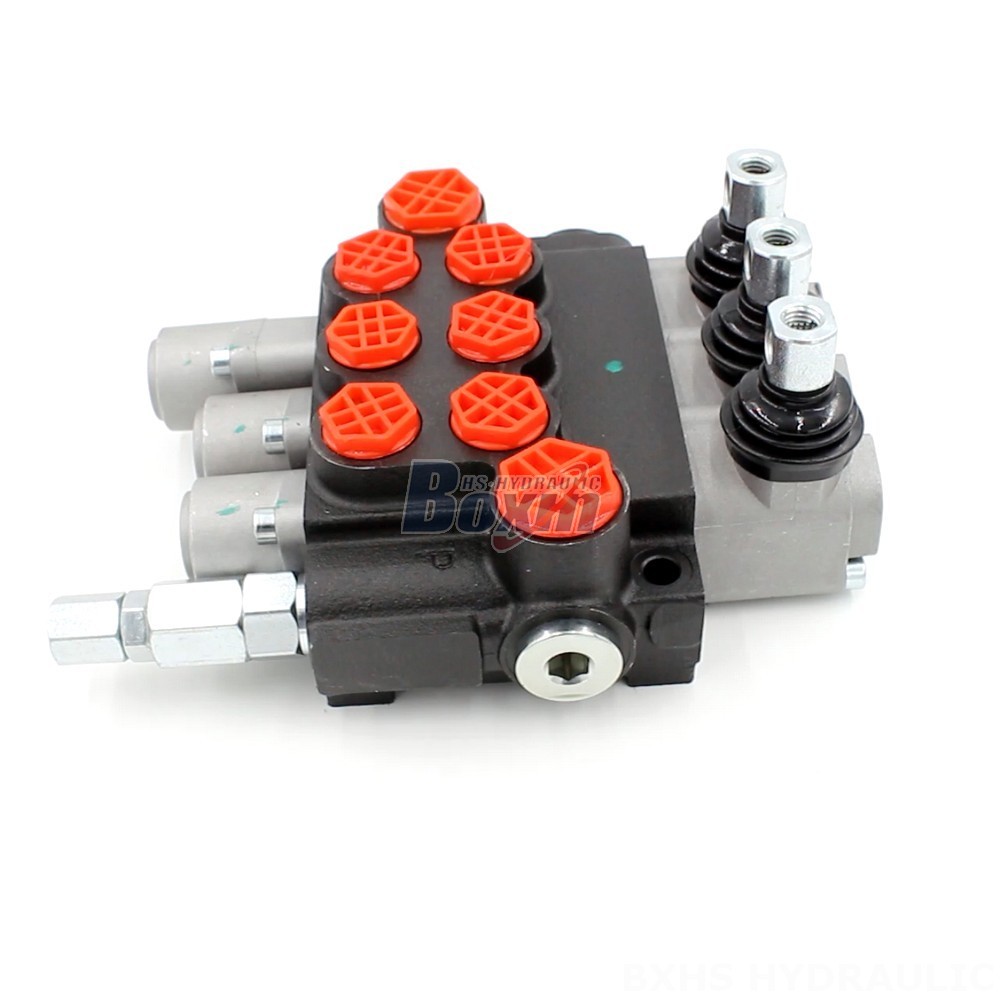

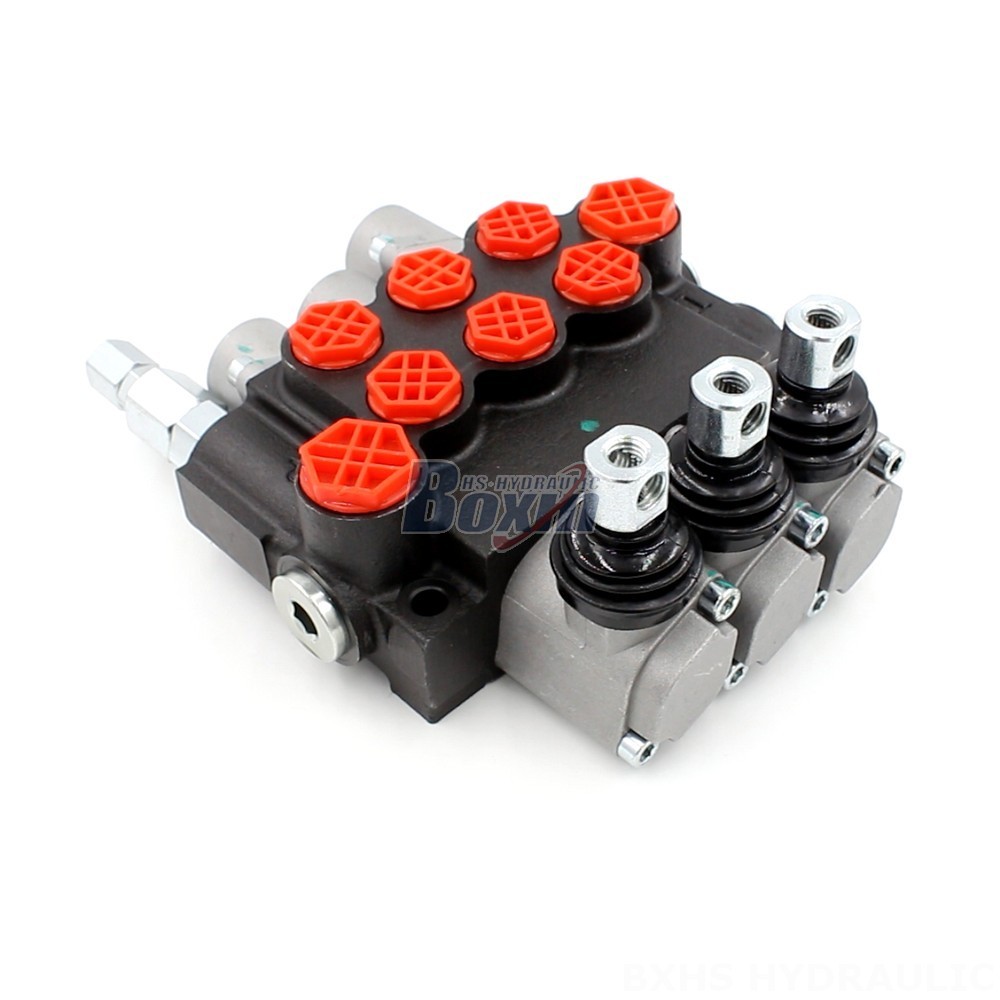

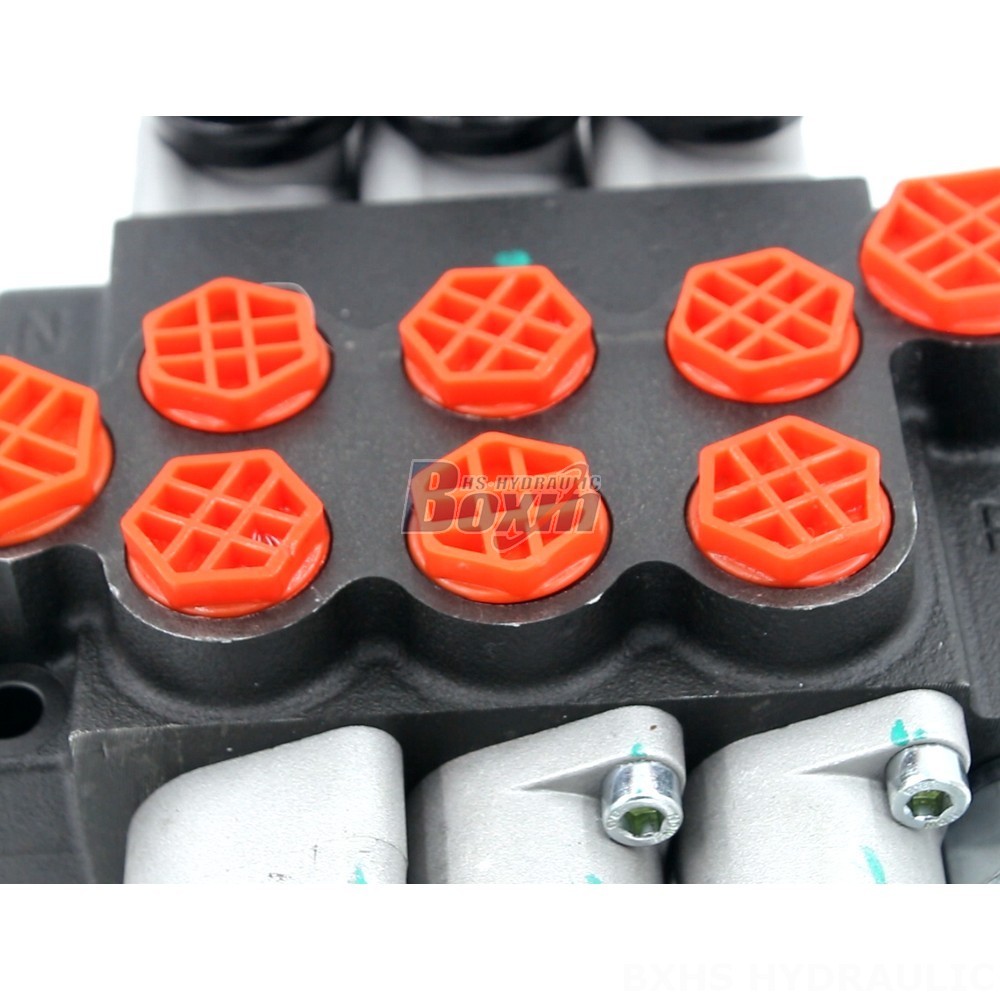

The P40-G12-G38-OT-OT-OT Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in various industrial and mobile applications. It features a compact and robust monoblock construction, ensuring reliability and durability in demanding operating conditions.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Key Features:**
* Manual control for precise operation
* Three spool design for versatile flow control
* Monoblock construction for compact and leak-free performance
* Rated flow capacity of 40 L/min (10.5 US gpm)
* Maximum pressure rating of 250 bar (3600 psi)
* Operating viscosity range from 15 to 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range from -40°C to +80°C (-40°F to +176°F)
**Applications:**
* Material handling equipment (e.g., forklifts, telehandlers)
* Construction and earth moving machinery (e.g., excavators, loaders)
* Agricultural machinery (e.g., tractors, harvesters)
This valve is part of the P40 Series, which offers a wide range of directional valves with varying spool configurations, flow capacities, and pressure ratings to meet the specific requirements of various hydraulic systems.
