Our P40-G12-G38-OT-QTW 2-Spool Hydraulic Directional Valve is a high-performance valve designed for various industrial applications, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve offers precise control and durability. The manual and joystick control options provide versatility and ease of use.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

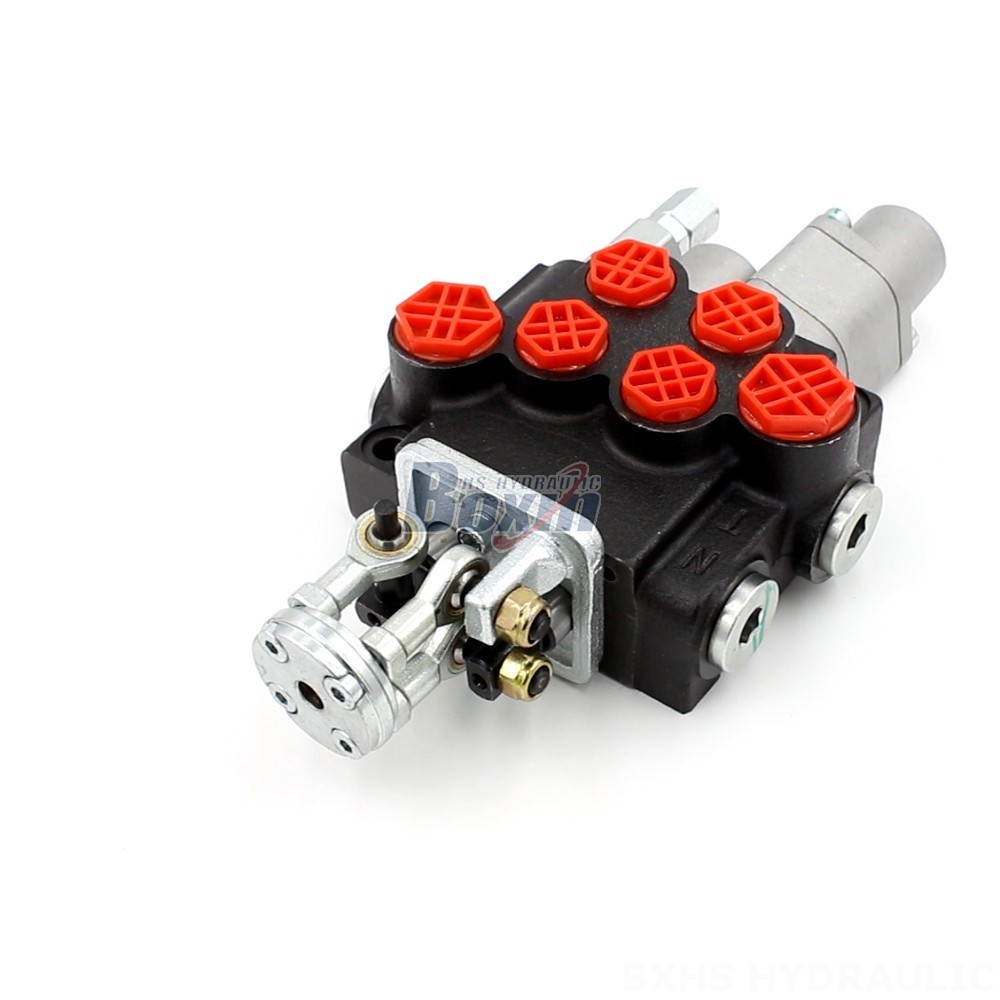

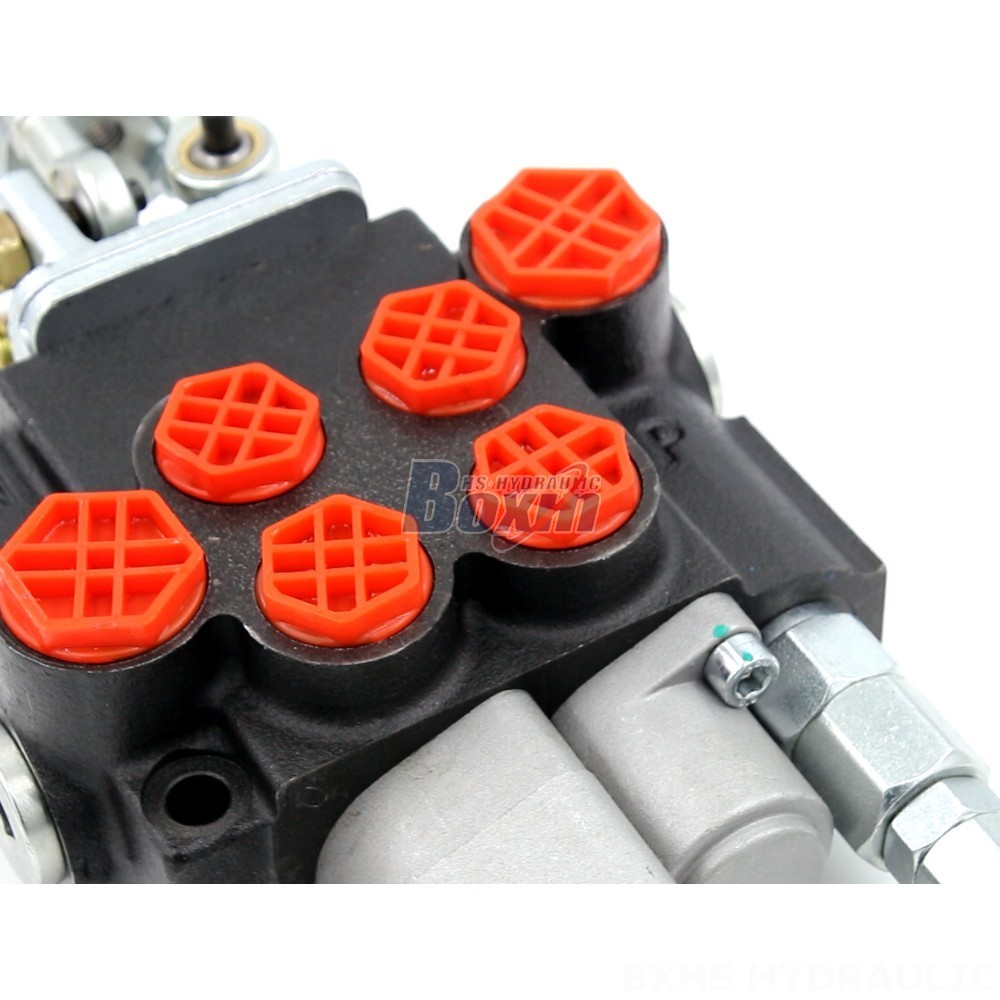

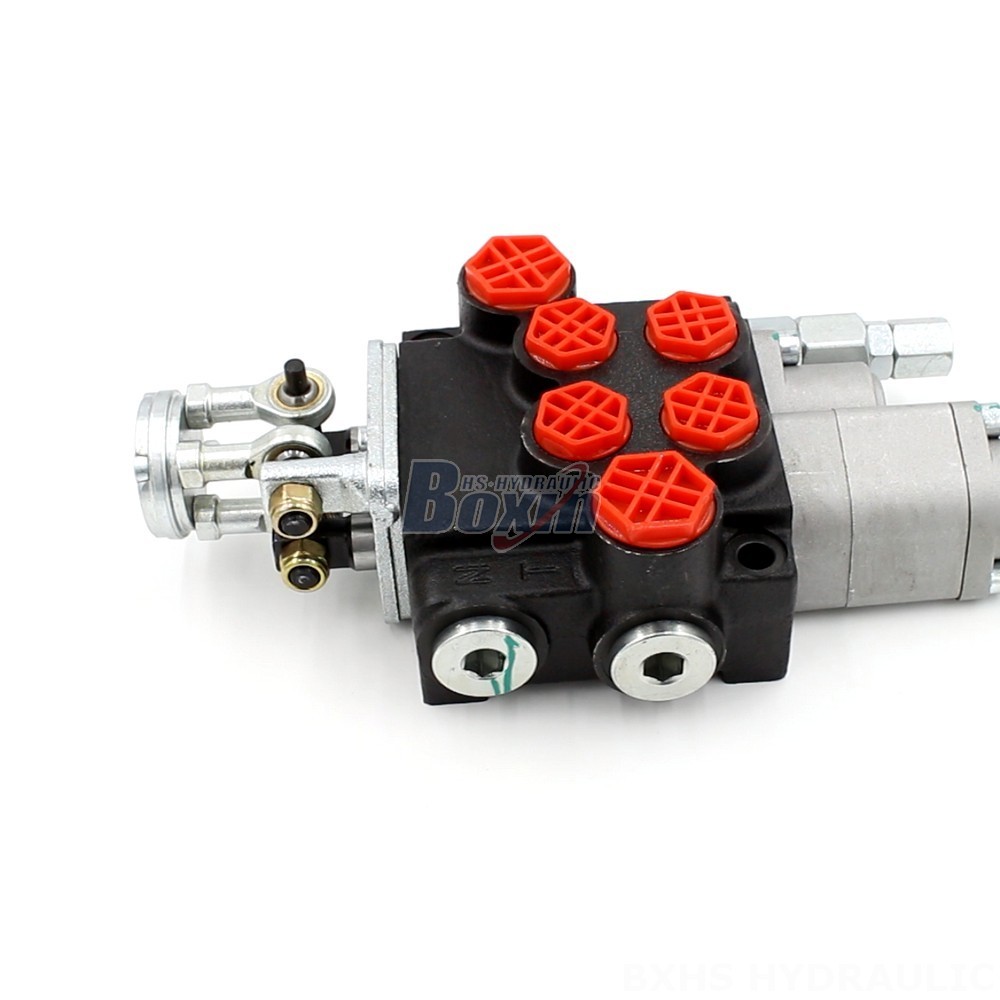

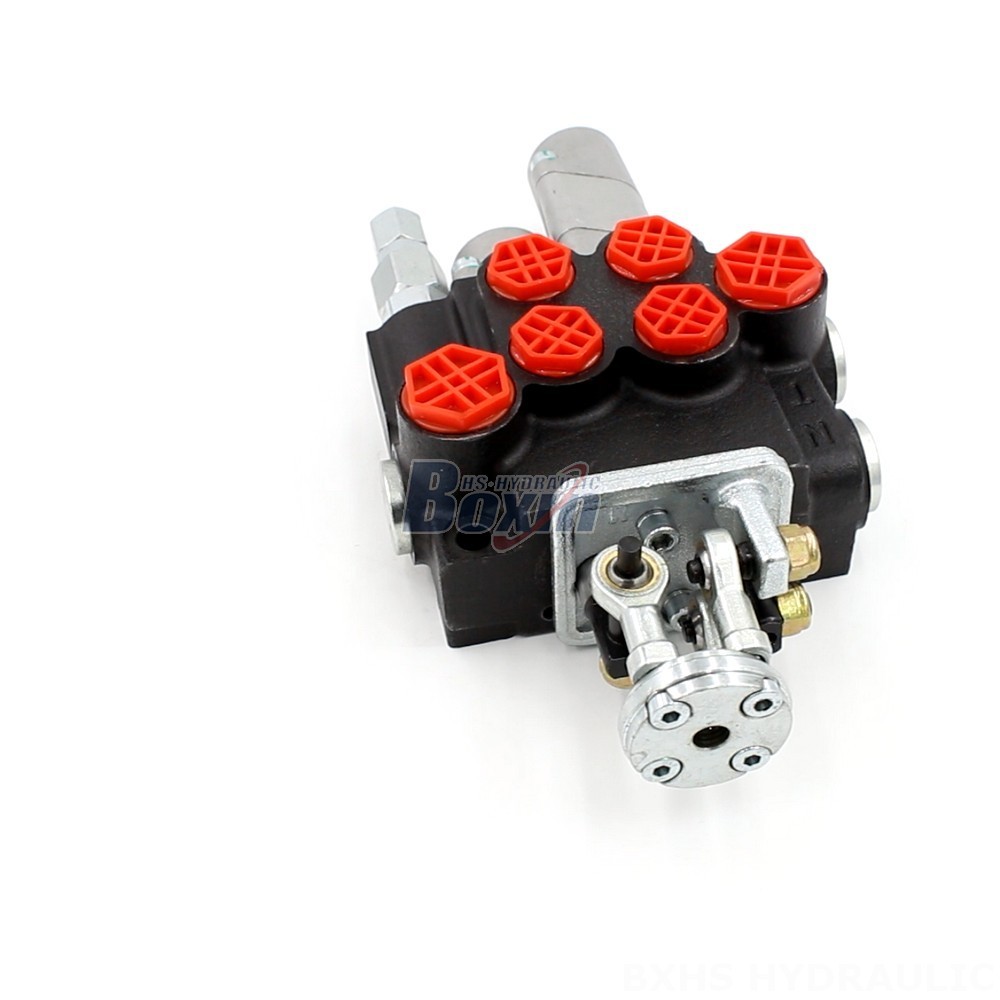

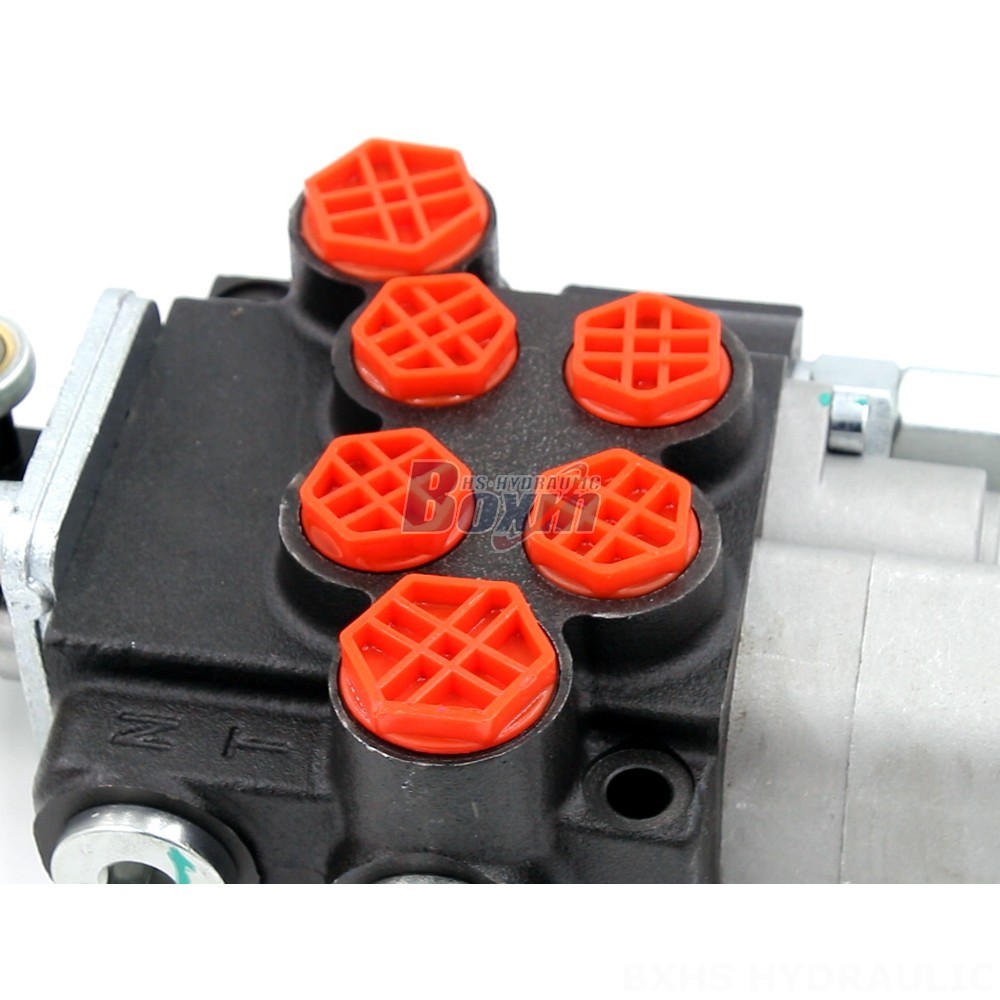

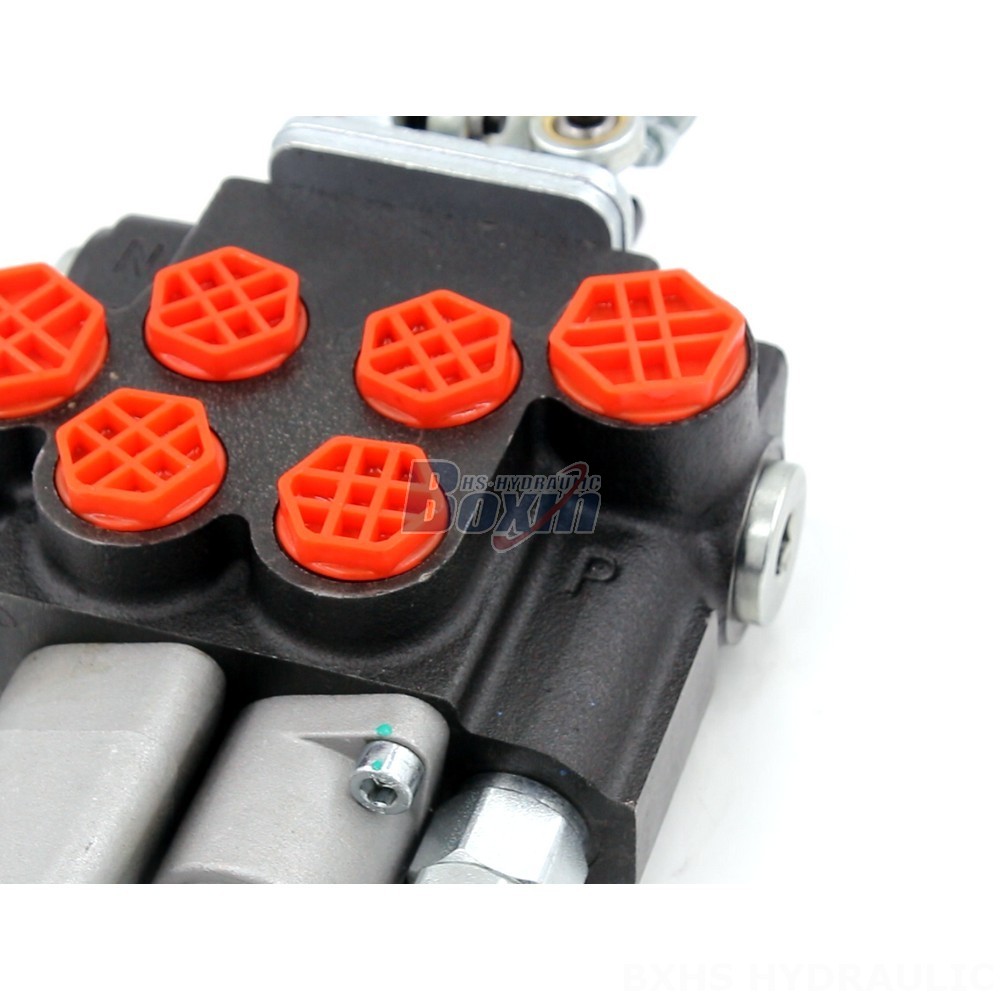

**P40-G12-G38-OT-QTW 2-Spool Hydraulic Directional Valve**
**Product Overview:**
- 2-spool hydraulic directional valve with manual and joystick control options
- Monoblock valve construction for compact and reliable design
- Rated flow: 40 L/min (10.5 US gpm)
- Maximum pressure: 250 bar (3600 psi)
- Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
**Key Features:**
- Precise flow control and smooth operation
- Durable construction for demanding applications
- Versatile control options for ease of use
- Suitable for a wide range of hydraulic systems
**Applications:**
- Material handling equipment (forklifts, telehandlers, stackers)
- Construction machinery (excavators, graders, skid steer loaders)
- Agricultural machinery (tractors, harvesters, sprayers)
- Industrial vehicles (aerial platforms, compact wheel loaders)
