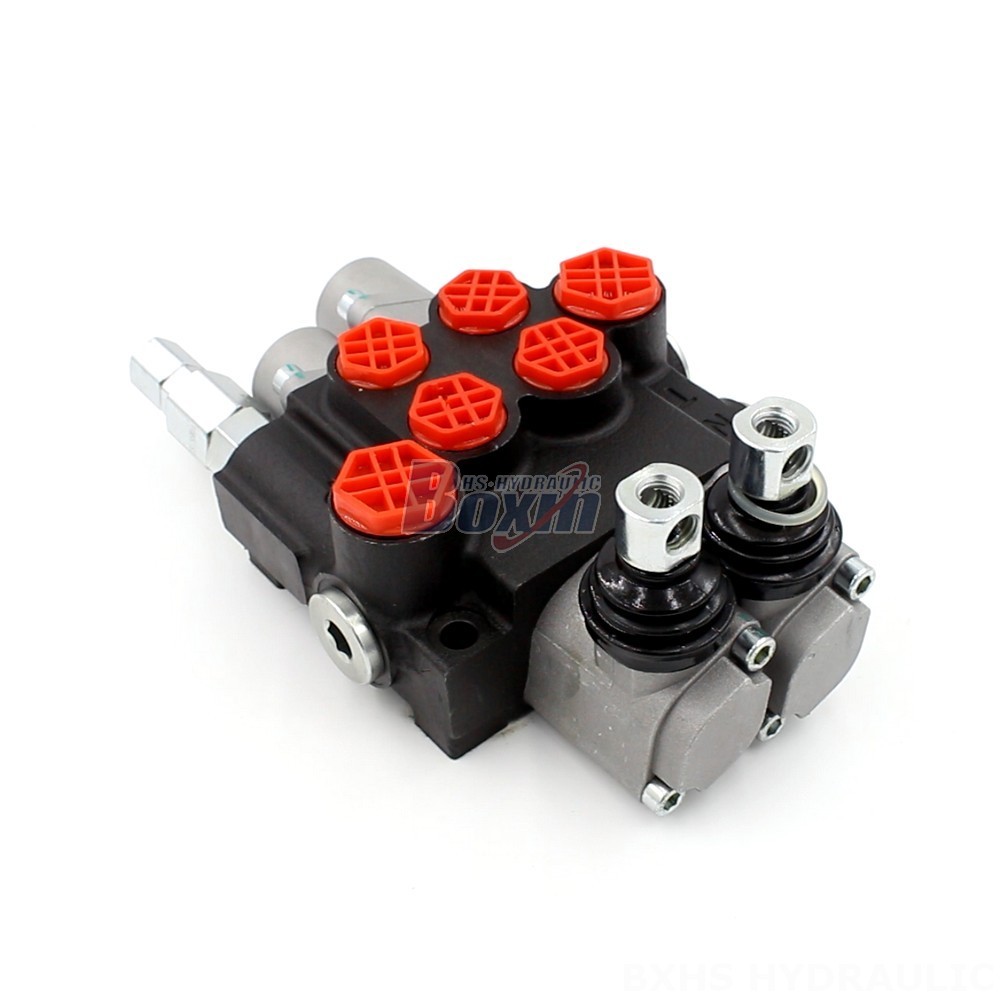

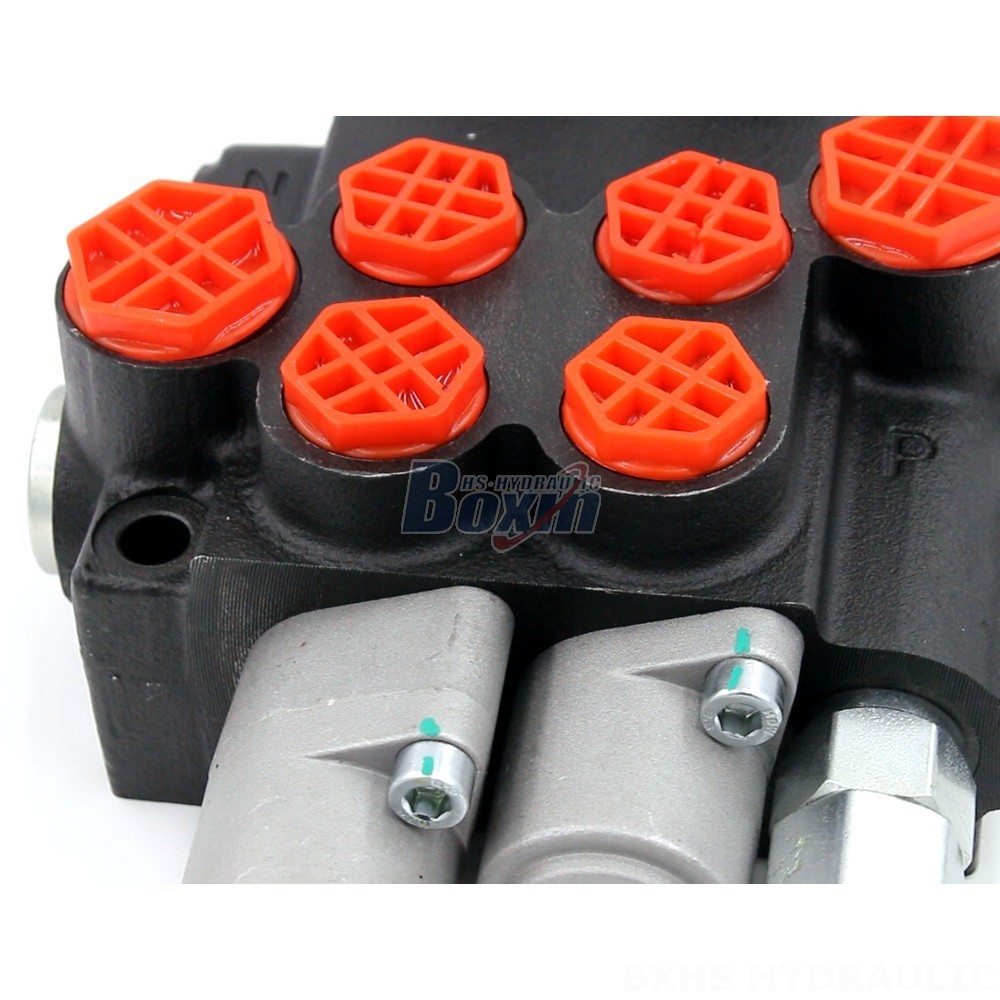

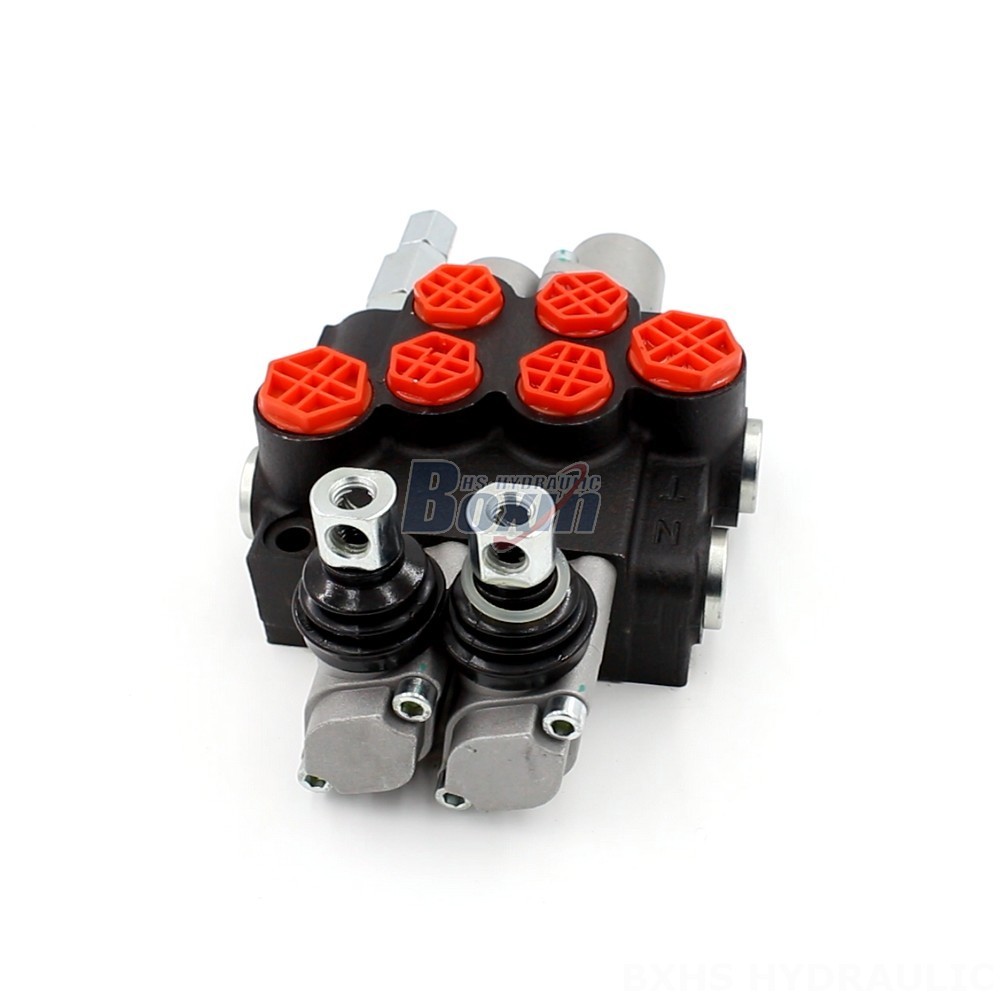

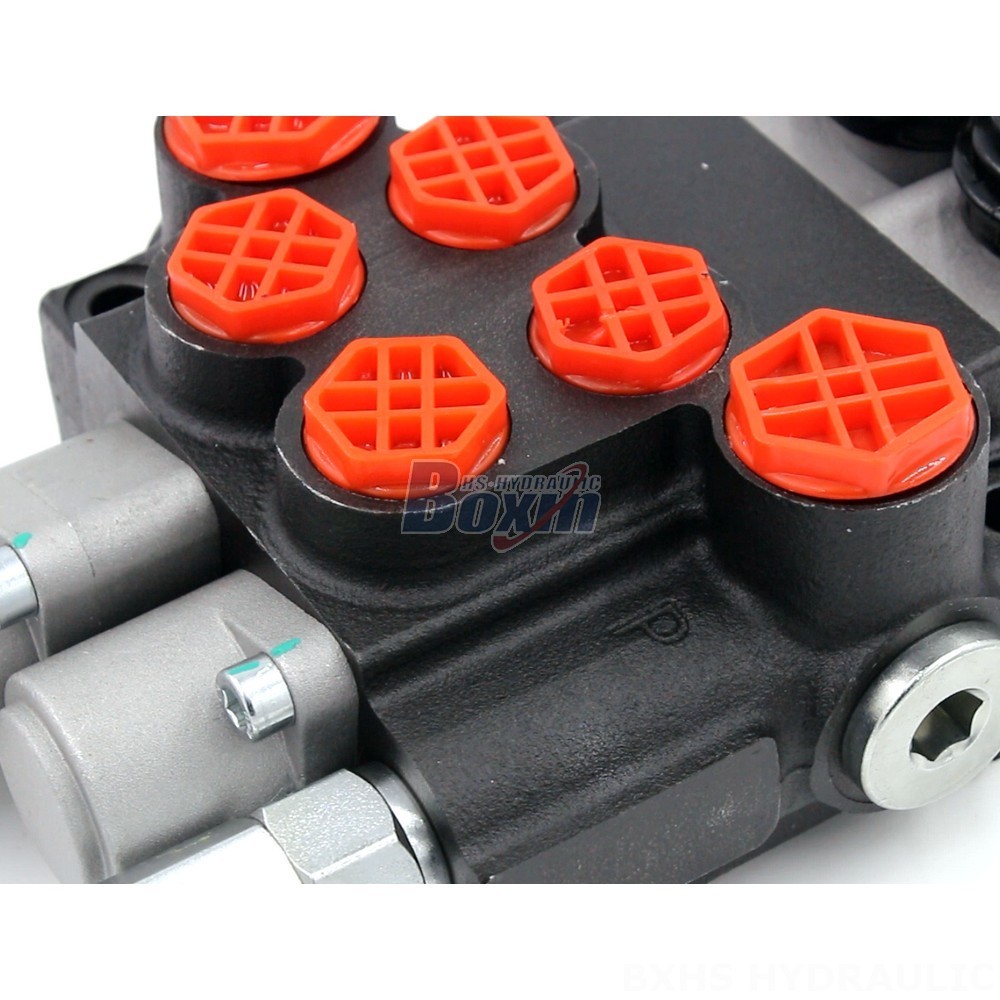

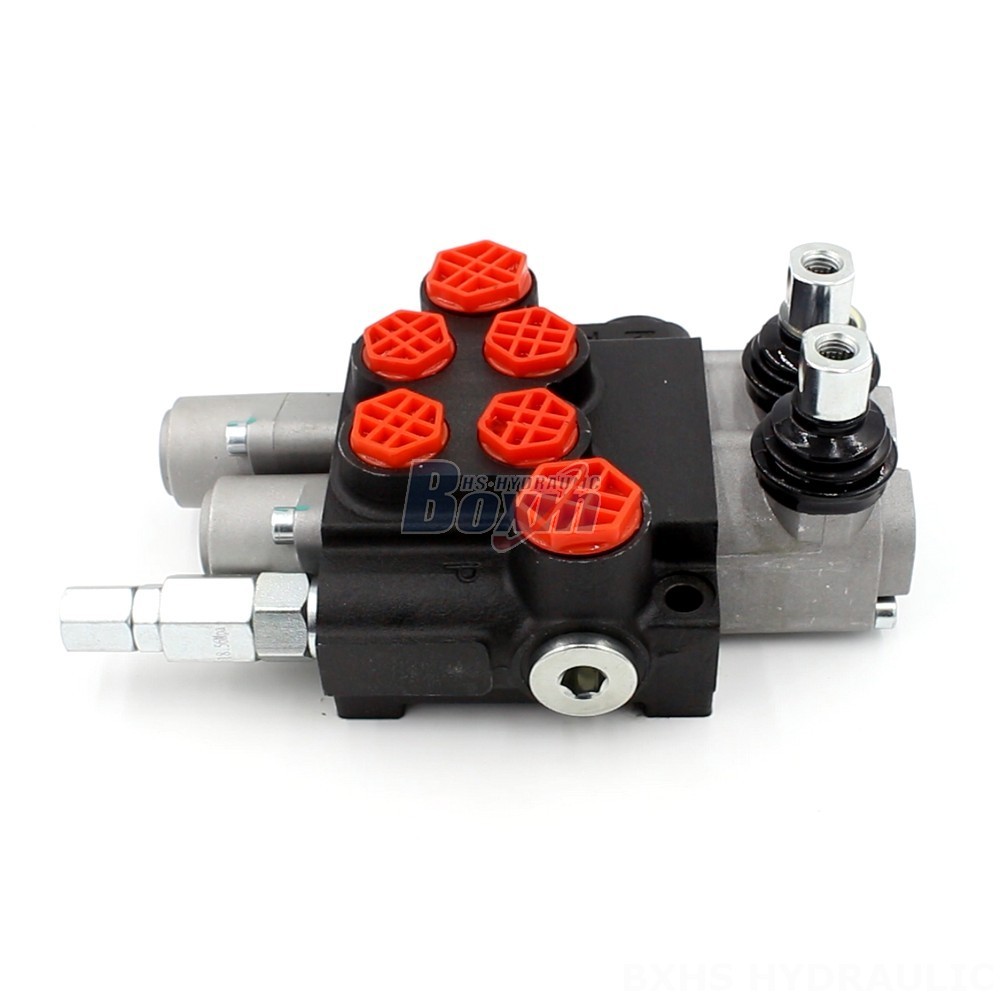

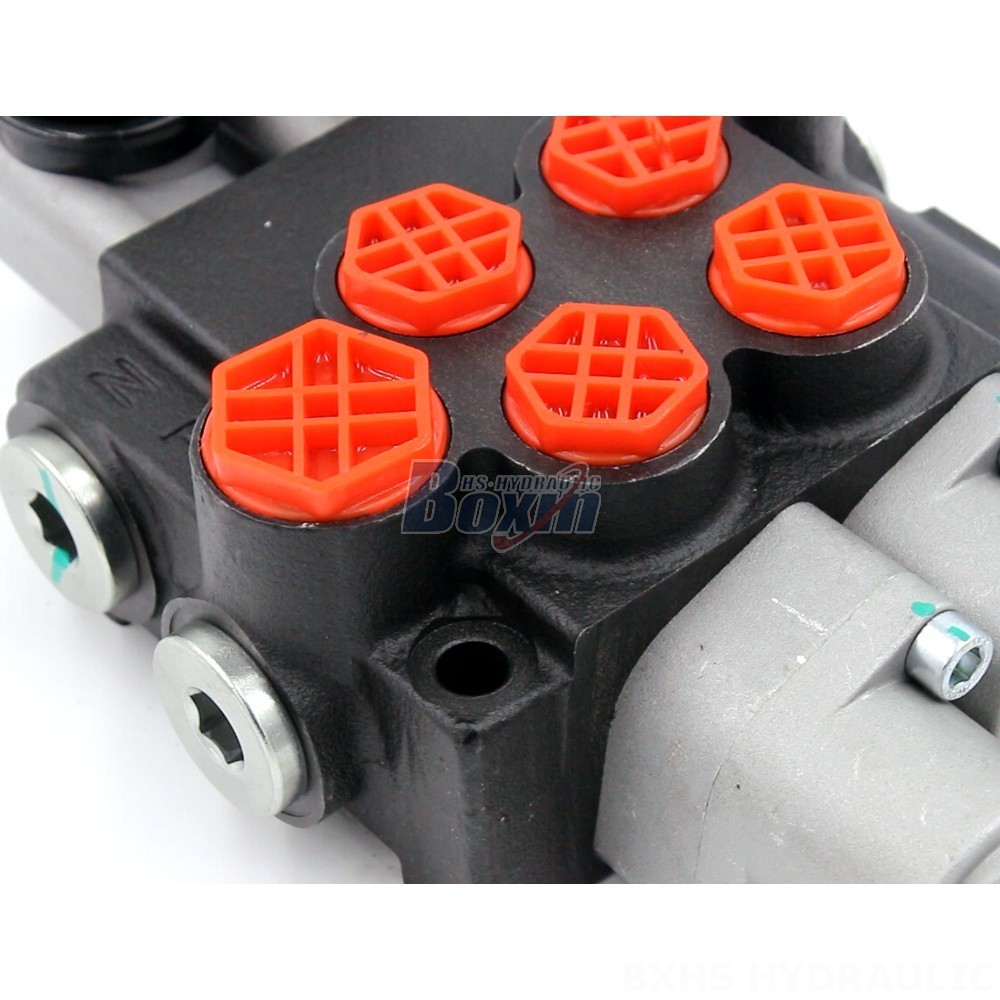

The P40-G12-G38-OT-QTW Monoblock Valve is a solenoid operated, 2-section directional control valve designed for demanding hydraulic applications in industries such as material handling, construction, and agriculture. It features a maximum operating pressure of 250 bar and a rated flow of 40 L/min, making it suitable for a wide range of machinery including telehandlers, forklifts, and excavators.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series directional control valve is a robust, monoblock construction offering manual control. The valve is designed for demanding hydraulic applications, boasting a rated flow of 40 L/min and a maximum operating pressure of 250 bar. Its operating viscosity range spans from 15 to 75 mm²/s, suitable for various hydraulic fluids. The valve is equipped with two spools, allowing for precise control over hydraulic circuits. The P40-G12-G38-OT-QTW valve is ideally suited for heavy-duty machinery within material handling, construction, and agriculture industries, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. Its compact design and high performance make it a reliable choice for demanding hydraulic applications.
