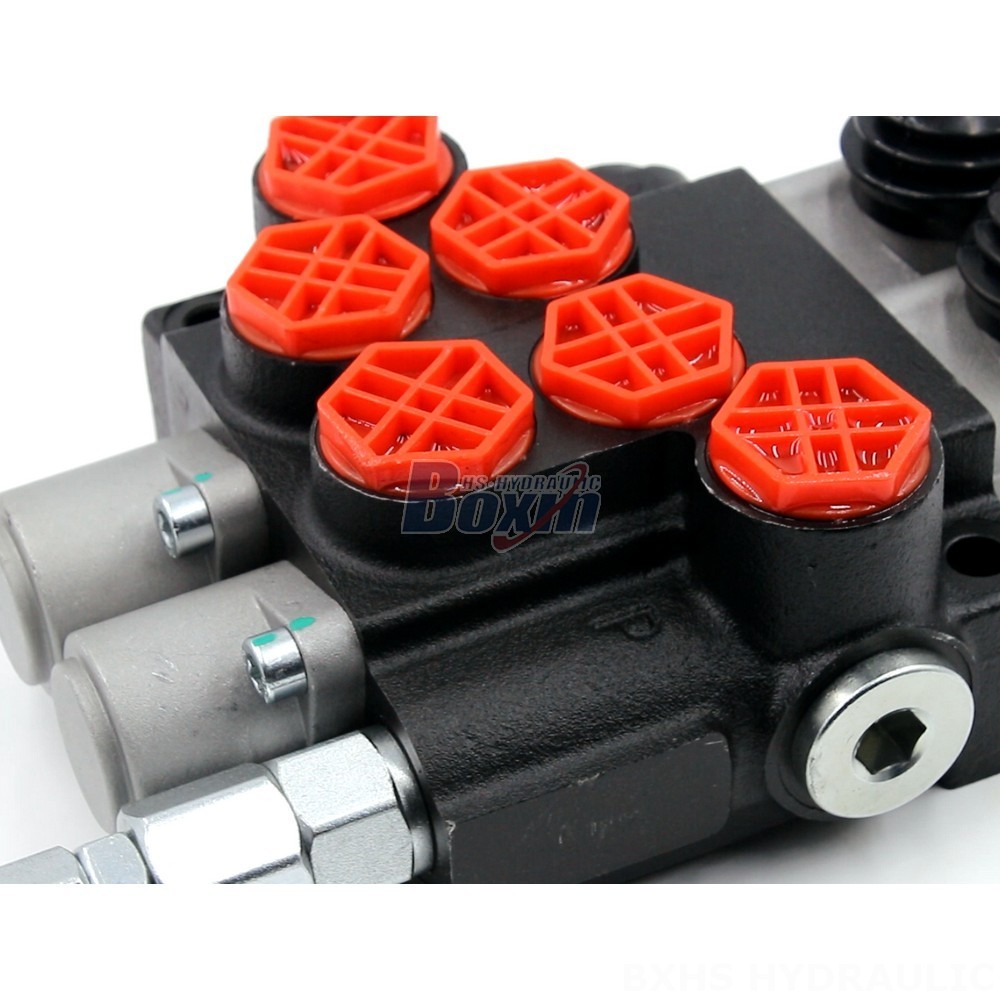

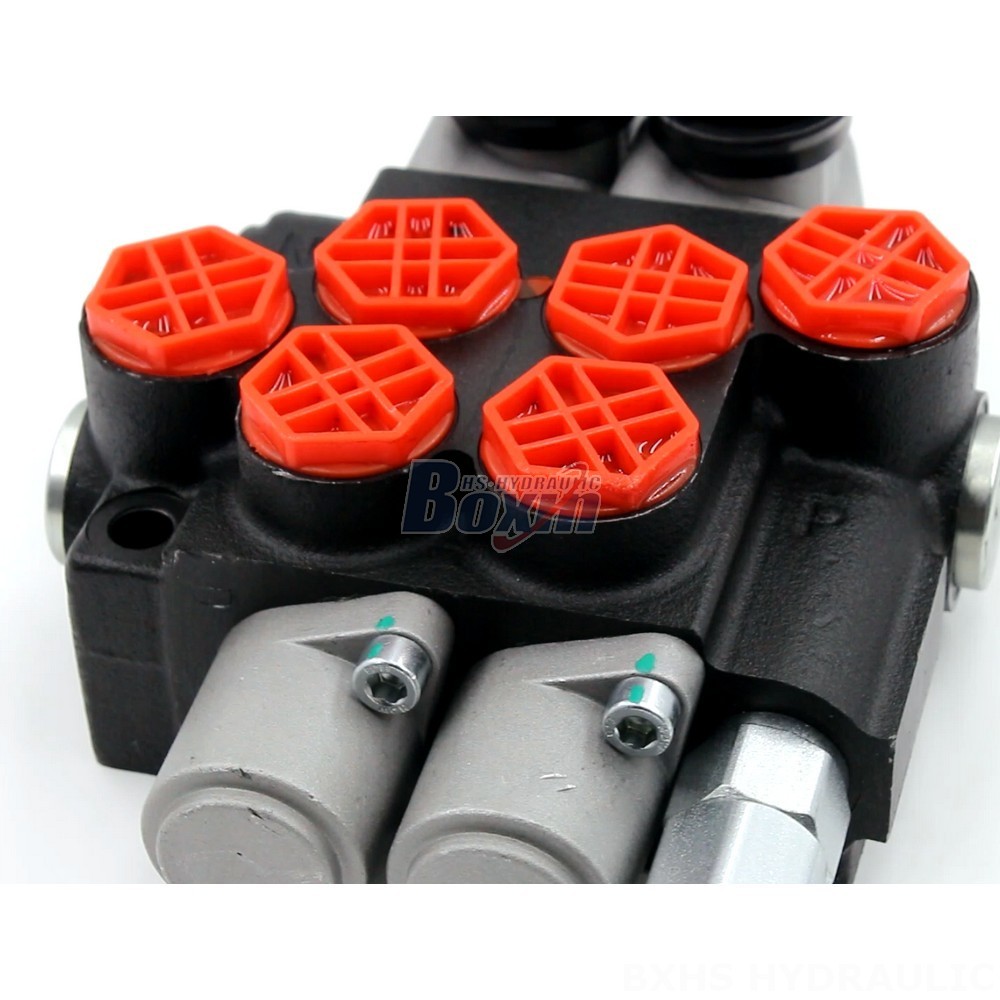

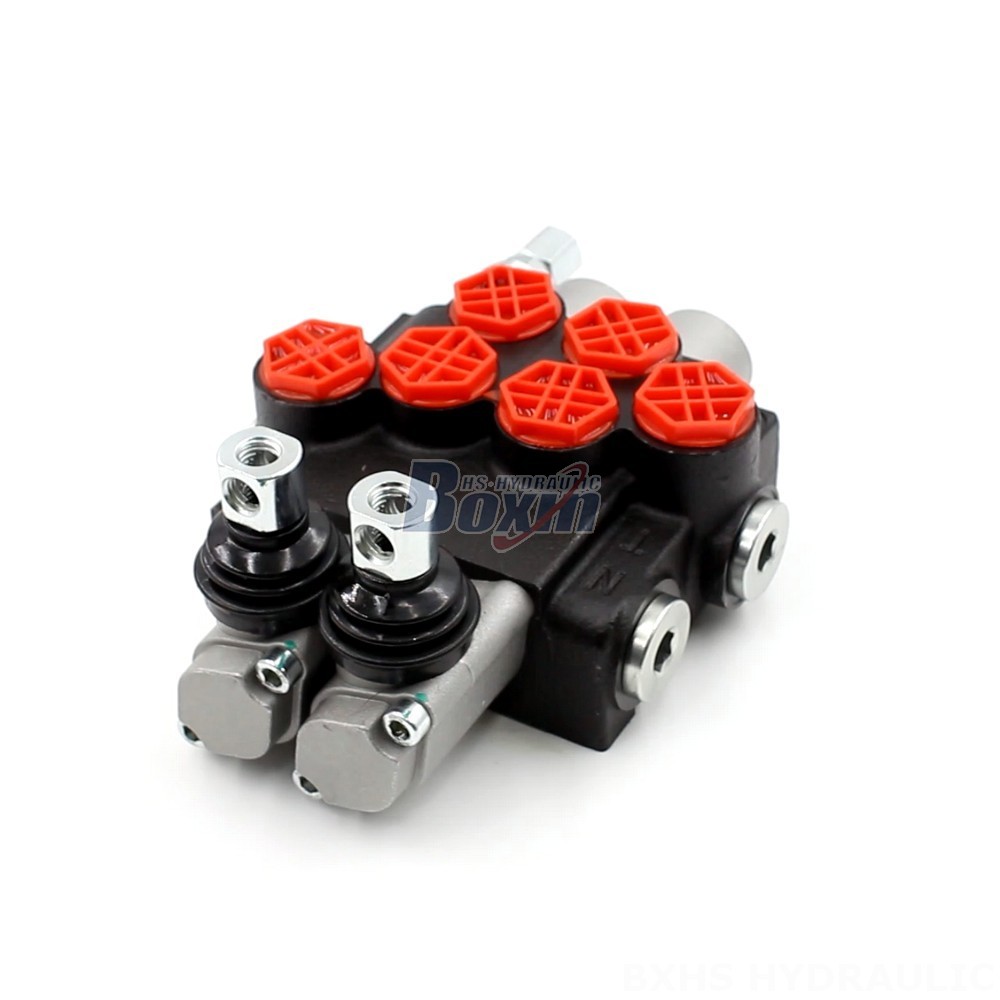

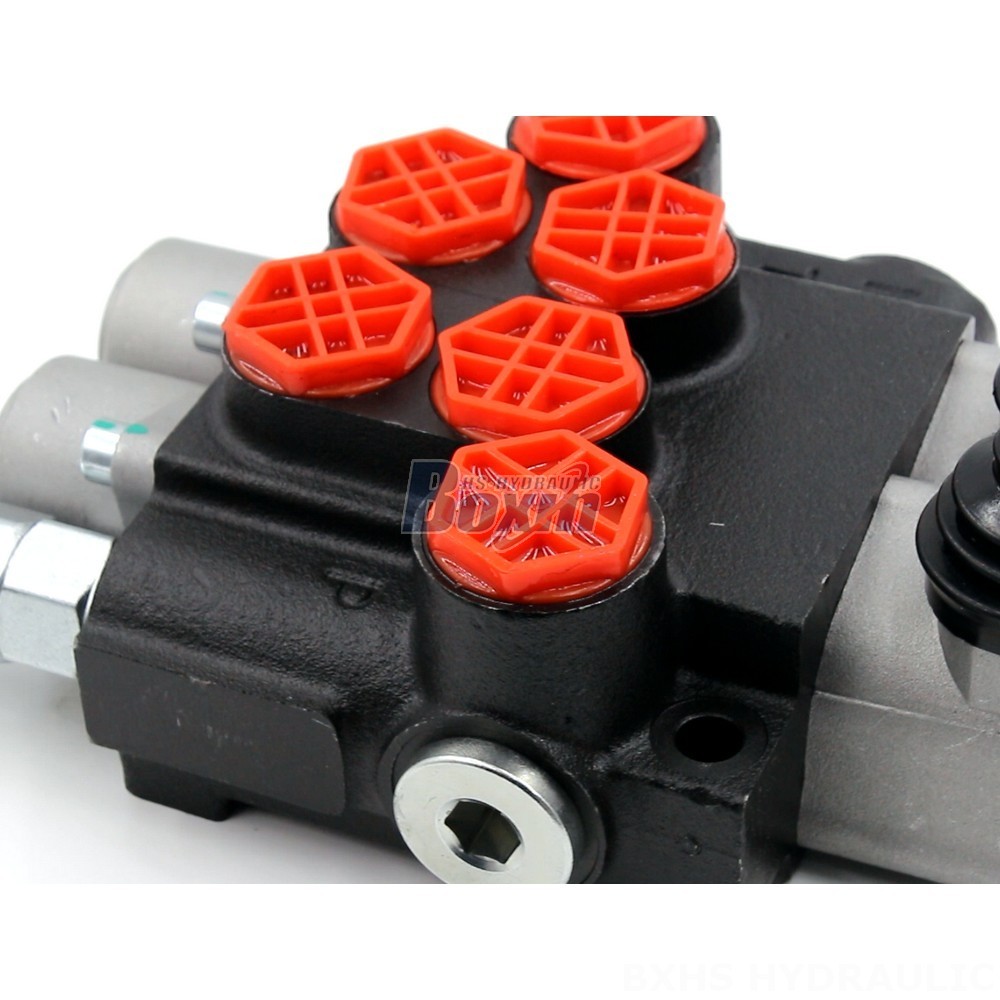

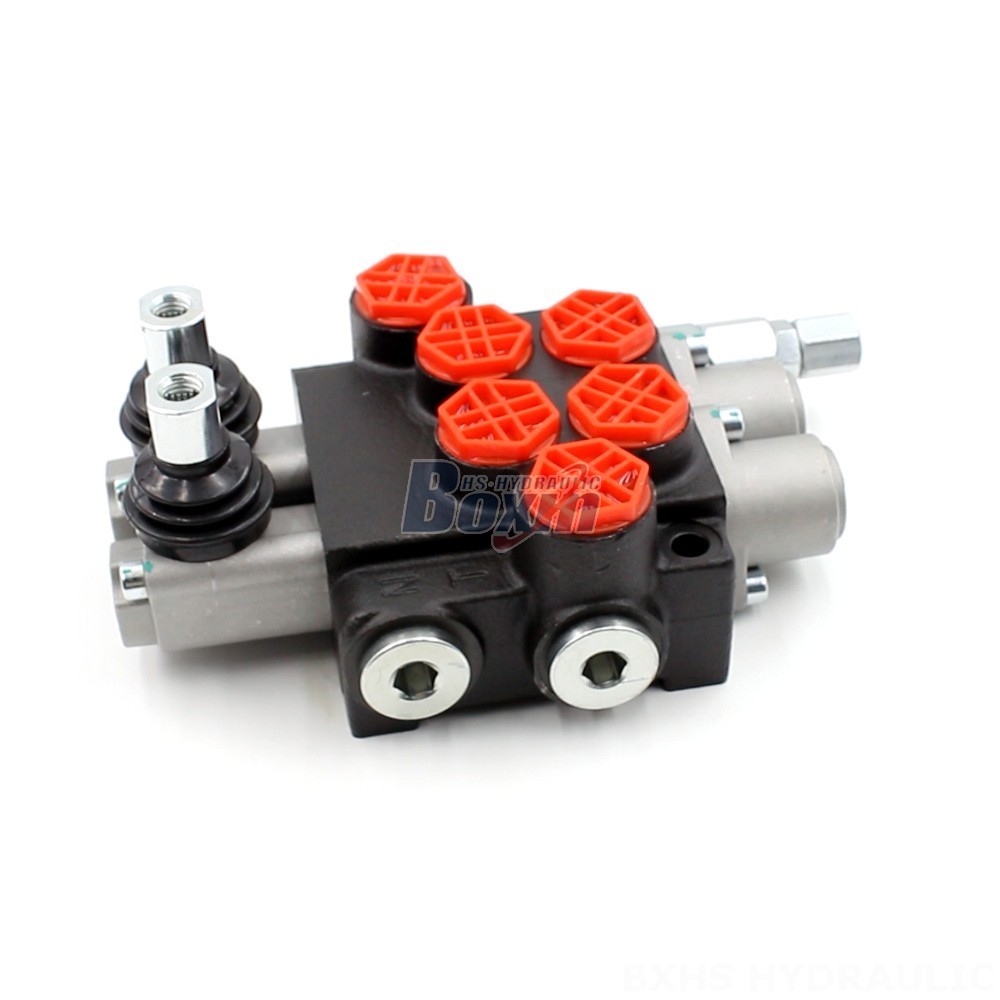

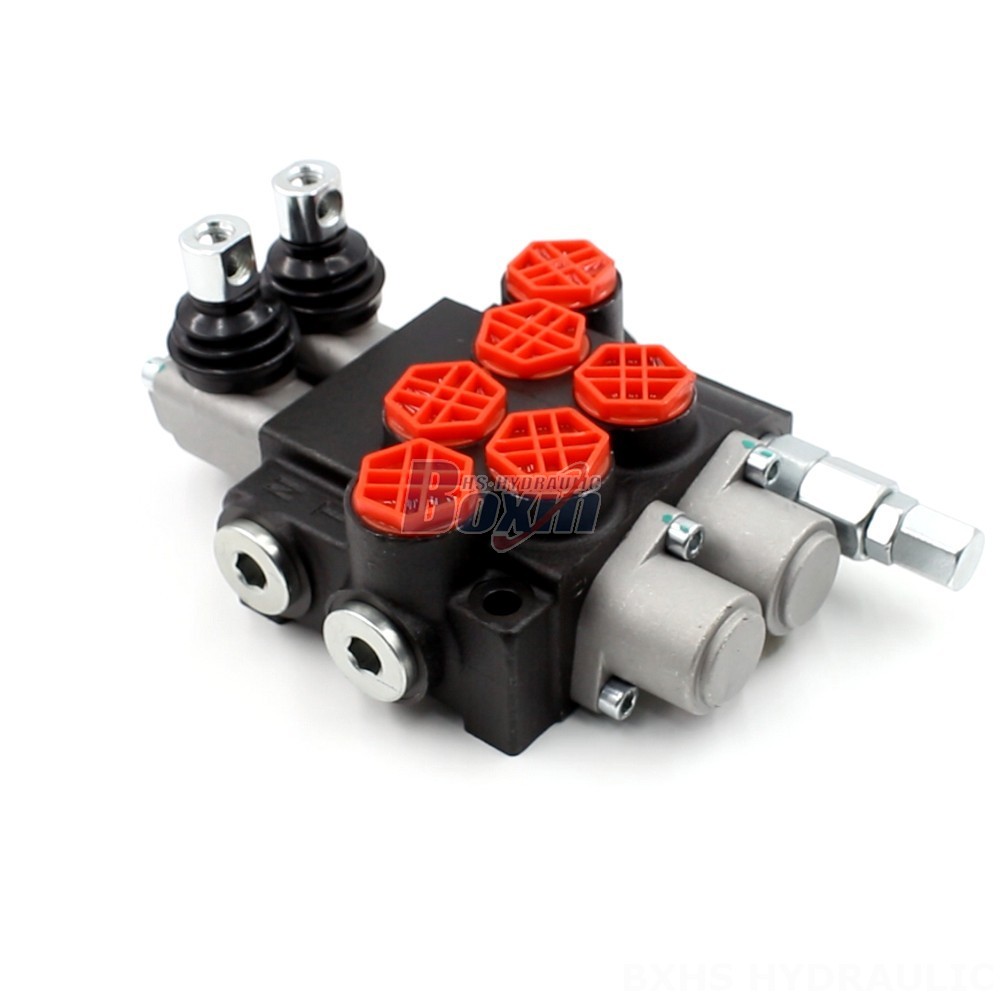

The P40-G12 Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for demanding applications in industries such as material handling, construction, agriculture, and industrial vehicles.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Key Features:**
* Manual control for precise and responsive operation
* 2 spool design for versatile flow control
* Monoblock construction for compact and leak-free performance
* Rated flow of 40 L/min for efficient system operation
* Maximum pressure of 250 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
* Ambient temperature range of -40°C to +80°C for reliable operation in harsh environments
**Applications:**
The P40-G12 Manual 2 Spool Monoblock Directional Valve is widely used in hydraulic systems of various types of heavy equipment and machinery, including:
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Excavators
* Skid steer loaders
* Compact wheel loaders
* Wheel loaders
* Backhoe loaders
* Dumpers
* Face drill rigs
* Concrete boom pumps
* Pave rollers
* Rotary drilling
* Crushers - stone cutters
