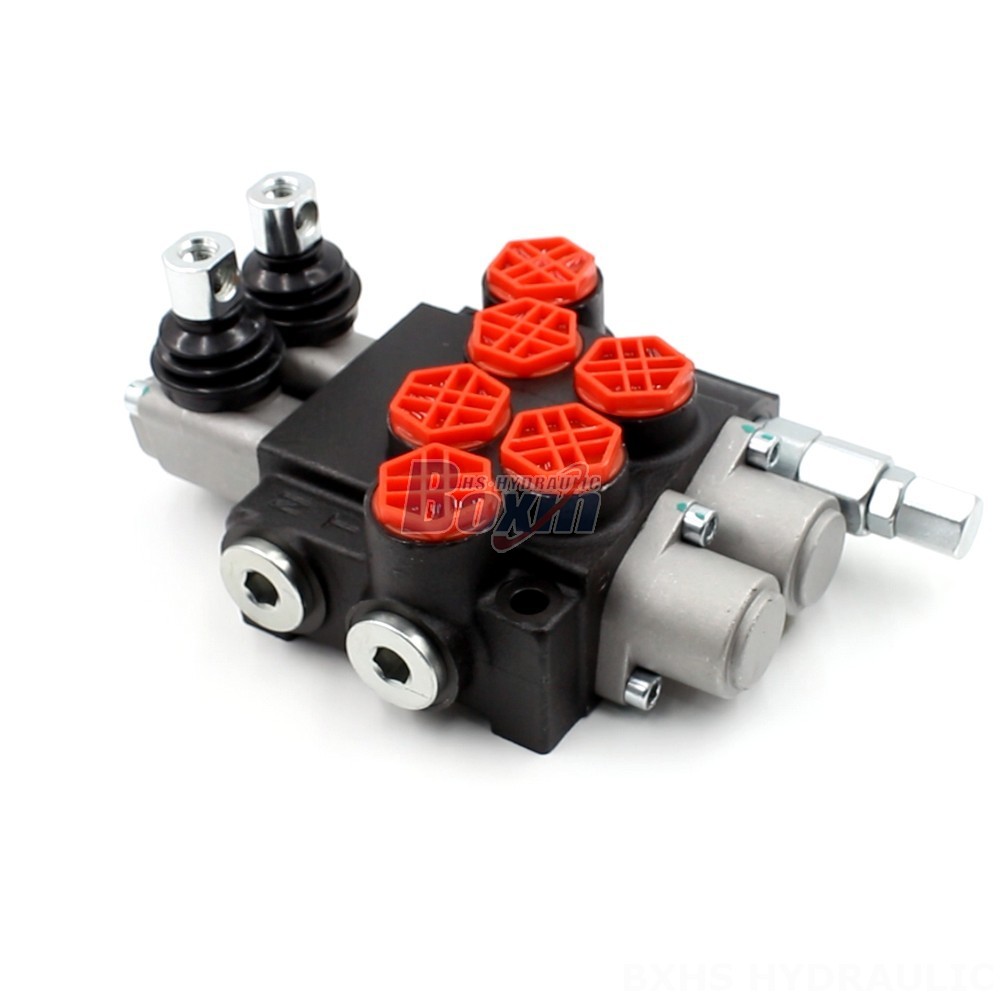

P40-G12 Monoblock Directional Valve | Leading Hydraulic Solutions

Metode Kontrol:Buku Panduan

Spul:2 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:23*18*13

Kelas kotor:5.00 kg

Ketersediaan: Tersedia

1272 Pandangan Mencari Produk Ini

P40-G12 Monoblock Directional Valve | Leading Hydraulic Solutions

P40-G12 Monoblock Directional Valve | Leading Hydraulic Solutions

P40-G12 Monoblock Directional Valve | Leading Hydraulic Solutions drawing image

The P40-G12 Monoblock Directional Valve is a reliable and versatile hand operated hydraulic valve designed for a wide range of applications. It features a 2-section design, 40 L/min rated flow, and 250 bar maximum pressure, making it suitable for material handling, construction, earthmoving, agriculture, and industrial vehicles.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This hand-operated hydraulic valve is a 2-section monoblock valve offering a rated flow of 40 L/min and a maximum pressure of 250 bar. Designed for demanding applications in industries like material handling, construction, earthmoving, agriculture, and industrial vehicles, this valve is compatible with various equipment types including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, face drill rigs, concrete boom pumps, pave rollers, rotary drilling equipment, and crushers. The valve boasts a robust construction and an operating viscosity range of 15-75 mm²/s, ensuring reliable operation in diverse environments and temperature ranges from -40°C to +80°C. The P40-G12 valve is a valuable component for various hydraulic systems, offering reliable control and efficiency.
