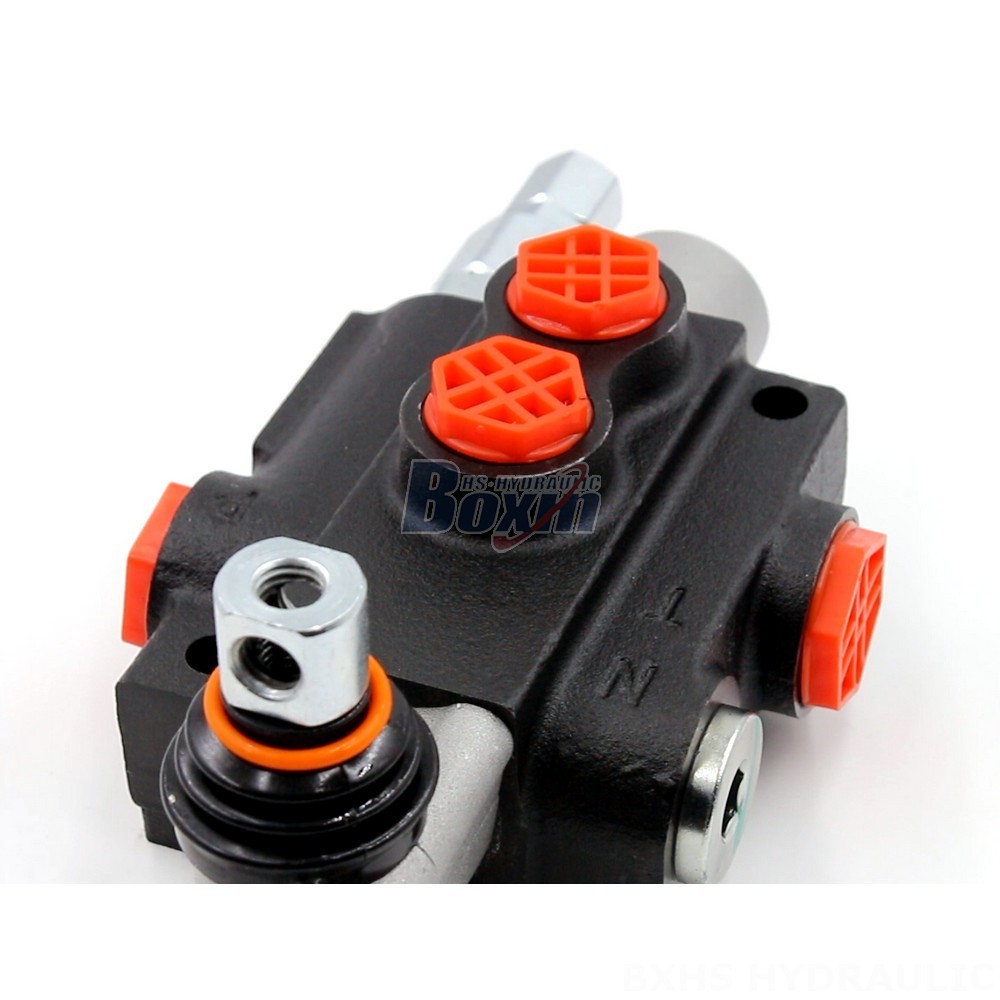

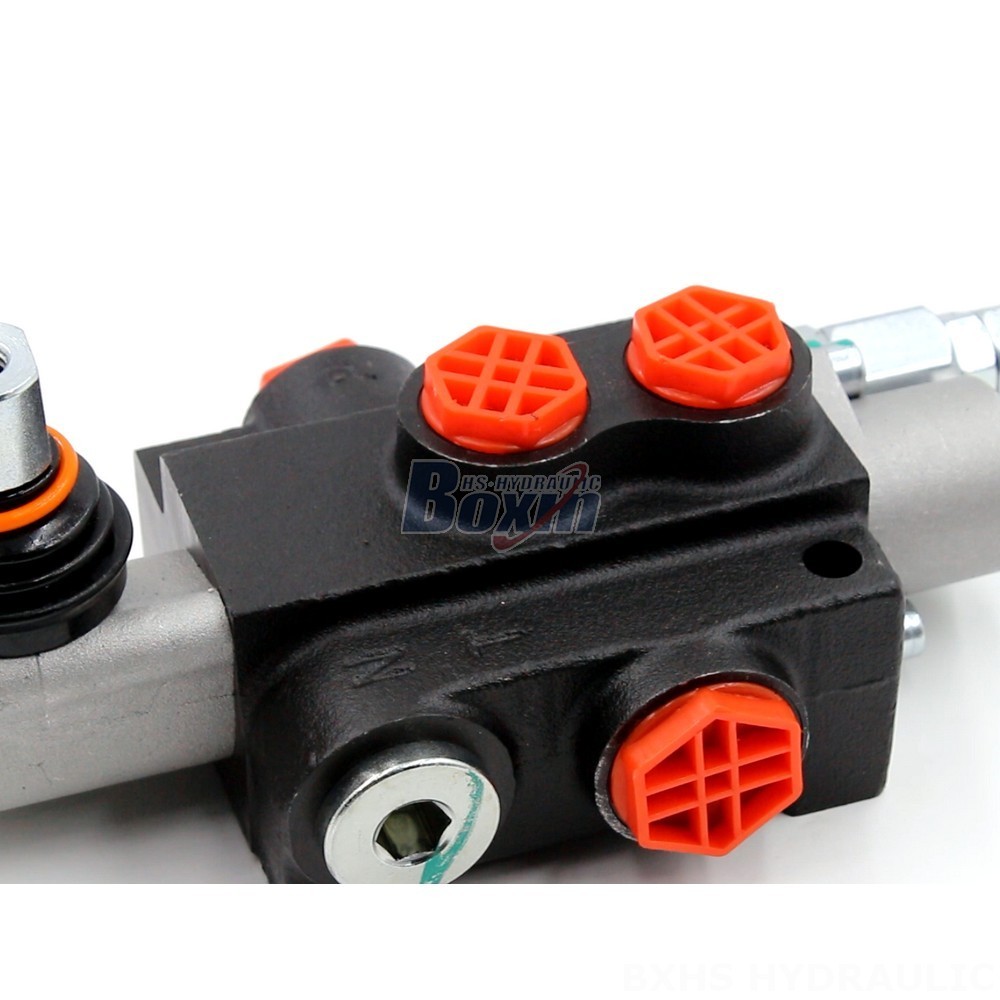

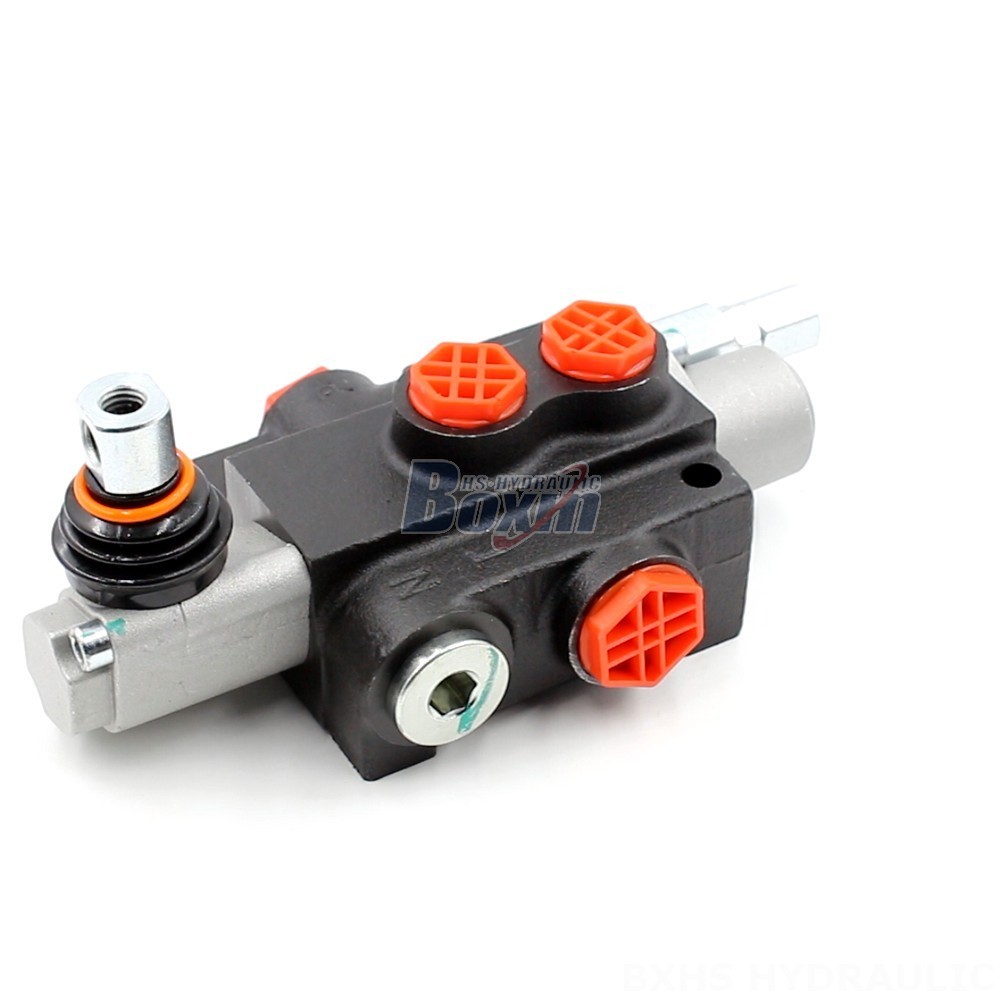

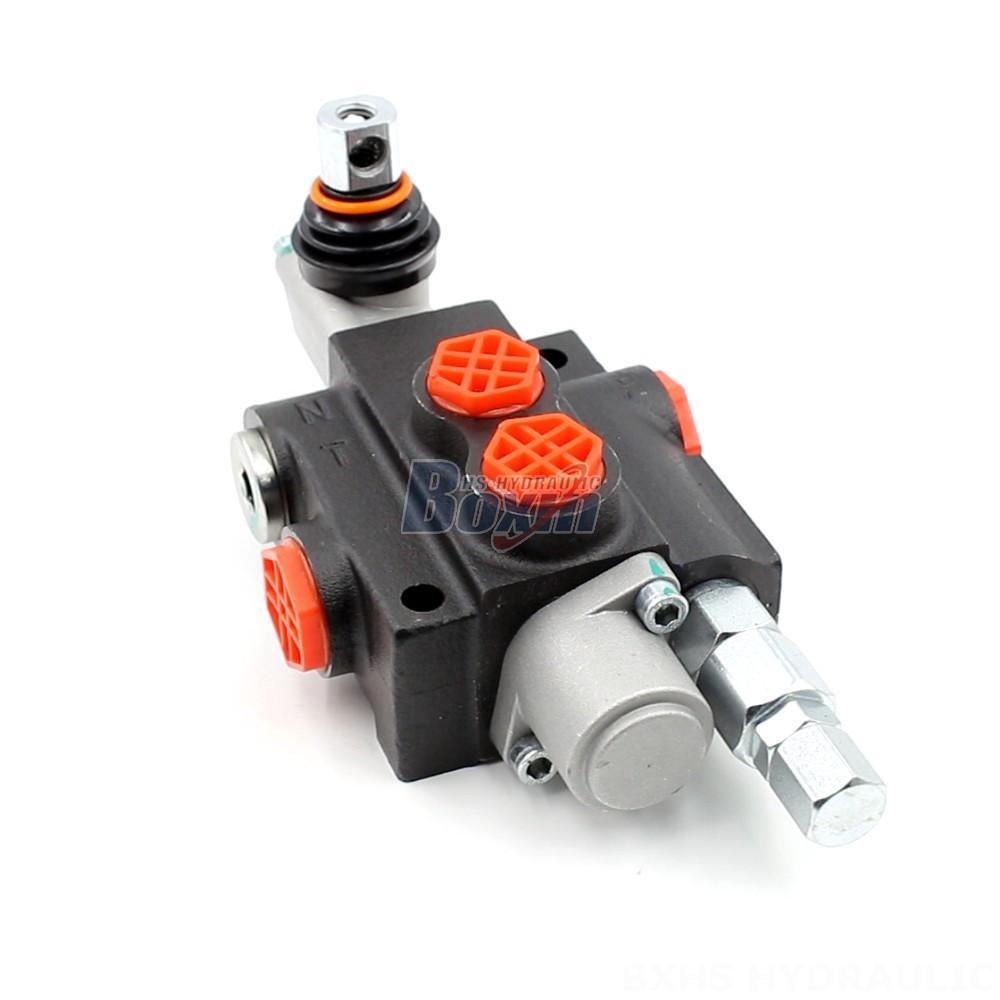

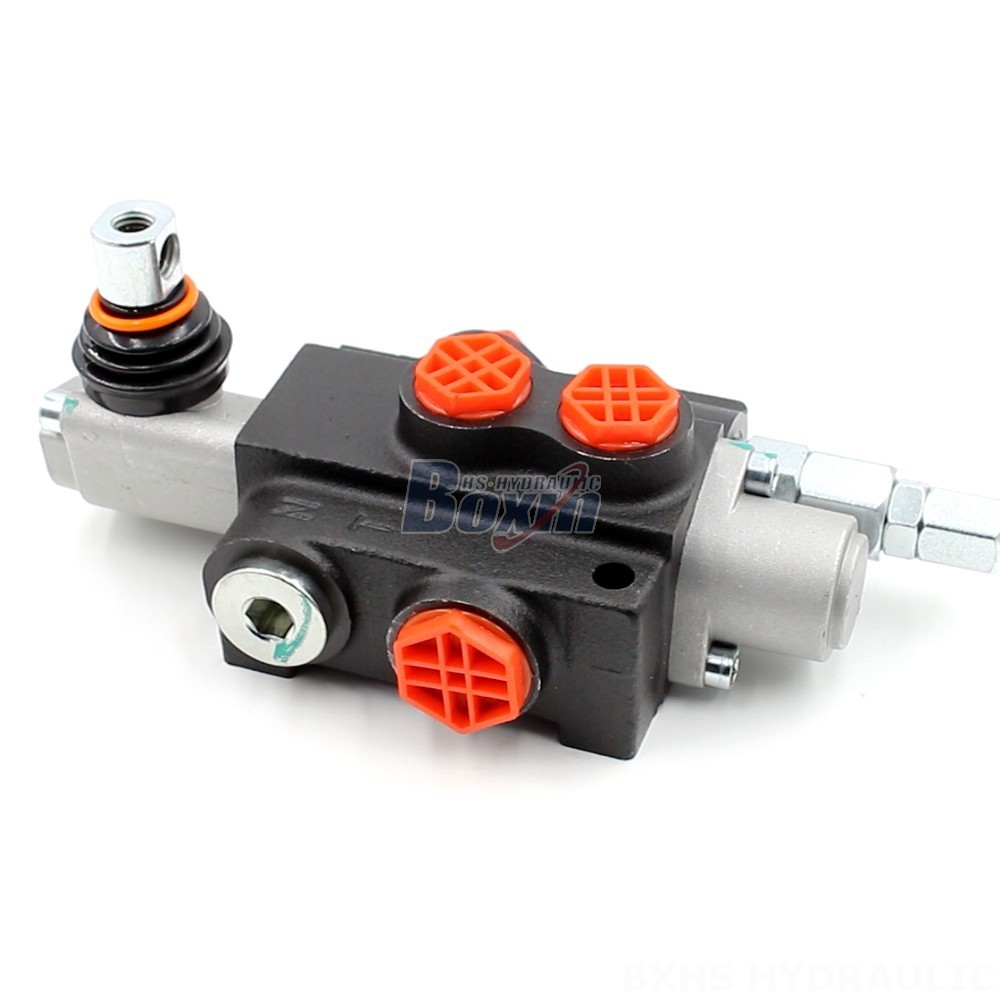

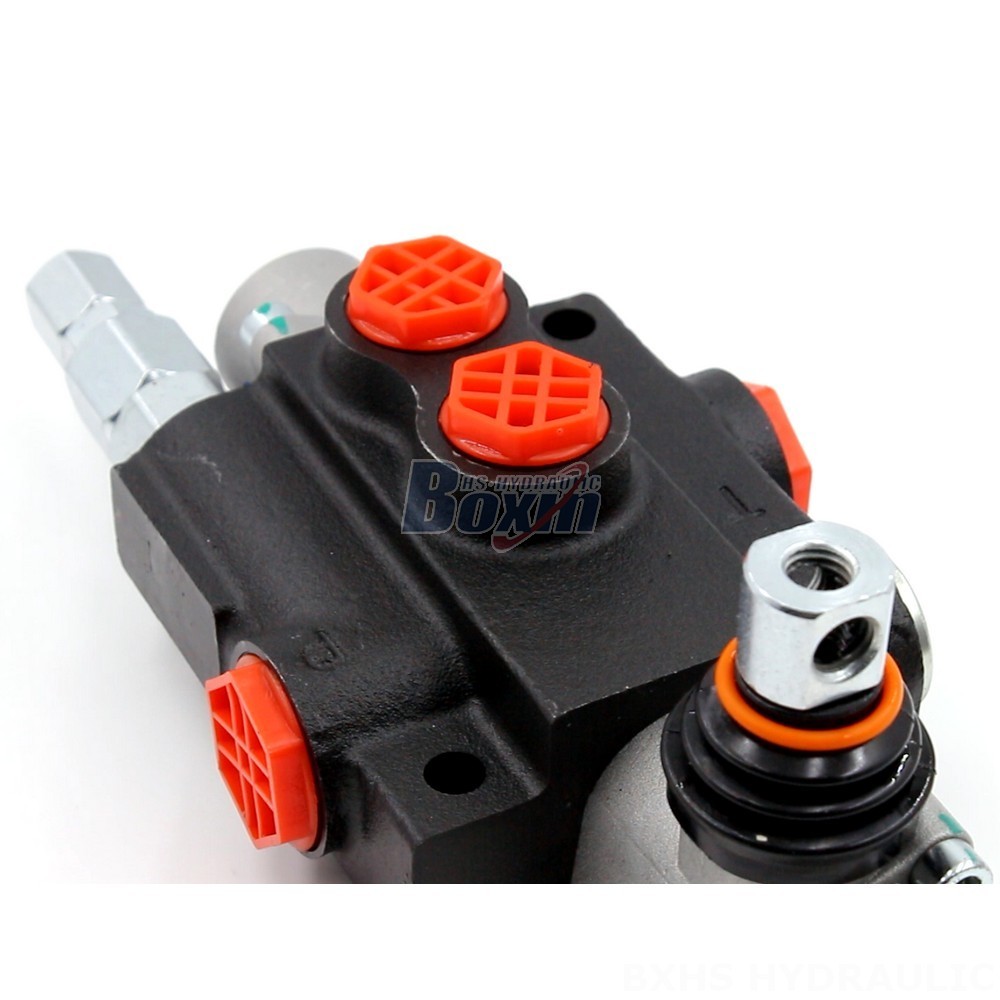

The P40-G12-YW Directional Control Valve is a robust and reliable hydraulic component designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles. This monoblock valve features manual control and offers a rated flow of 40 L/min (10.5 US gpm) at a maximum pressure of 250 bar (3600 psi). Its operating viscosity range spans from 15 to 75 mm²/s (15 cSt to 75 cSt), and it can withstand ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F).
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Key Features and Benefits:**
* **Manual Control:** Allows for precise and responsive operation.
* **Monoblock Valve:** Provides a compact and durable design with reduced leakage potential.
* **High Flow Capacity:** Delivers up to 40 L/min (10.5 US gpm) to meet the demands of demanding applications.
* **Robust Construction:** Built to withstand harsh operating conditions, ensuring long-lasting performance.
* **Wide Operating Range:** Can handle a wide range of fluid viscosities and temperatures, making it suitable for diverse applications.
**Applications:**
The P40-G12-YW Directional Control Valve finds applications in a variety of hydraulic systems, including:
* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Midi-Excavators
* Mini-Excavators
* Skid Steer Loaders
* Compact Wheel Loaders
