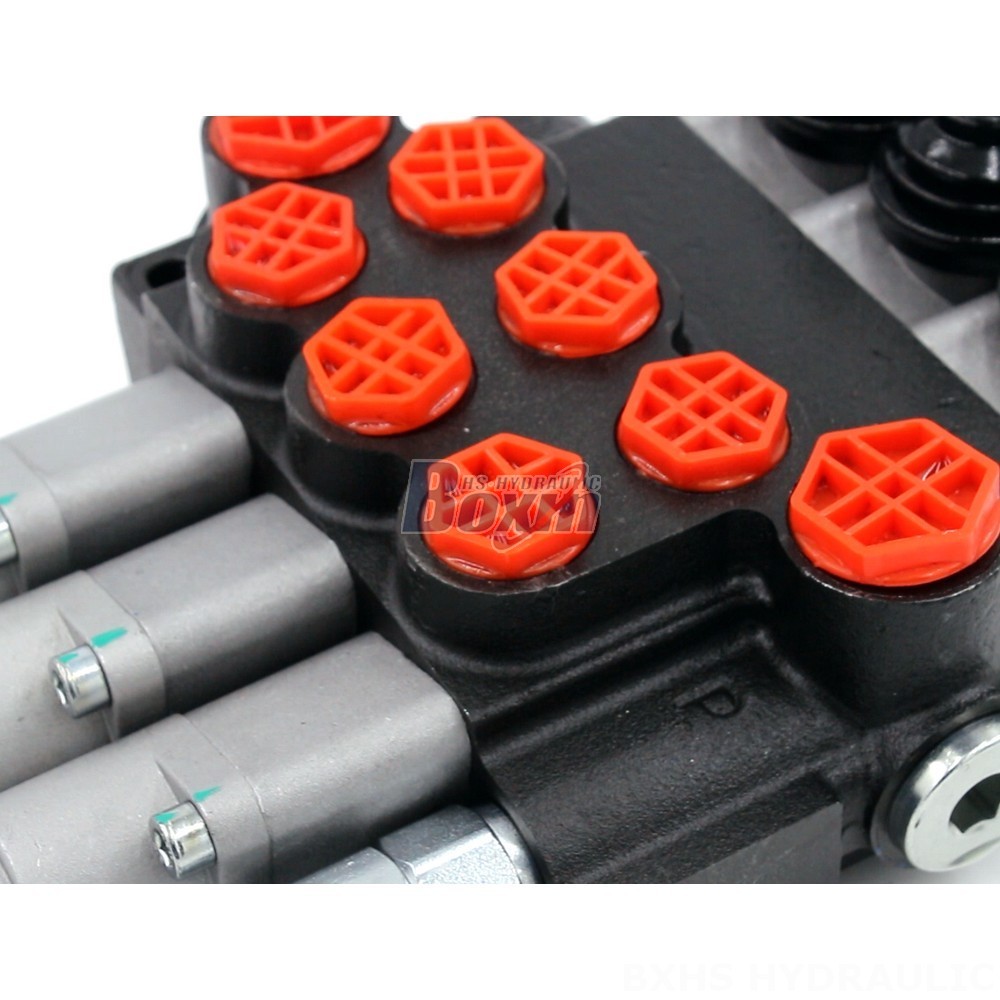

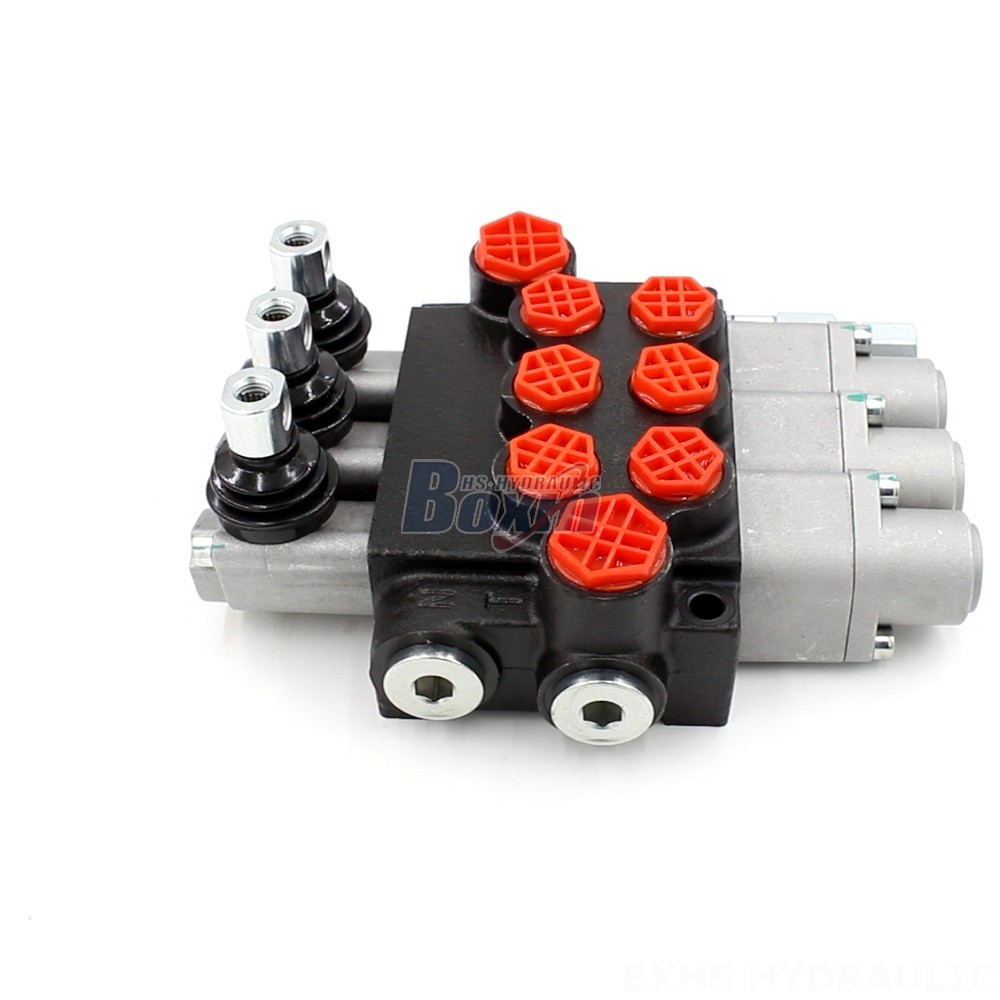

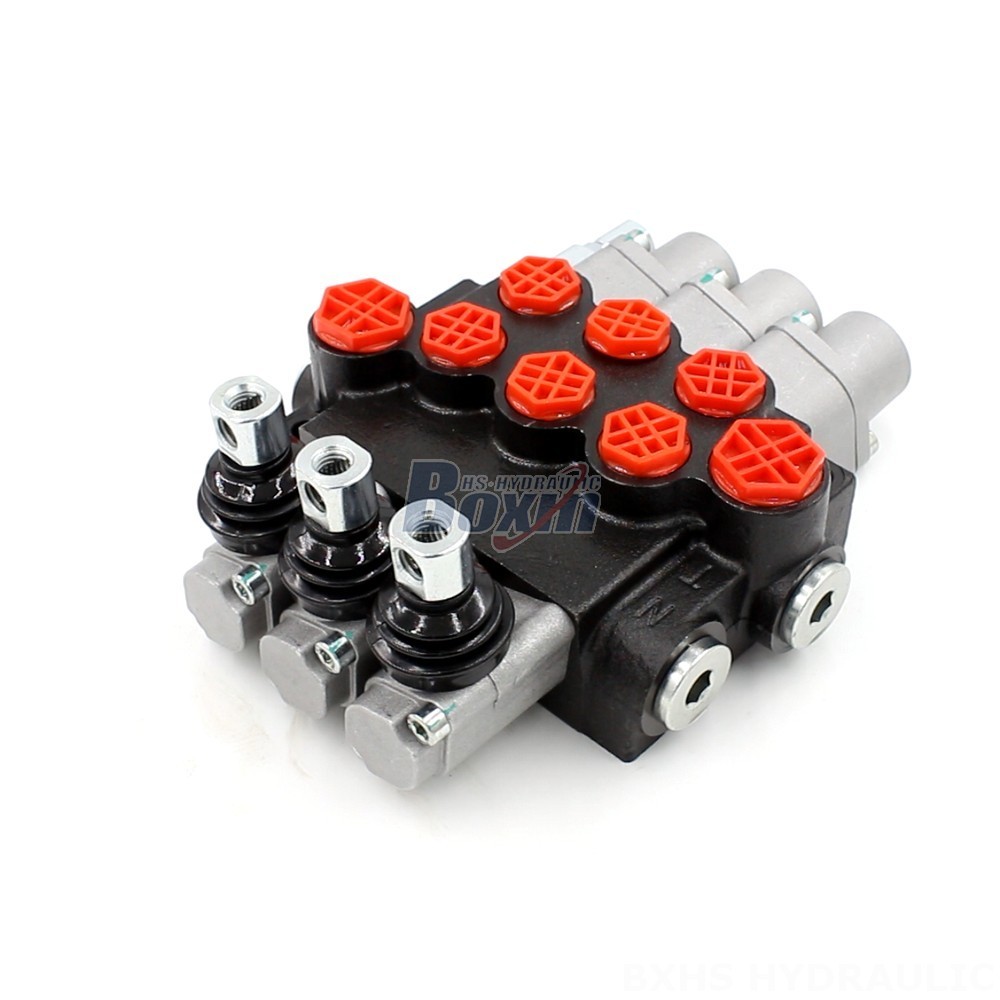

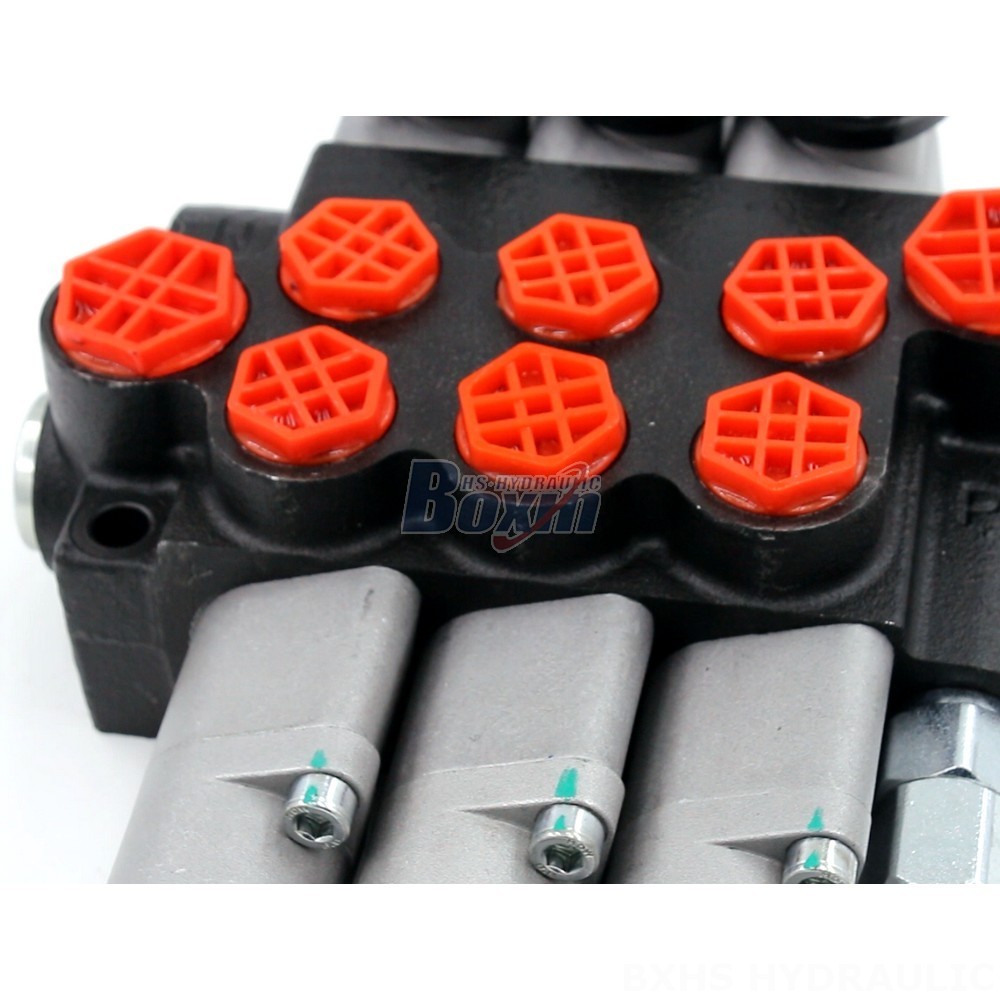

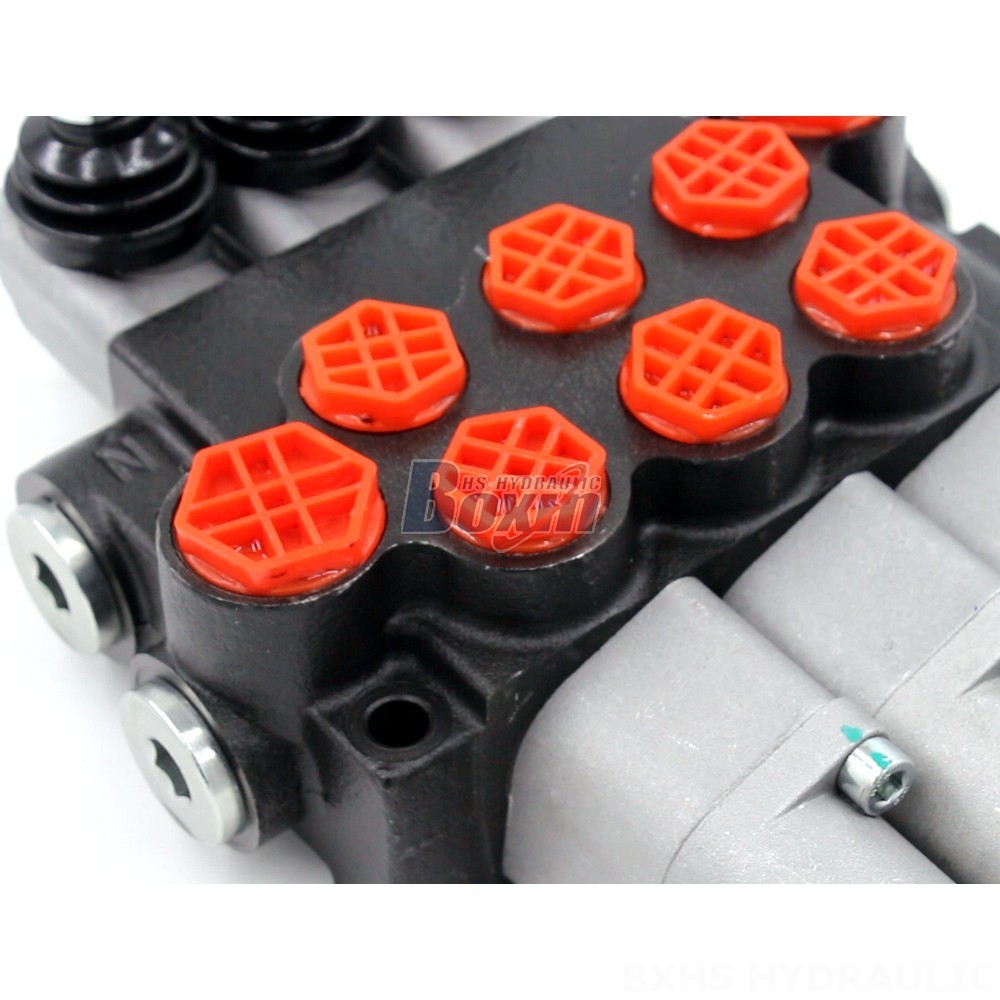

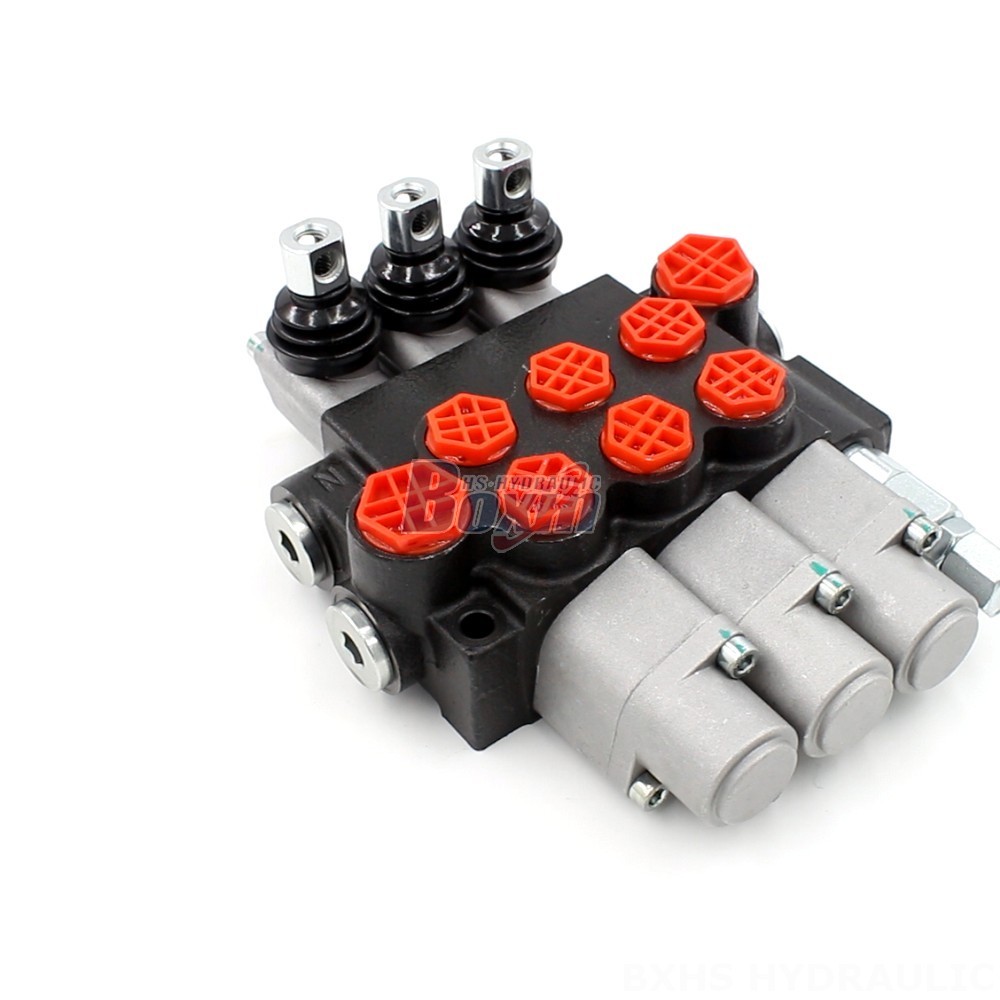

The P40-G38-G12-OT 12 Volt Hydraulic Spool Valve is a 3-section, monoblock directional control valve designed for manual control of hydraulic systems in construction, agriculture, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it's suitable for telehandlers, forklifts, mini excavators, and more.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This 12 Volt Hydraulic Spool Valve, part of the P40 series, features a 3-section, monoblock design for robust performance. It offers manual control and is rated for 40 L/min flow and 250 bar maximum pressure, ensuring reliable operation in demanding applications. The valve operates with a viscosity range of 15 to 75 mm²/s and withstands ambient temperatures from -40°C to +80°C. Ideal for use in construction and earth-moving equipment, material handling, agriculture, and industrial vehicles, this valve is compatible with telehandlers, forklifts, mini excavators, skid steer loaders, and more.
