Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1169 Pandangan Mencari Produk Ini

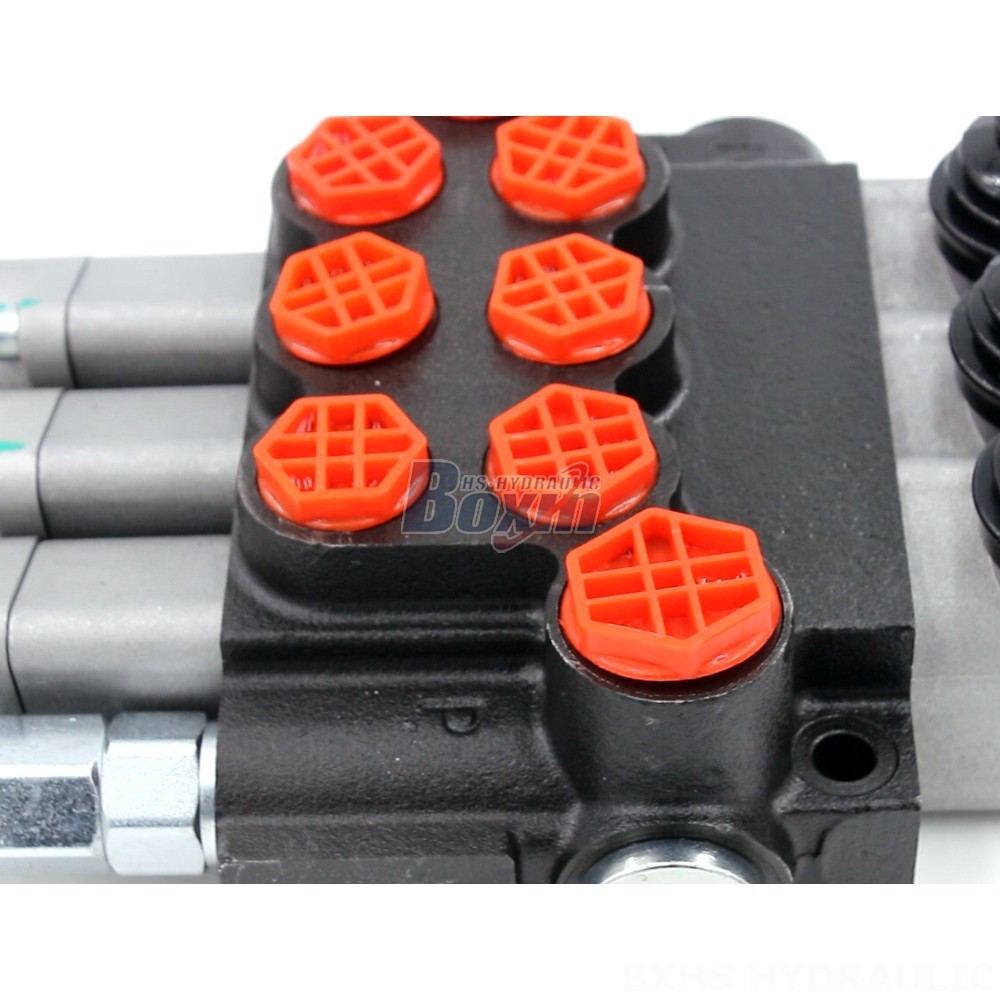

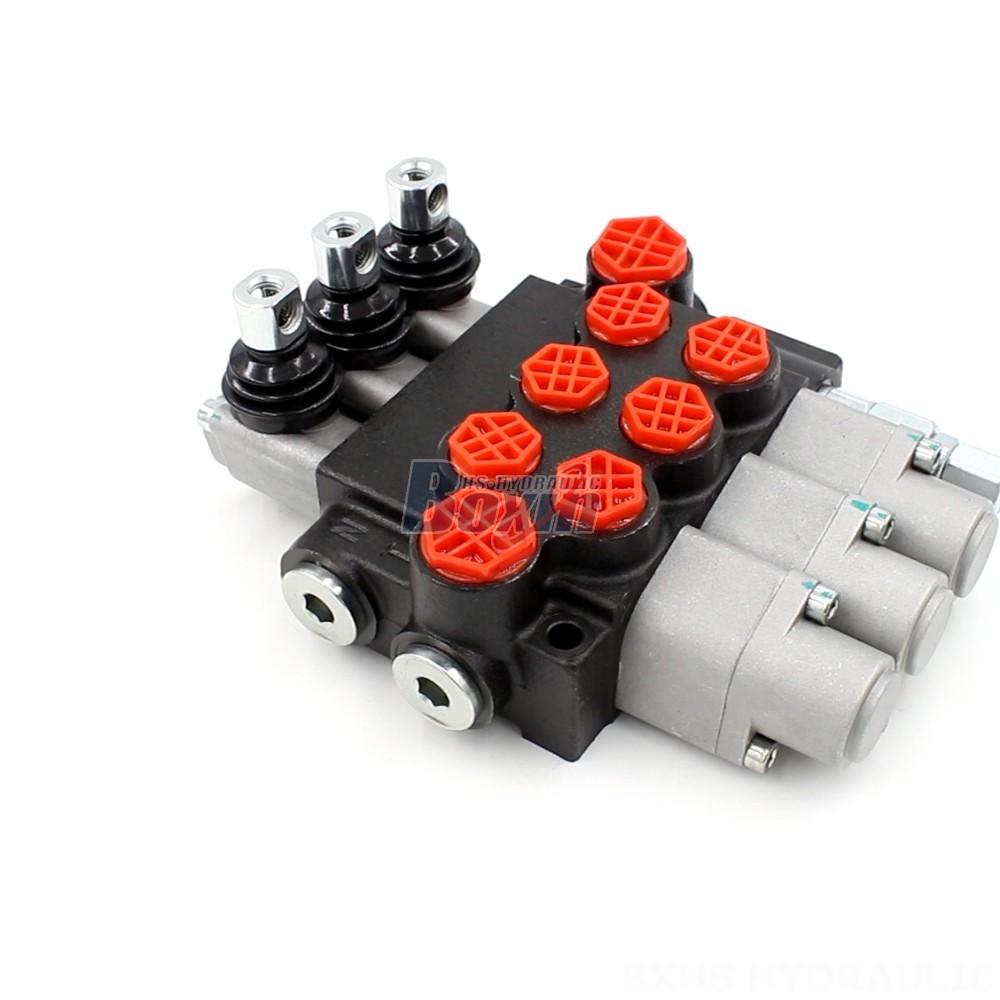

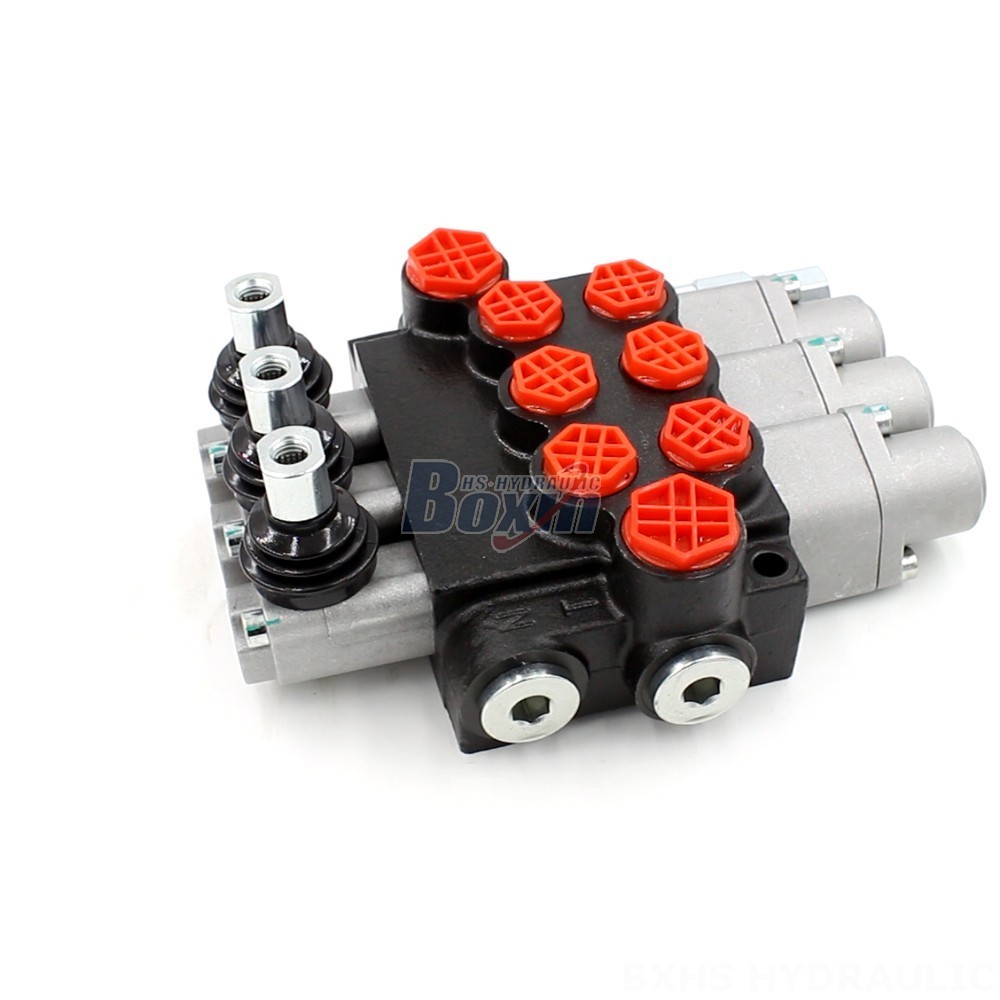

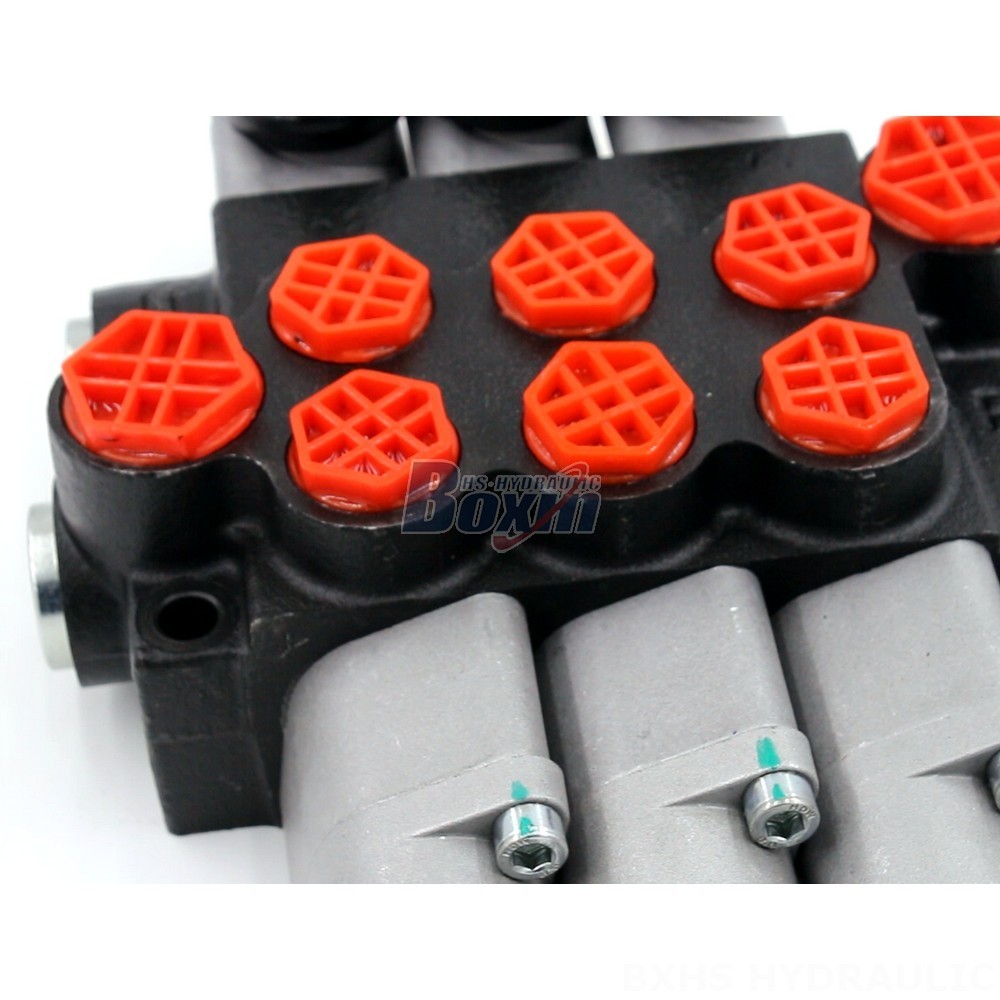

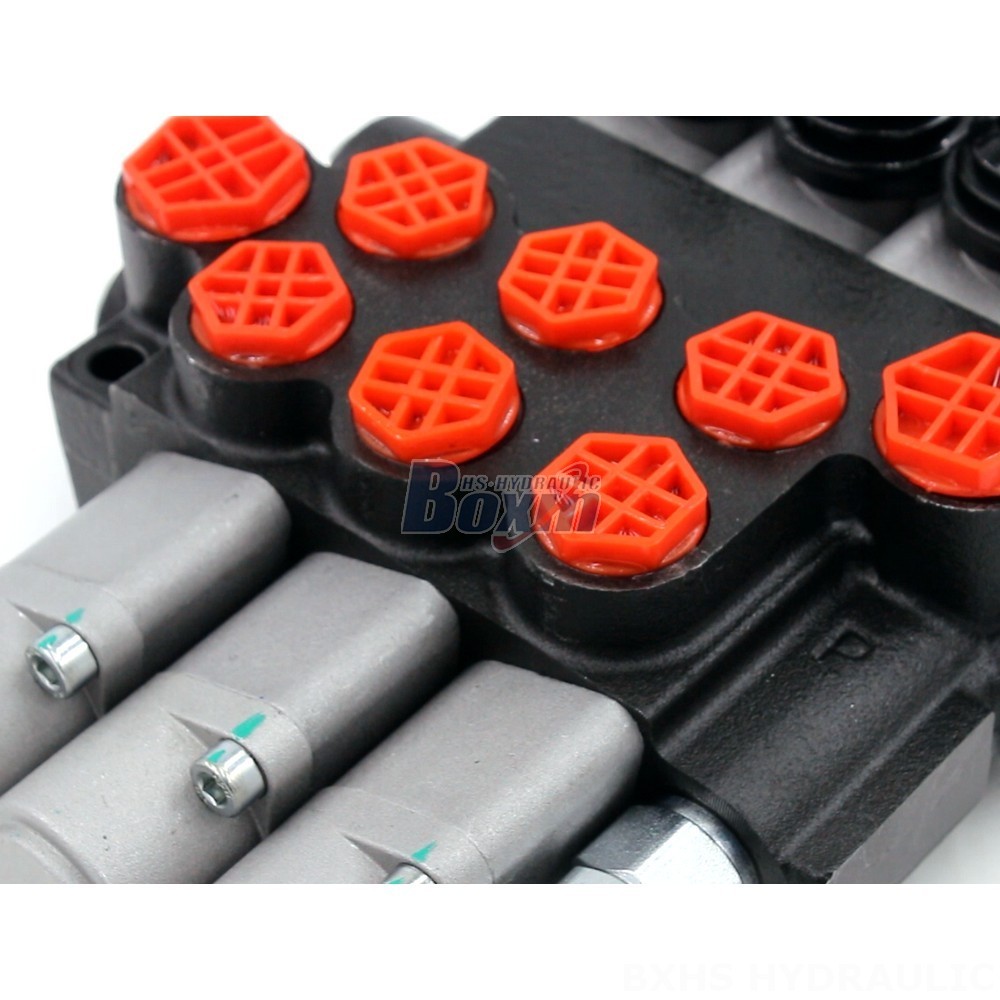

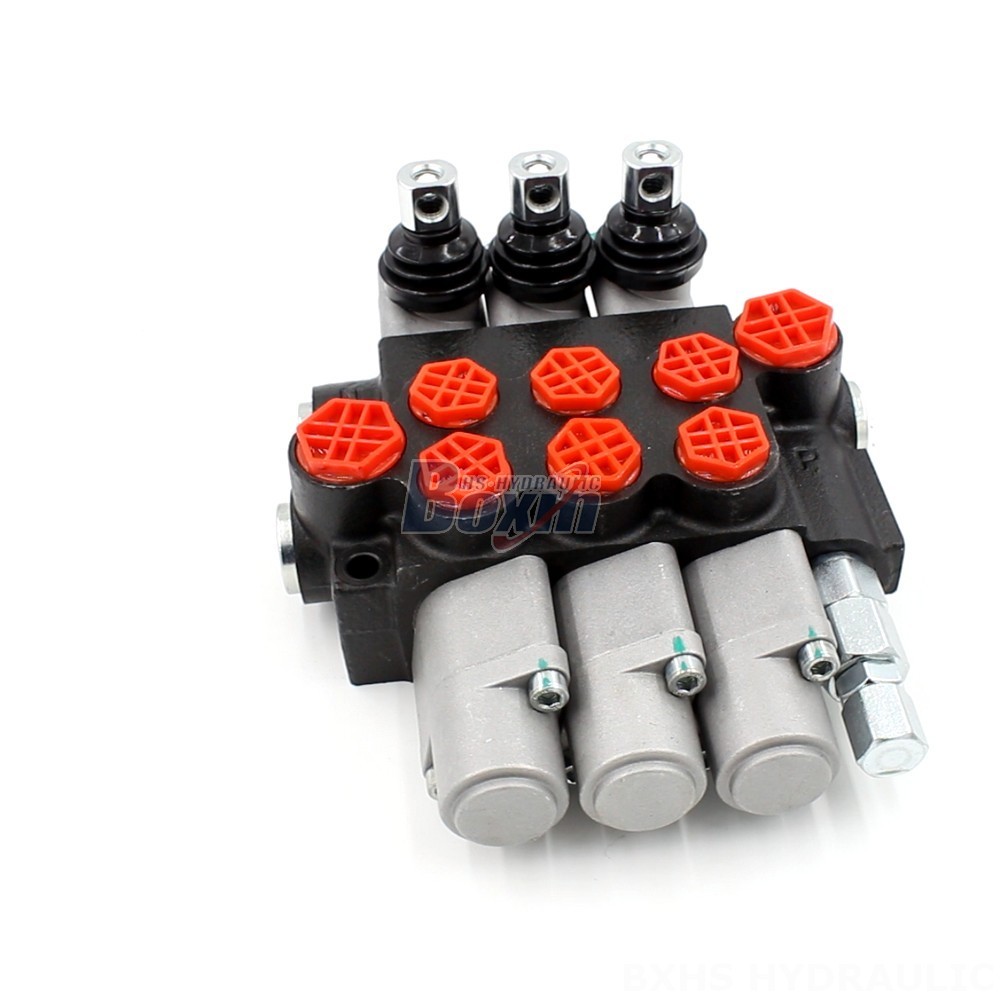

The P40-G38-G12-OT Monoblock Valve is a high-performance hydraulic control valve designed for a wide range of applications in material handling, construction, earthmoving, agriculture, and industrial vehicles. This robust and reliable valve features a 3-section design, a rated flow of 40 L/min, and a maximum pressure of 250 bar. It is suitable for various equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and compact wheel loaders.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series Tractor Supply Hydraulic Control Valve is a manual, 3-section monoblock valve with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). It operates with a viscosity range of 15-75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This valve features a 3-spool design and is ideal for various applications in material handling, construction, earthmoving, agriculture, and industrial vehicles. It is compatible with a wide range of equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
