Produksi & Pengiriman
Waktu Produksi 15-30 Hari

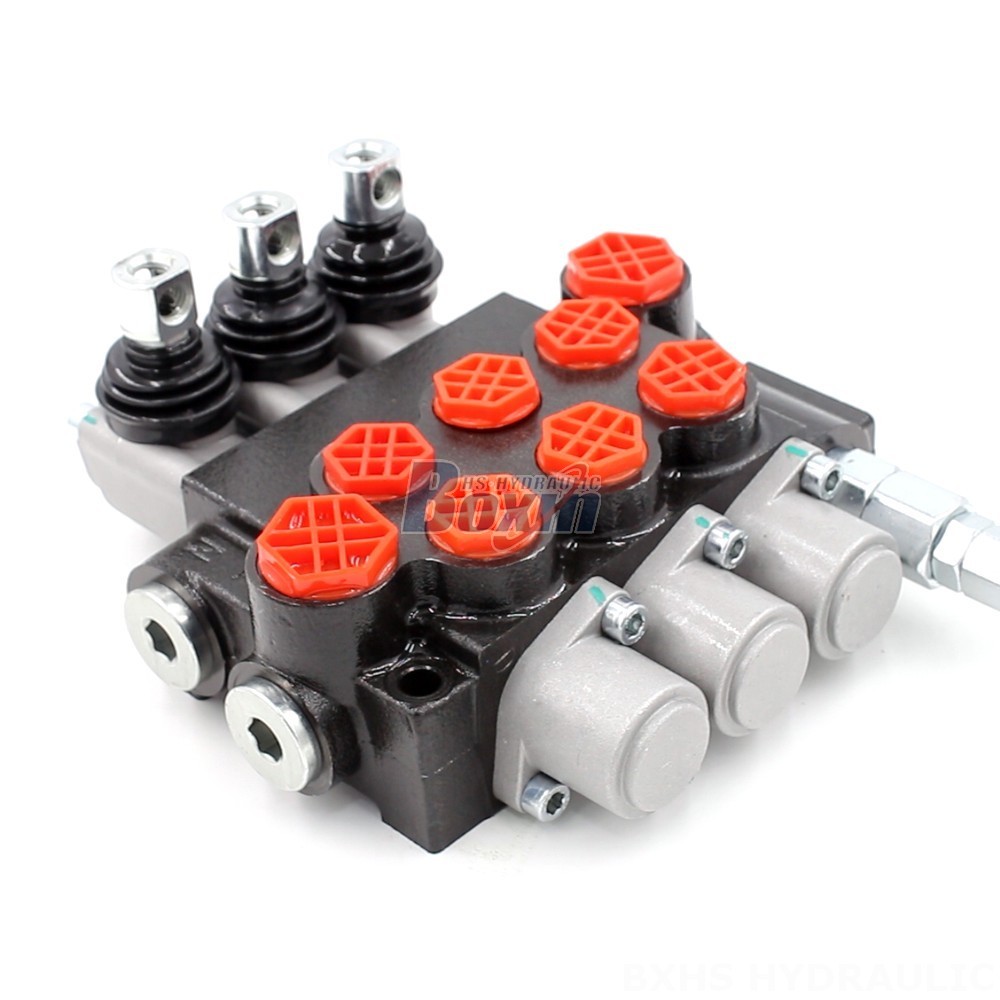

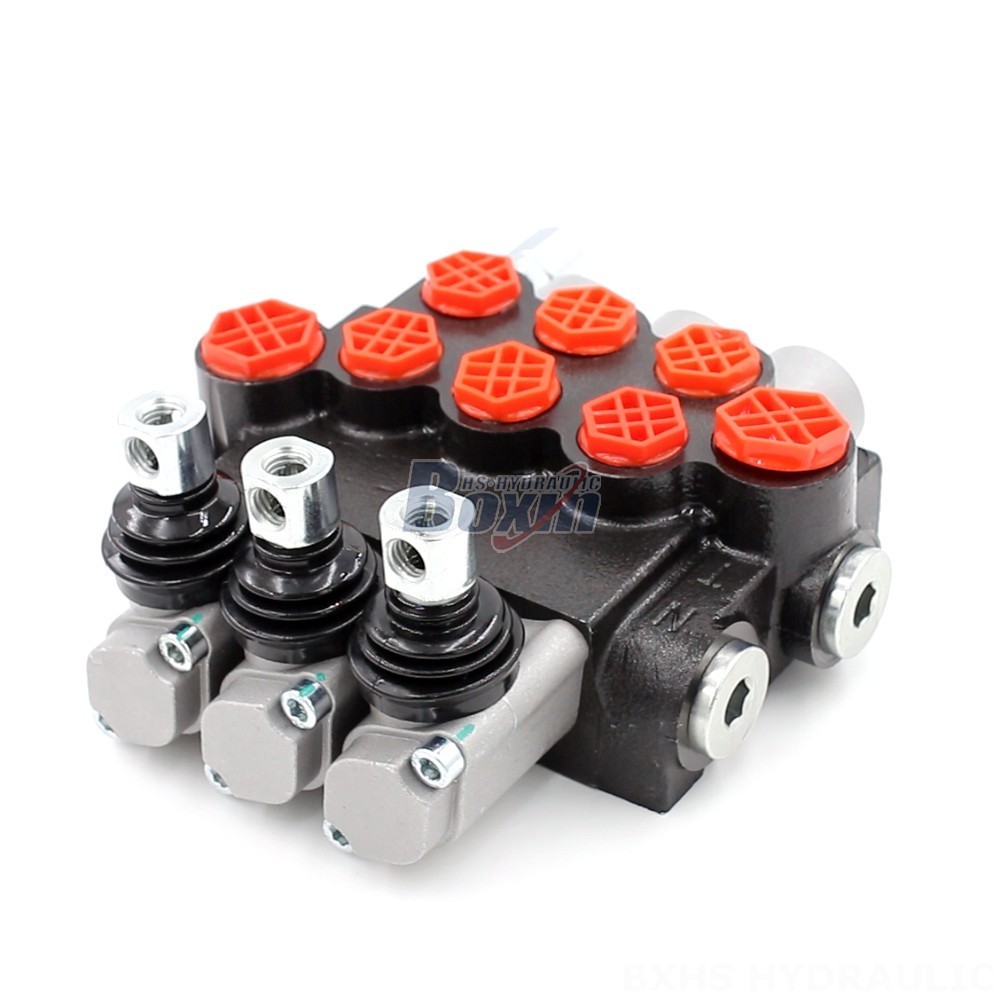

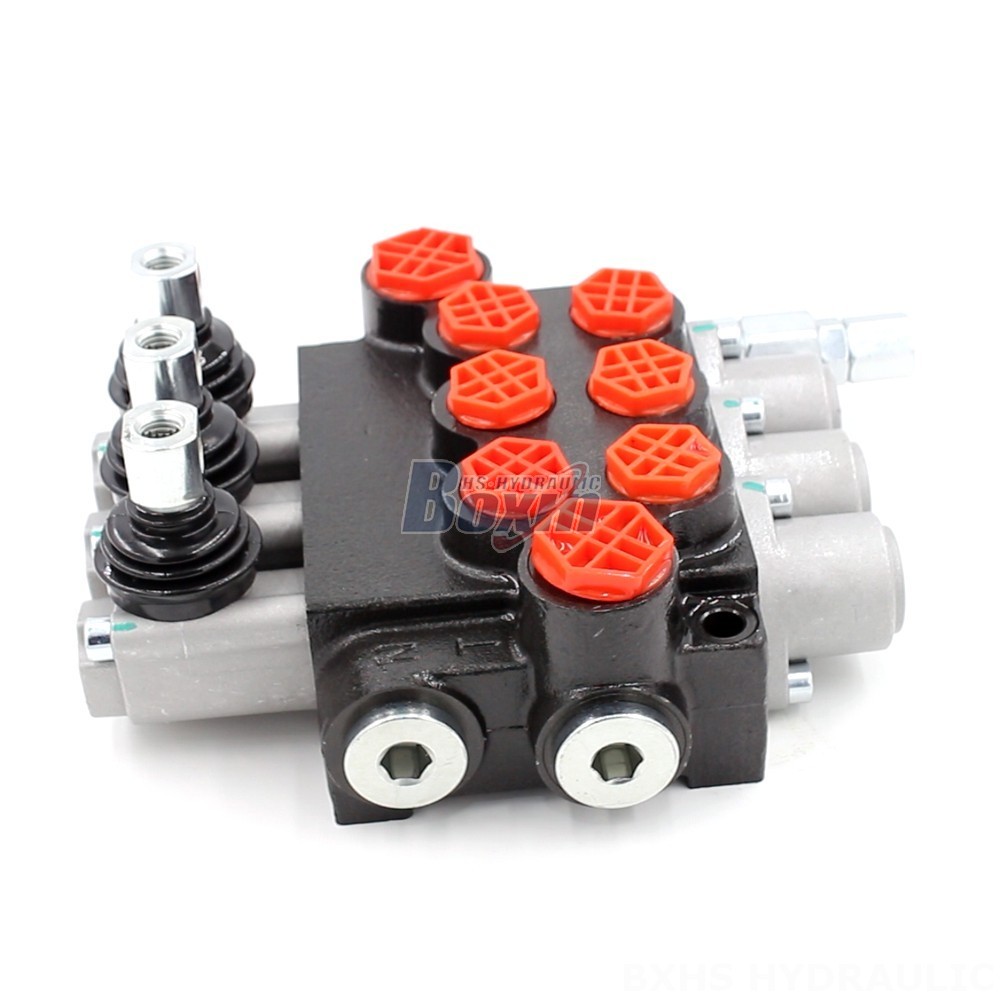

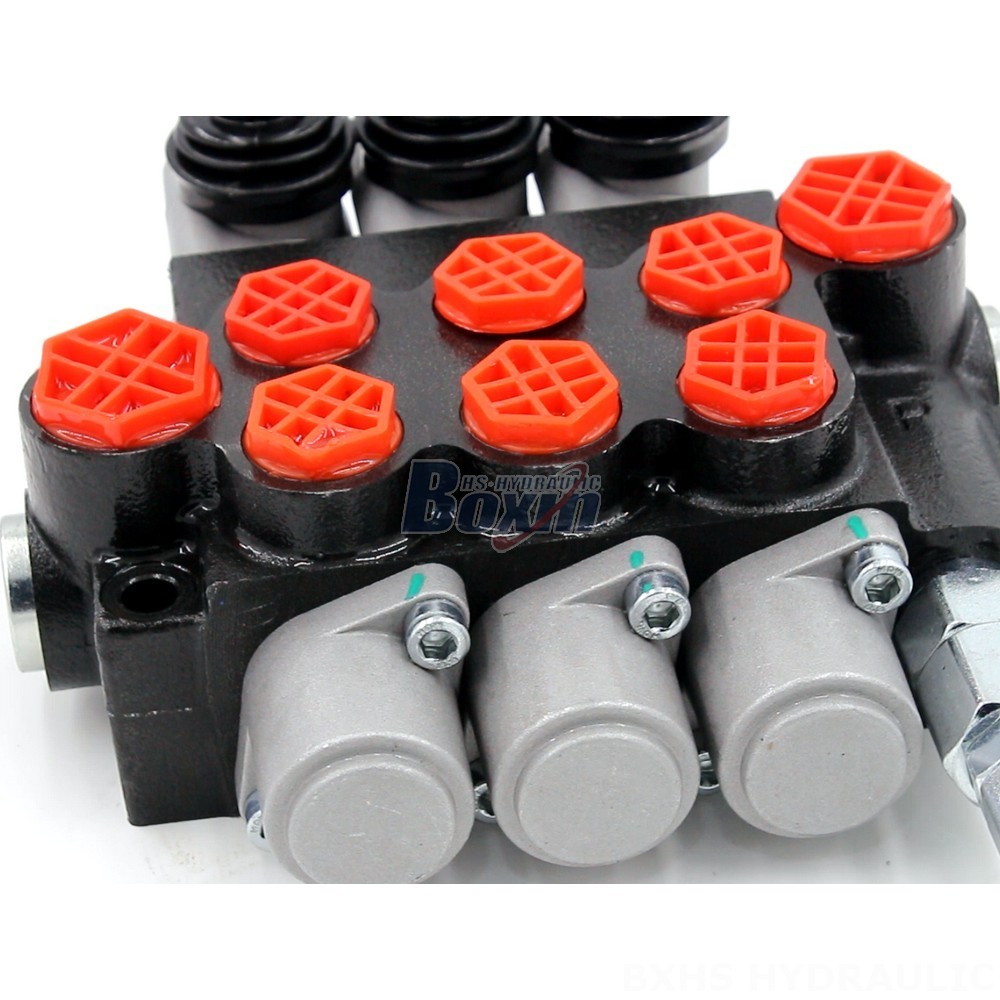

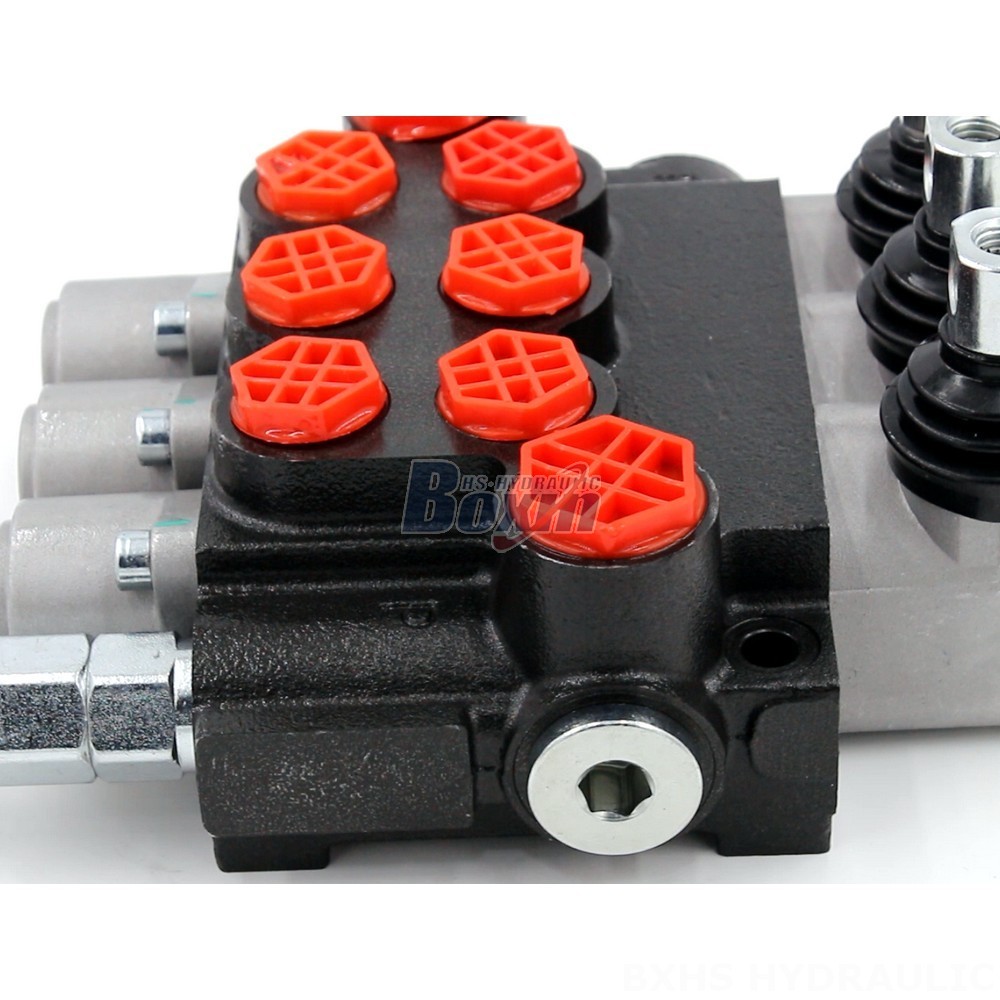

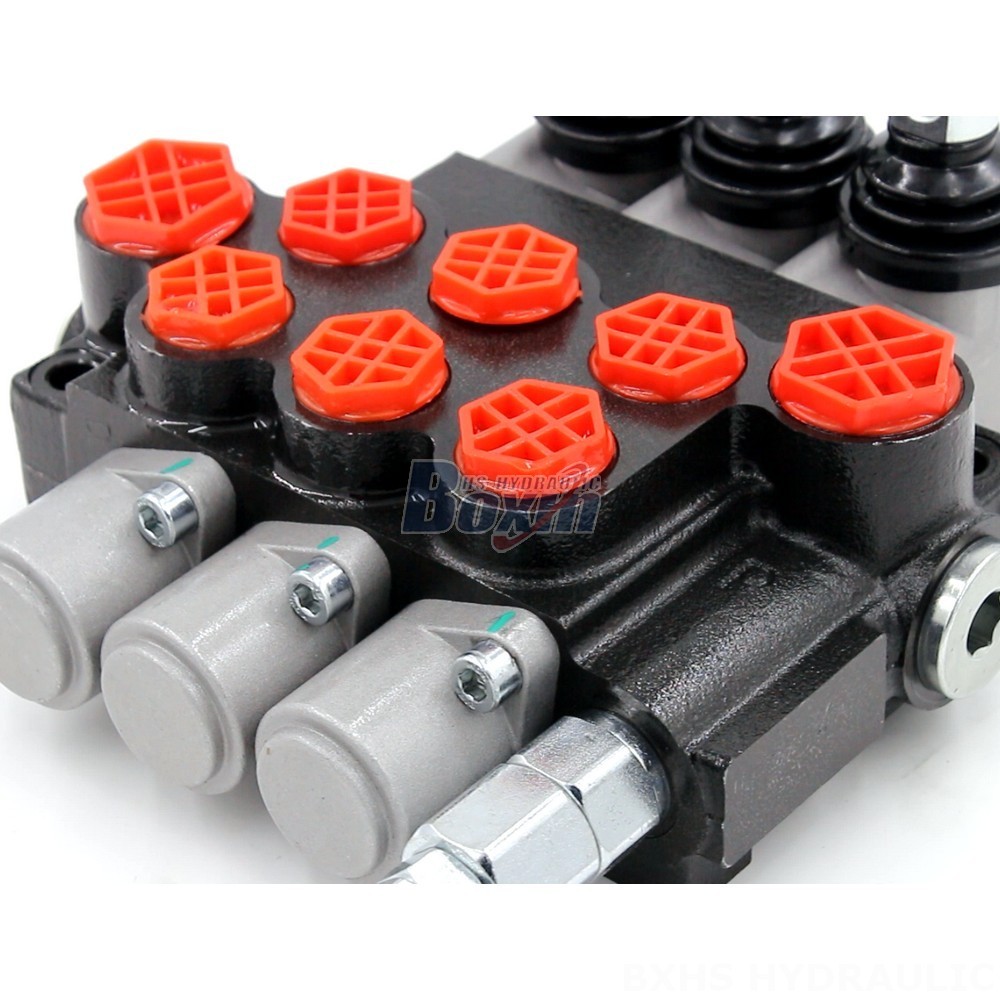

The Boxinhuasheng P40-G38-G12-OT-OT-OT Manual Directional Valve is a high-performance, heavy-duty valve designed for a wide range of applications in the construction, material handling, agriculture, and industrial vehicle industries. This 3-section, monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for demanding tasks. Its compact design and rugged construction ensure reliable operation in even the toughest conditions.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The Boxinhuasheng P40-G38-G12-OT-OT-OT Manual Directional Valve is a high-performance, heavy-duty valve designed for a wide range of applications in the construction, material handling, agriculture, and industrial vehicle industries. This 3-section, monoblock valve offers a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve features a 3-spool design and is suitable for operating viscosities from 15 - 75 mm²/s (15 cSt to 75 cSt). Its robust construction and compact design make it ideal for demanding tasks in a variety of applications. The valve is compatible with a range of equipment including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. The valve operates at ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F) and is designed for long-lasting performance and reliability.
