P40-G38 Hydraulic Valve: Advanced Technology for Superior Performance

Metode Kontrol:Buku Panduan

Spul:1 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G3/8

Port Keluar:G3/8

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:23*16*11

Kelas kotor:3.00 kg

Ketersediaan: Tersedia

956 Pandangan Mencari Produk Ini

P40-G38 Hydraulic Valve: Advanced Technology for Superior Performance

P40-G38 Hydraulic Valve: Advanced Technology for Superior Performance

P40-G38 Hydraulic Valve: Advanced Technology for Superior Performance drawing image

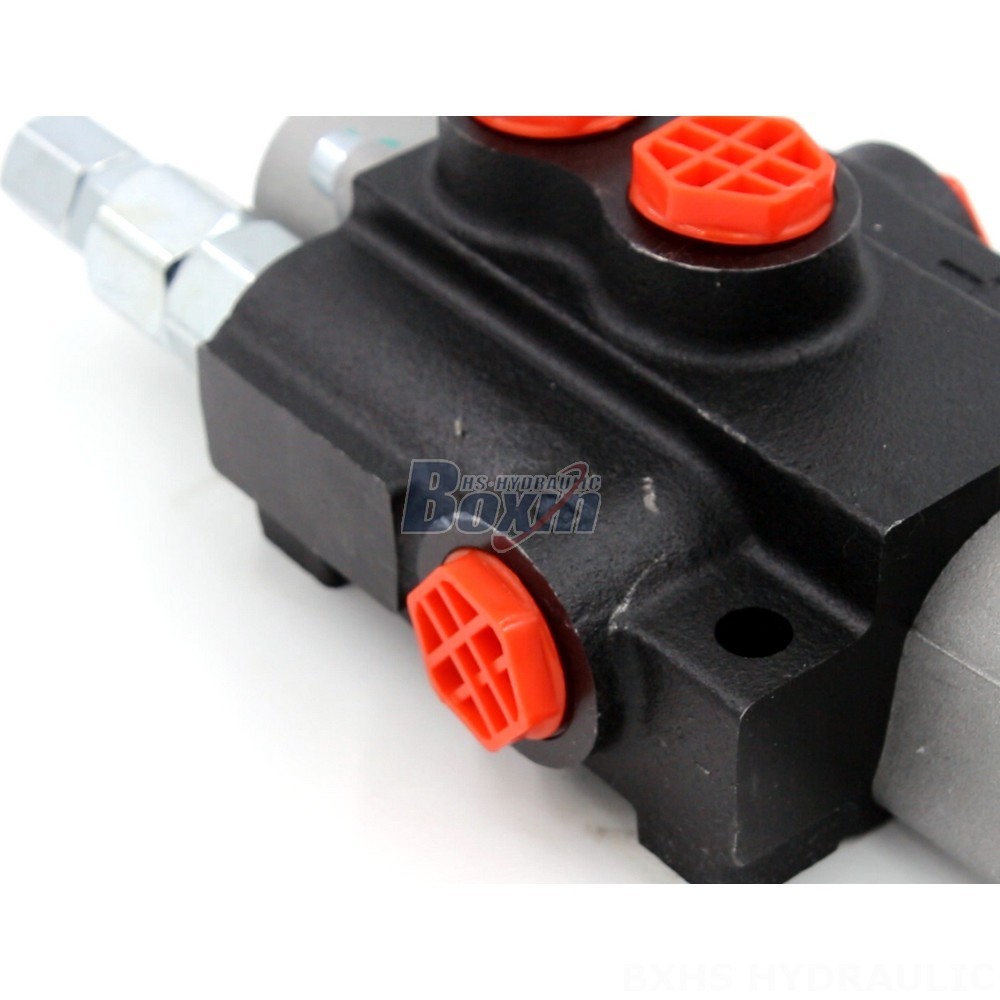

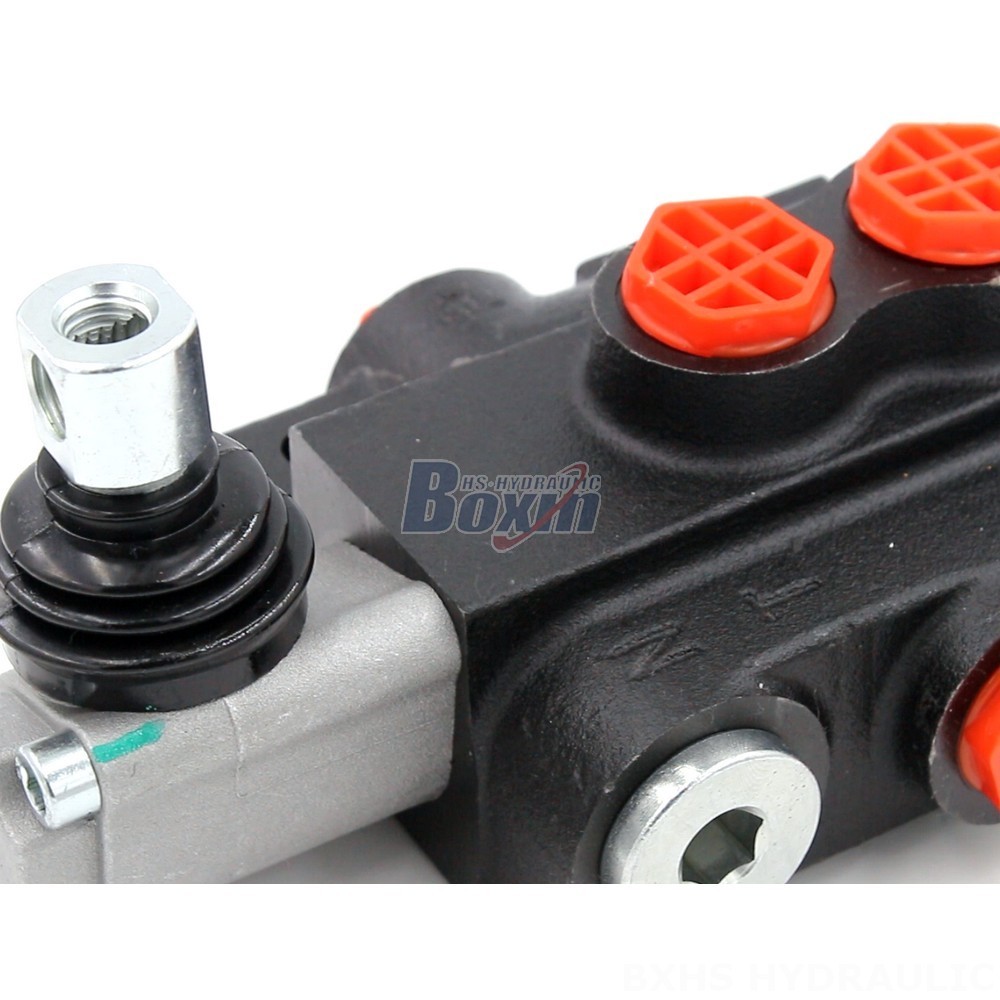

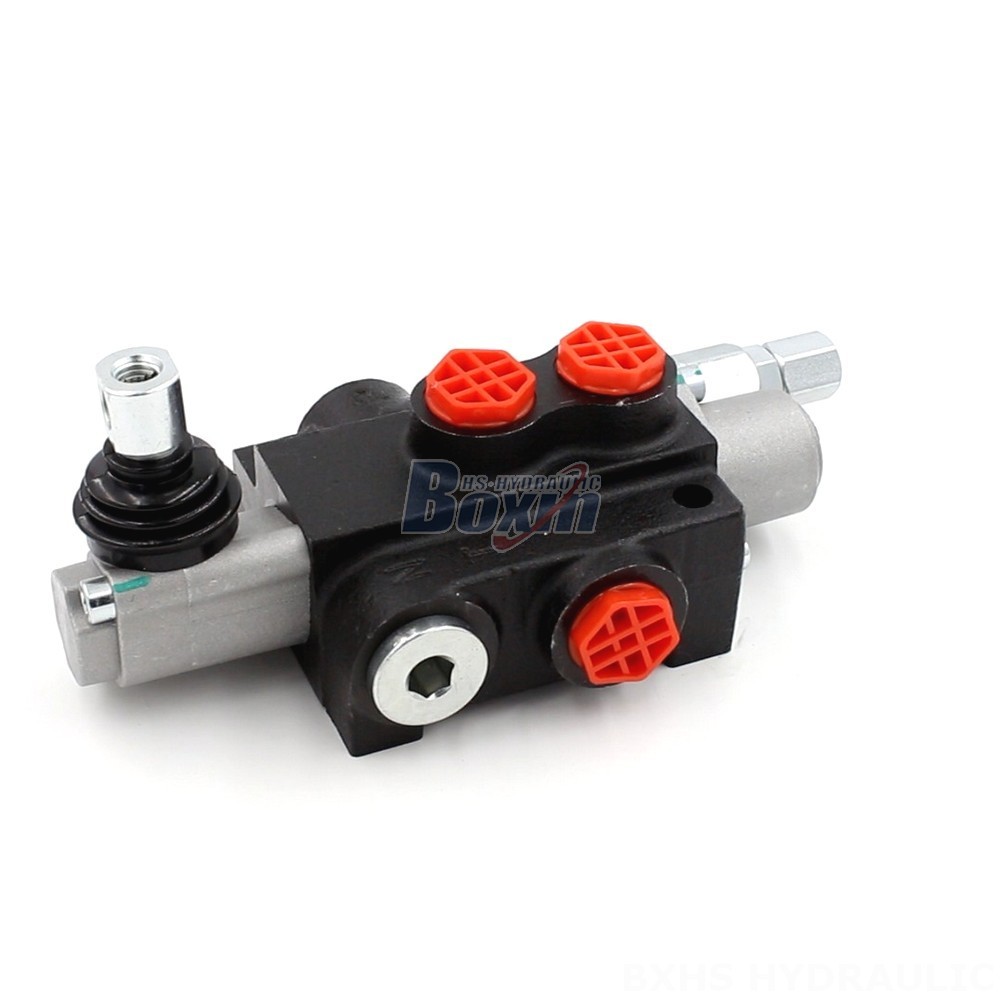

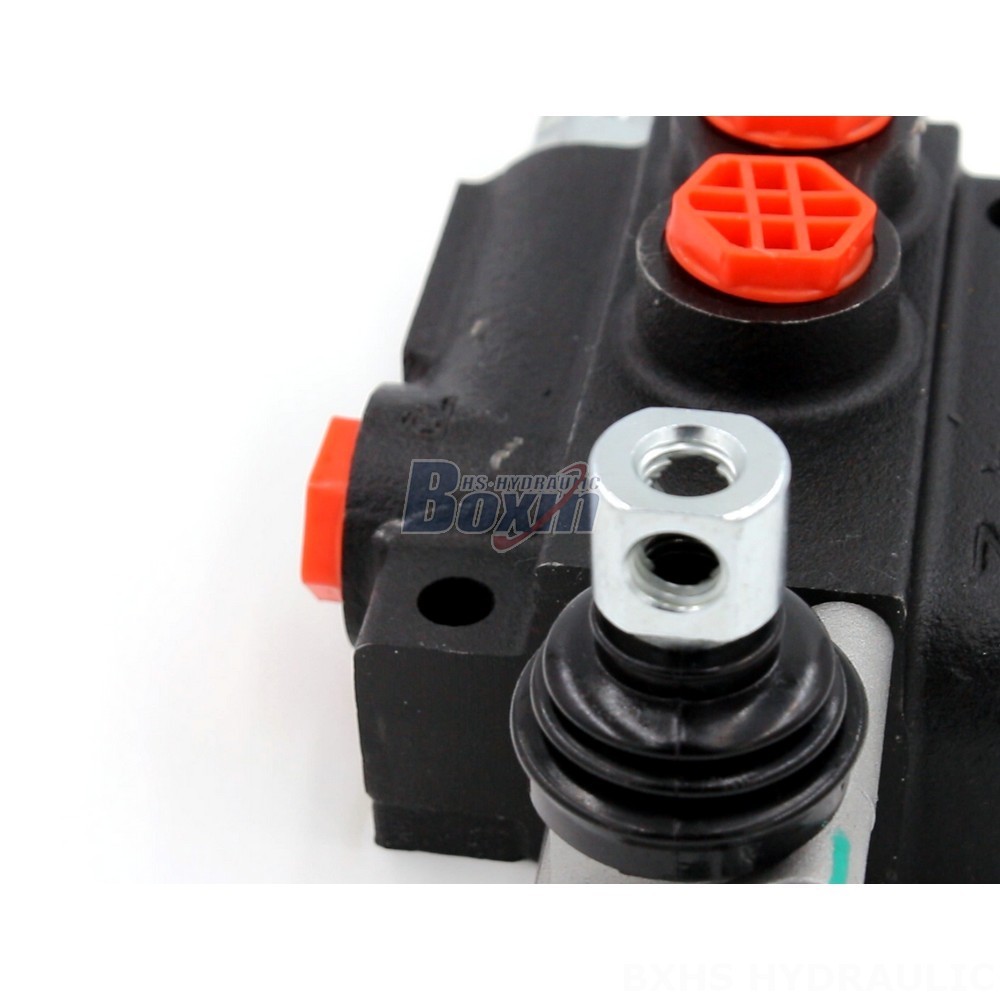

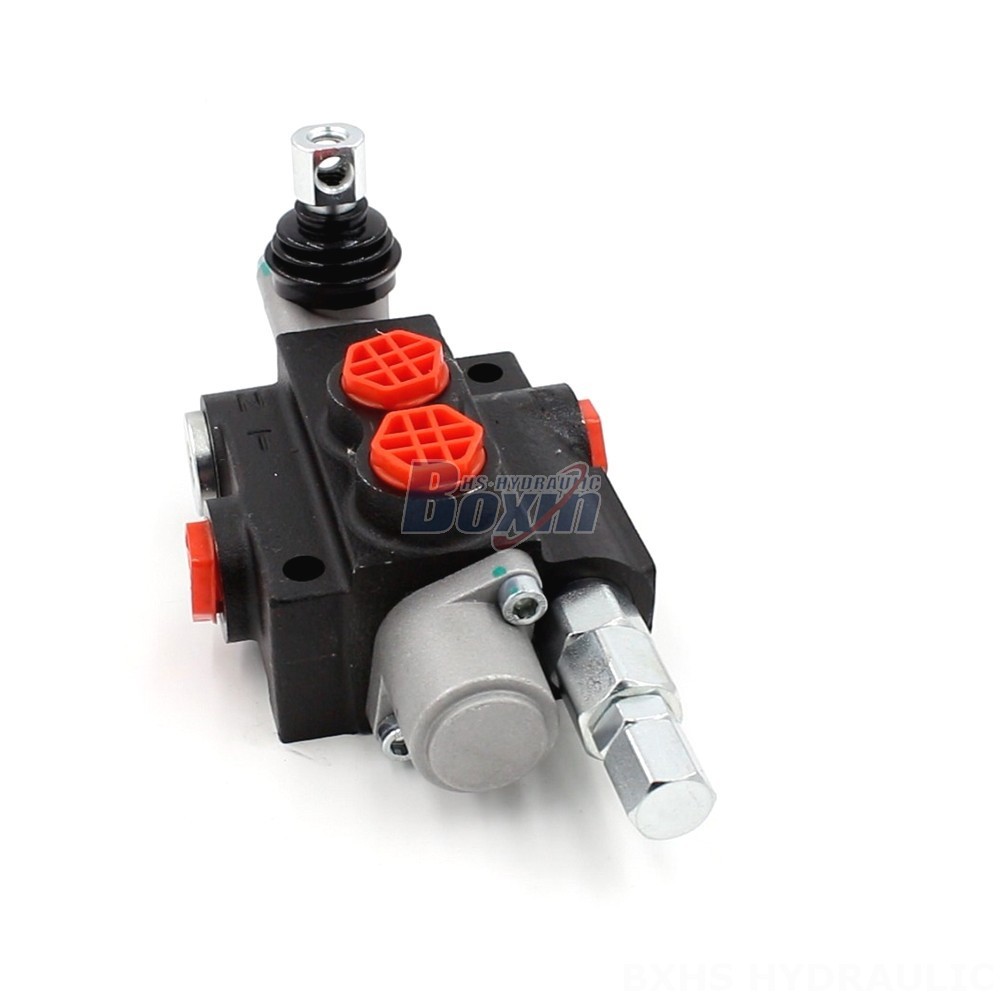

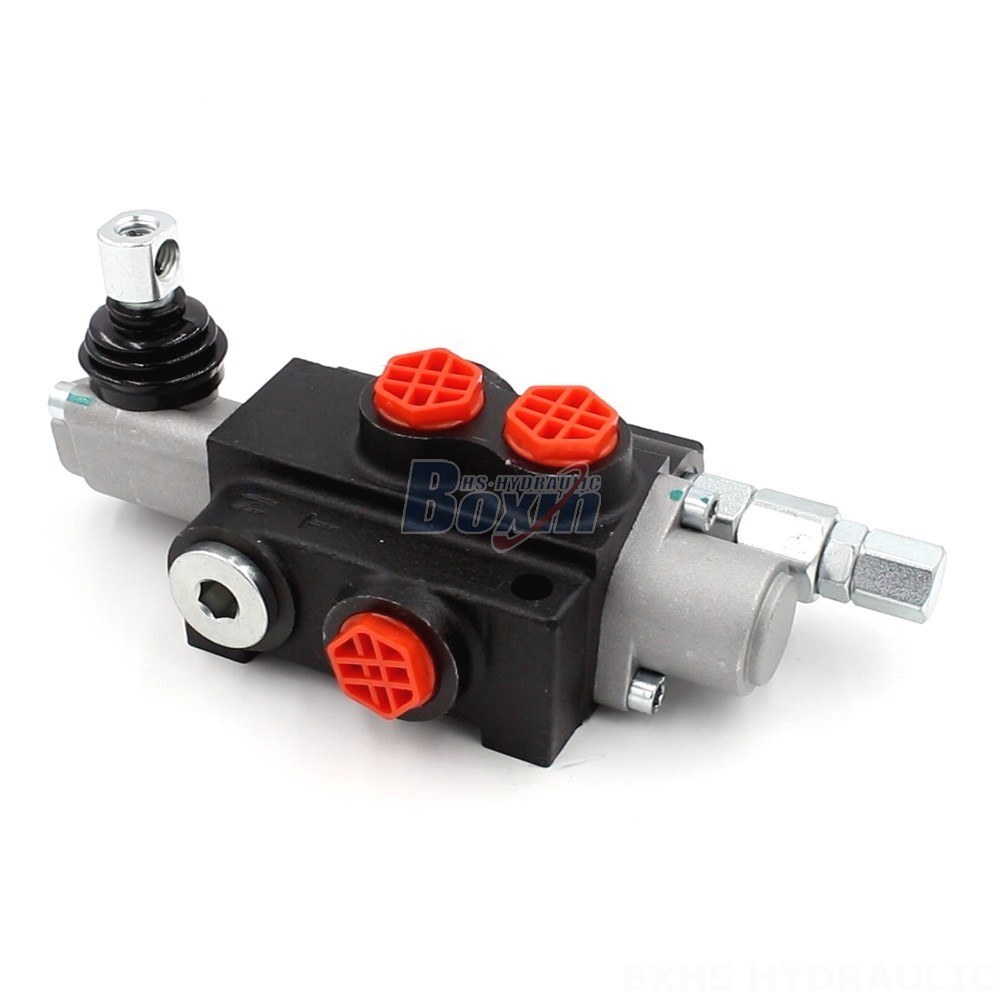

The P40-G38 6 Port Hydraulic Valve is a high-performance, manual, monoblock valve designed for various applications in material handling, construction, agriculture, and industrial vehicles. This valve features a rated flow of 40 L/min and a maximum pressure of 250 bar.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G38 6 Port Hydraulic Valve is a reliable and efficient solution for controlling hydraulic systems in a wide range of applications. This manual, monoblock valve provides superior performance with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). Its robust design ensures durability and long-lasting operation in demanding environments. The valve is suitable for operating viscosities between 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). Its compact and versatile design makes it ideal for use in various machines, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. This advanced hydraulic valve offers reliable control and precision, enhancing the overall performance of your equipment.
