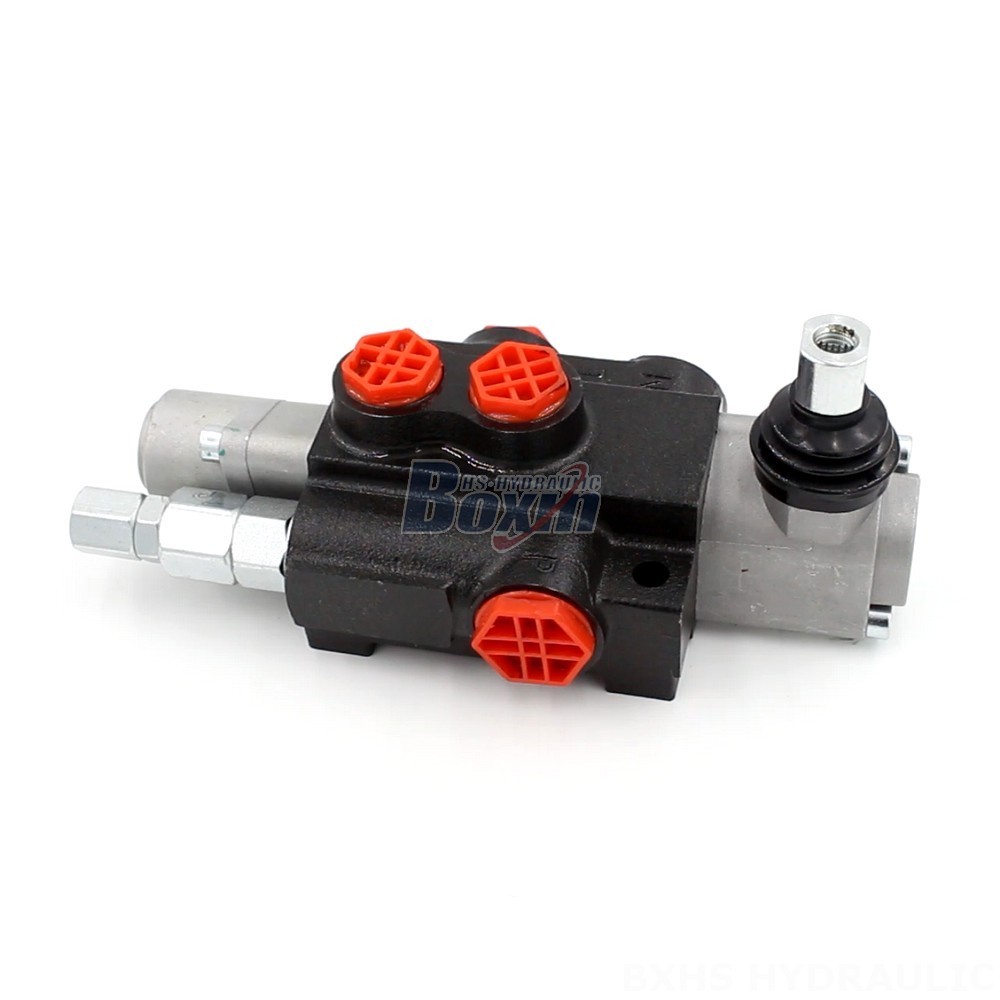

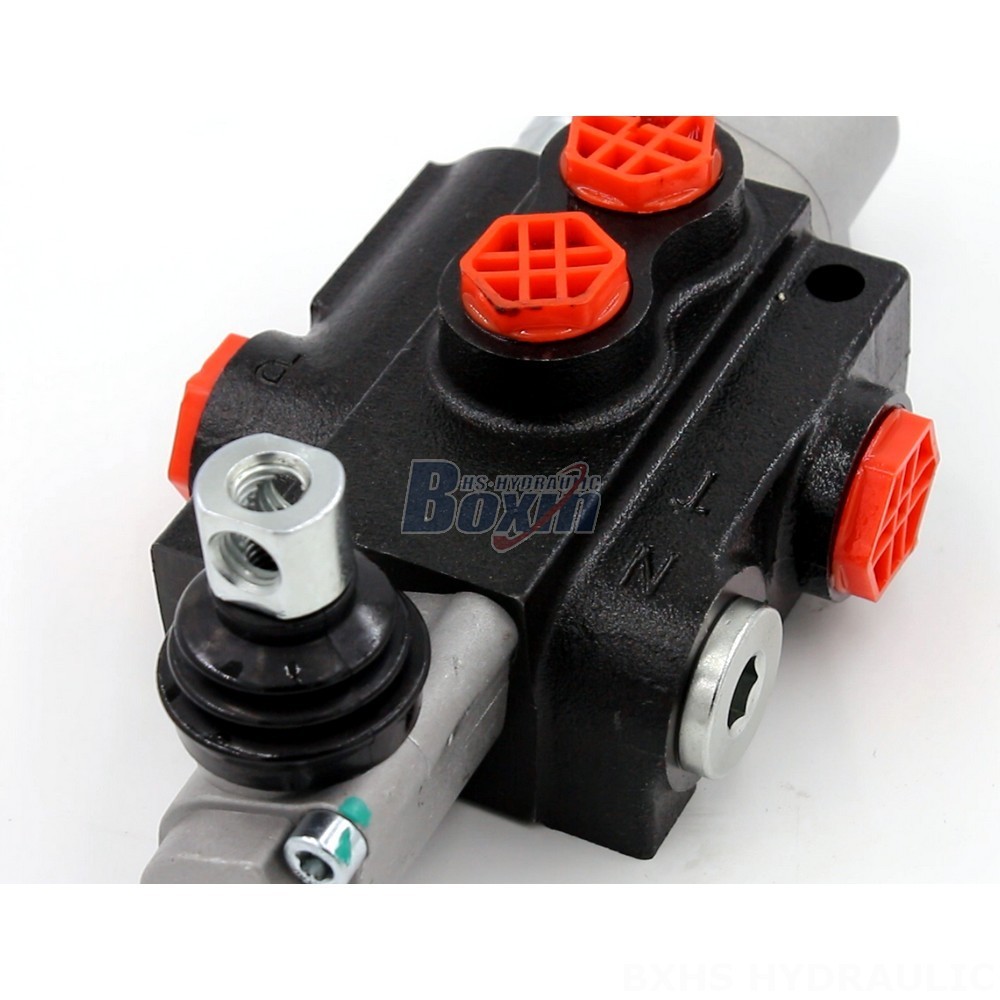

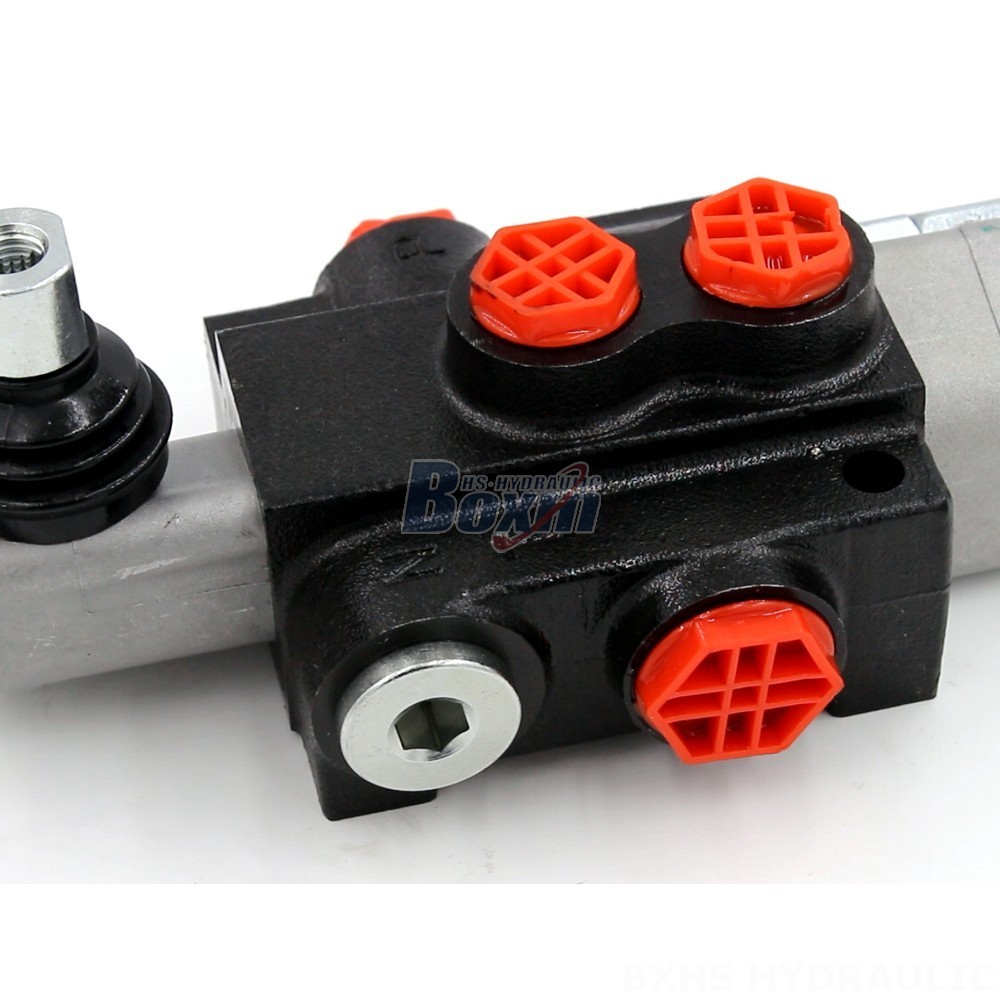

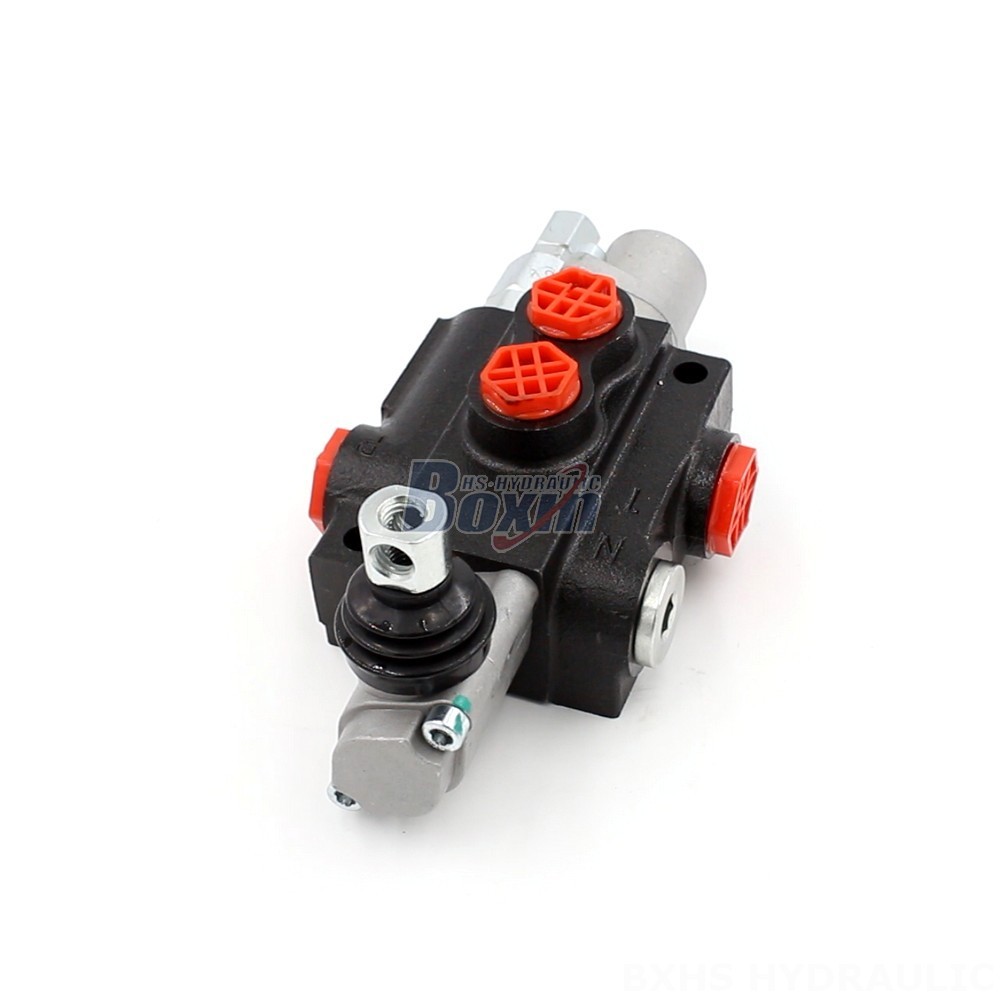

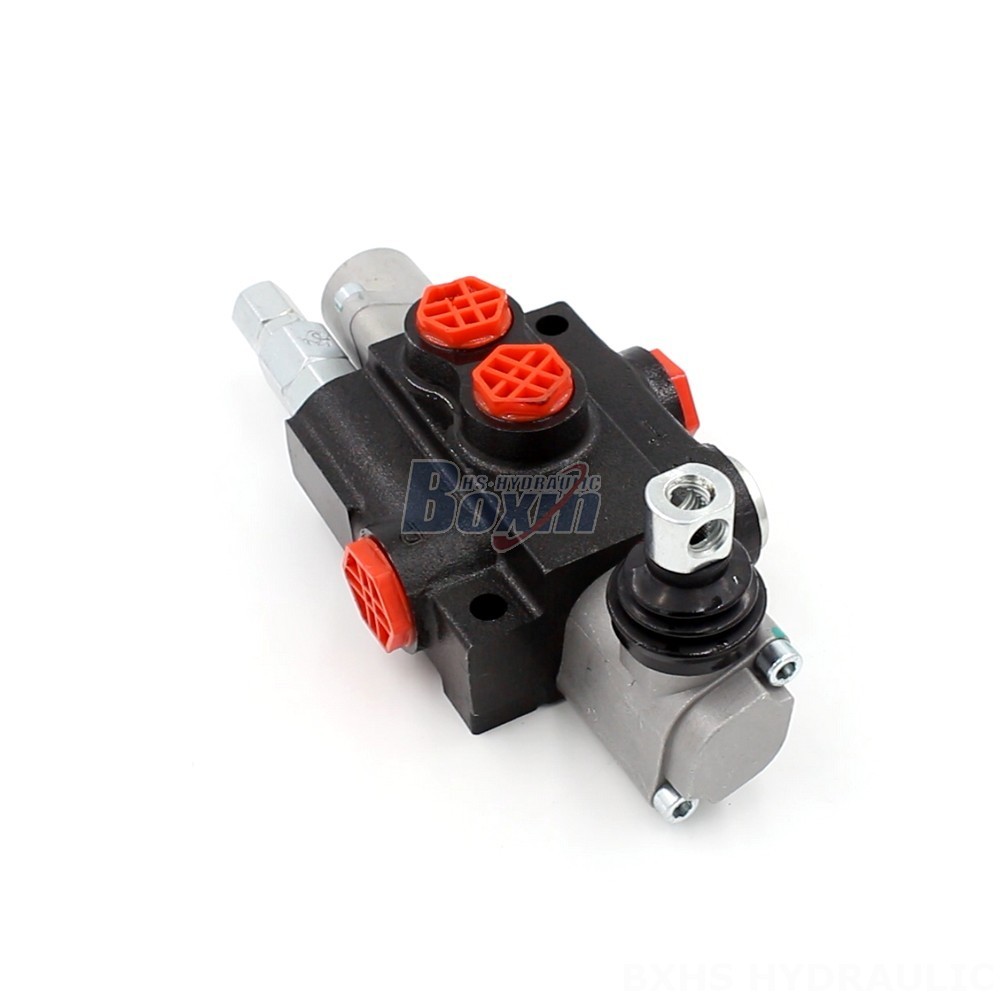

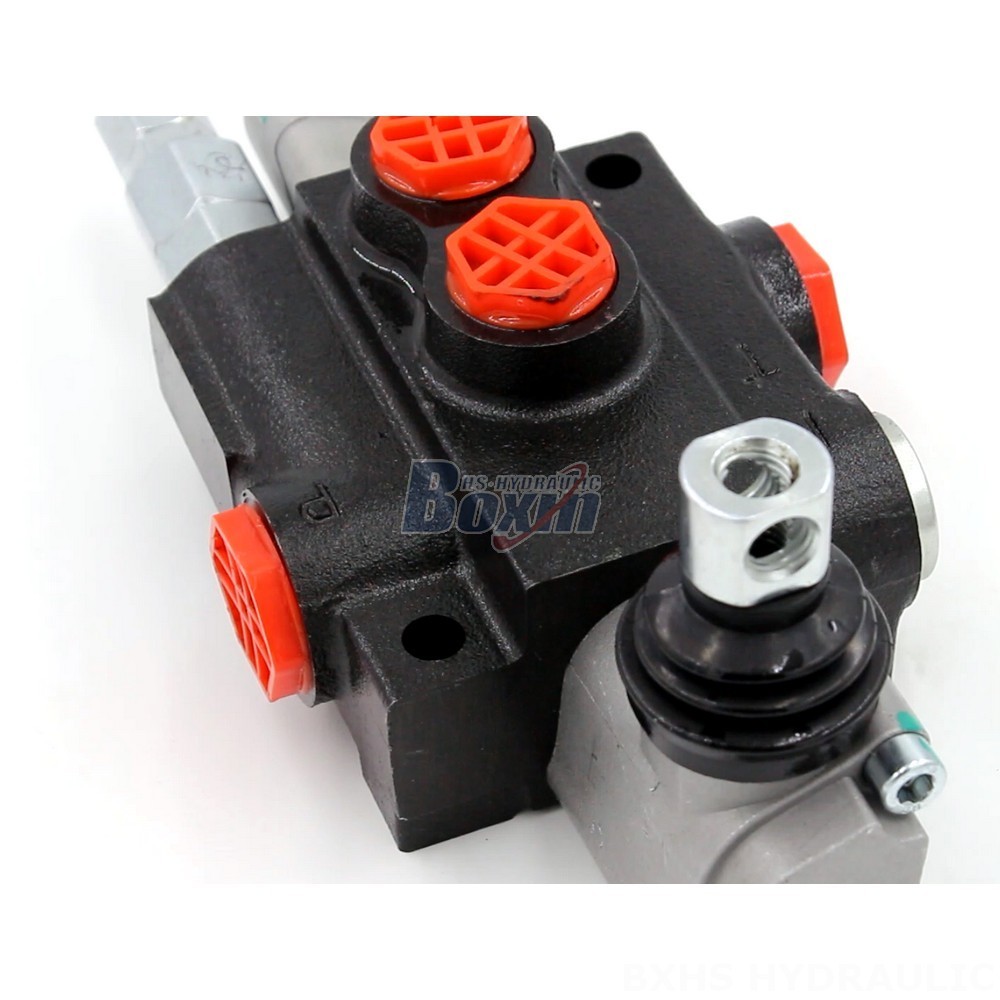

The P40-G38-OT is a manually operated, monoblock directional valve designed for a wide range of industrial applications, including construction, material handling, agriculture, and industrial vehicles. It features a flow rate of 40 L/min, a maximum pressure of 250 bar, and a temperature range of -40°C to +80°C.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G38-OT is a versatile directional valve that offers precise control and reliability in demanding hydraulic systems. Its key features include:
* **Manual Operation:** Allows for direct and intuitive control of fluid flow.
* **Monoblock Construction:** Provides a compact and robust design, ensuring durability and leak-free performance.
* **High Flow Rate:** Delivers up to 40 L/min of flow, suitable for a variety of applications.
* **High Pressure Rating:** Withstands pressures up to 250 bar, making it ideal for heavy-duty applications.
* **Wide Temperature Range:** Operates effectively in temperatures ranging from -40°C to +80°C, ensuring performance in diverse environments.
* **Single Spool Design:** Offers simple and efficient flow control with a single spool.
* **Versatile Applications:** Suitable for a range of industrial applications, including construction, material handling, agriculture, and industrial vehicles.
