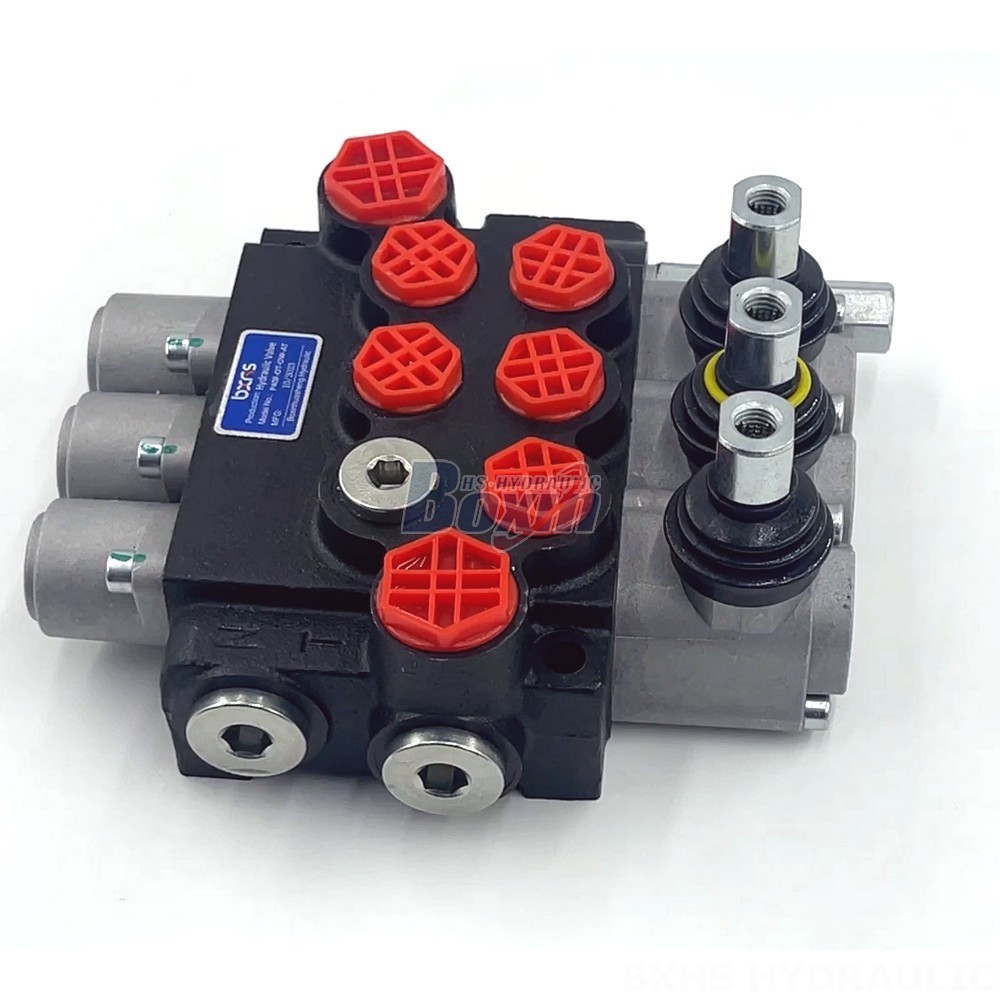

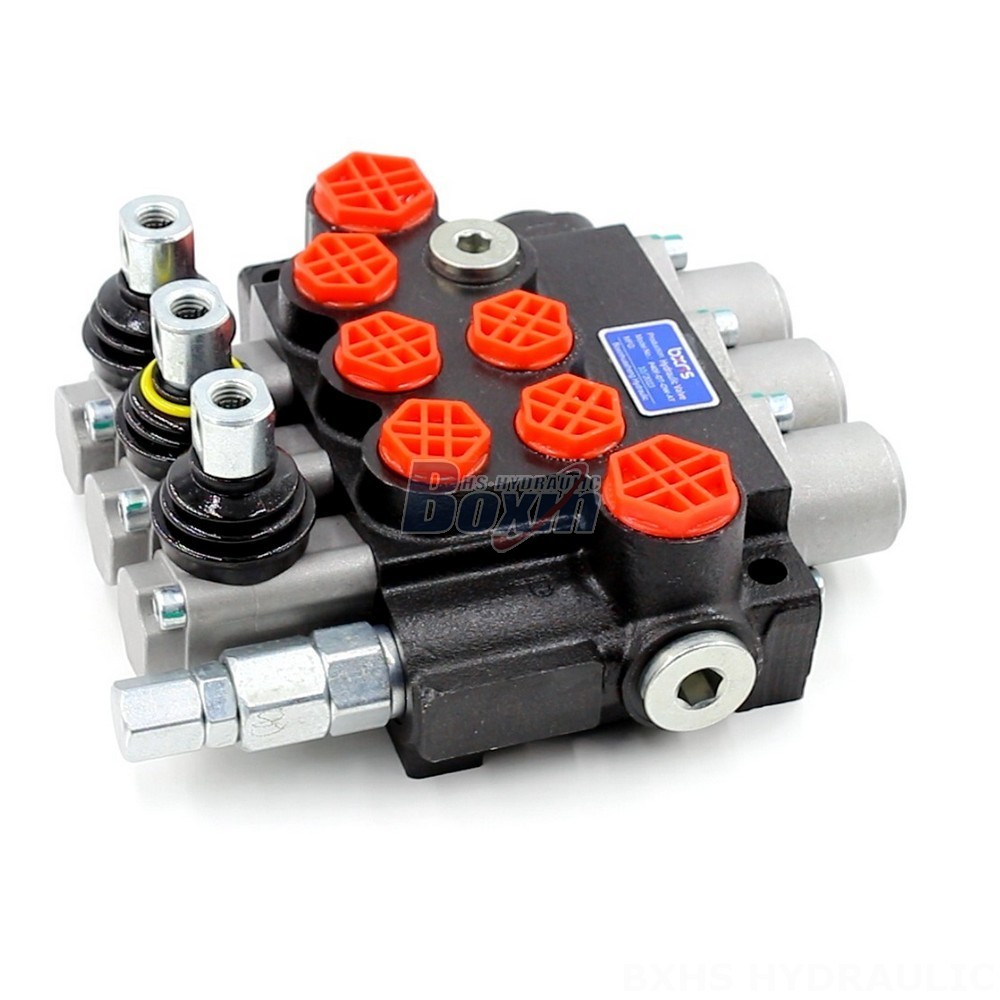

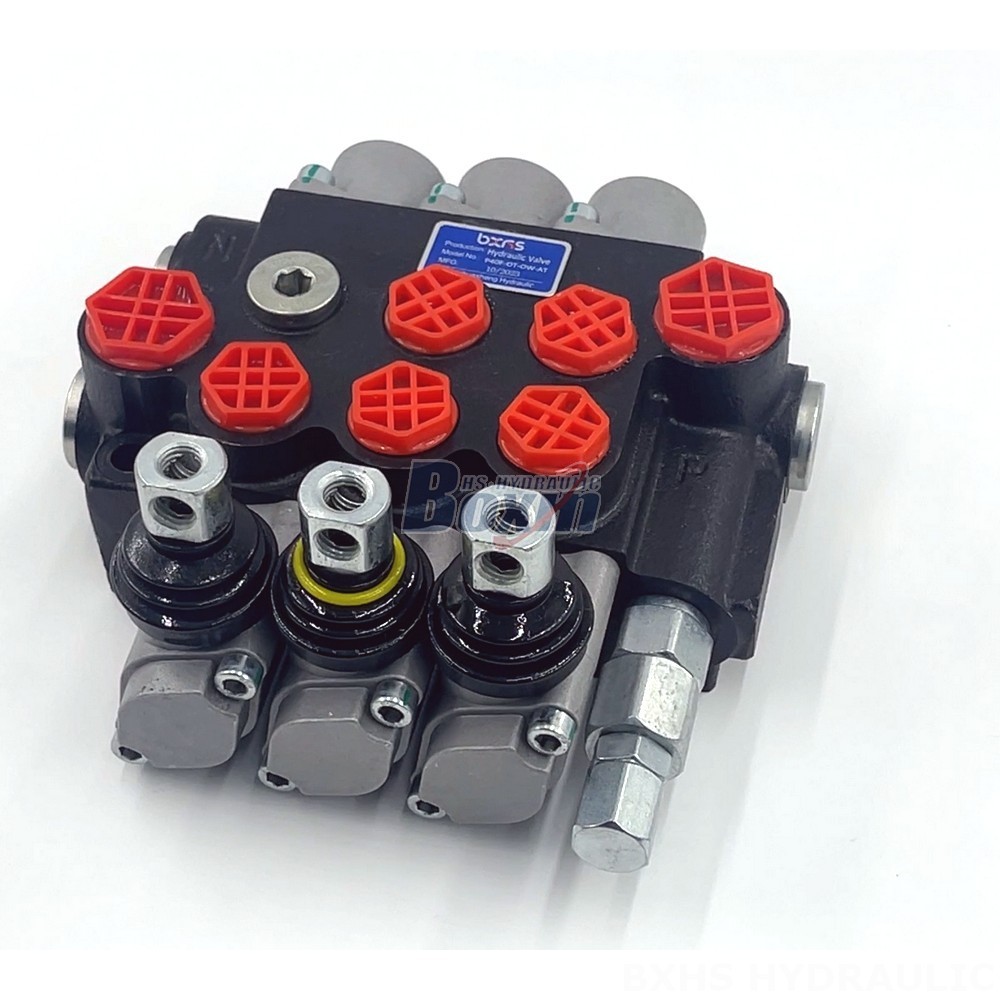

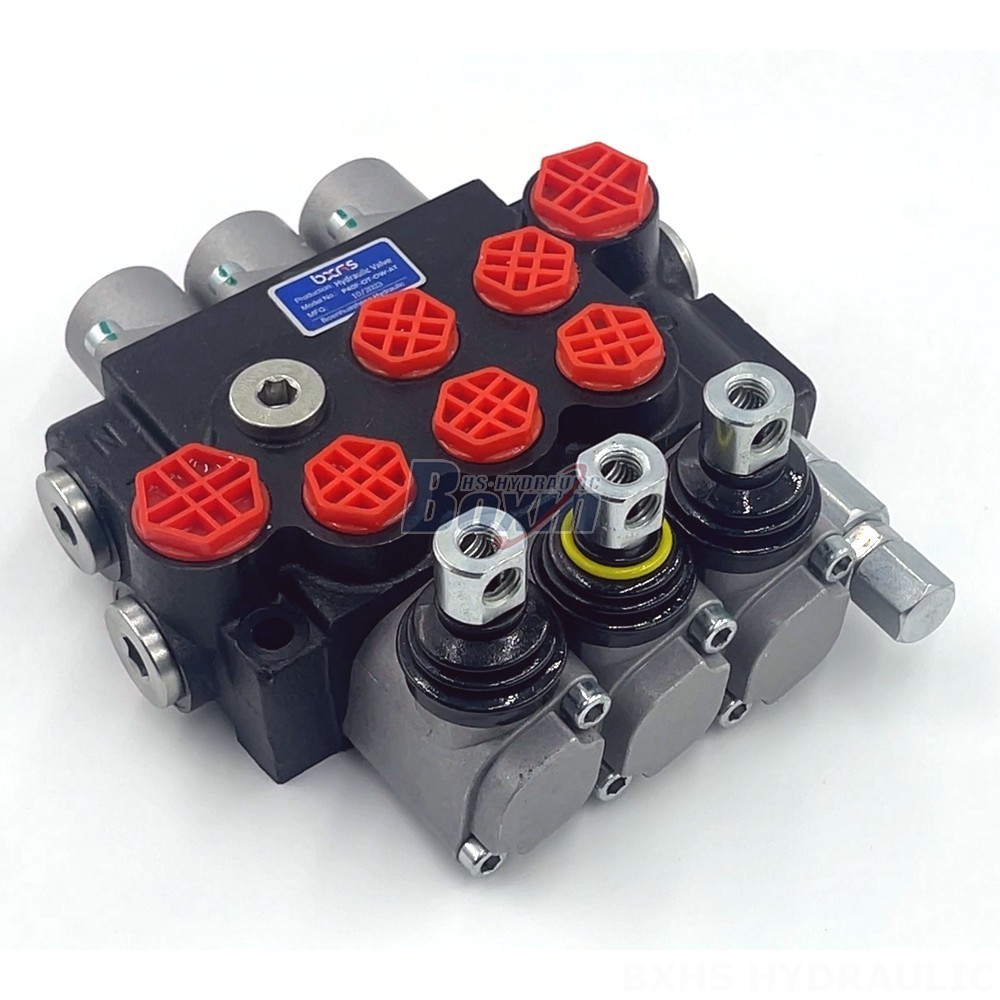

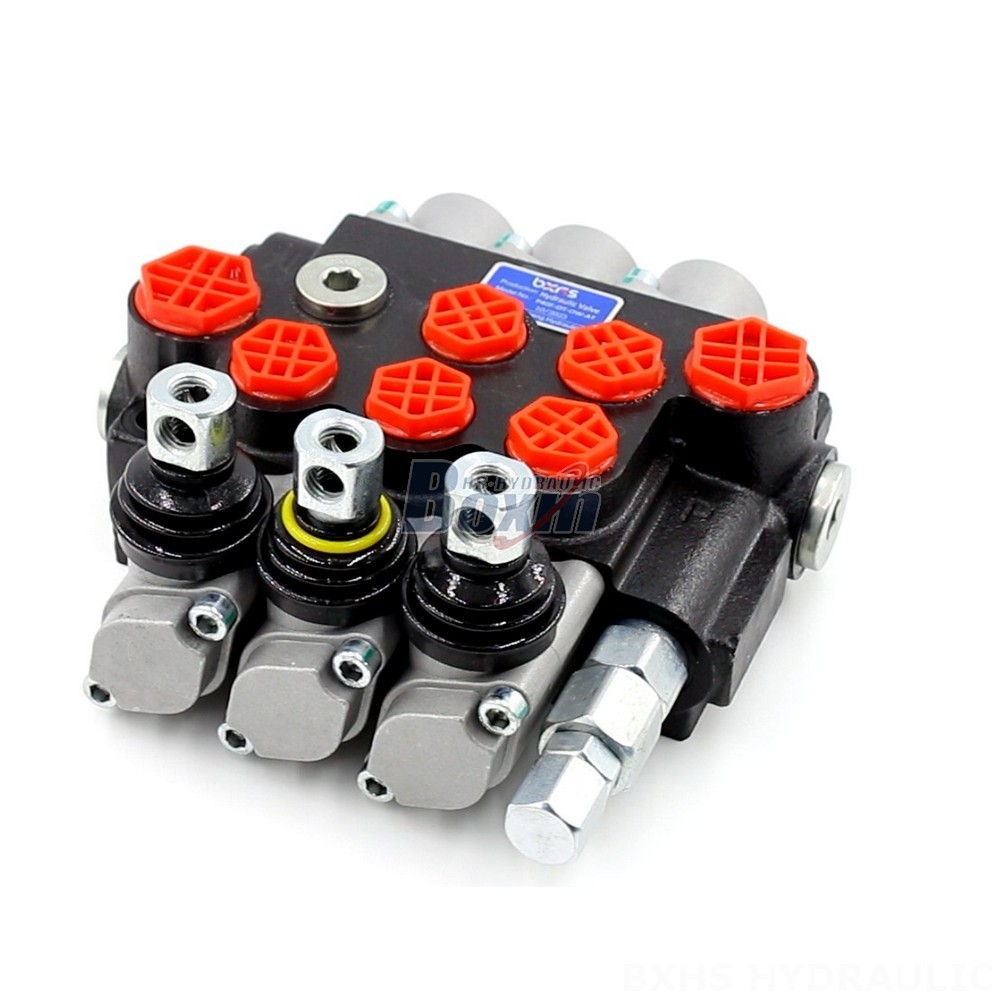

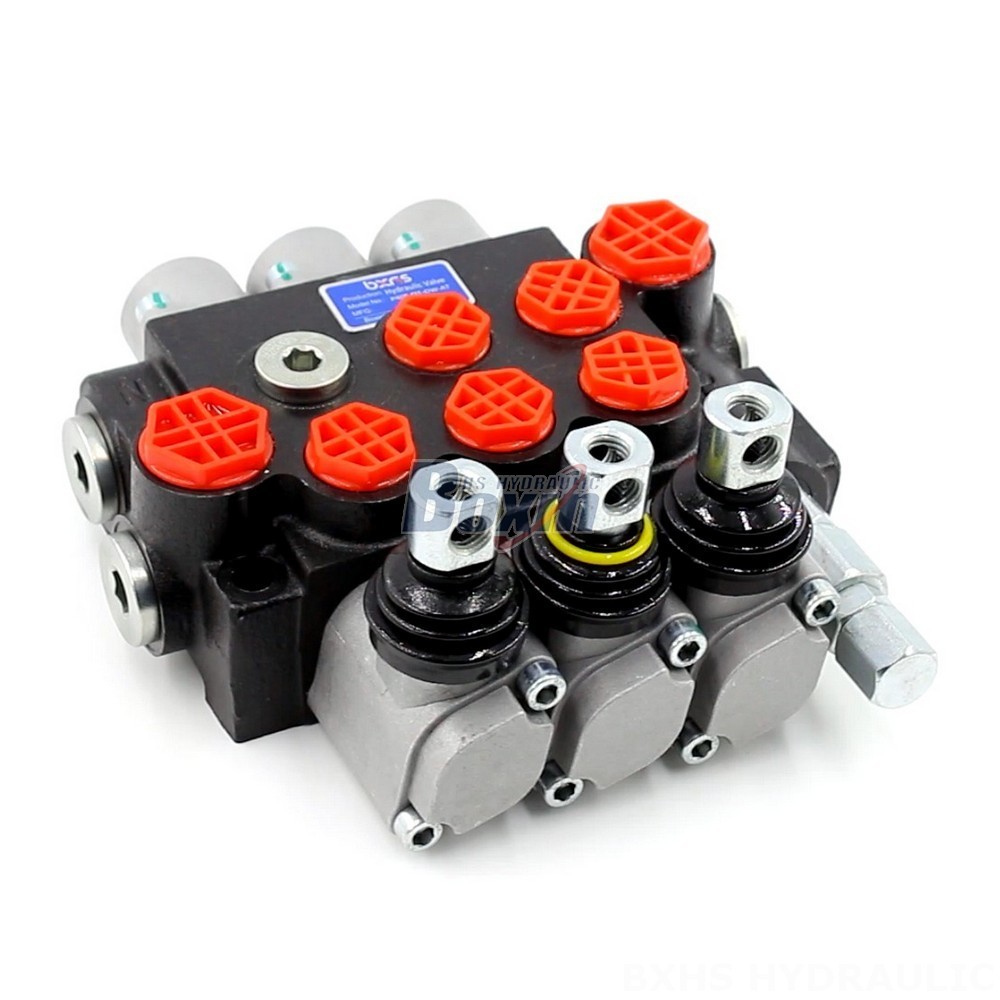

P40 Manual 3 Spool Monoblock Directional Valve

Metode Kontrol:Buku Panduan

Spul:3 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:23*20*12

Kelas kotor:6.60 kg

Ketersediaan: Tersedia

2502 Pandangan Mencari Produk Ini

P40 Manual 3 Spool Monoblock Directional Valve

P40 Manual 3 Spool Monoblock Directional Valve

P40 Manual 3 Spool Monoblock Directional Valve drawing image

The P40 Series 3 Spool Monoblock Directional Control Valve is a manual hydraulic valve designed for use in construction equipment, material handling, agriculture, and industrial vehicles. It features a compact design and high flow rate, making it ideal for a wide range of applications.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40 Series 3 Spool Monoblock Directional Control Valve is a manual hydraulic valve that offers reliable and precise control of hydraulic fluid flow. It is designed for use in a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and compact wheel loaders. This valve features a compact design and high flow rate, making it ideal for demanding applications. The valve is also equipped with a manual control lever for easy operation. Key features include a rated flow of 40 L/min (10.5 US gpm), a maximum pressure of 250 bar (3600 psi), an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt), and an ambient temperature range of -40°C to +80°C (-40°F to +176°F).
