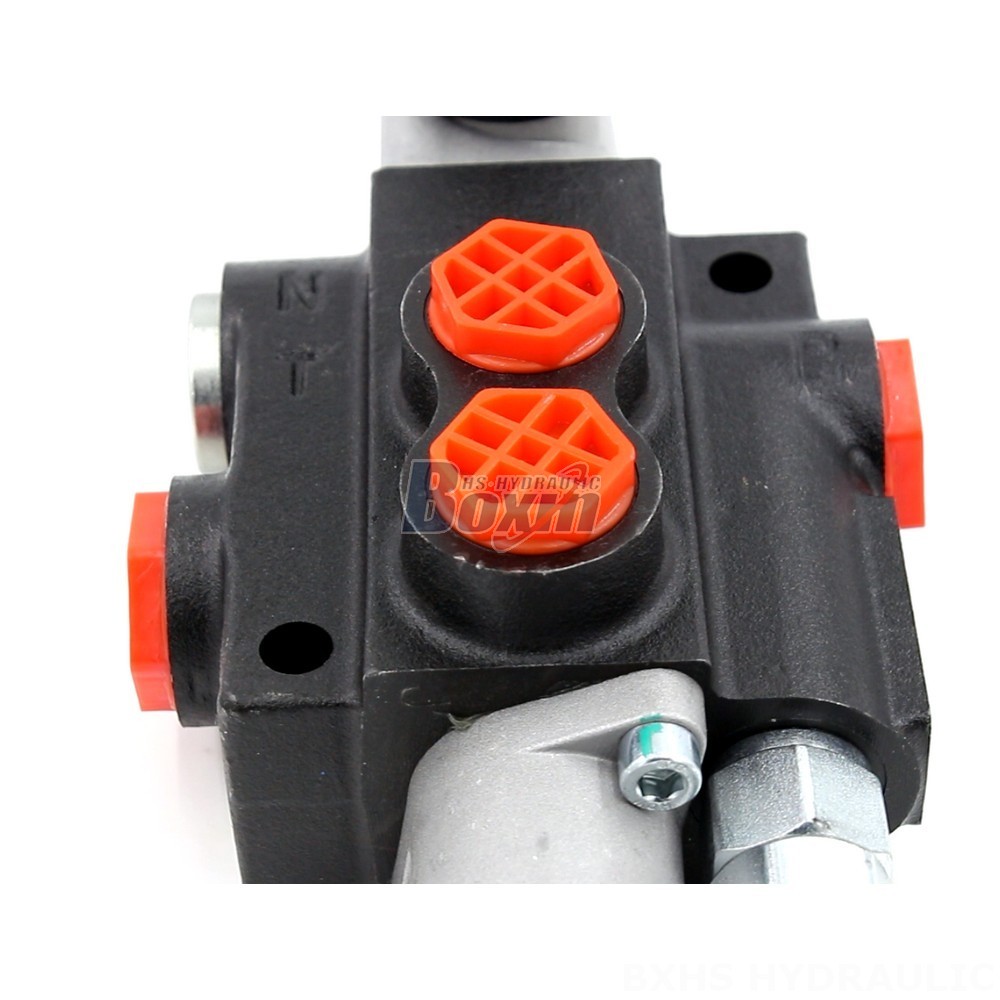

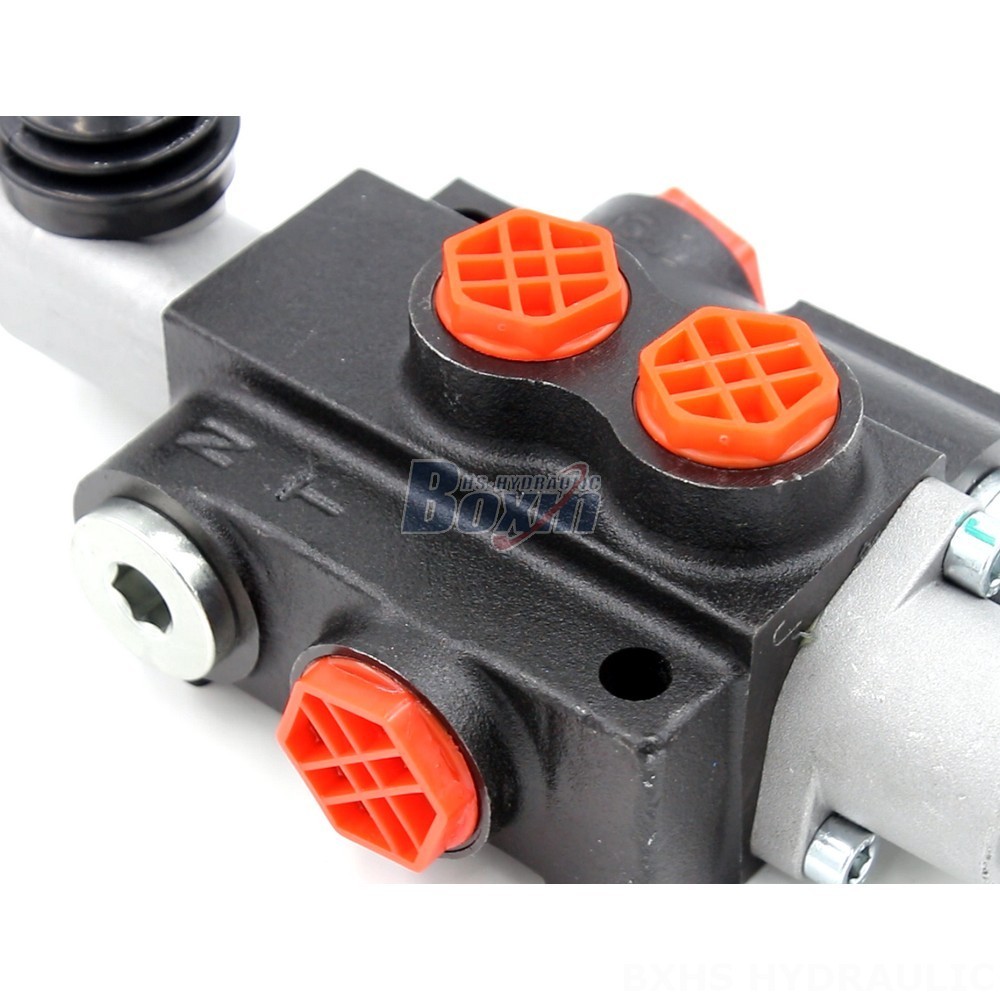

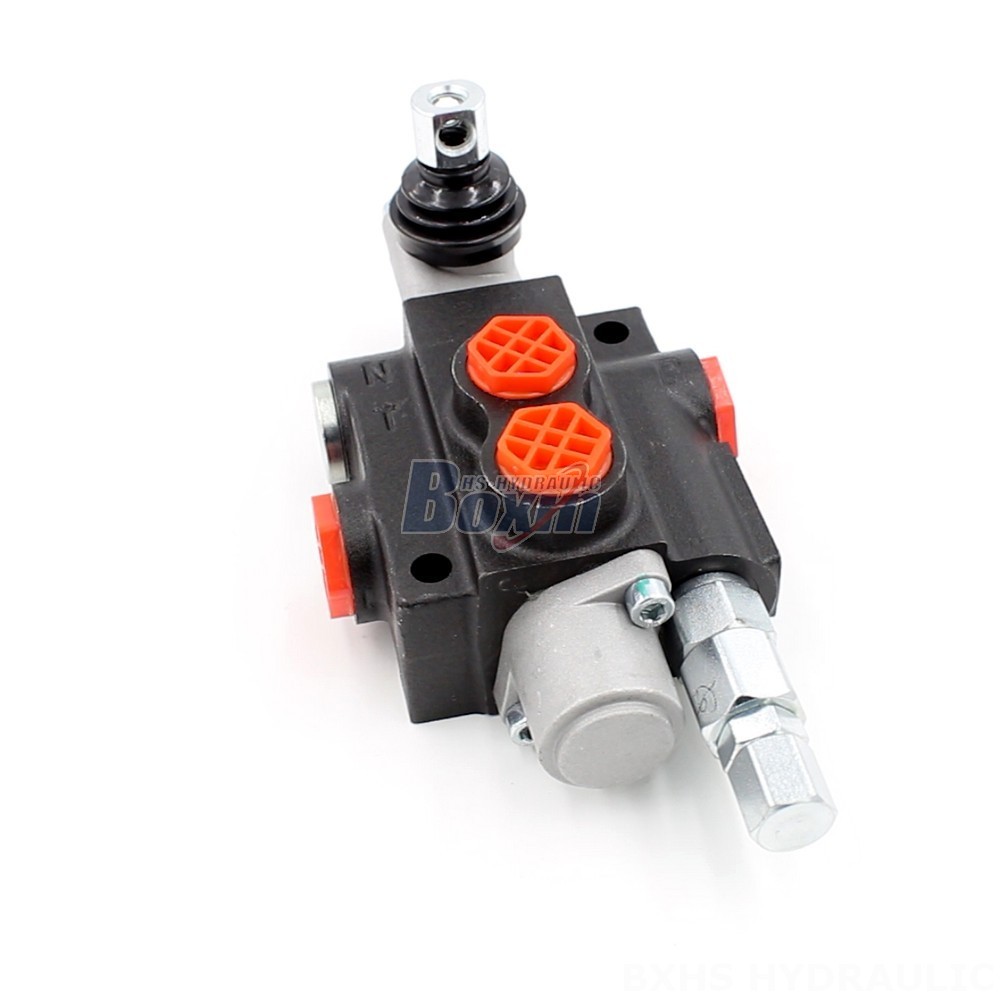

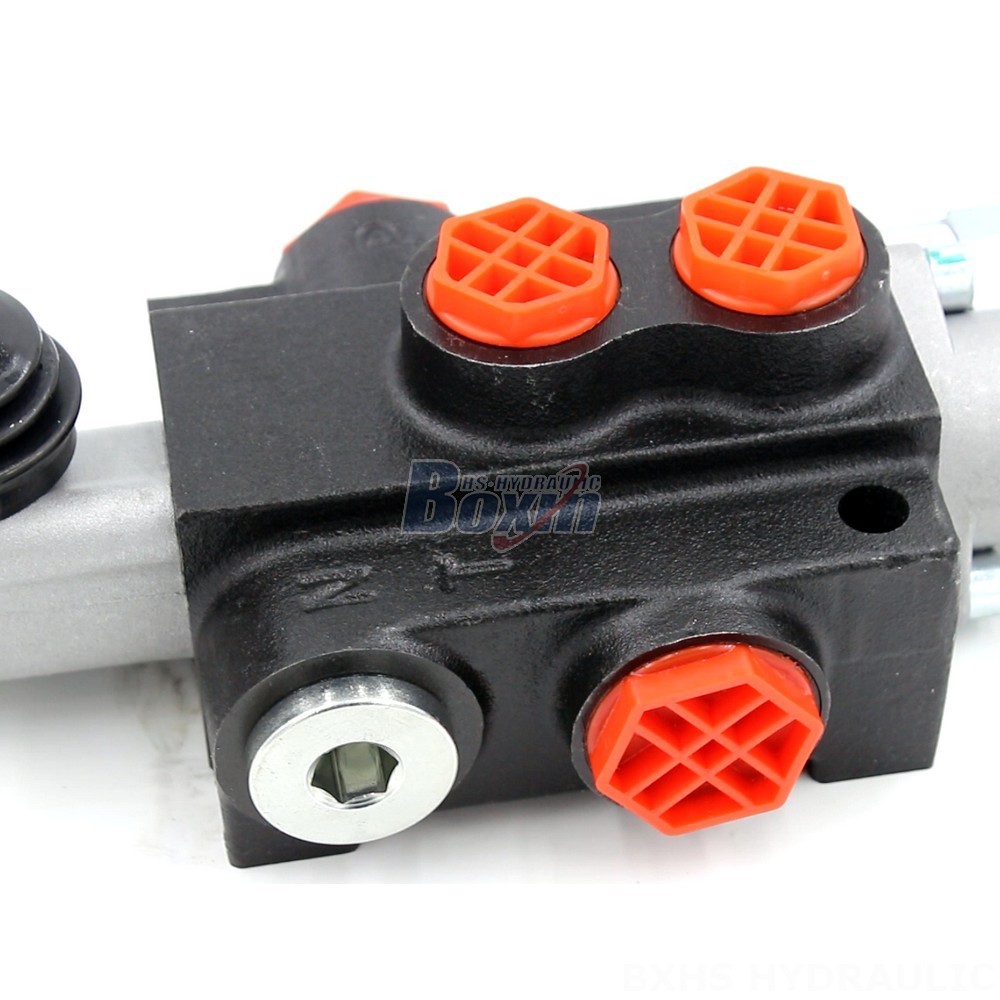

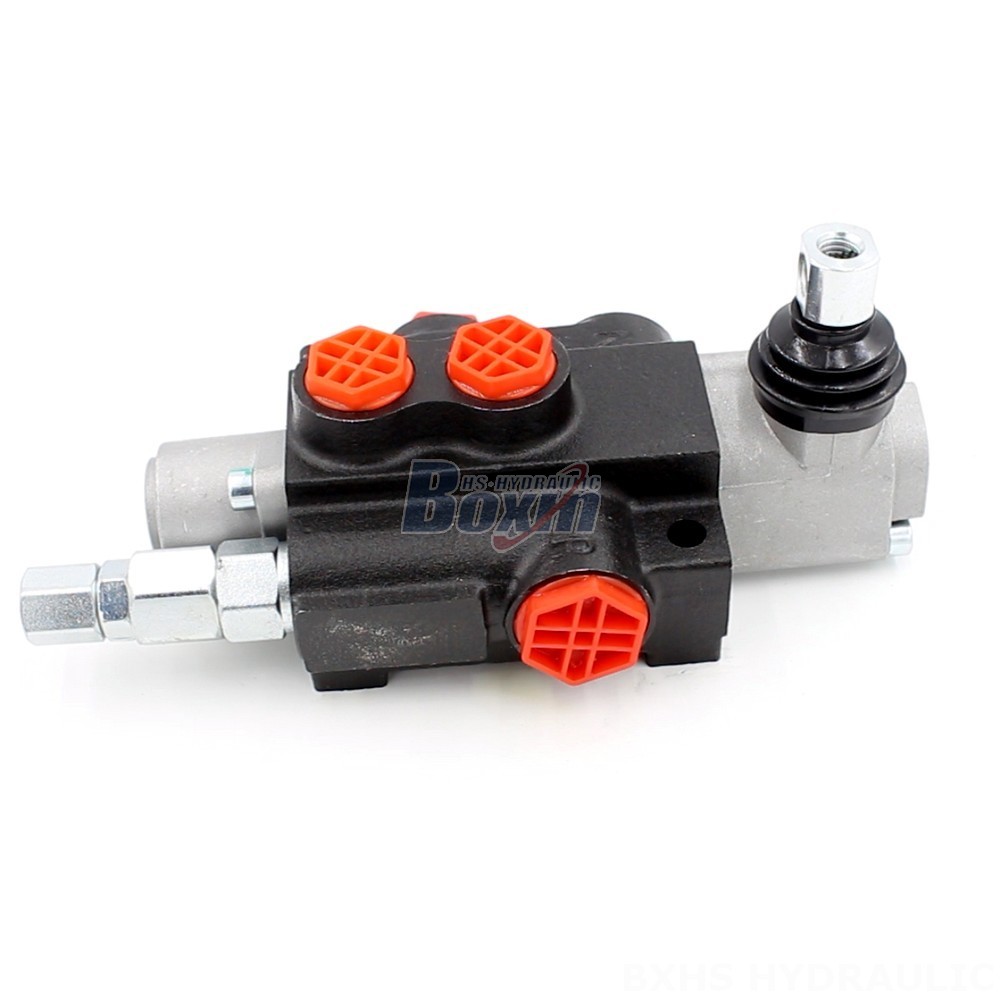

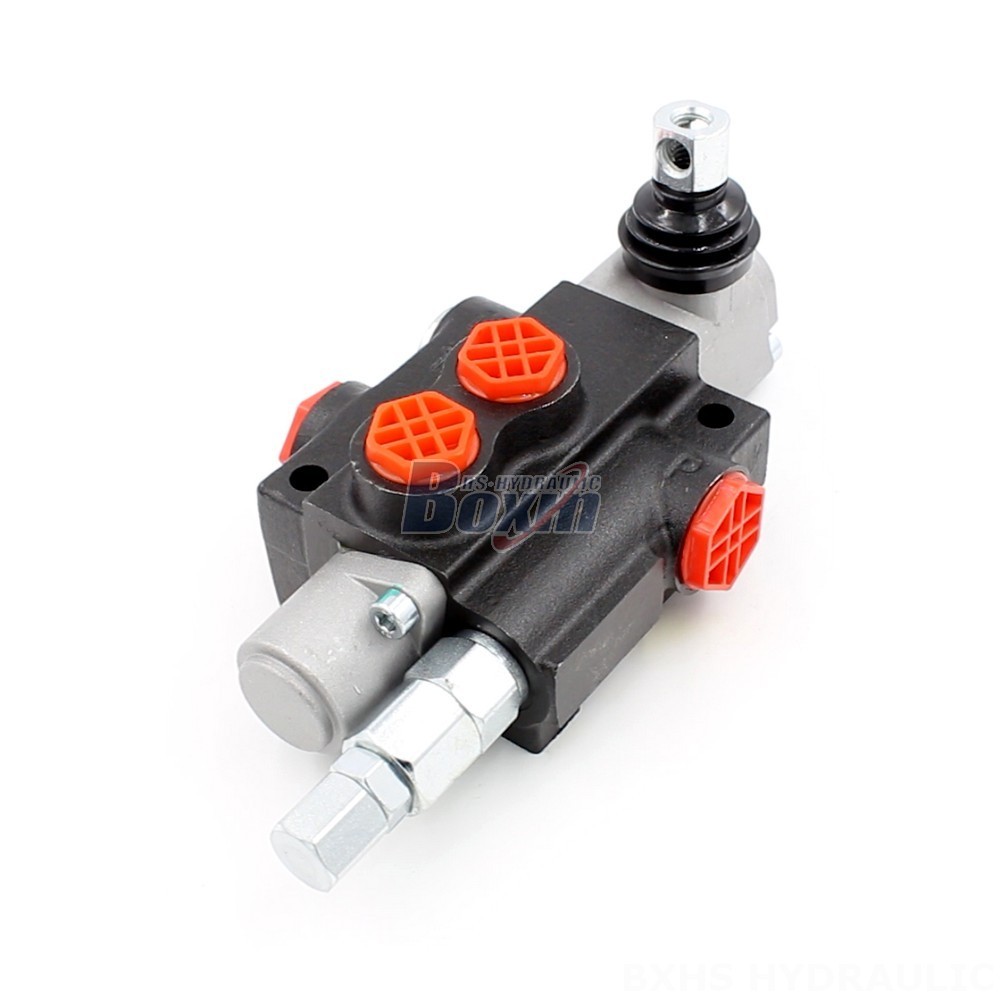

The P40-OT 1-Spool Valve is a high-performance hydraulic valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This single and double acting valve features manual control, a 1-section monoblock design, and a rated flow of 40 L/min. Available for wholesale and distribution.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-OT 1-Spool Valve is a reliable and durable hydraulic valve designed for demanding applications. Its manual control allows for precise operation, while its 1-section monoblock construction ensures strength and durability. The valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of heavy-duty equipment. The P40-OT valve is ideal for use in material handling applications, such as telehandlers, forklifts, and stackers, as well as construction and earthmoving equipment, including excavators, skid steer loaders, and compact wheel loaders. It is also suitable for use in agriculture and industrial vehicles. Available for wholesale and distribution, the P40-OT 1-Spool Valve is a cost-effective solution for your hydraulic system needs.
