Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1155 Pandangan Mencari Produk Ini

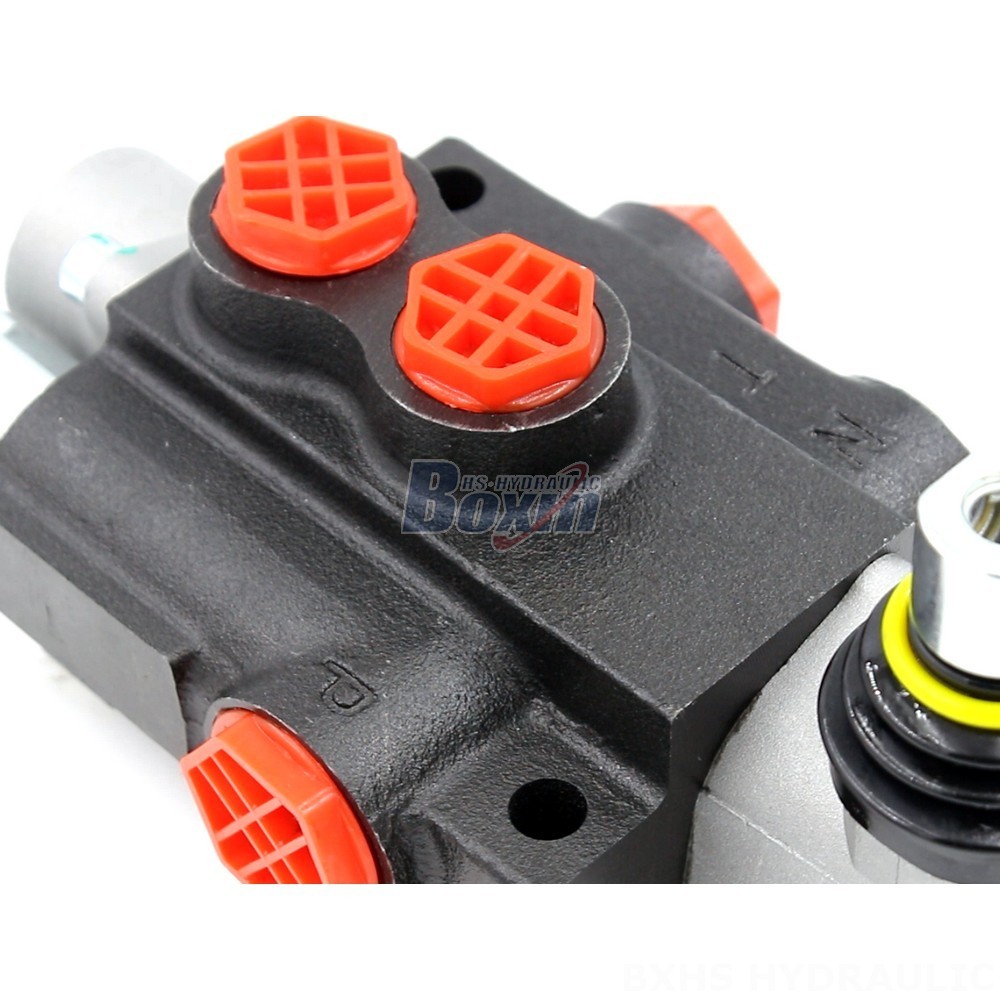

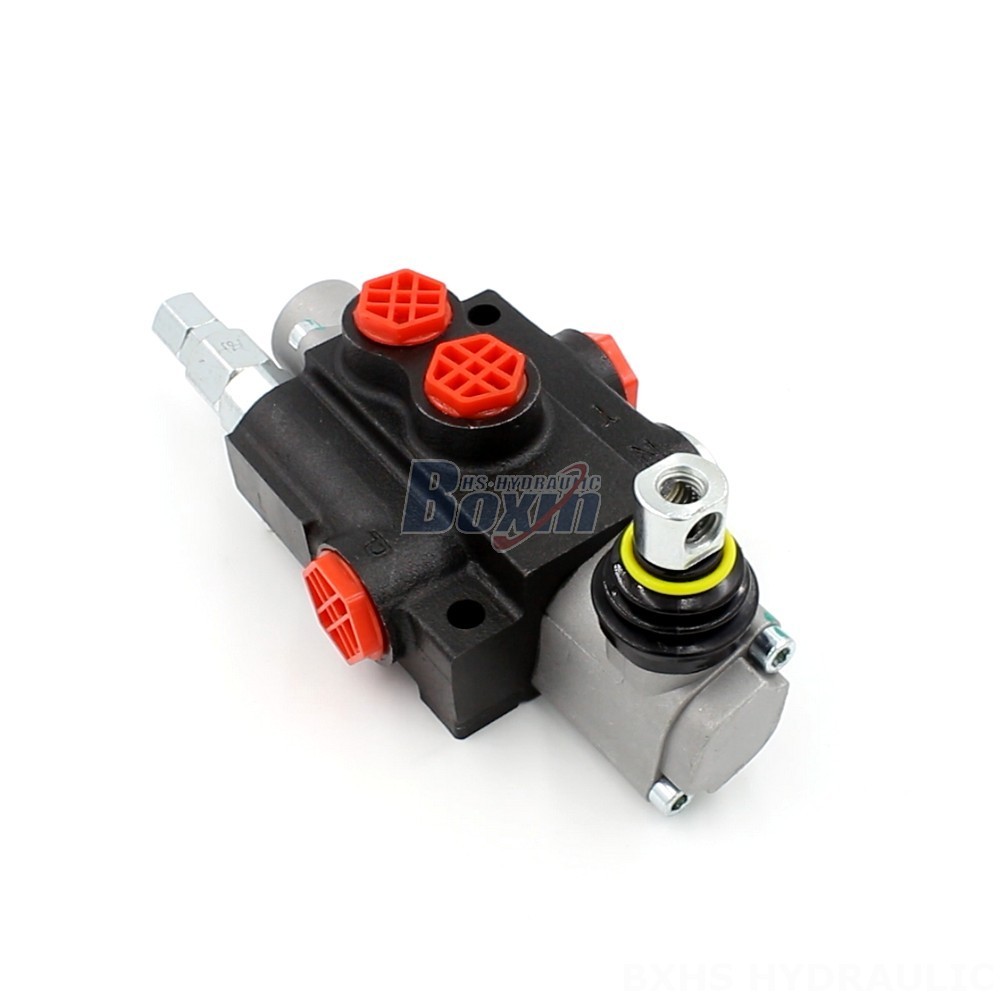

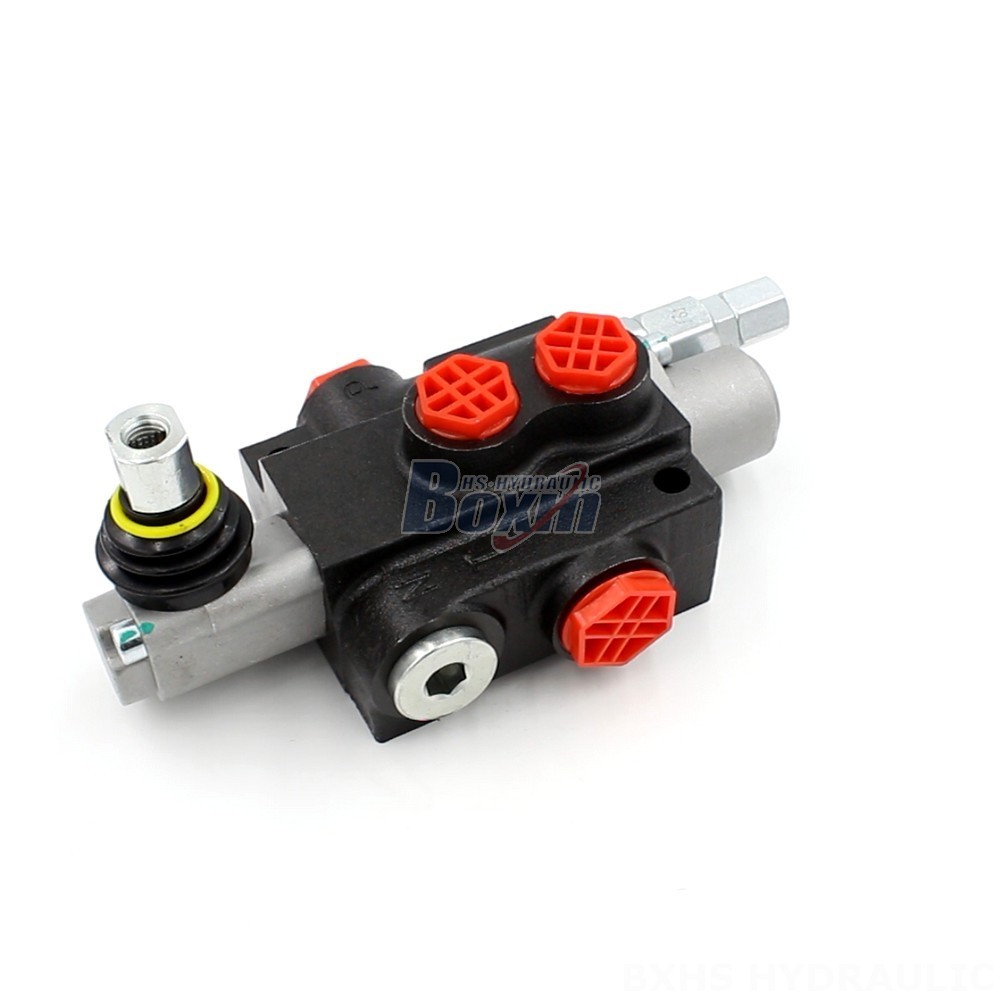

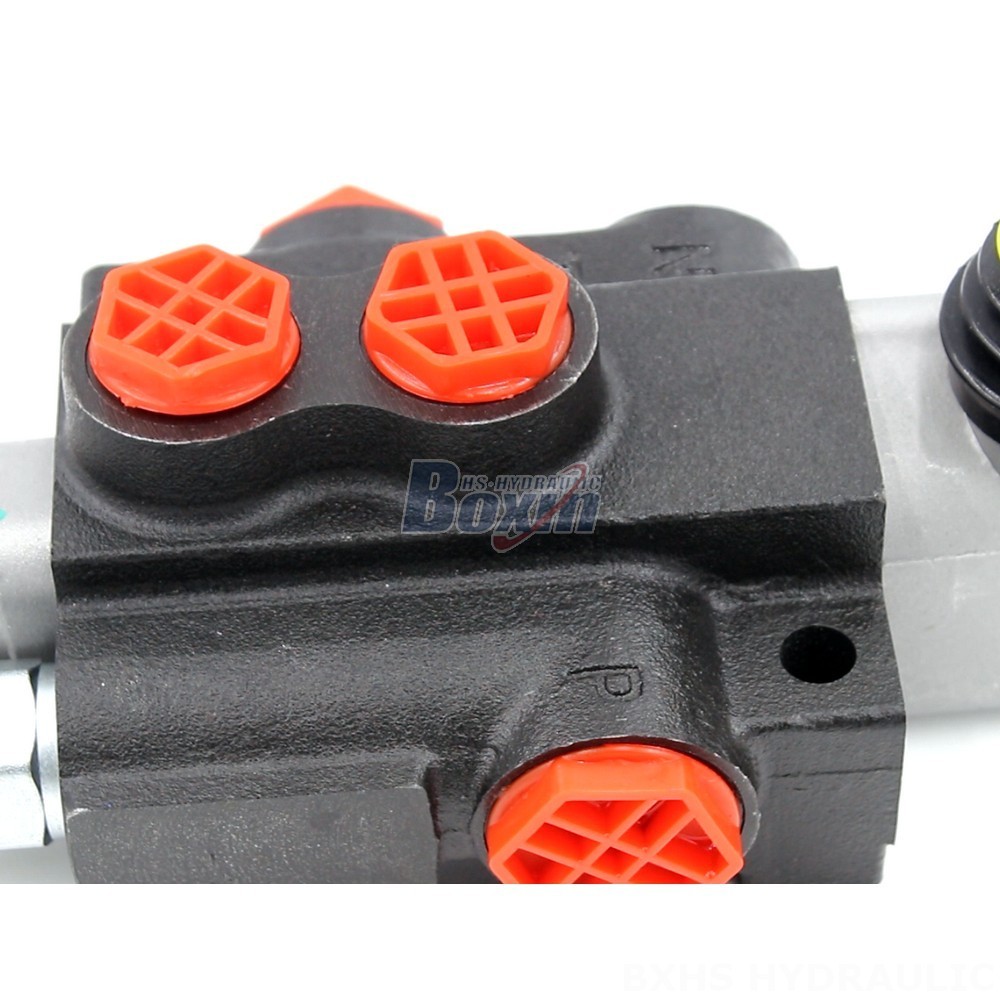

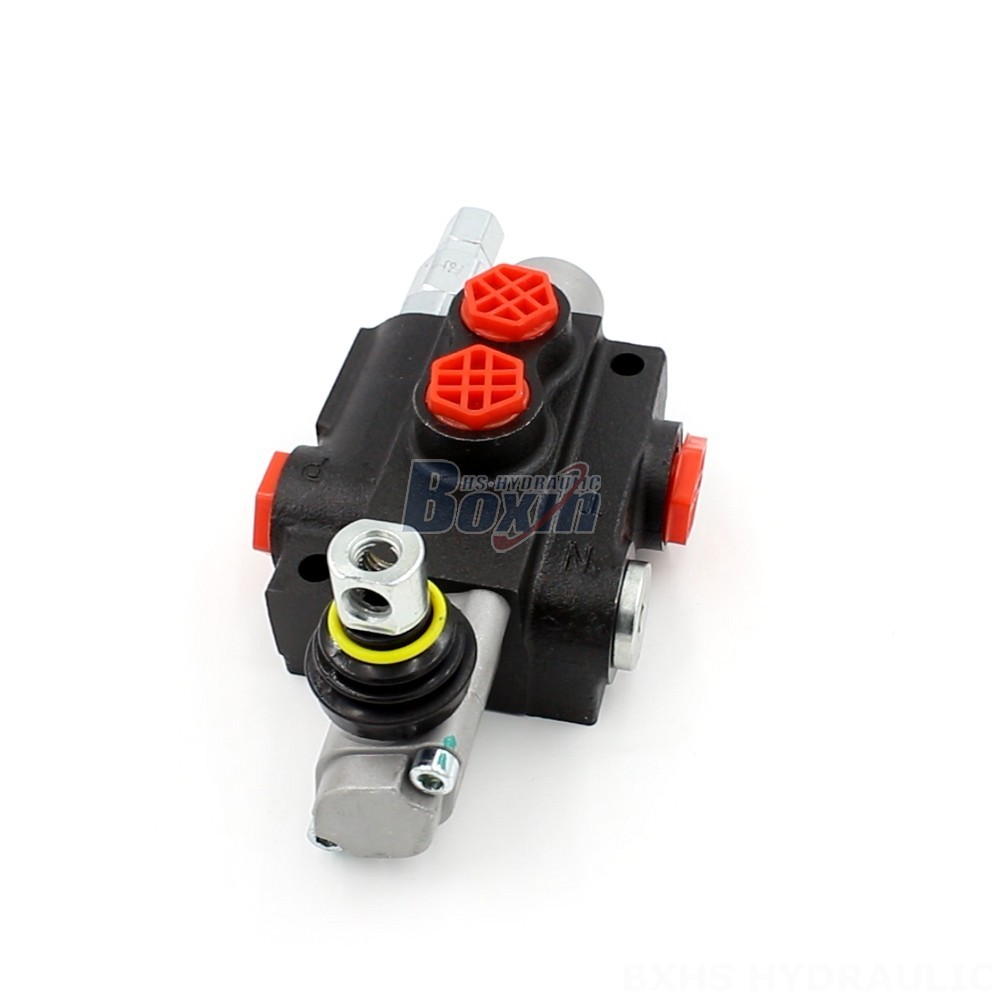

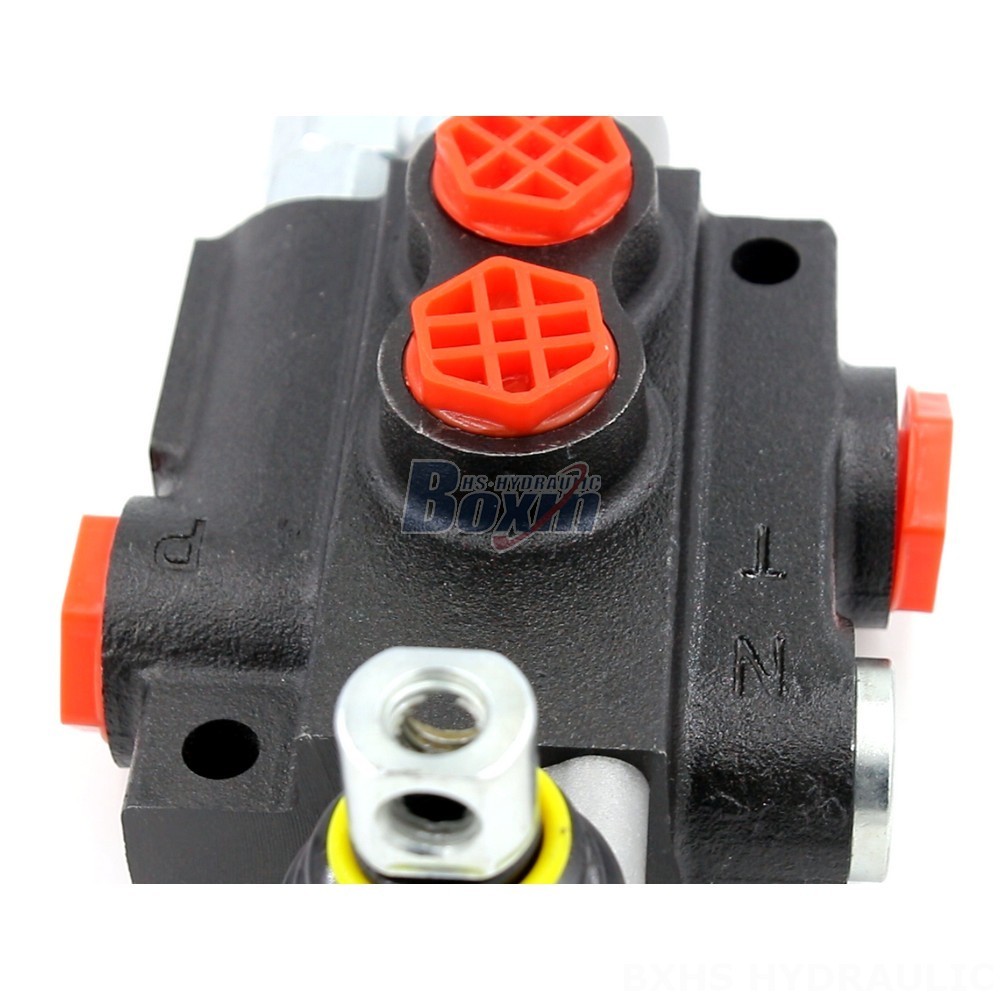

The Electric Hydraulic Valve P40-OW 1 Spool Valve is a compact and efficient hydraulic valve designed for diverse applications in material handling, construction, agriculture, and industrial vehicles. This manual controlled valve features a monoblock construction, a rated flow of 40 L/min, and a maximum pressure of 250 bar, making it ideal for use in telehandlers, forklifts, cranes, and other equipment.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-OW 1 Spool Valve is a high-performance, compact hydraulic valve designed for demanding applications. Its monoblock construction provides exceptional durability and reliability, while its 40 L/min rated flow and 250 bar maximum pressure deliver powerful performance. This valve is ideal for use in various equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The P40-OW valve is known for its compact size, efficient operation, and ease of use, making it a popular choice for a wide range of hydraulic systems.
