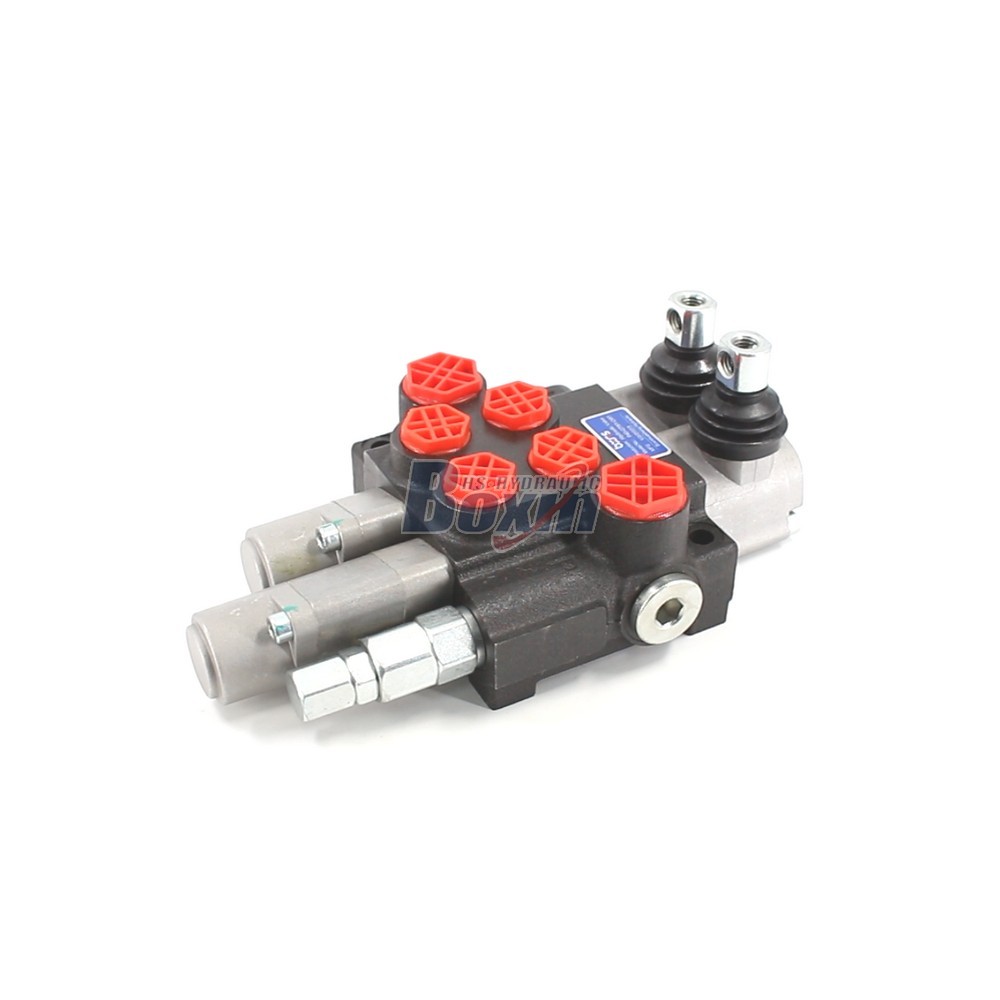

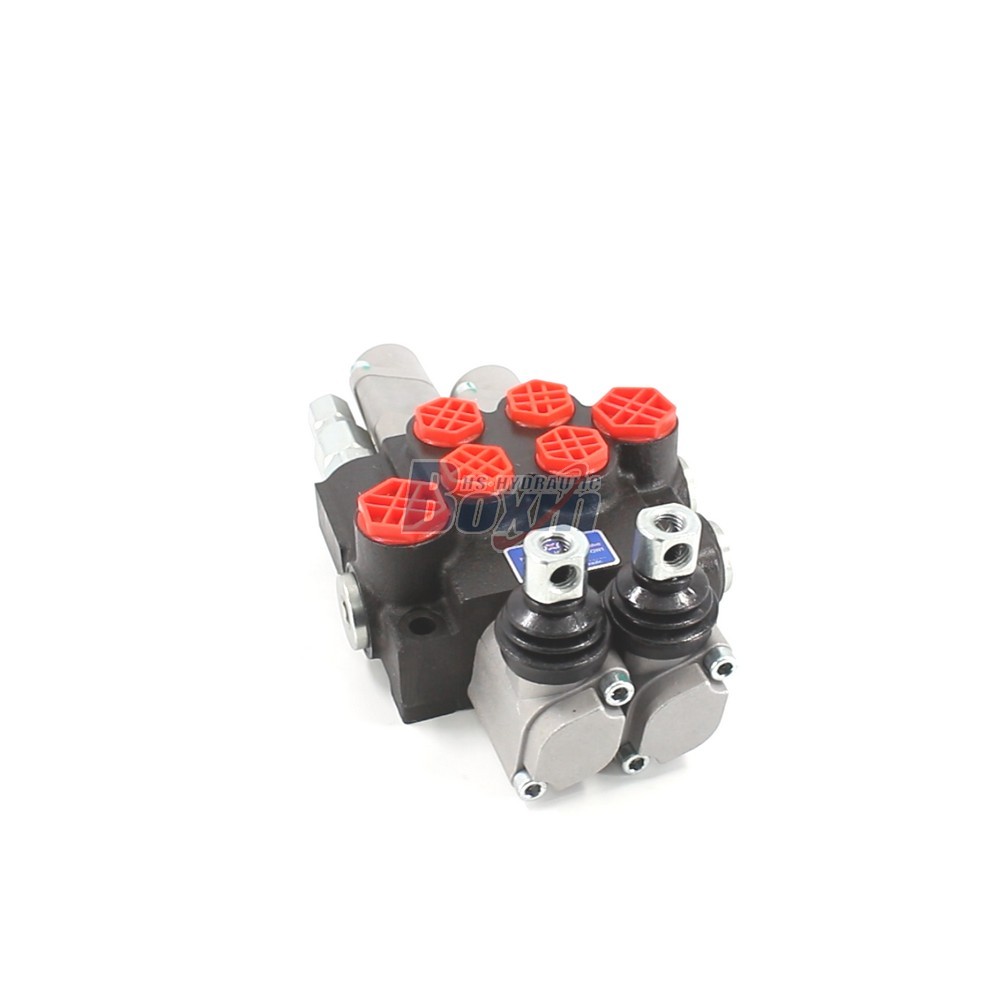

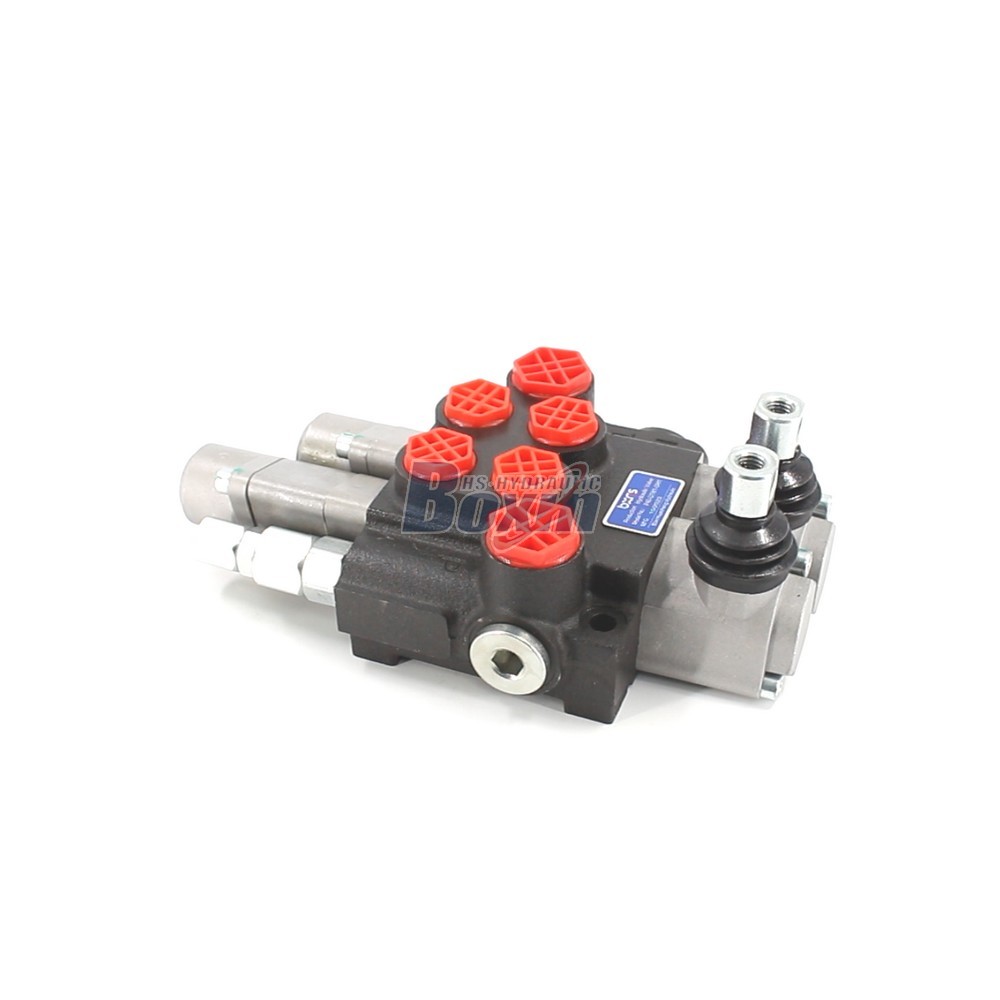

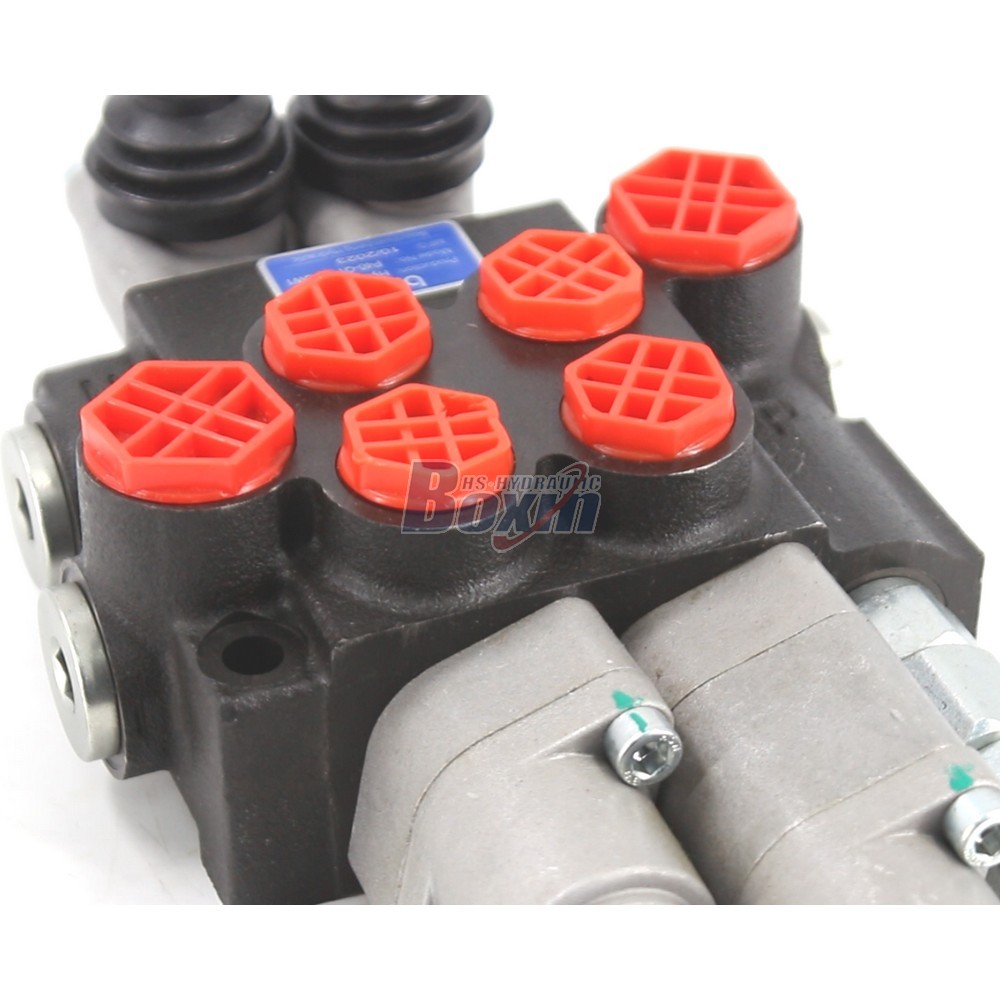

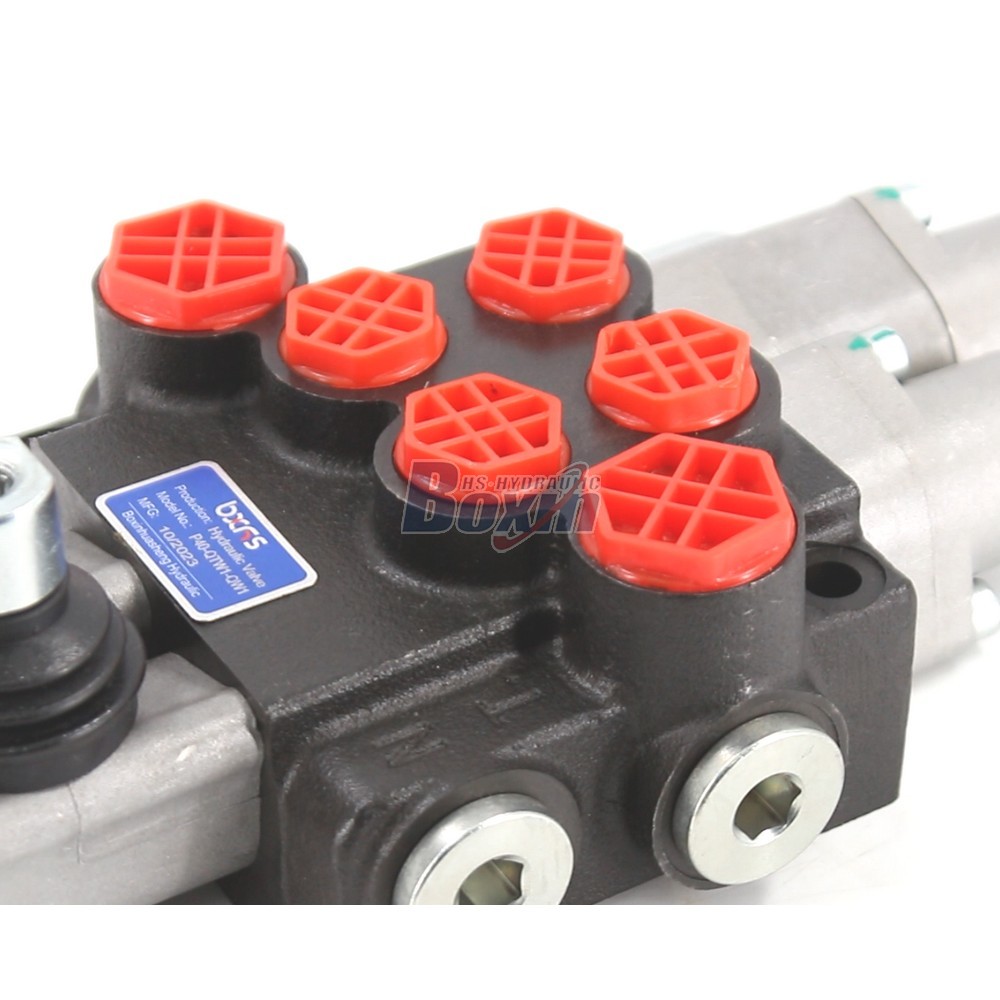

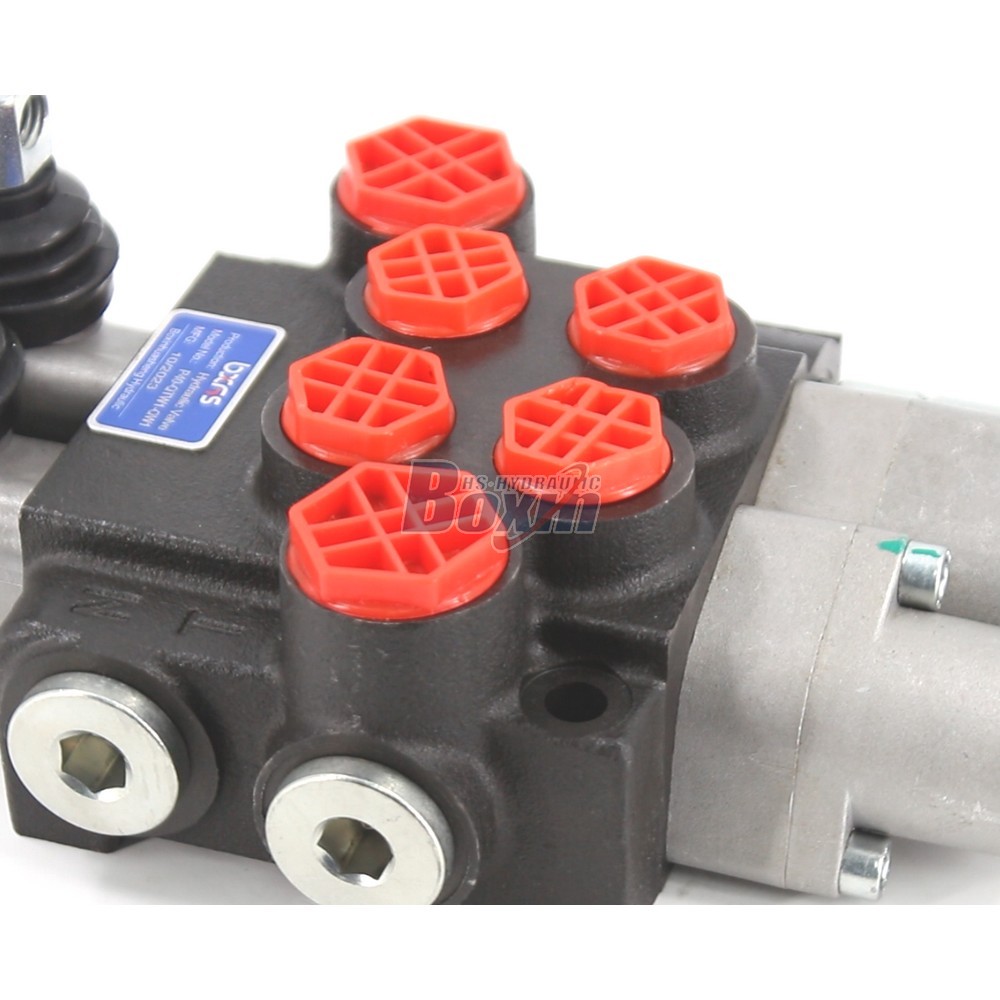

P40-QTW1-QTW Manual Hydraulic Directional Control Valve

Metode Kontrol:Buku Panduan

Spul:2 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:28*18*12

Kelas kotor:6.50 kg

Ketersediaan: Tersedia

93 Pandangan Mencari Produk Ini

P40-QTW1-QTW Manual Hydraulic Directional Control Valve

P40-QTW1-QTW Manual Hydraulic Directional Control Valve

P40-QTW1-QTW Manual Hydraulic Directional Control Valve drawing image

The P40-QTW1-QTW is a robust 2-spool manual hydraulic directional control valve designed for precise flow regulation in demanding applications. Rated at 40 L/min with a 250 bar pressure capacity, this reliable component is built for heavy-duty agricultural, construction, and material handling machinery.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

Our P40 series hydraulic directional control valve is engineered for high performance in diverse sectors, including agriculture, mining, and earthmoving. As a leading manufacturer, we provide a reliable factory-direct supply chain for global distributors, wholesalers, and trading partners. We specialize in comprehensive service solutions, including OEM, ODM, private labeling, and custom engineering to meet specific technical requirements. Whether you are looking for large-scale wholesale procurement or tailored manufacturing partnerships, our facility offers high-quality production standards and competitive pricing. We actively welcome inquiries from distributors and industrial traders interested in long-term cooperation. Our dedication to quality control and professional manufacturing ensures that every unit offers consistent operation for tractors, skid steers, forklifts, and industrial vehicles. Contact us today to discuss how our manufacturing capabilities and factory-direct wholesale programs can support your business growth.
