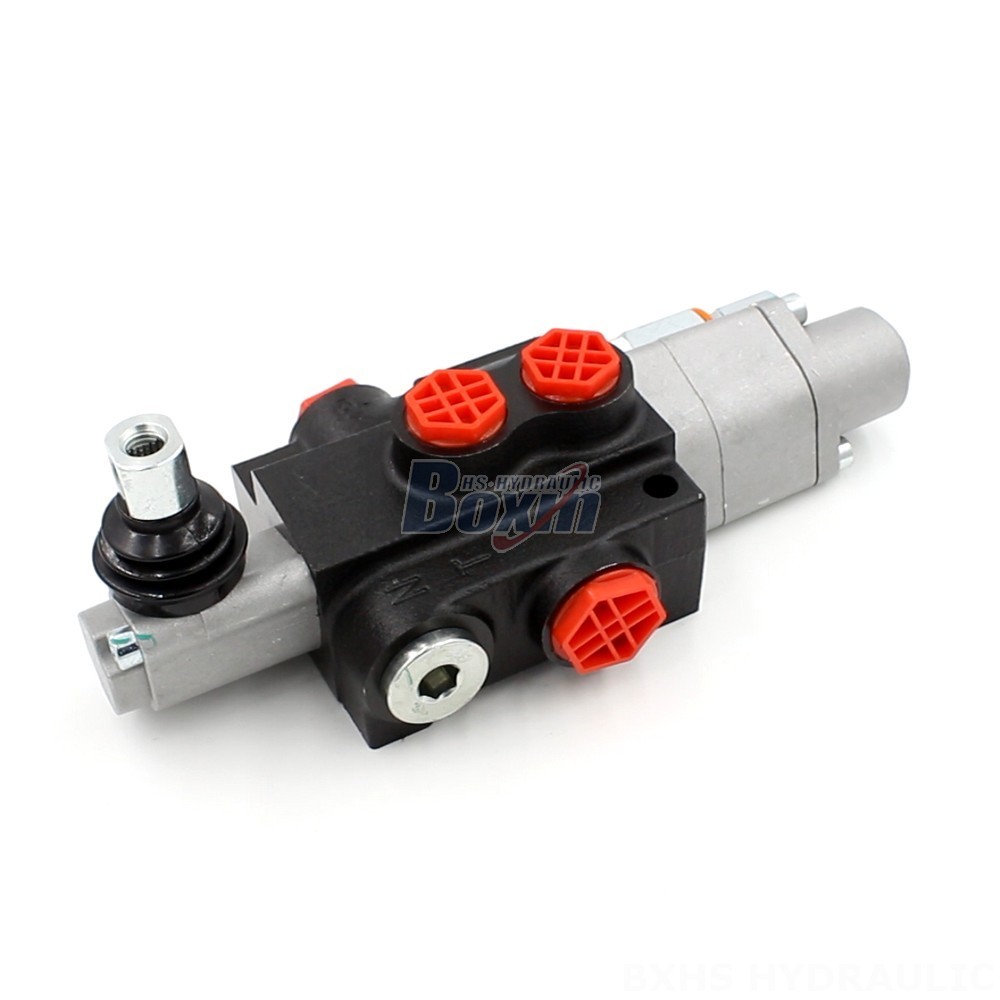

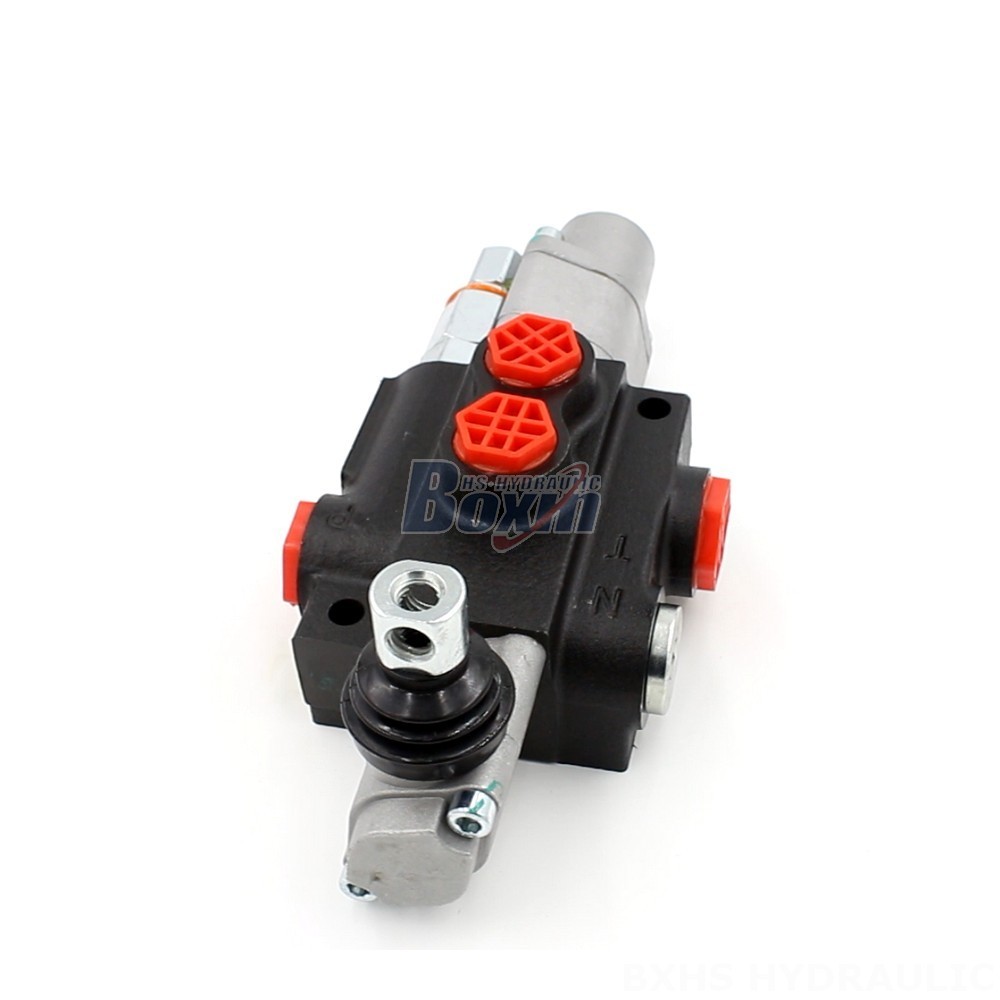

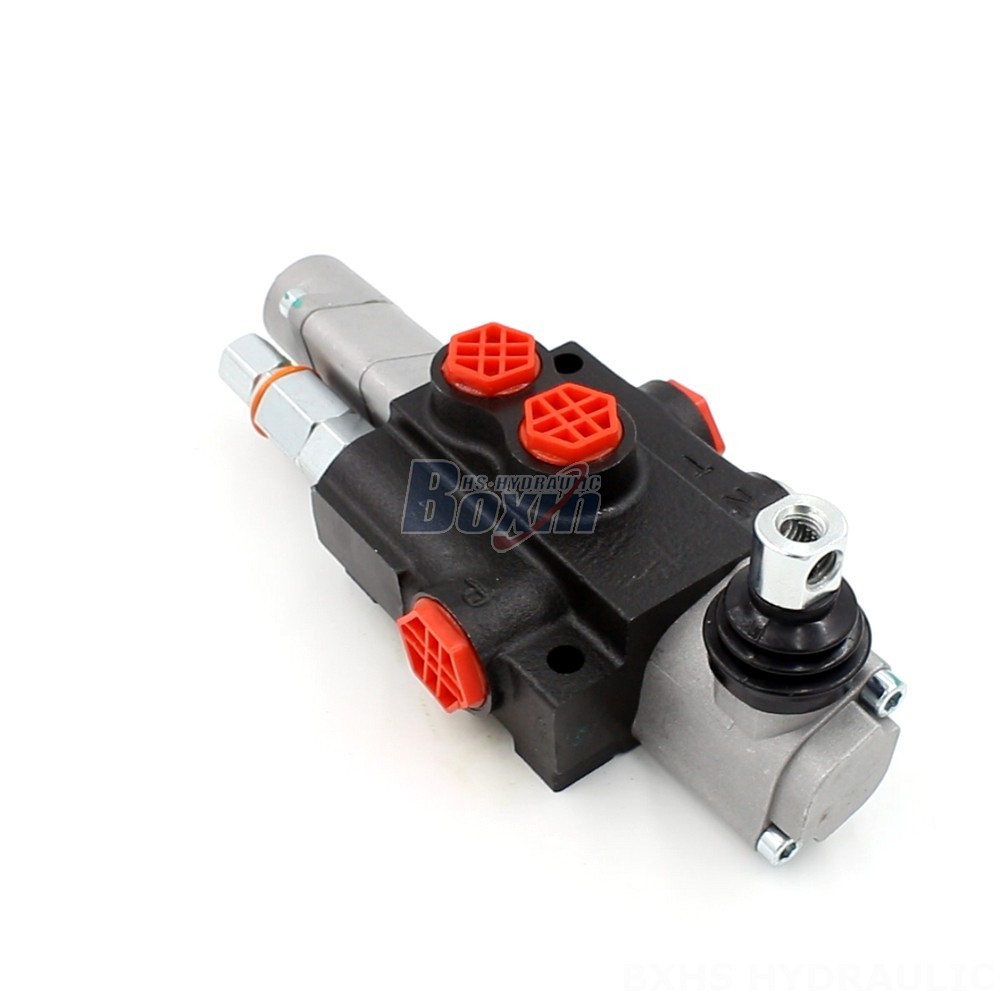

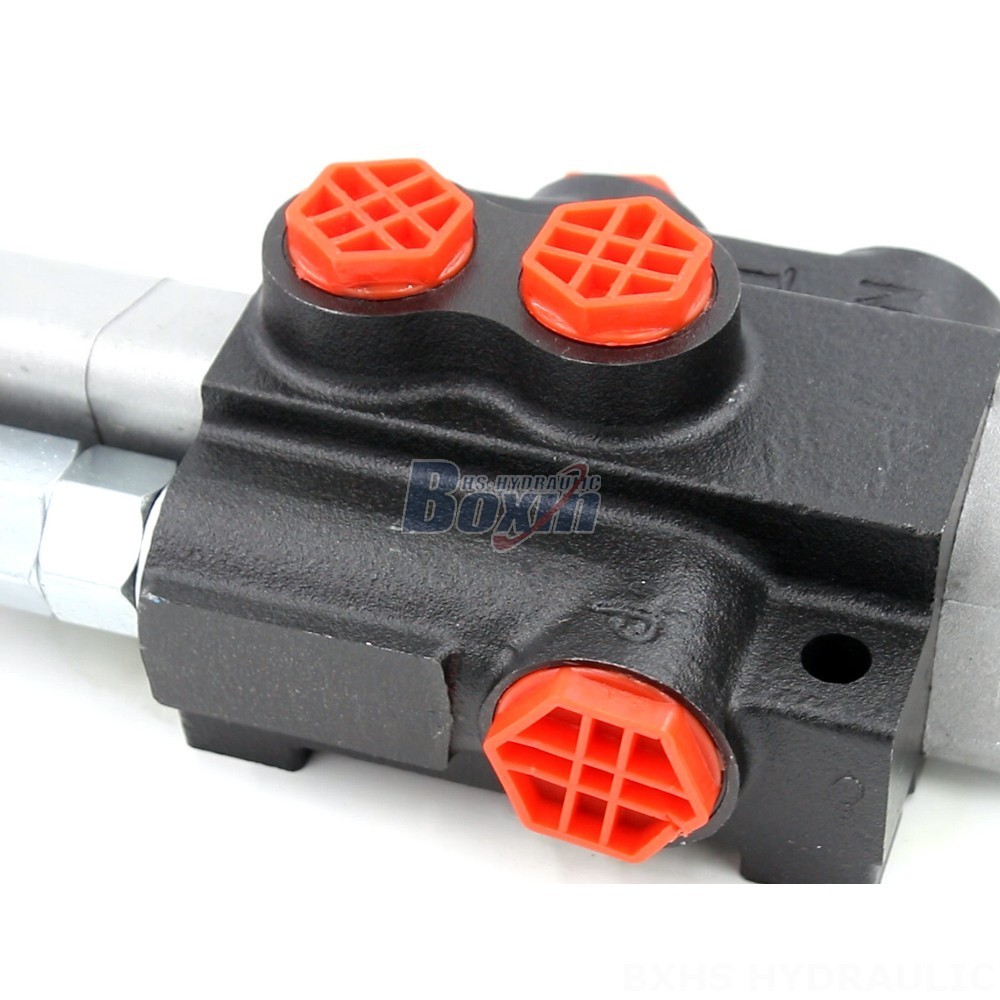

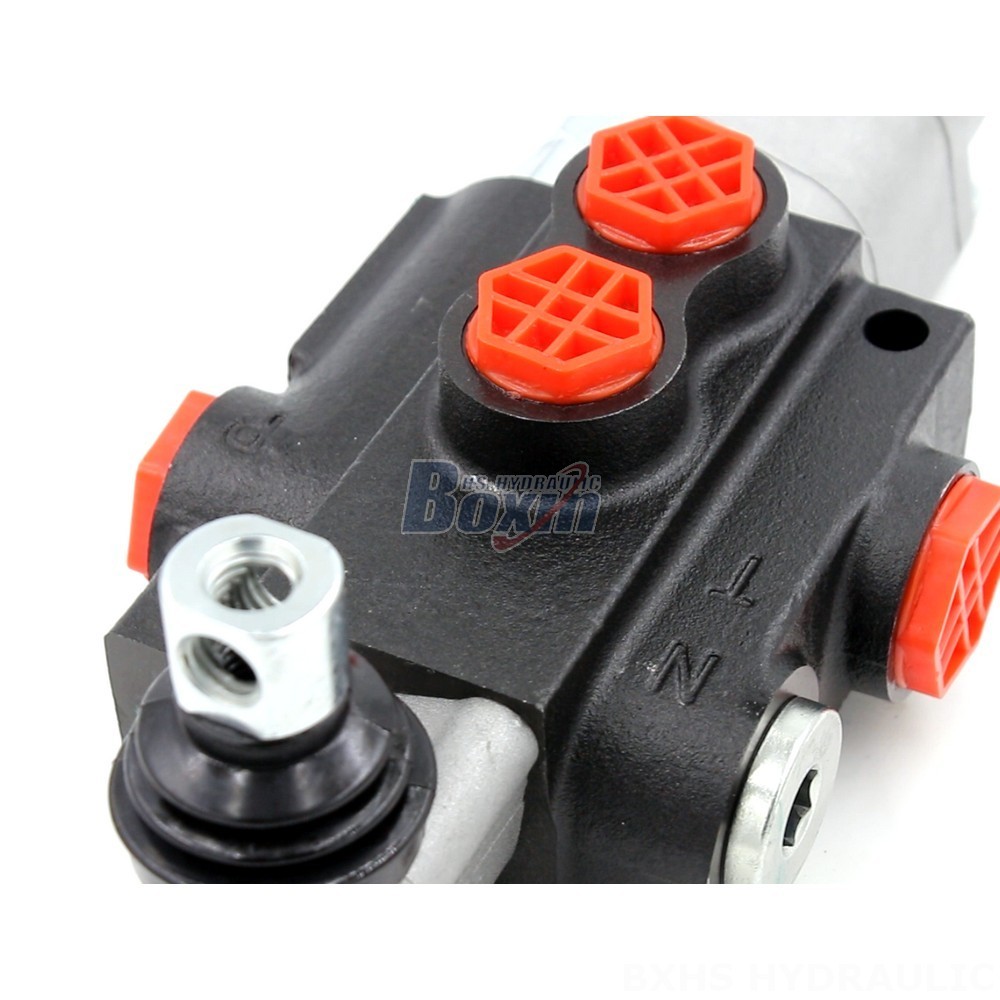

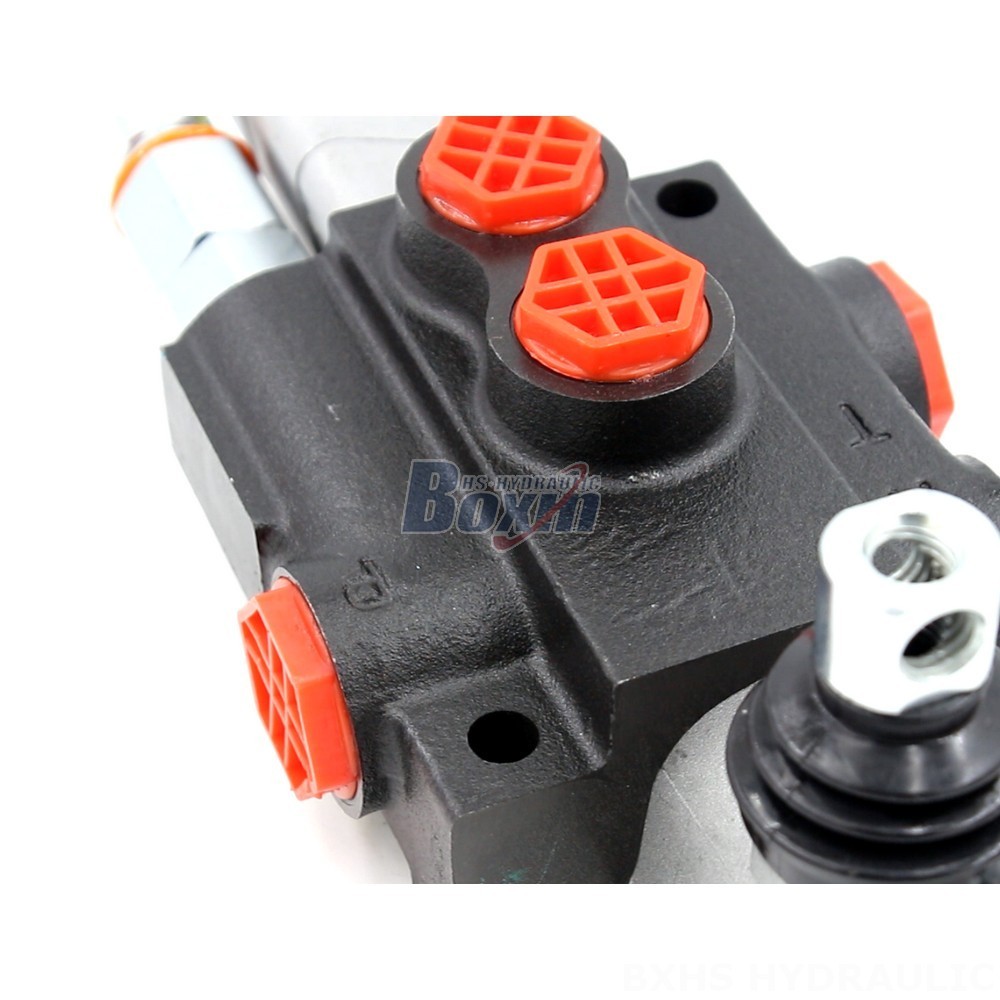

The P40-QTW1 Oil Block Hydraulic Control Valve is a high-performance, manual control valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It features a compact monoblock design, a rated flow of 40 L/min, and a maximum pressure of 250 bar, making it ideal for various demanding hydraulic systems.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-QTW1 Oil Block Hydraulic Control Valve is a robust and reliable solution for your hydraulic needs. With its manual control, 1 section design, and monoblock structure, this valve is compact, efficient, and easy to operate. The P40-QTW1 offers a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of applications. It is compatible with a variety of hydraulic systems used in telehandlers, forklifts, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors, and front-end loaders. With its high-quality construction and reliable performance, the P40-QTW1 is an excellent choice for any hydraulic system.
