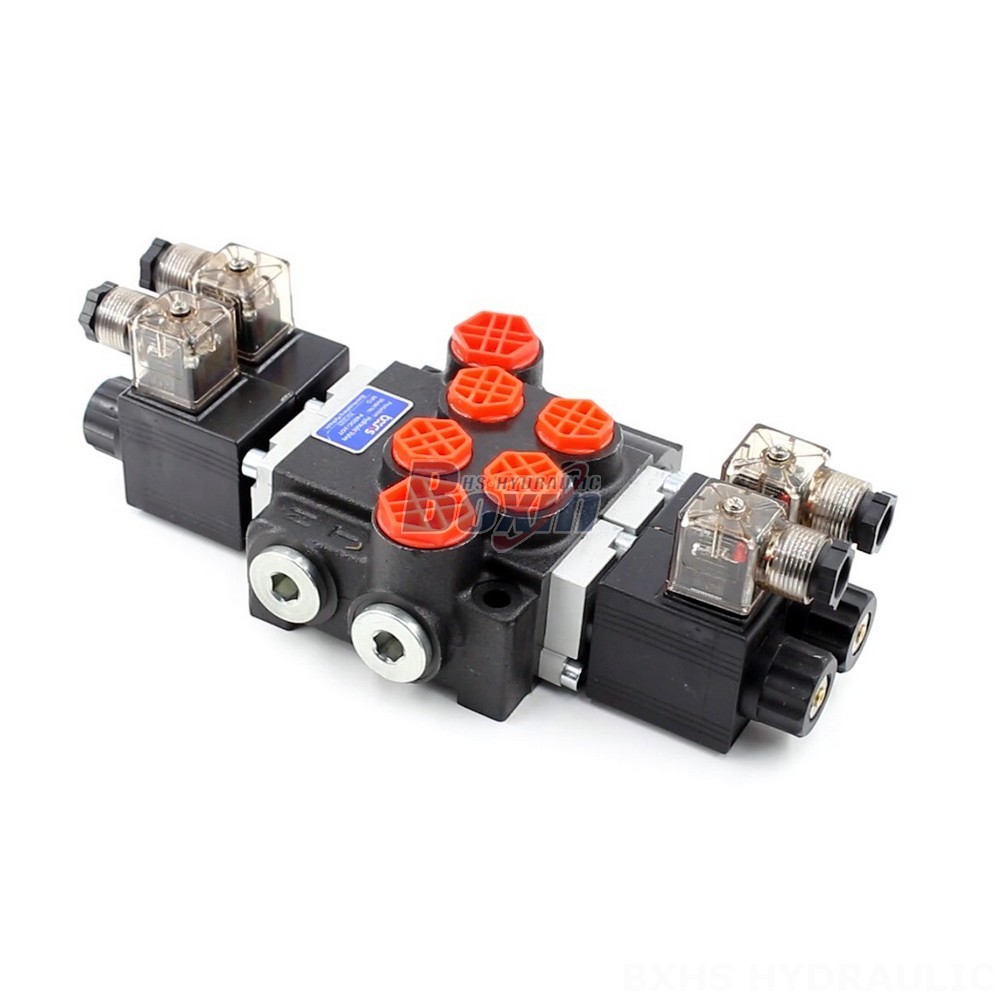

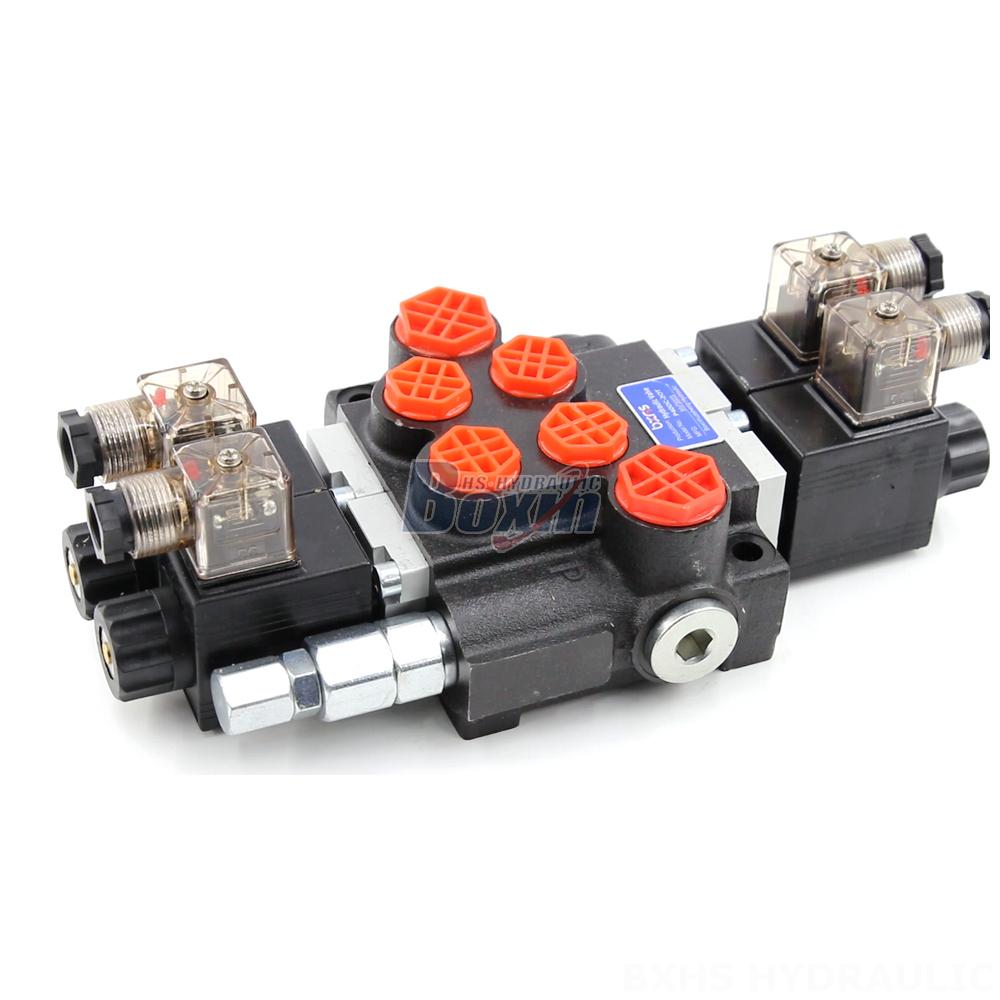

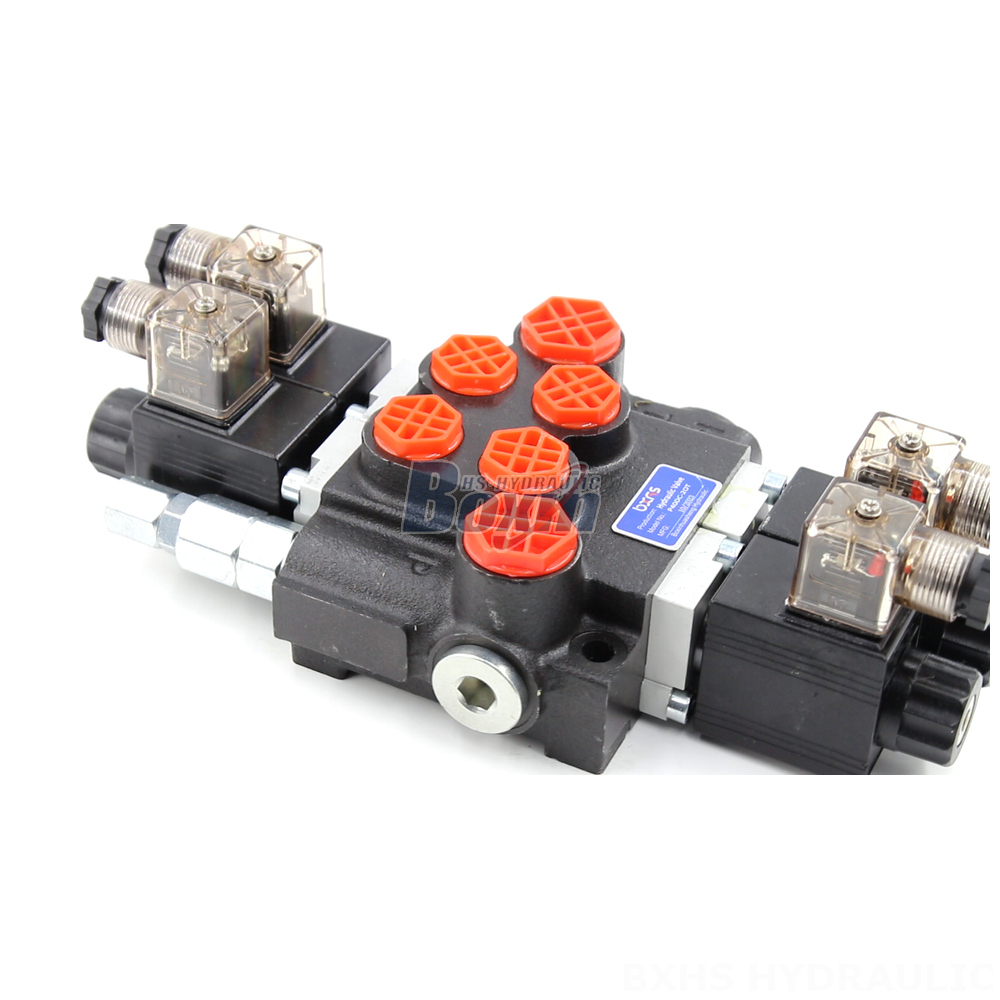

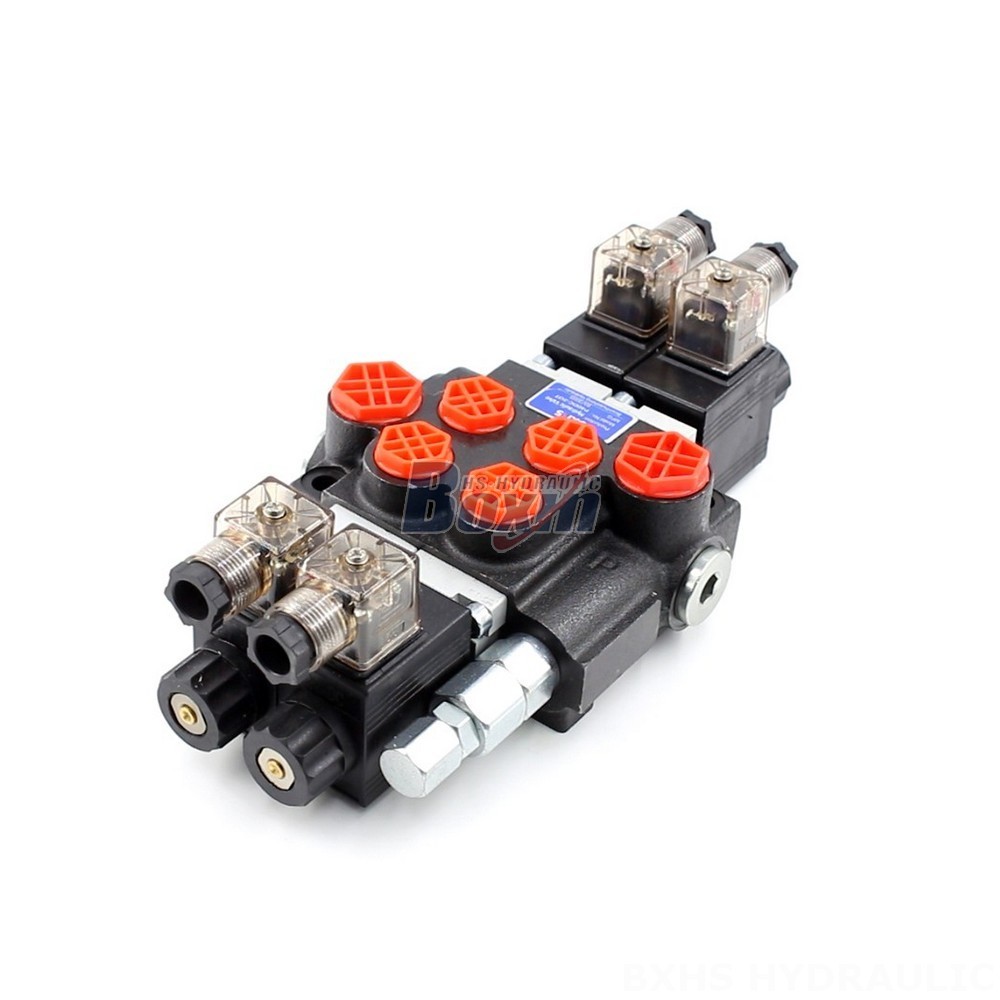

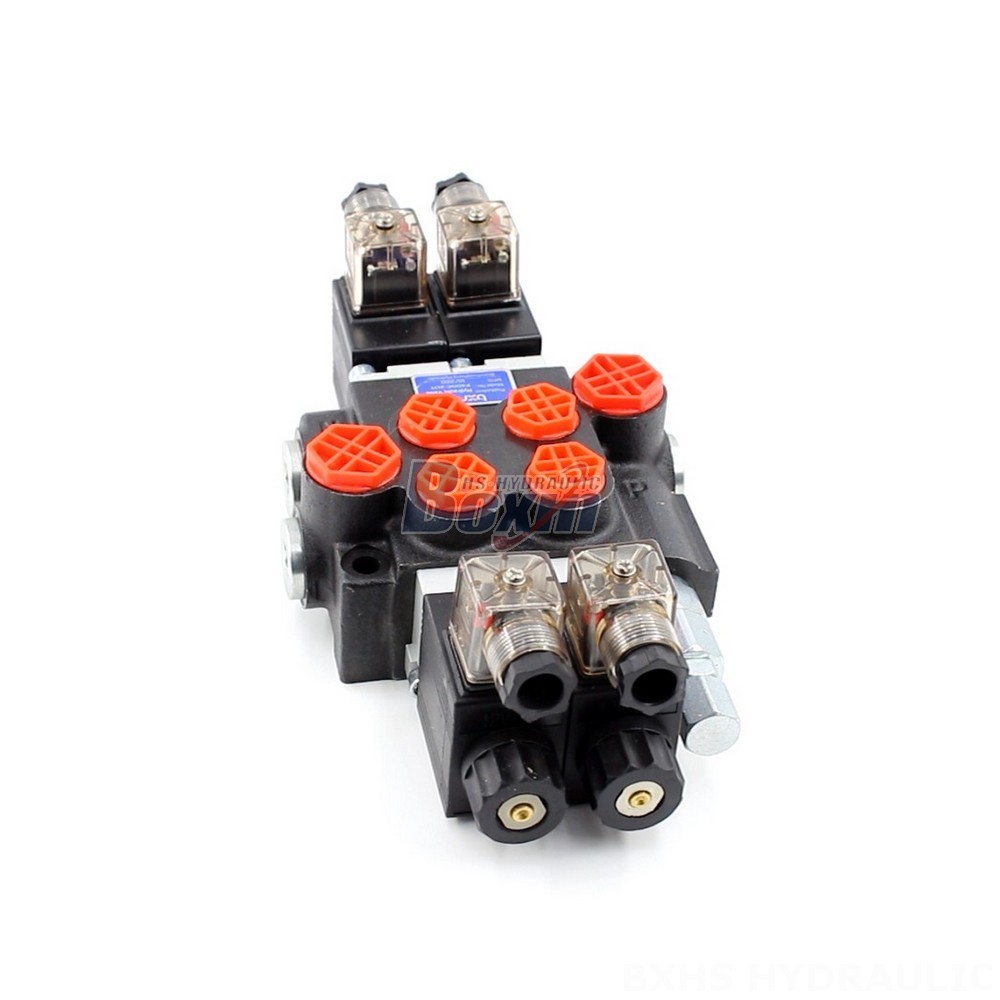

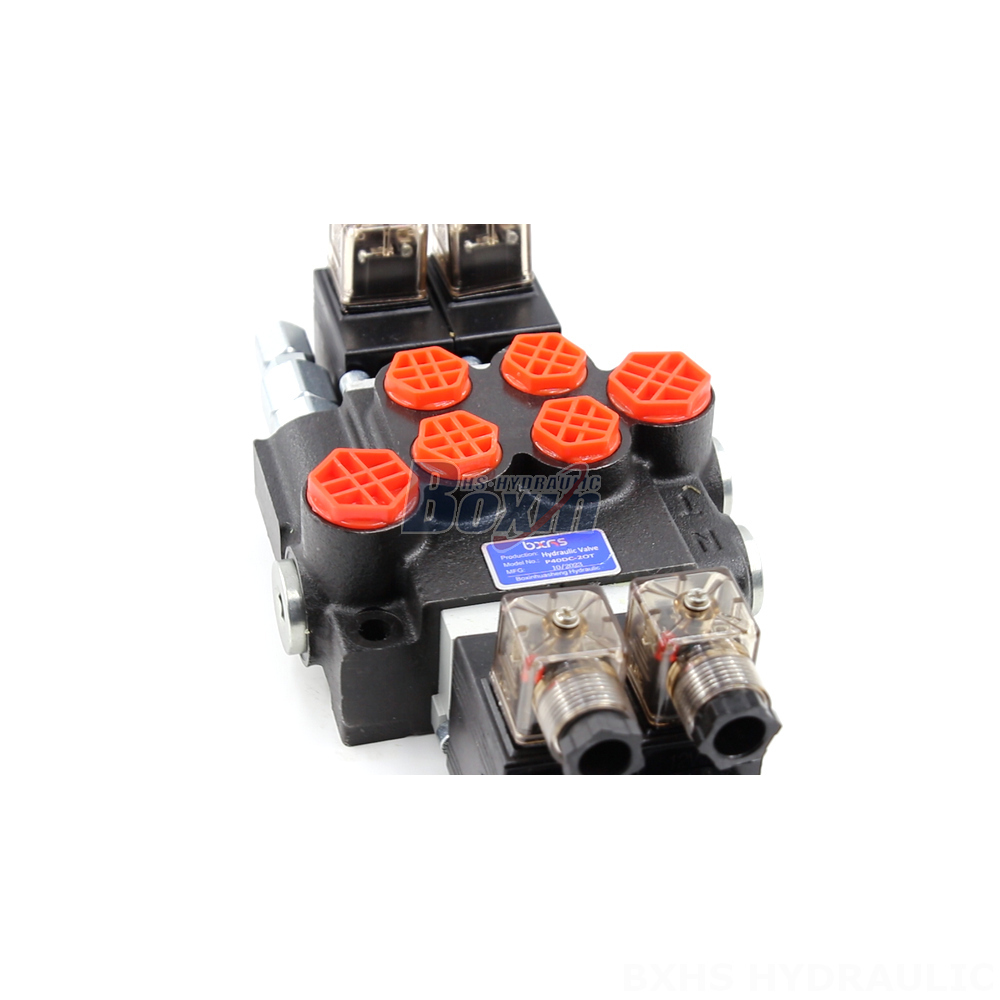

The P40 Series 5 Spool Directional Control Valve is a high-performance, reliable hydraulic valve designed for use in a variety of construction, material handling, and industrial vehicle applications. This 2-section, monoblock valve features a 40 L/min rated flow, 250 bar max pressure, and a solenoid control method. It is perfect for applications such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series 5 Spool Directional Control Valve is a 2-section, monoblock valve with a solenoid control method. It boasts a 40 L/min rated flow, 250 bar max pressure, and an operating viscosity range of 15 - 75 mm²/s. Its robust design and wide operating temperature range (-40°C to +80°C) make it ideal for demanding applications in the construction, material handling, and industrial vehicle industries. This valve is suitable for a wide range of machines, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers. Choose the P40 Series 5 Spool Directional Control Valve for reliable and efficient hydraulic control in your applications.
