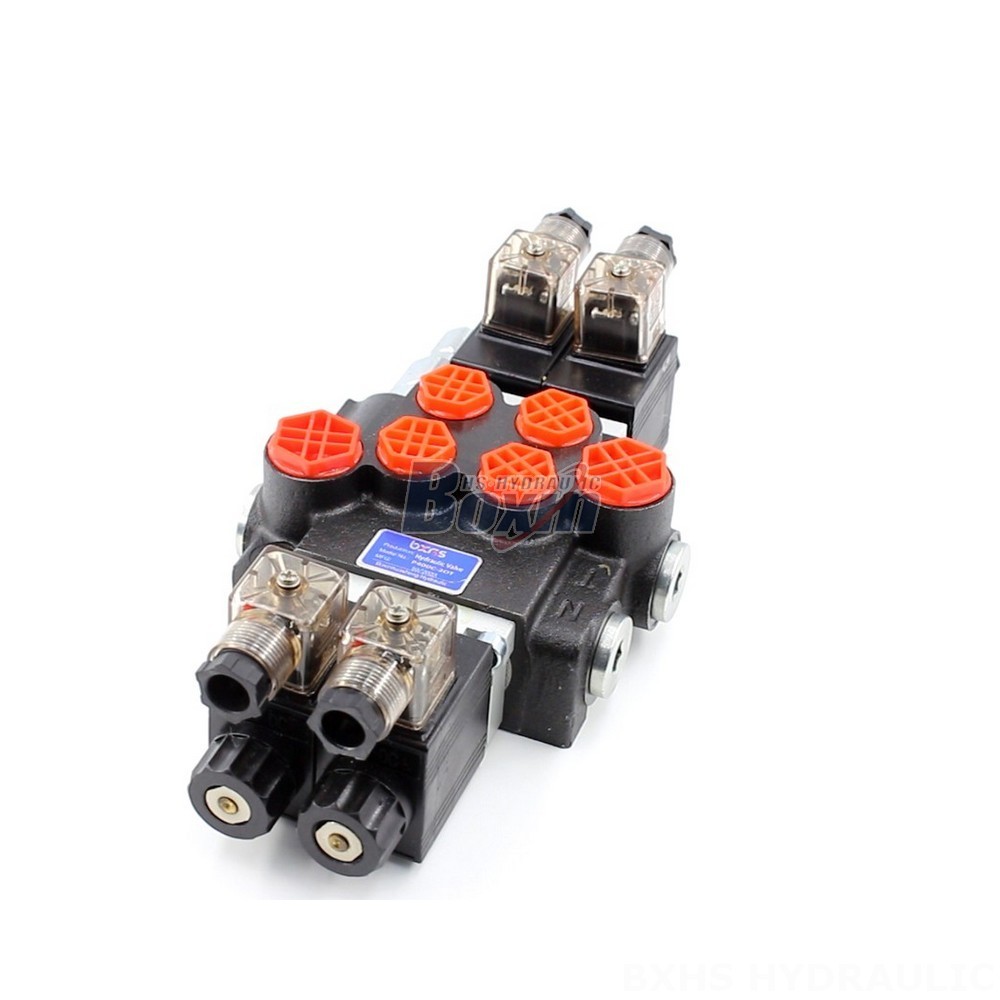

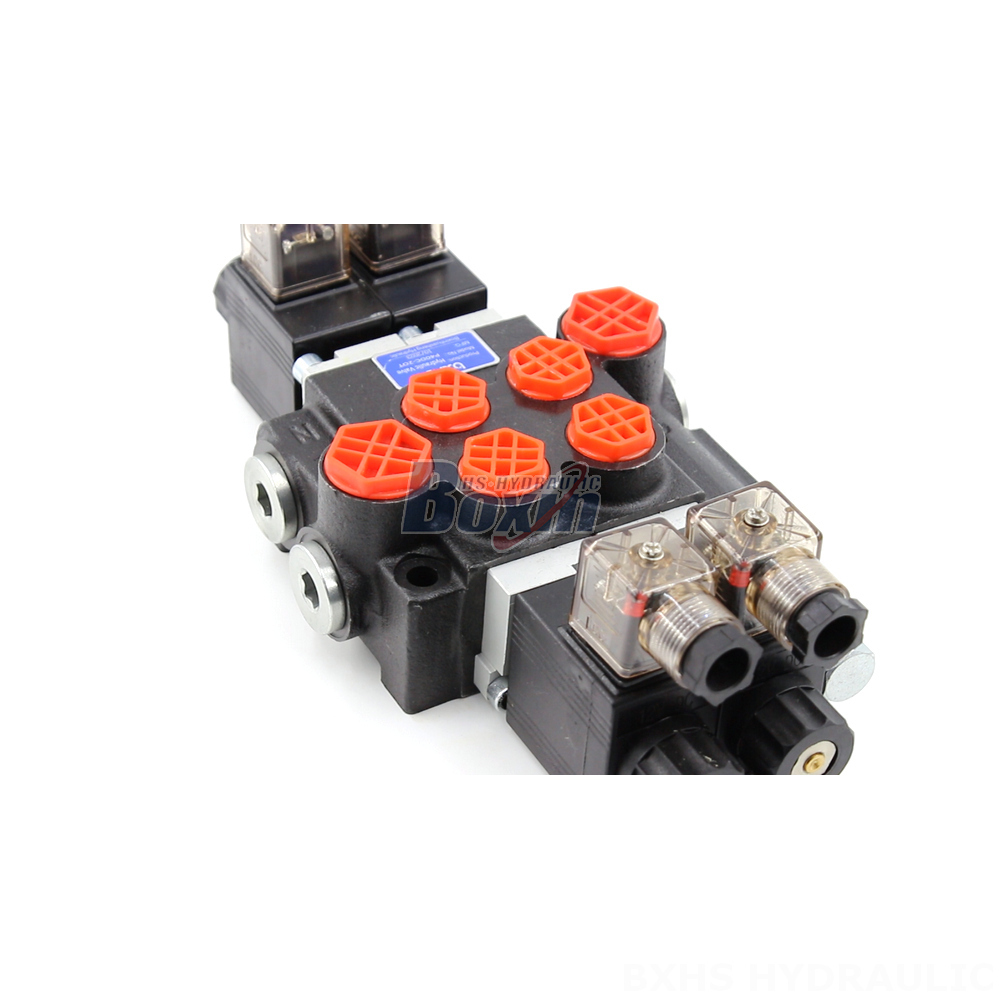

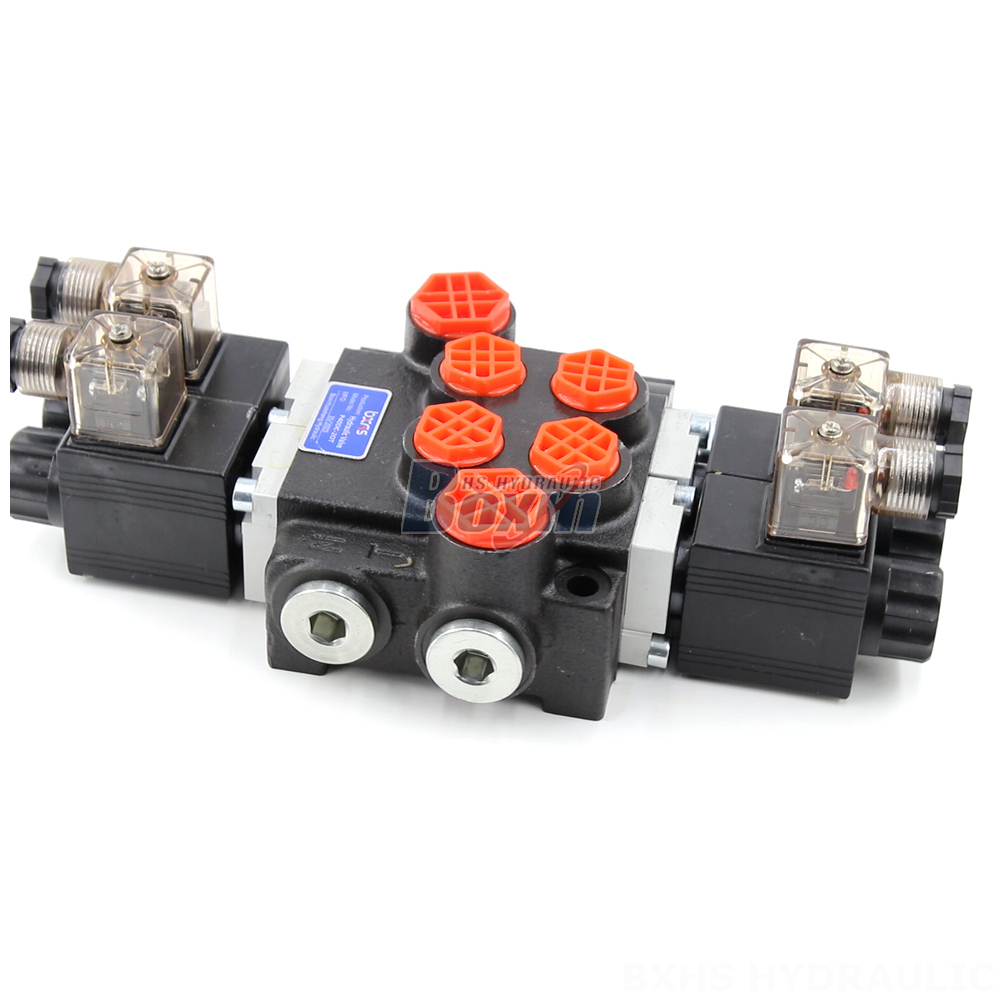

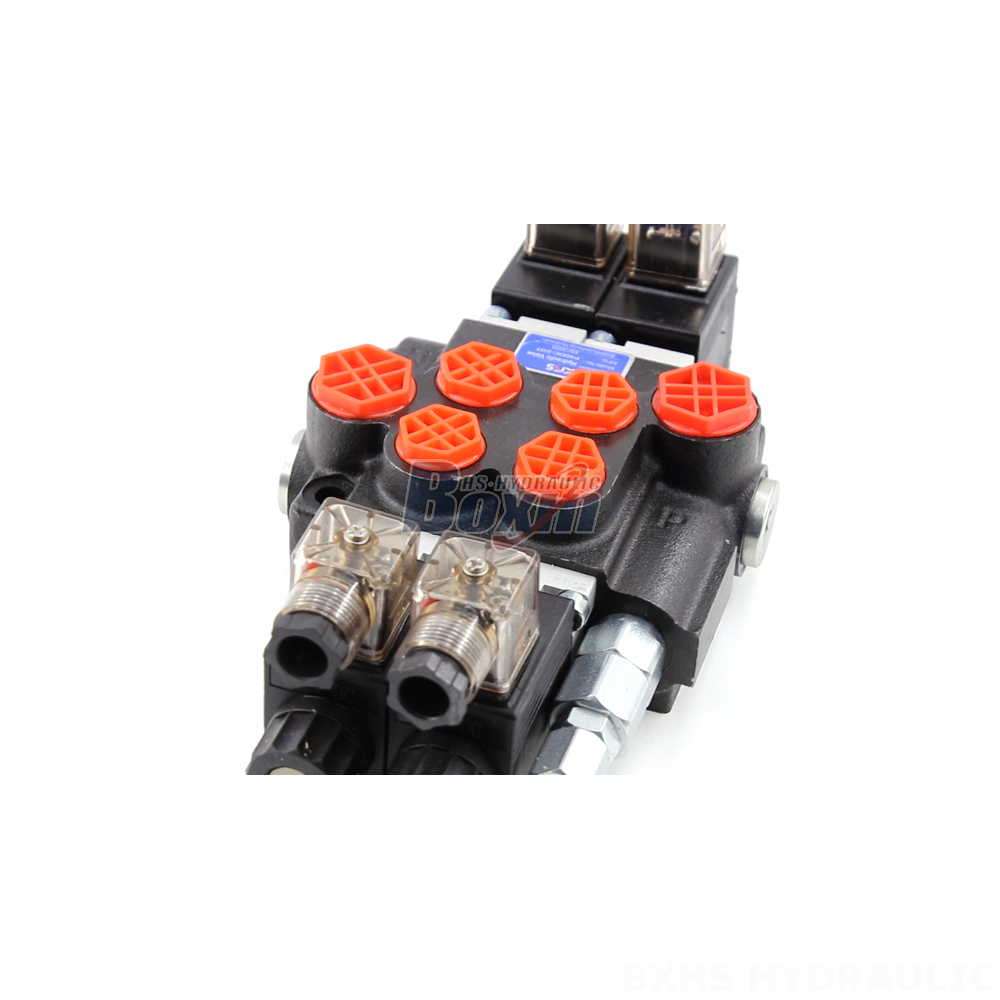

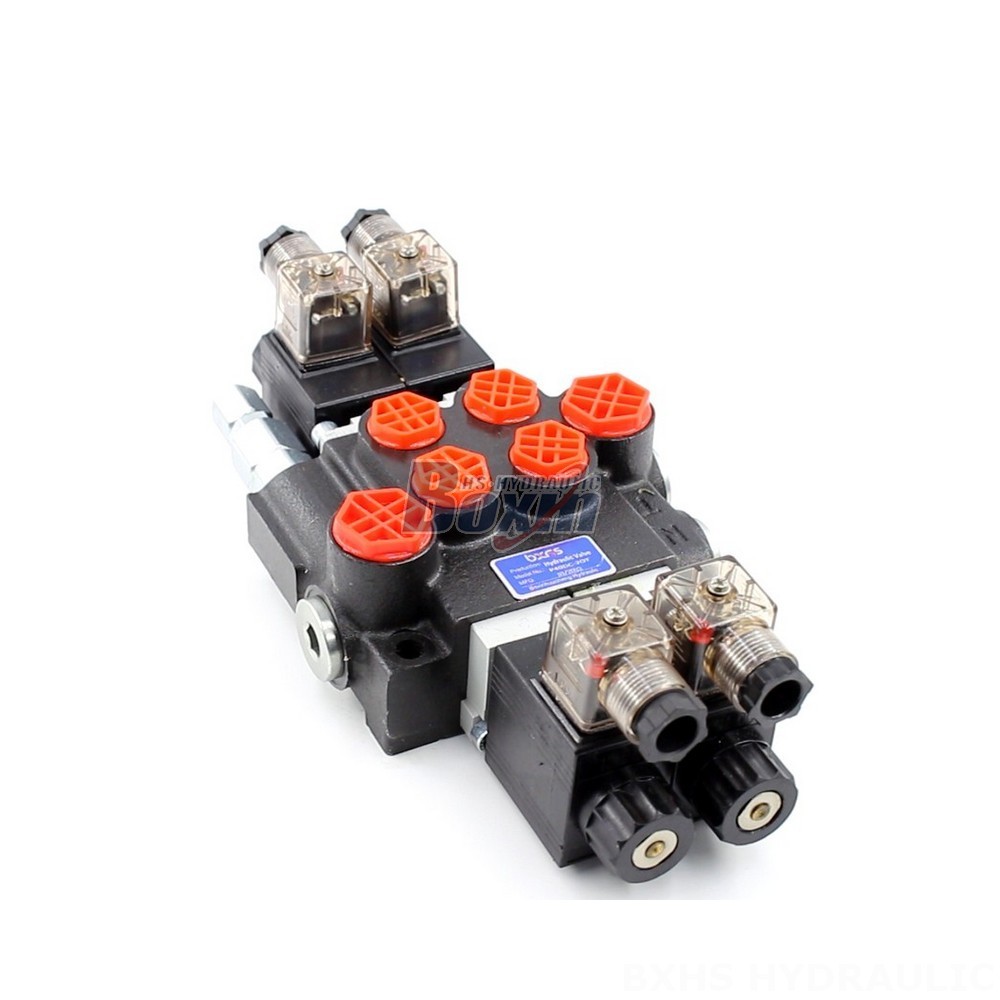

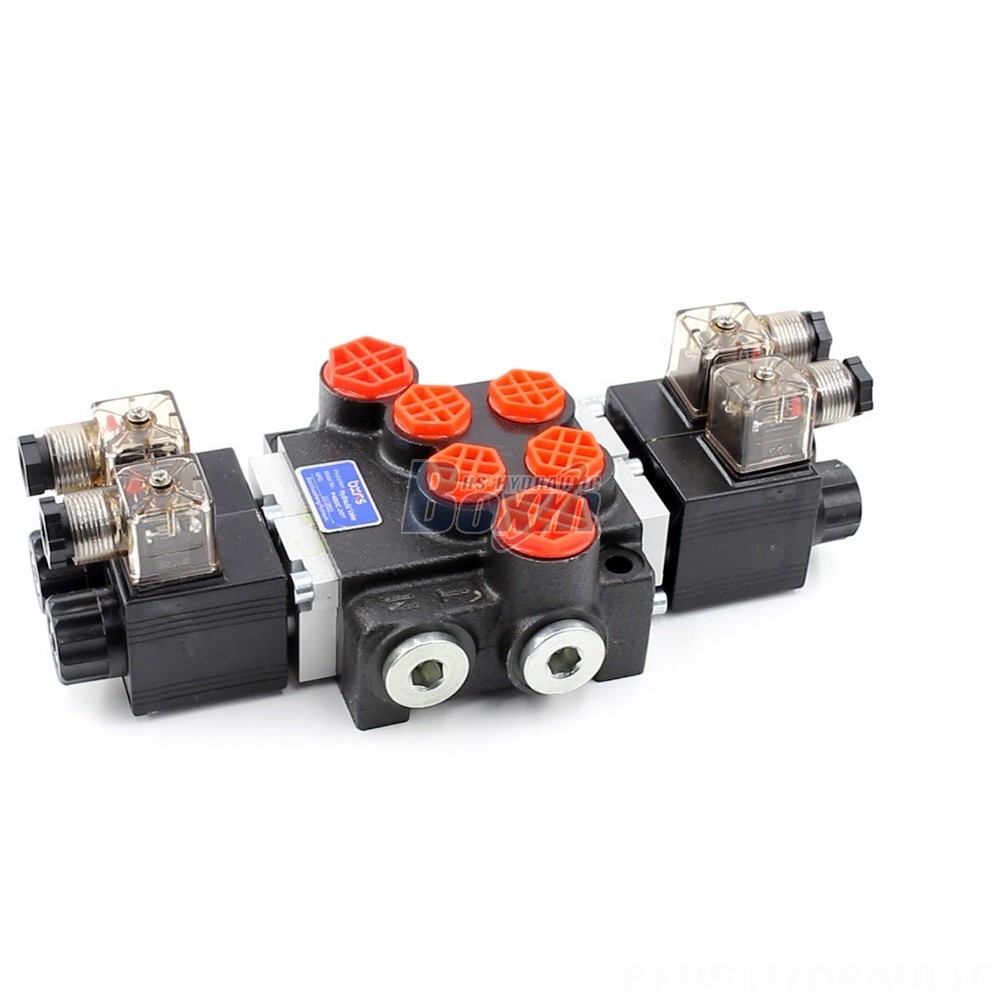

Introducing our P40 Series Solenoid 2 Spool Monoblock Directional Valves, the epitome of hydraulic excellence engineered and manufactured by our renowned team. These valves are meticulously designed for a wide range of applications, including construction, material handling, agriculture, and industrial vehicles. Our valves stand out for their exceptional performance, durability, and cost-effectiveness, making them the preferred choice for discerning OEMs and end-users worldwide.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
Delve into the intricate details of our P40 Series Solenoid 2 Spool Monoblock Directional Valves and discover their unparalleled capabilities:
- **Control Method:** Precise solenoid operation ensures effortless control and reliable performance.
- **Section:** Featuring 2 sections for versatile flow management.
- **Structure Type:** Monoblock construction offers a compact and robust design.
- **Rated Flow:** Exceptional flow capacity of 40 L/min (10.5 US gpm) for demanding applications.
- **Max Pressure:** Withstands pressures up to 250 bar (3600 psi) for exceptional durability.
- **Operating Viscosity Range:** Accommodates a wide range of viscosities from 15 to 75 mm²/s (15 cSt to 75 cSt) for optimal performance in diverse conditions.
- **Ambient Temperature Range:** Operates seamlessly in temperatures ranging from -40°C to +80°C (-40°F to +176°F), ensuring reliability in extreme environments.
- **Spool:** Equipped with 2 spools for efficient flow control.
- **Application Area:** Extensively used in construction, material handling, agriculture, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers.
As a leading manufacturer, we take pride in producing our valves in-house, ensuring the highest quality standards and competitive factory pricing. Our commitment to customer satisfaction drives us to provide unparalleled support, including customized solutions and prompt delivery. Contact us today to elevate your hydraulic systems with our exceptional P40 Series Solenoid 2 Spool Monoblock Directional Valves.
