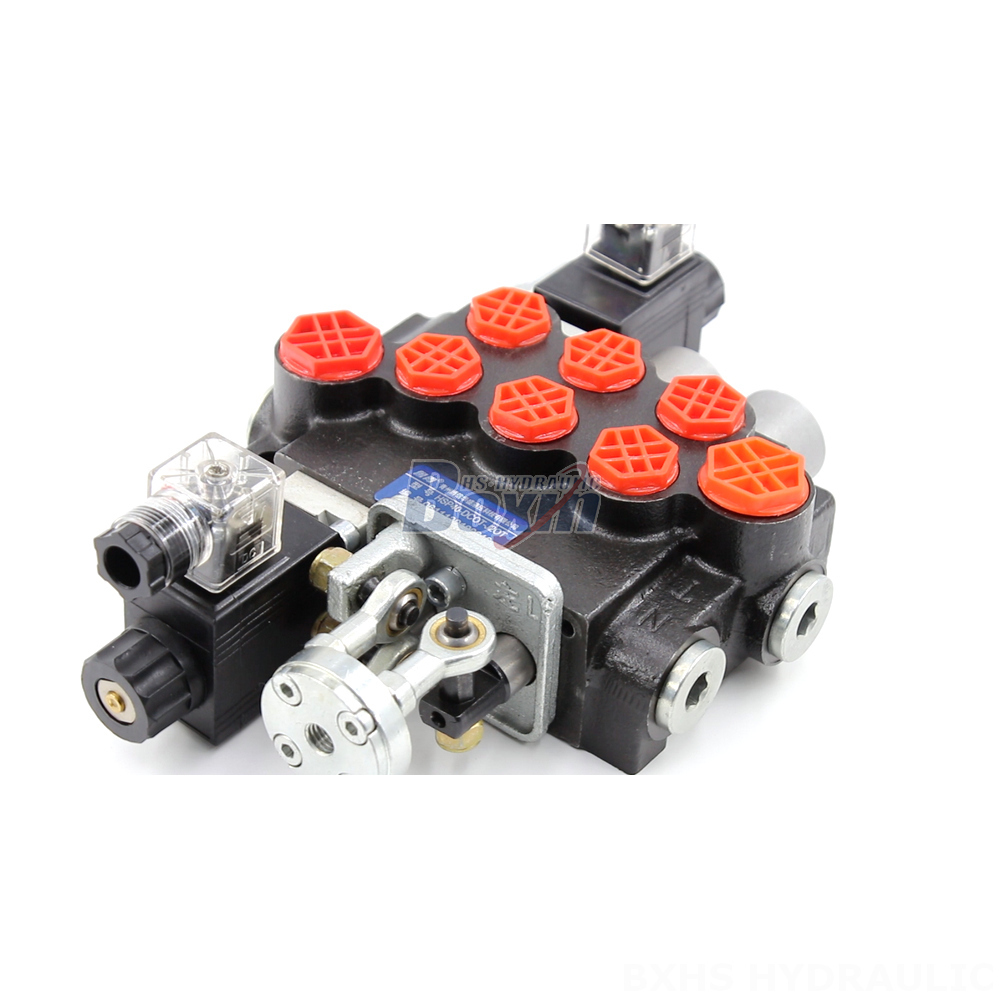

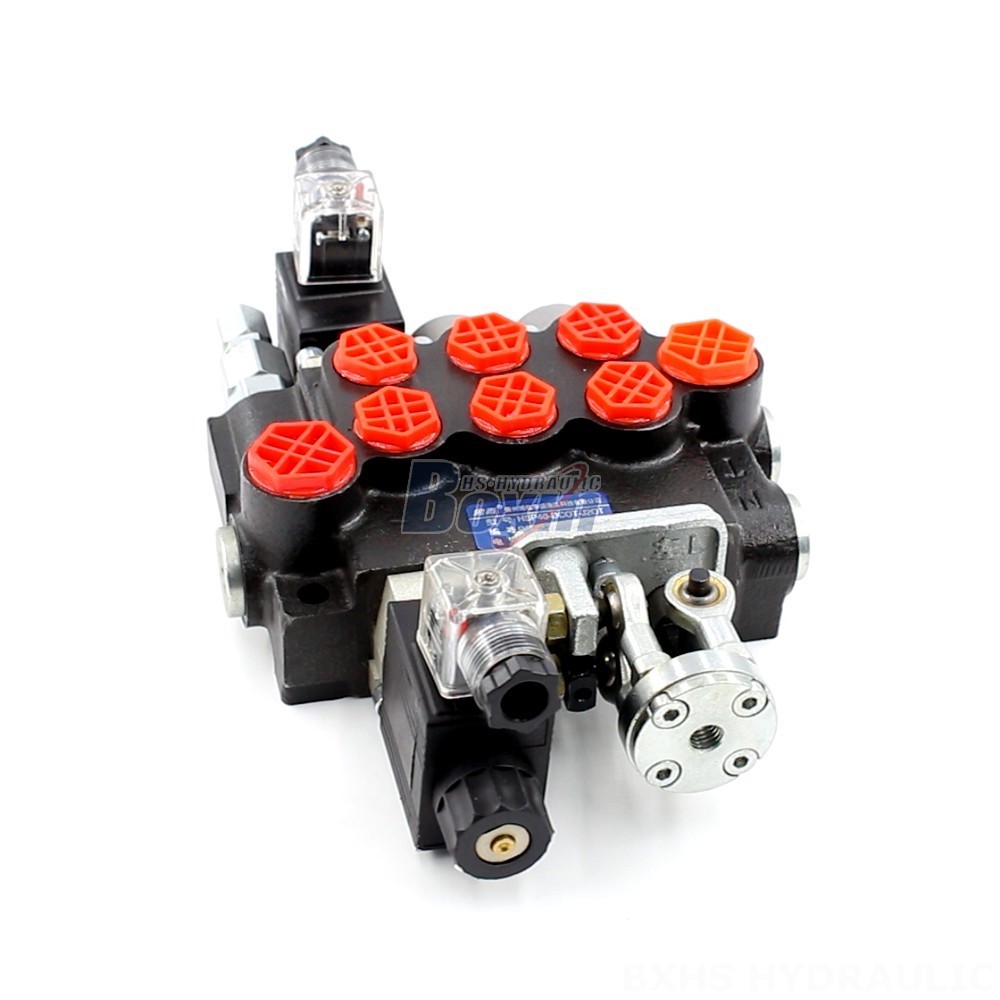

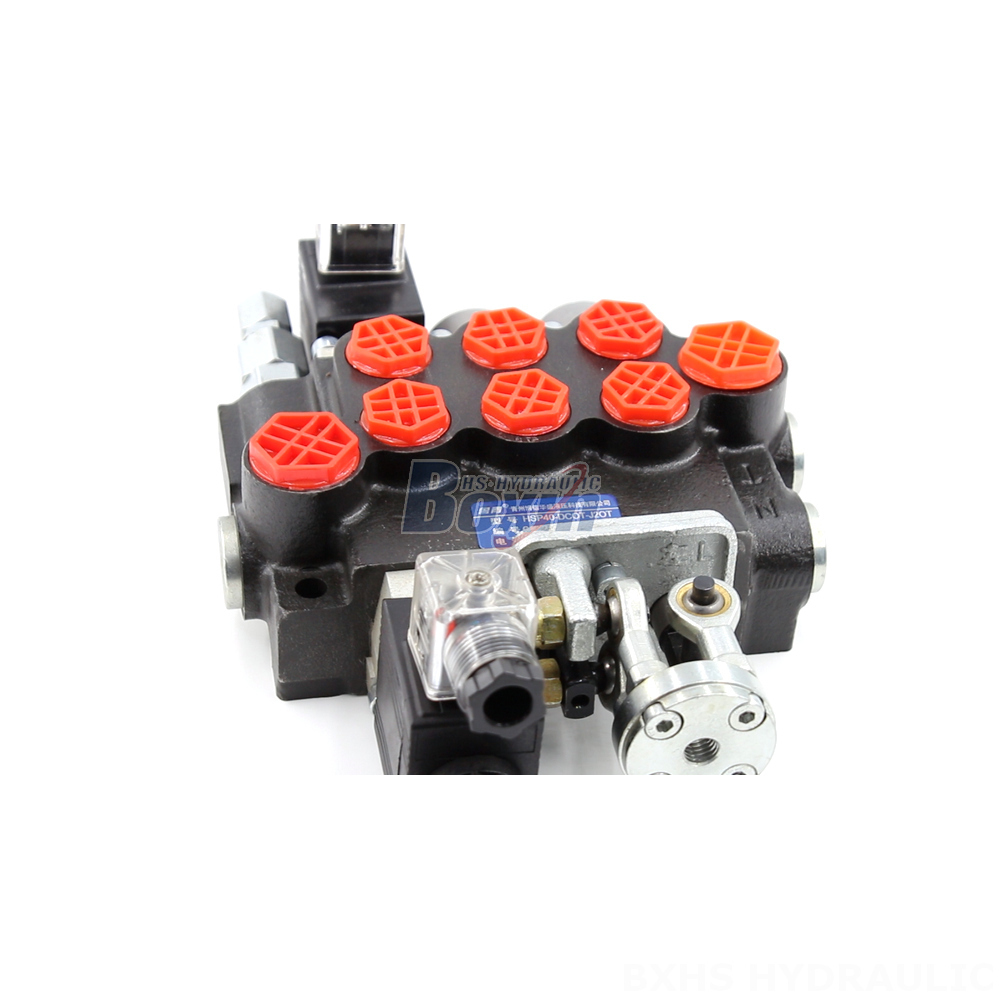

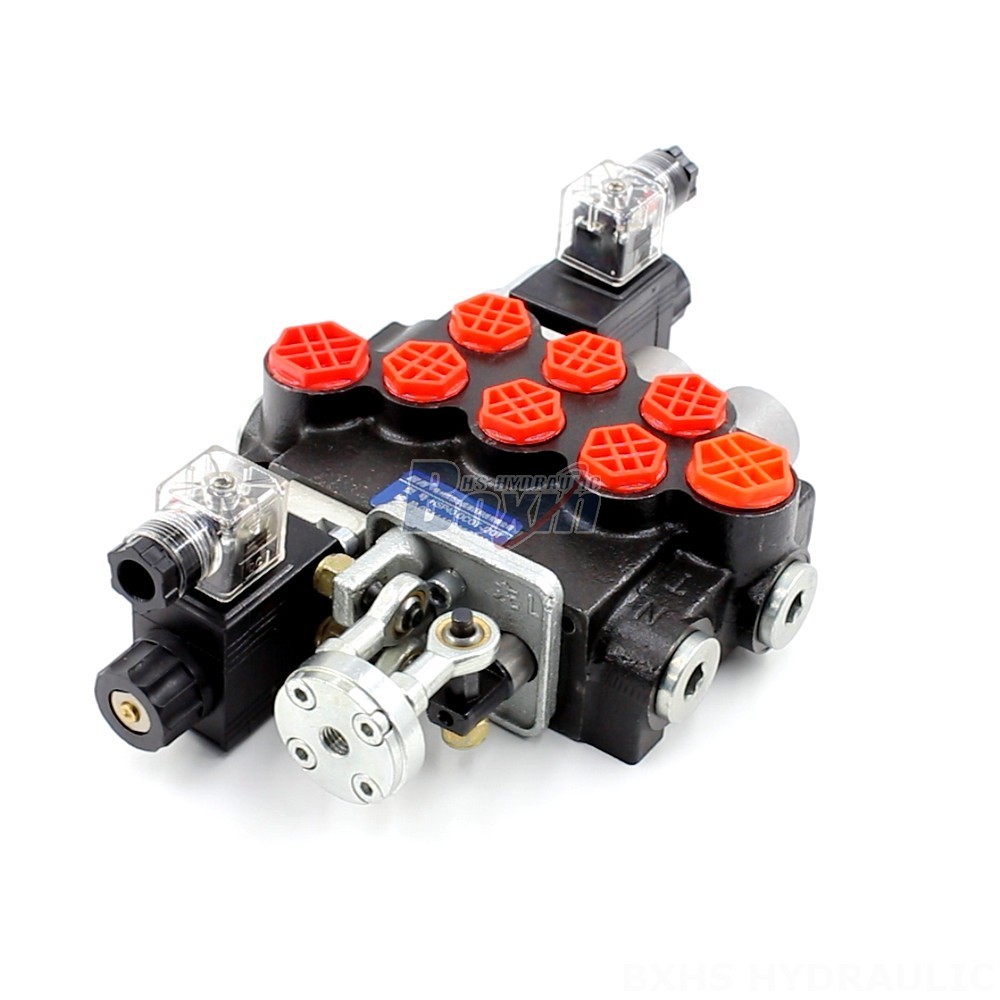

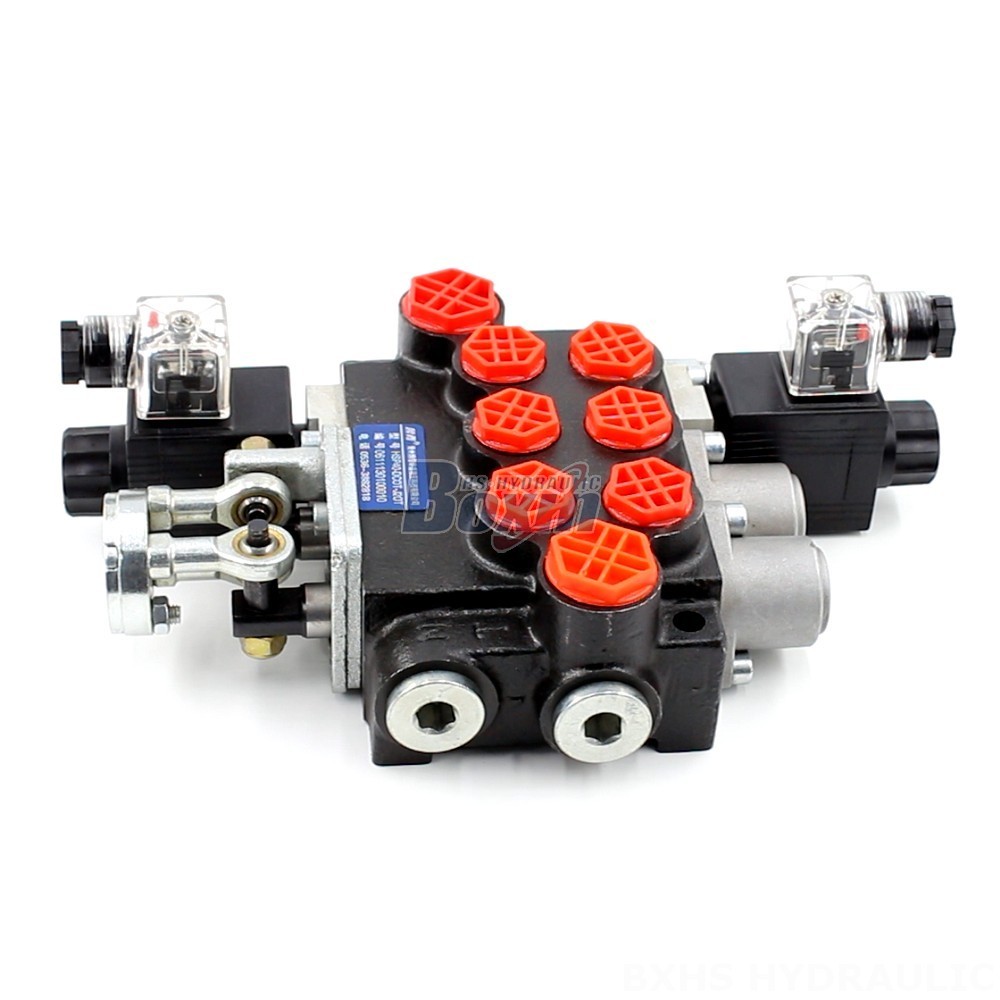

The P40 Solenoid and Joystick 3 Spool Valve is a high-performance hydraulic valve designed for a wide range of applications in material handling, construction, earth moving, agriculture, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for demanding operations.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series 3 Spool Valve offers both solenoid and joystick control options for precise operation. It features a monoblock construction for durability and reliability, and is rated for a flow of 40 L/min (10.5 US gpm) at a maximum pressure of 250 bar (3600 psi). The valve operates in a wide viscosity range (15 - 75 mm²/s) and temperature range (-40°C to +80°C). As a leading hydraulic product manufacturer, we offer factory direct supply and global distribution, ensuring competitive pricing and efficient delivery. We also welcome OEM, ODM, and private label partnerships. Contact us to discuss your specific needs and explore customization options.
