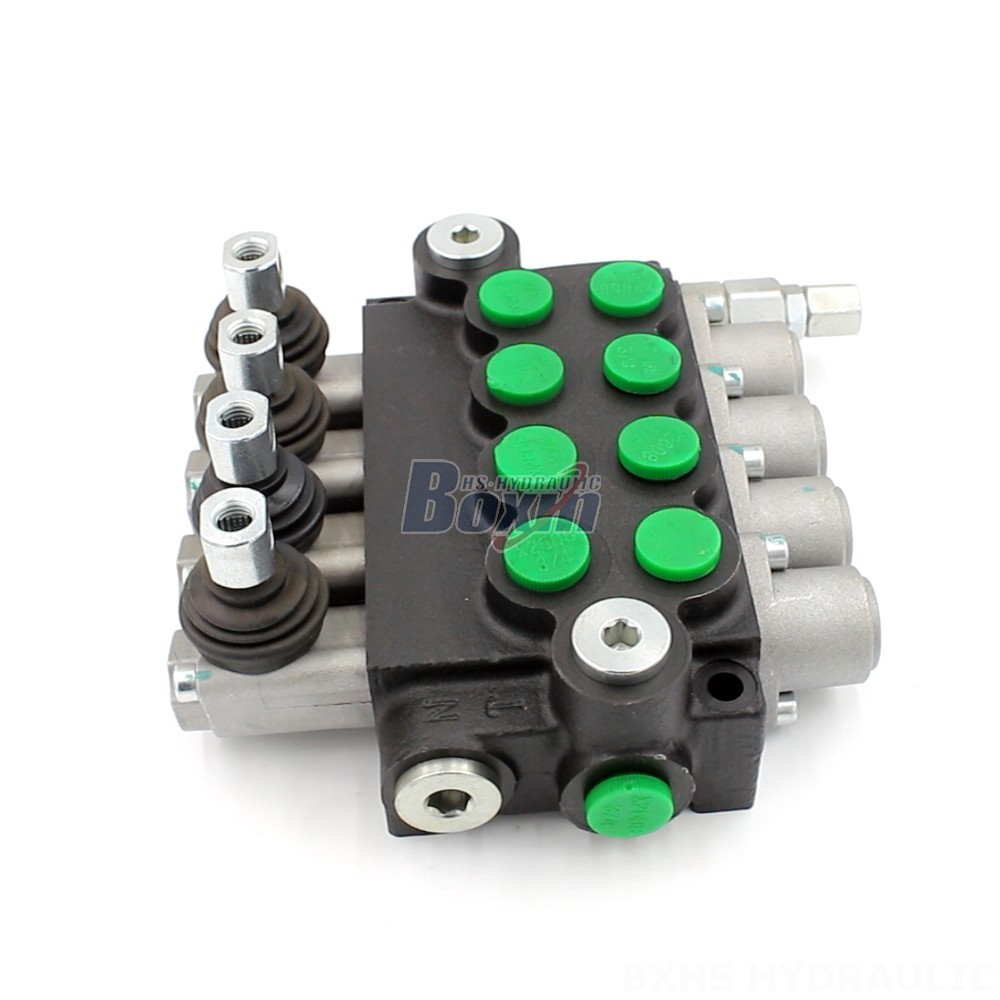

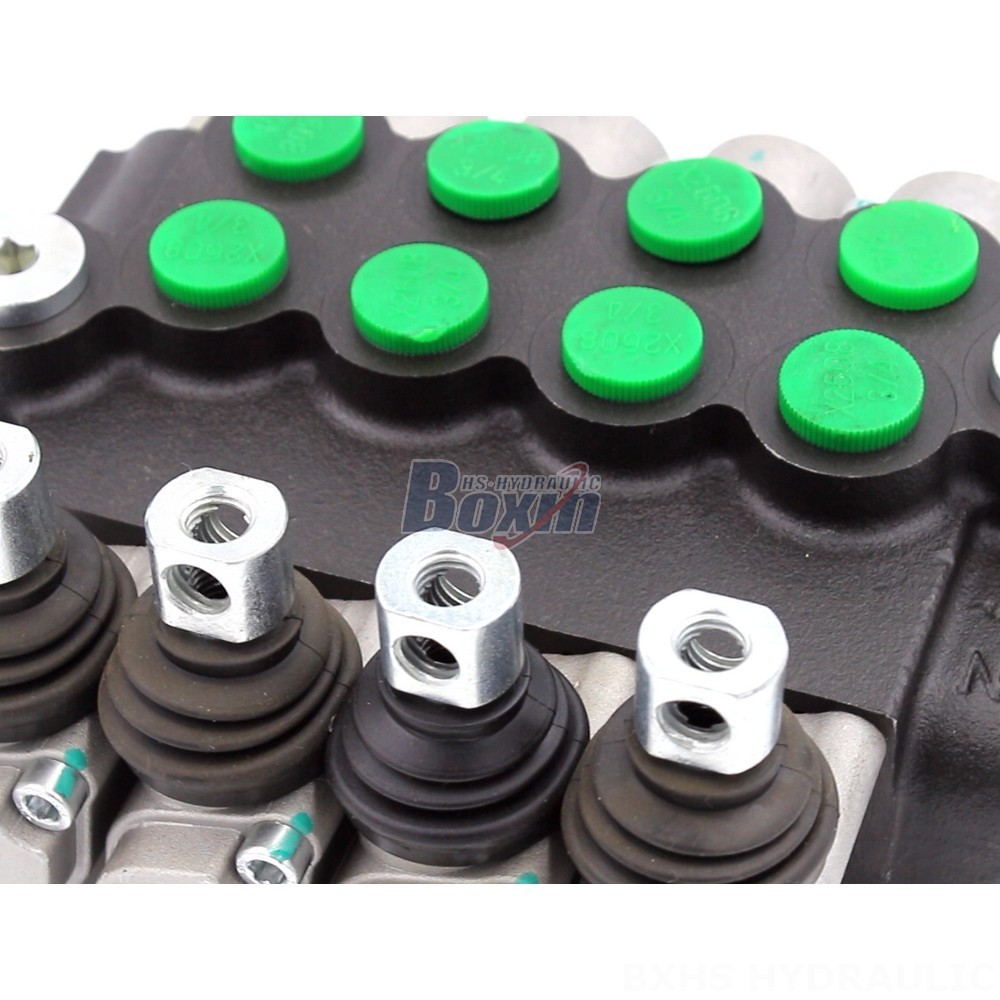

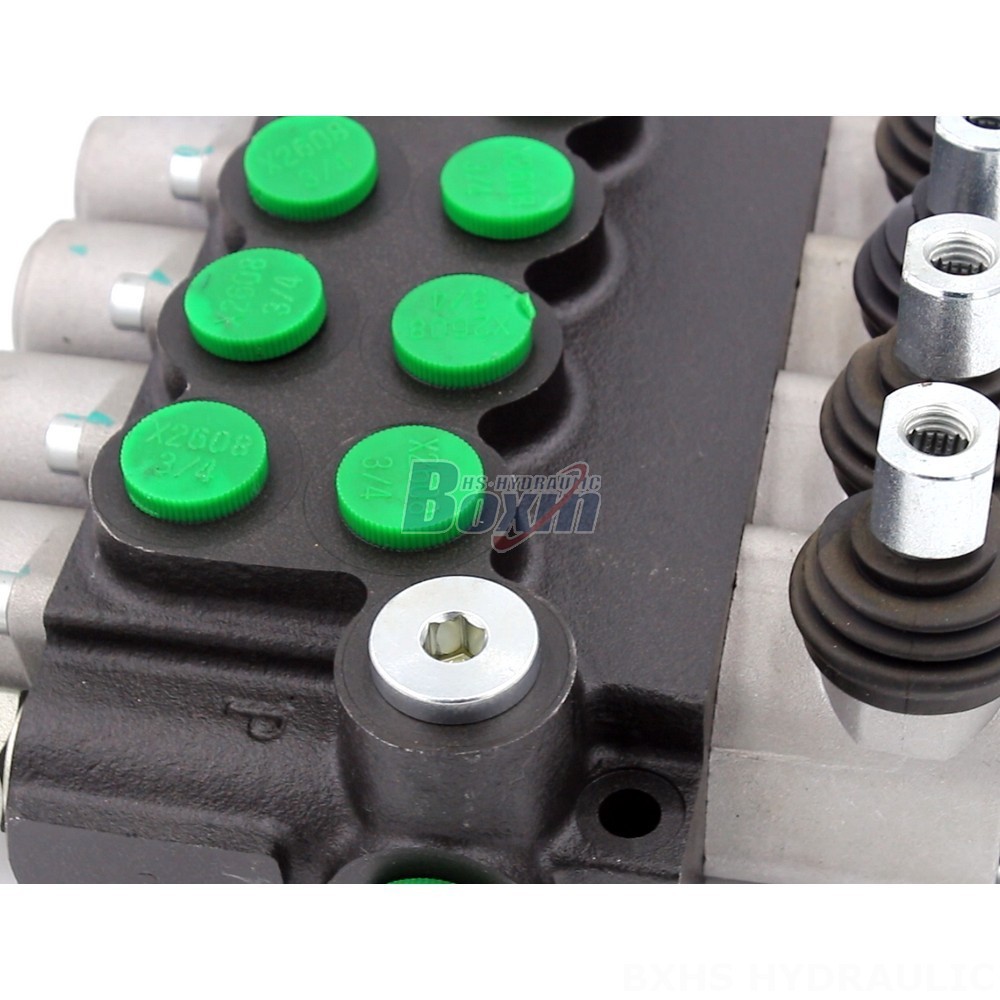

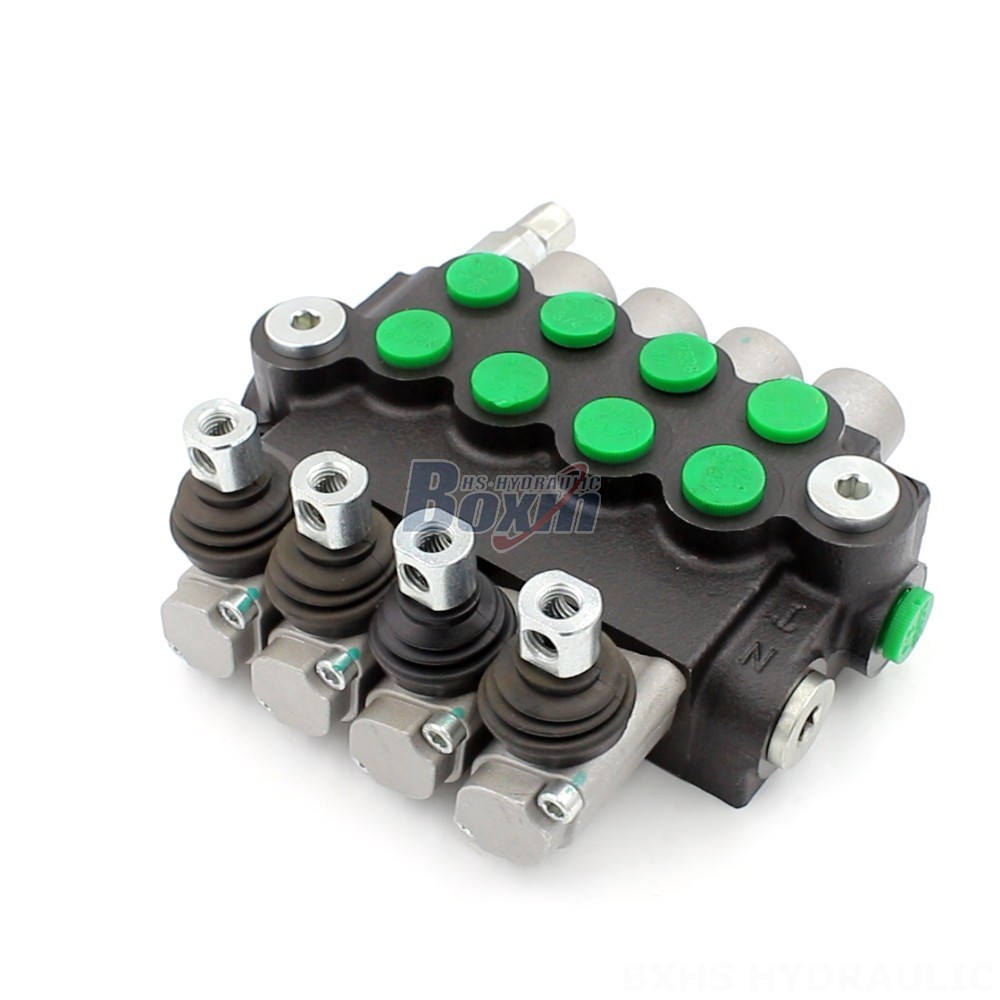

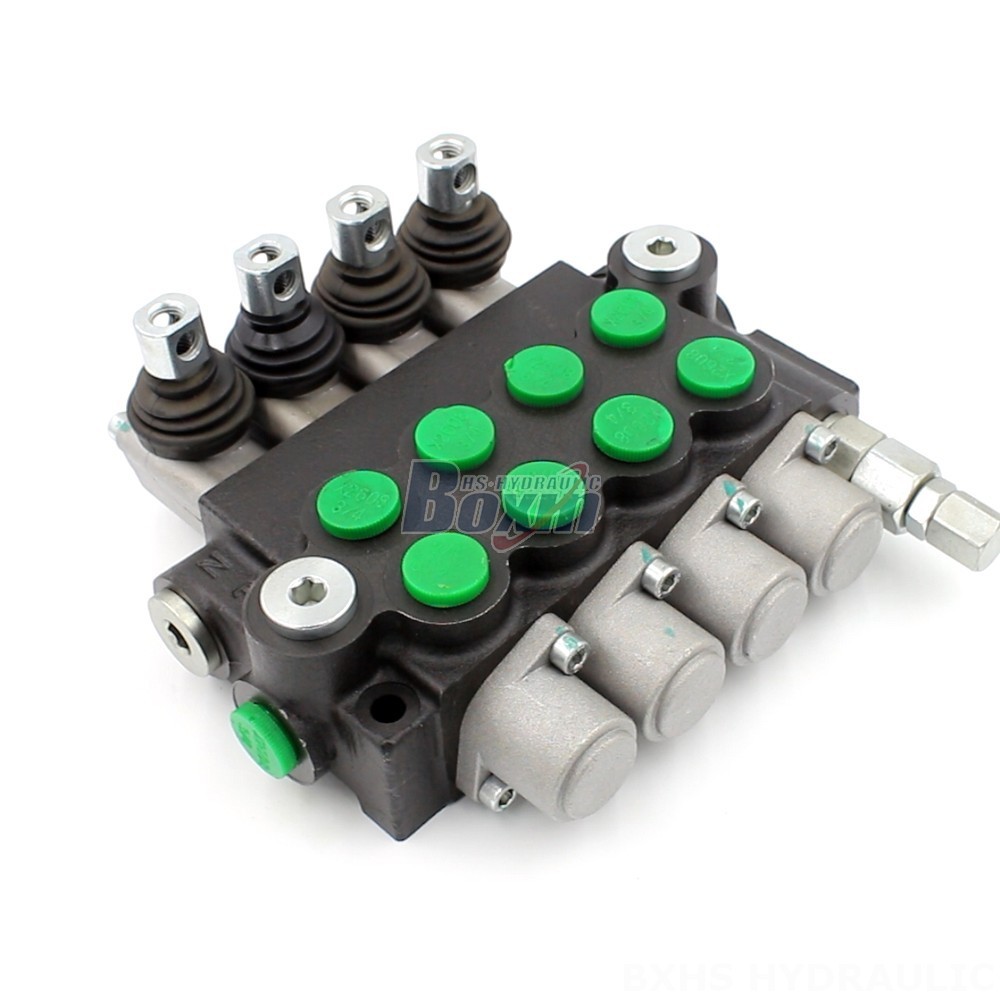

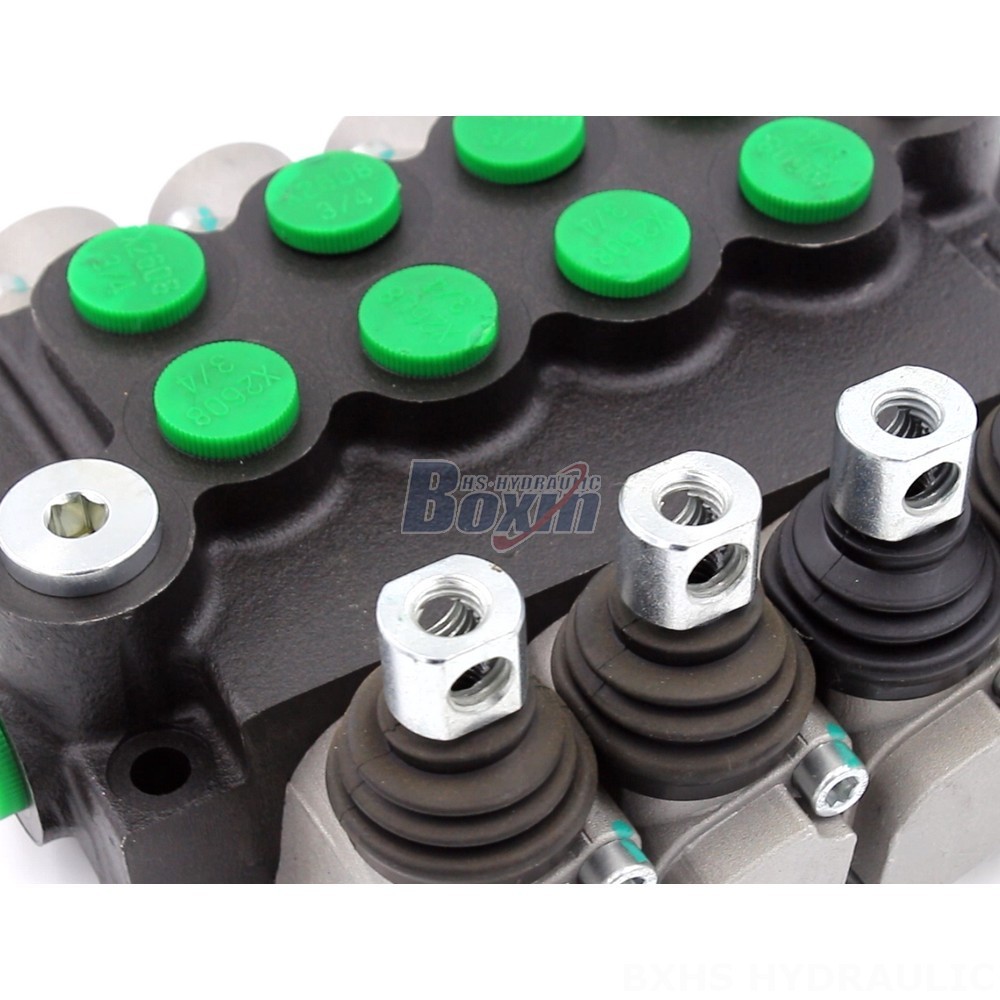

P40-U34 Monoblock Valve | High Pressure | Factory Direct Sale

Metode Kontrol:Buku Panduan

Spul:4 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:SAE 8

Port Keluar:SAE 8

Ukuran Port:SAE 8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:24*23*13

Kelas kotor:8.20 kg

Ketersediaan: Tersedia

1014 Pandangan Mencari Produk Ini

P40-U34 Monoblock Valve | High Pressure | Factory Direct Sale

P40-U34 Monoblock Valve | High Pressure | Factory Direct Sale

P40-U34 Monoblock Valve | High Pressure | Factory Direct Sale drawing image

This high-performance 4-way hydraulic solenoid valve is a durable and reliable solution for various construction and material handling equipment. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this monoblock valve offers efficient operation in demanding applications. The valve is compatible with a wide range of machinery, including telehandlers, forklifts, and excavators, making it a versatile option for various industries.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-U34 4-way hydraulic solenoid valve is designed for high-pressure applications in construction and material handling industries. Featuring a monoblock structure, this valve offers exceptional durability and reliability. With a rated flow of 40 L/min and a maximum pressure of 250 bar, the valve delivers efficient performance in demanding environments. The valve is compatible with a wide range of machinery, including telehandlers, forklifts, stackers, aerial platforms, motor graders, midi-excavators, skid steer loaders, wheel loaders, tractors, and harvesters. Its compact design and user-friendly operation make it an ideal choice for various applications. The valve's robust construction and high-quality materials ensure long-lasting performance, even in challenging conditions. This product is available for factory direct sale, allowing for competitive pricing and prompt delivery.
