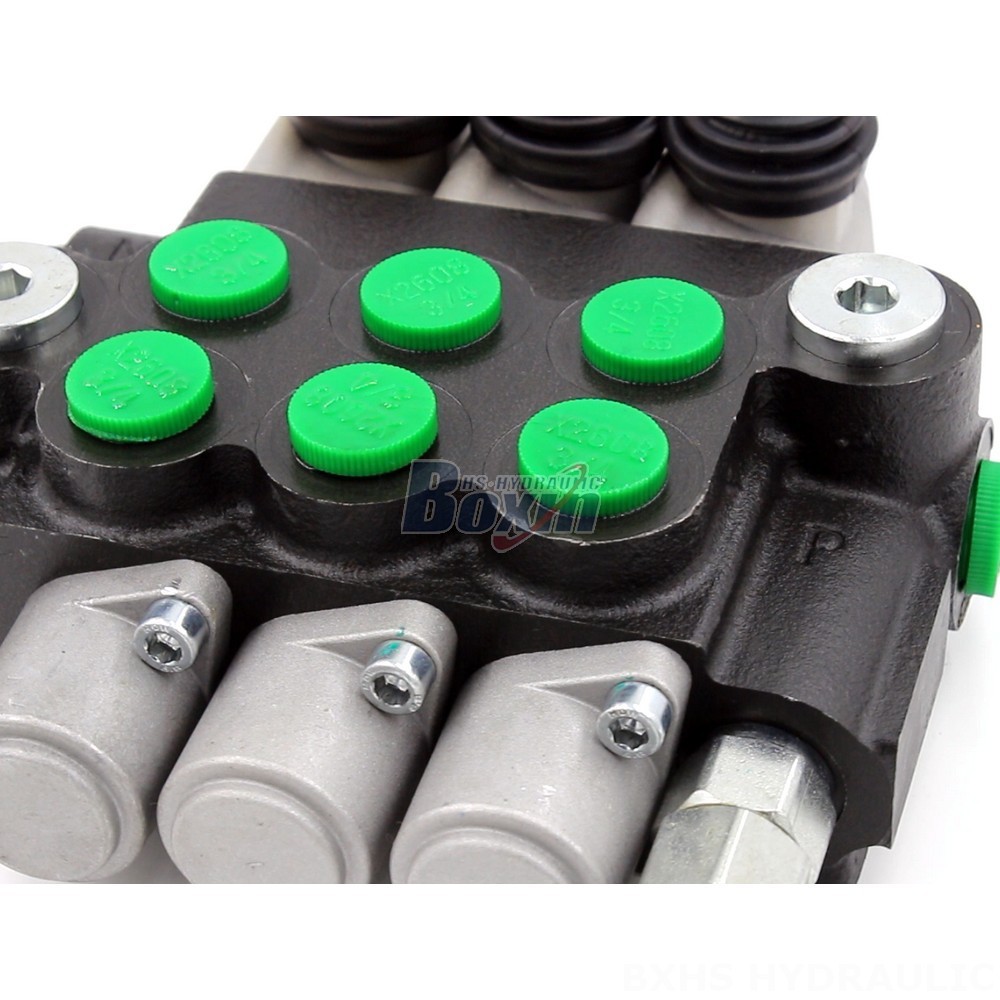

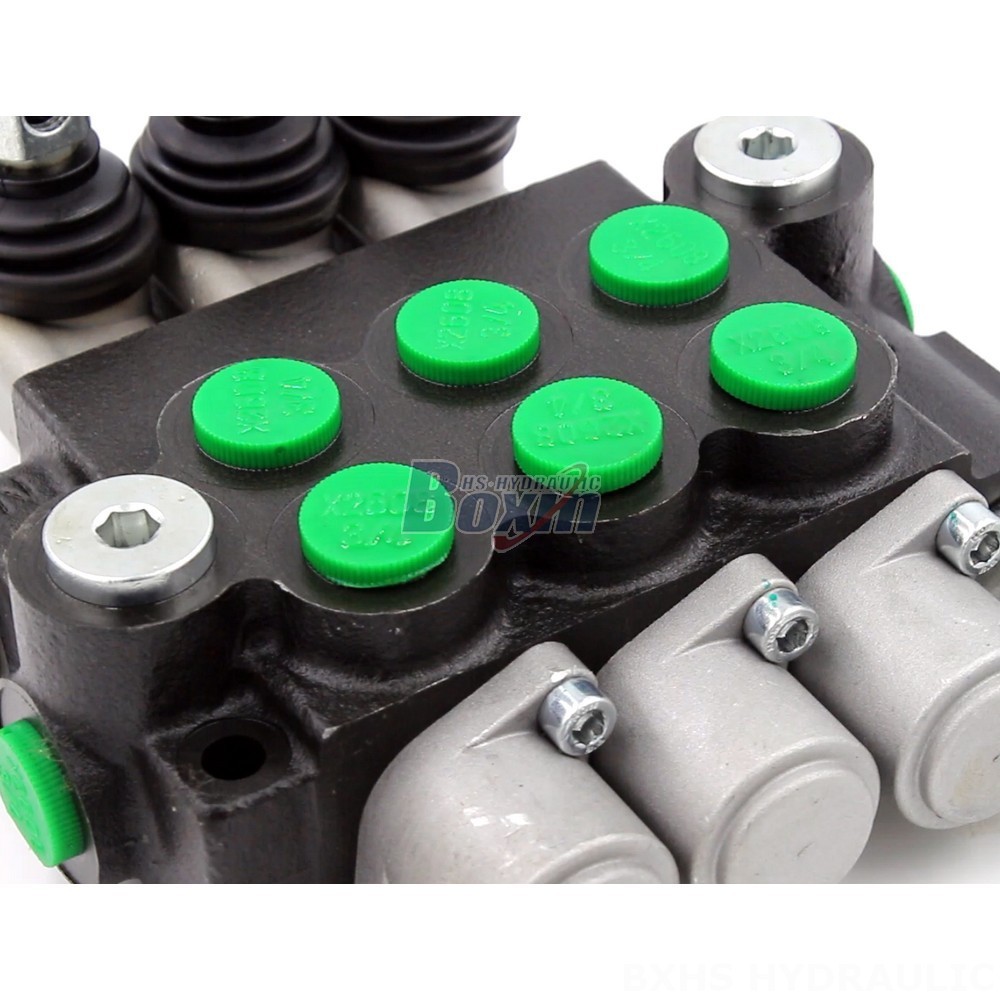

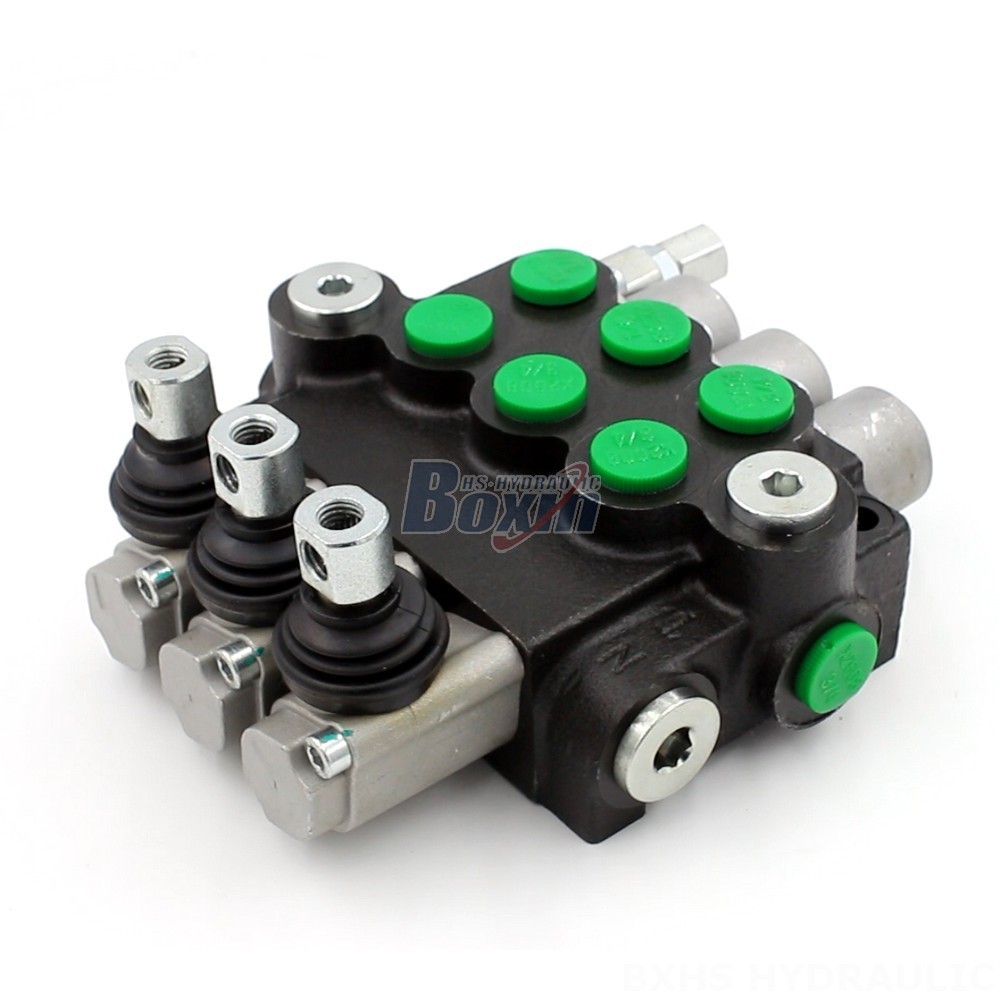

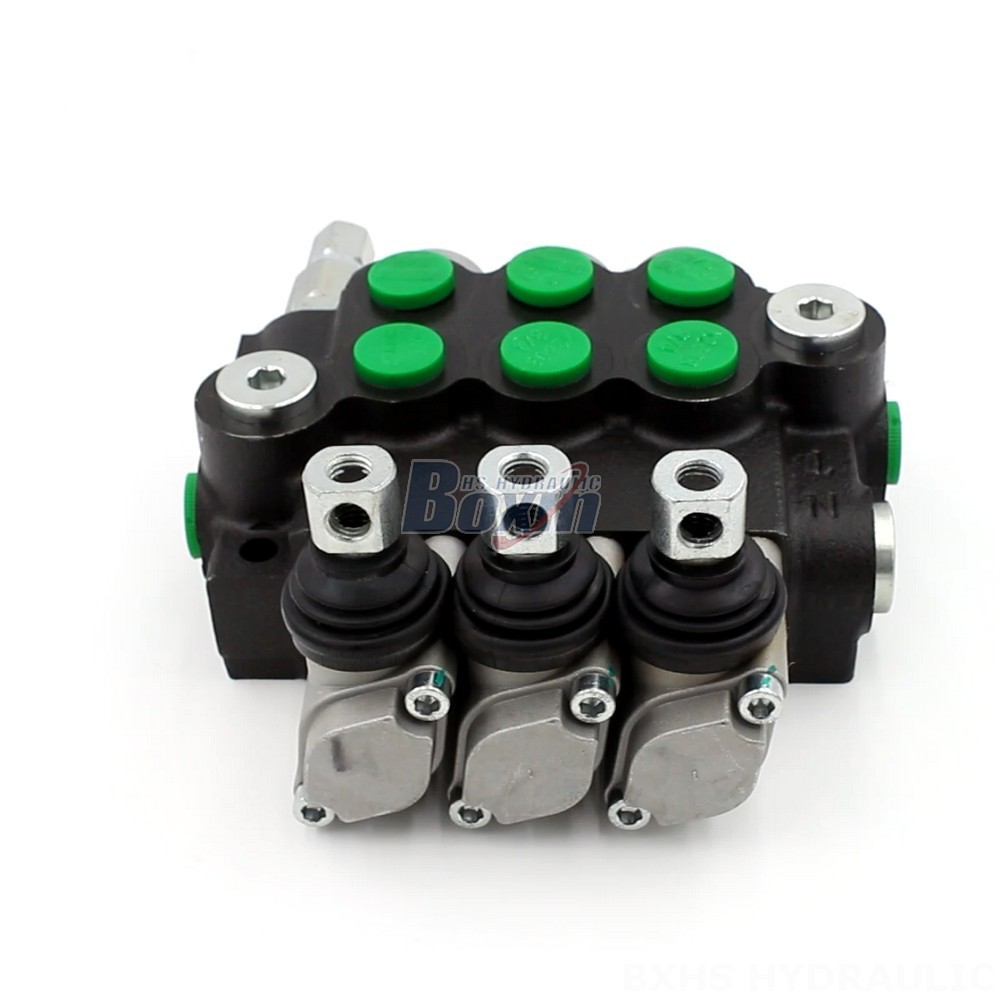

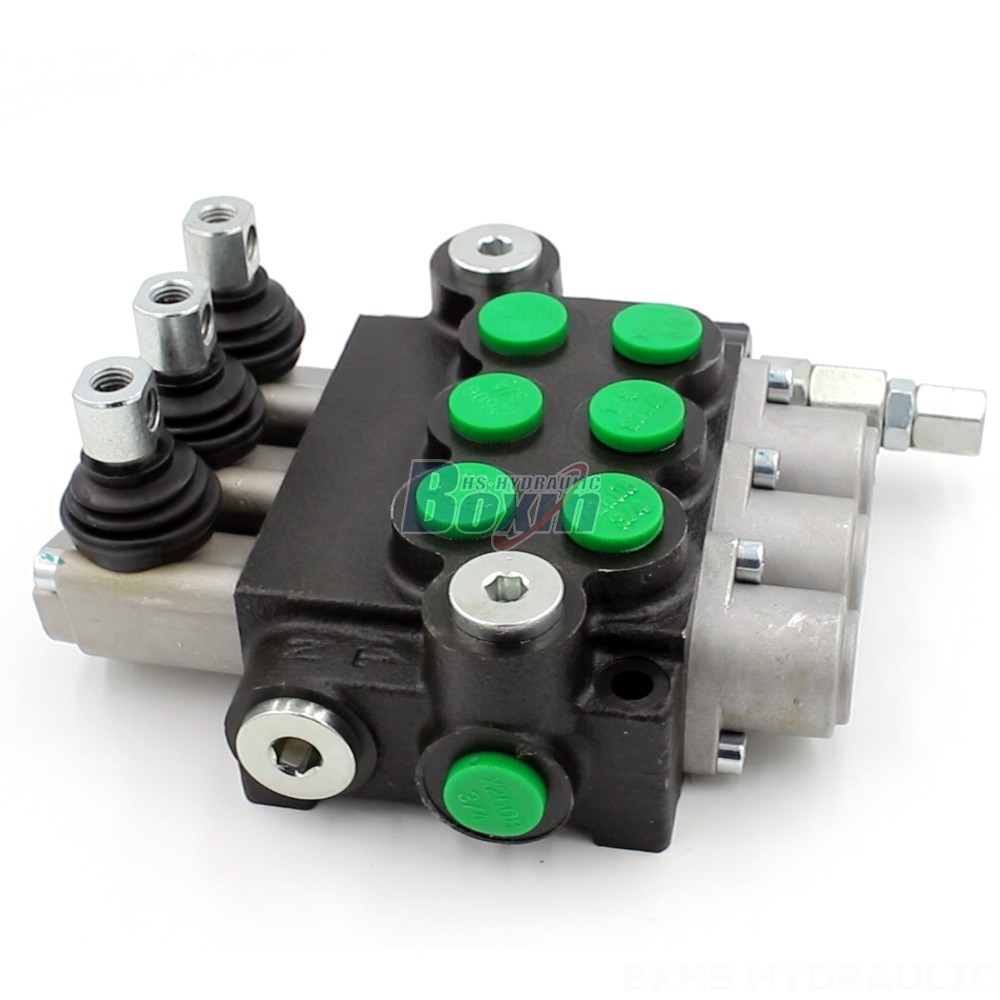

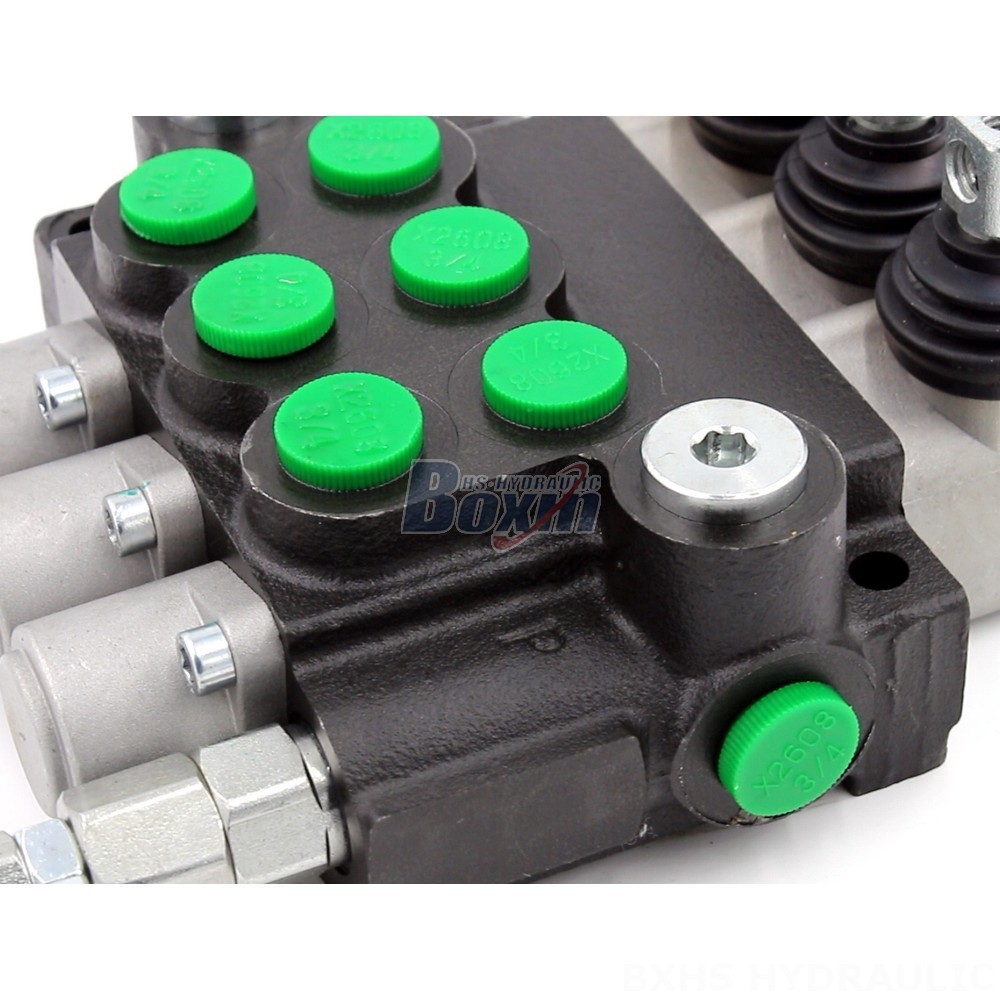

This 12v Diverter Valve from the P40 Series is a high-performance, manual controlled, 3-section monoblock valve designed for various applications including material handling, construction, agriculture, and industrial vehicles. It features a rated flow of 40 L/min and a maximum pressure of 250 bar. This versatile valve is suitable for a wide range of equipment like telehandlers, forklifts, cranes, and excavators.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The 12v Diverter Valve P40-U34-OT is a high-quality, reliable hydraulic valve designed for demanding applications. It is a 3-section monoblock valve with a manual control mechanism. This valve boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment and tasks. It is designed for use in various industries, including material handling, construction and earth moving, agriculture, and industrial vehicles. Its compact and robust design makes it ideal for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders.
