Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1063 Pandangan Mencari Produk Ini

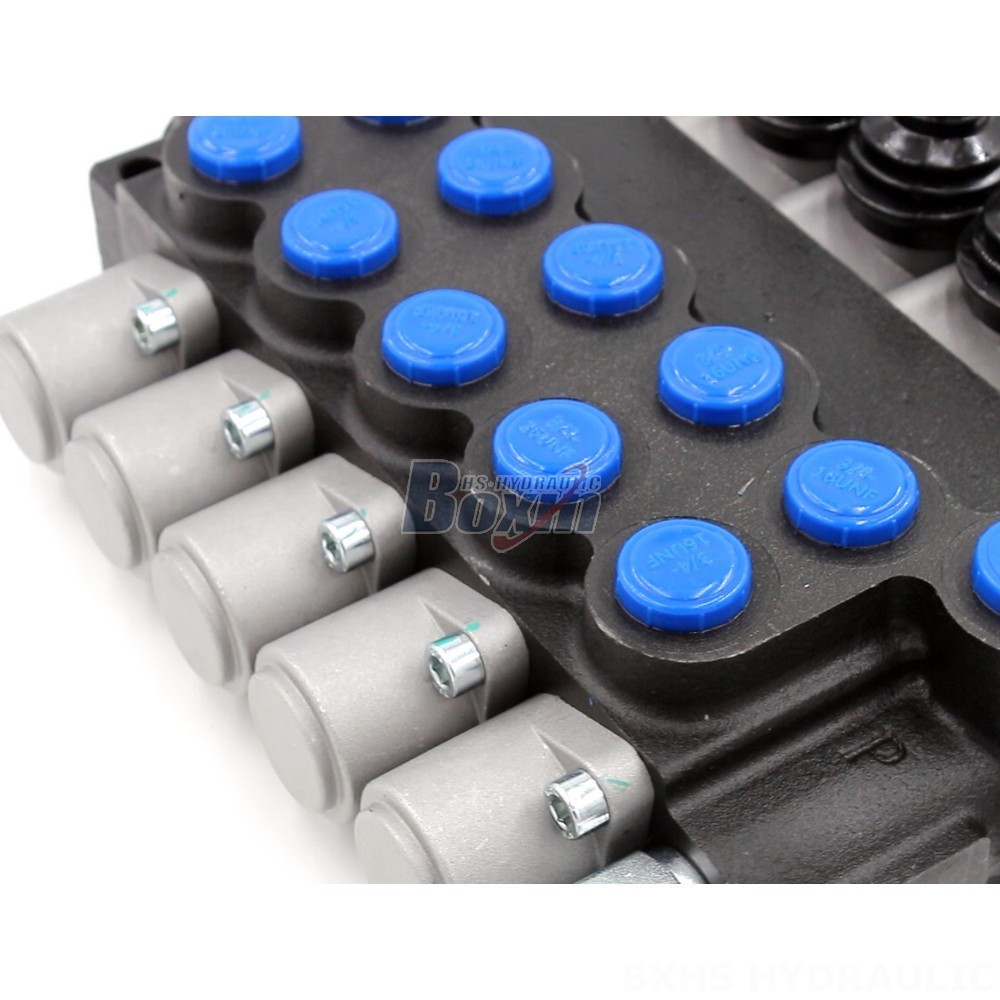

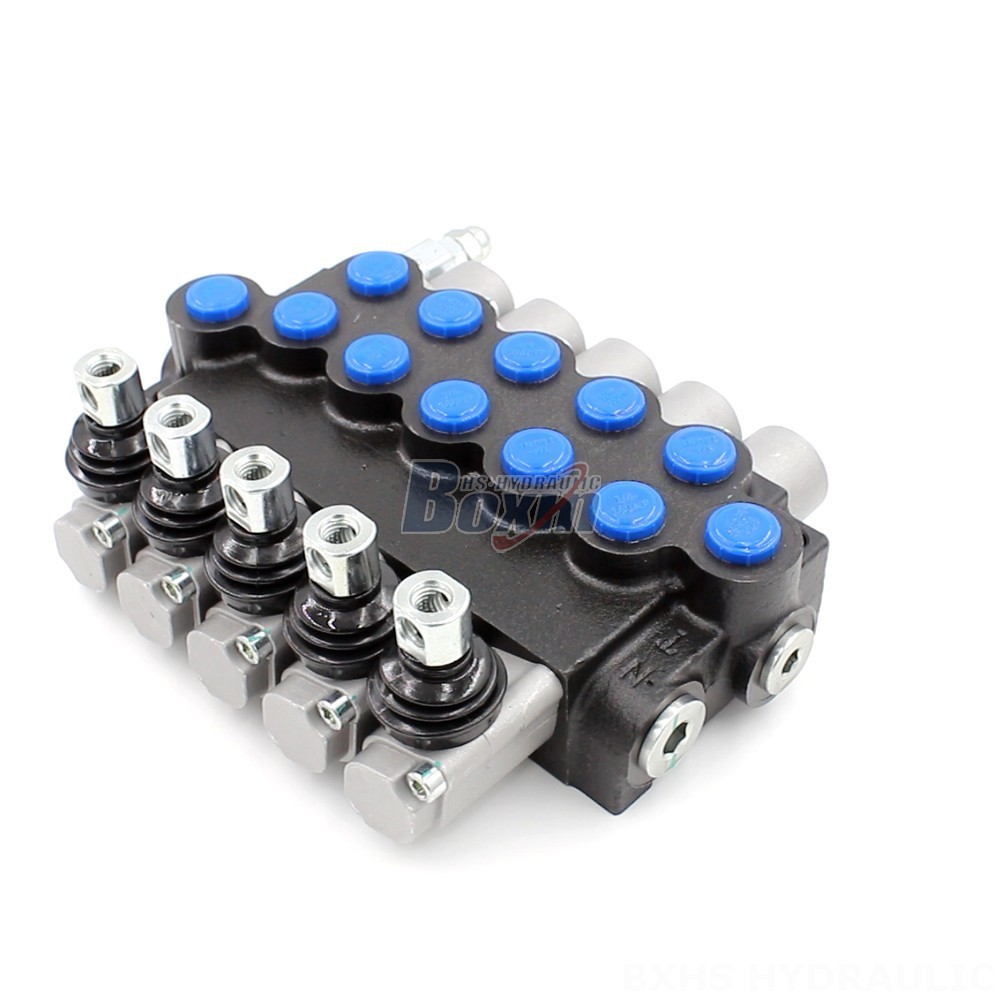

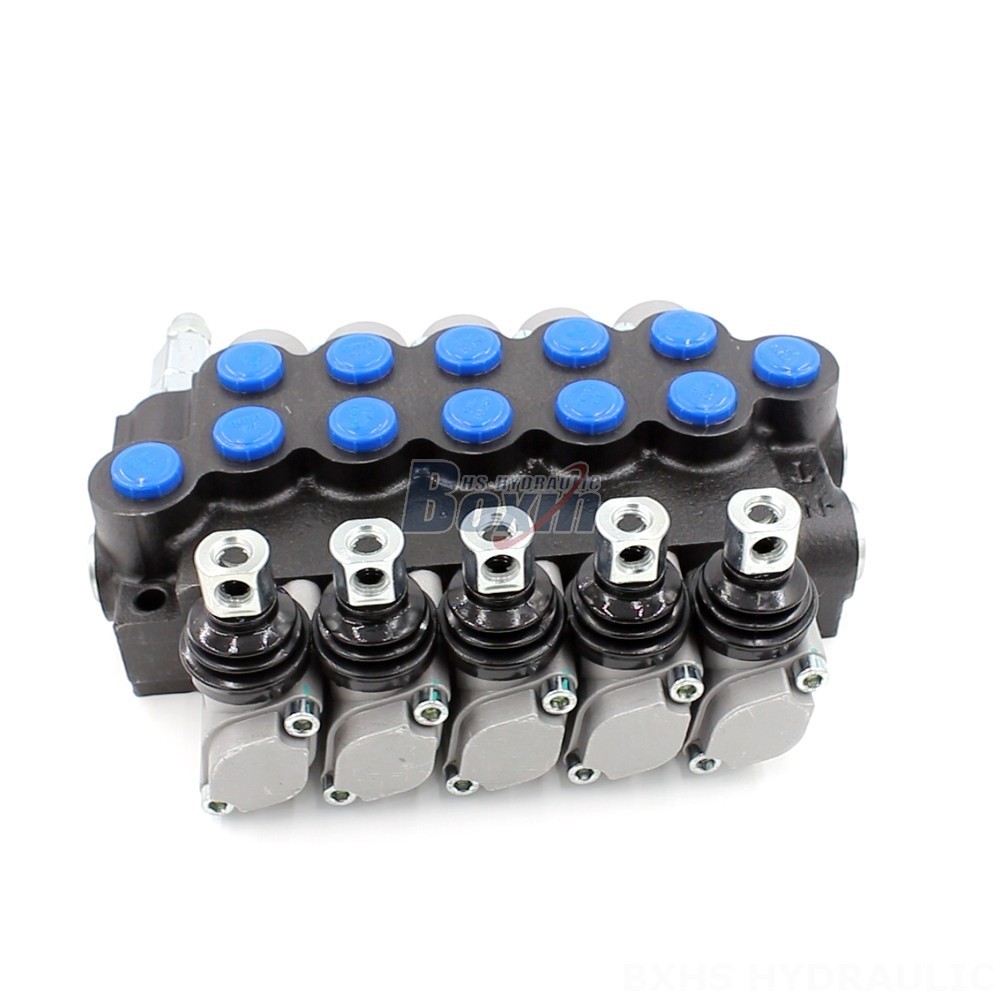

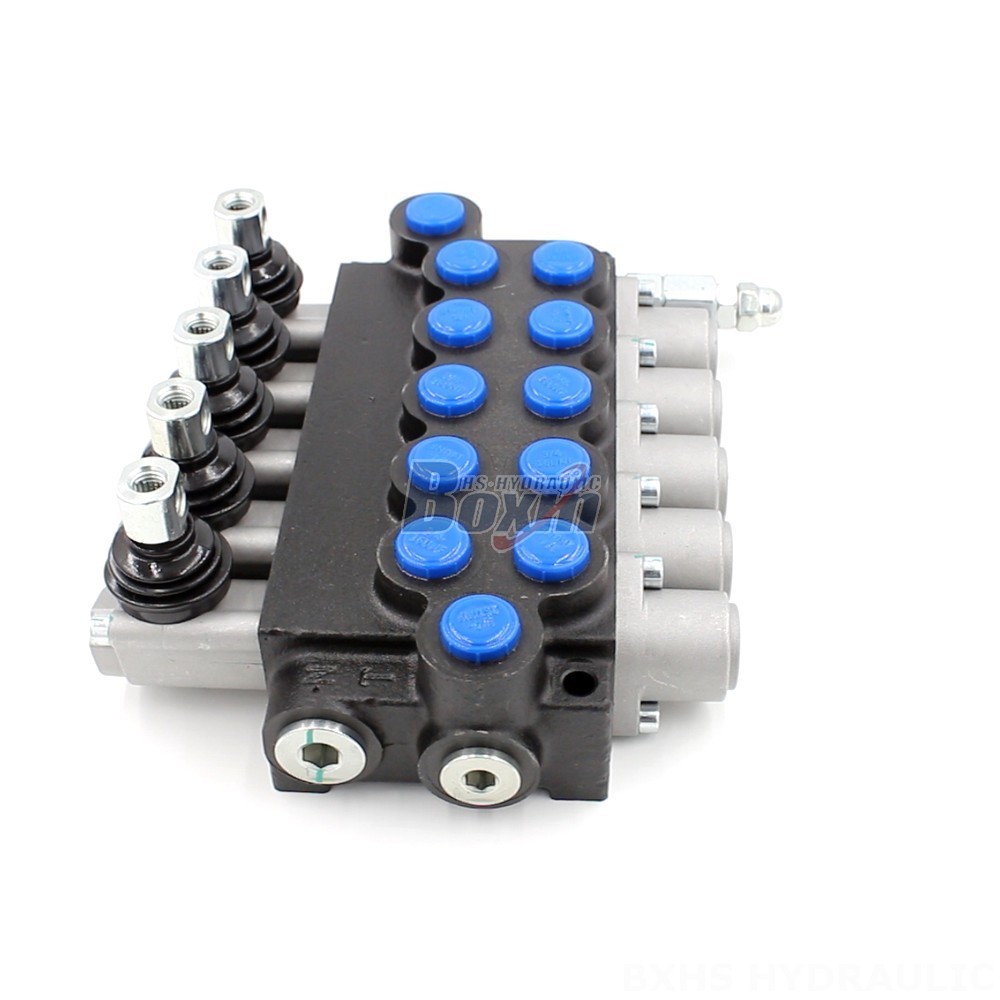

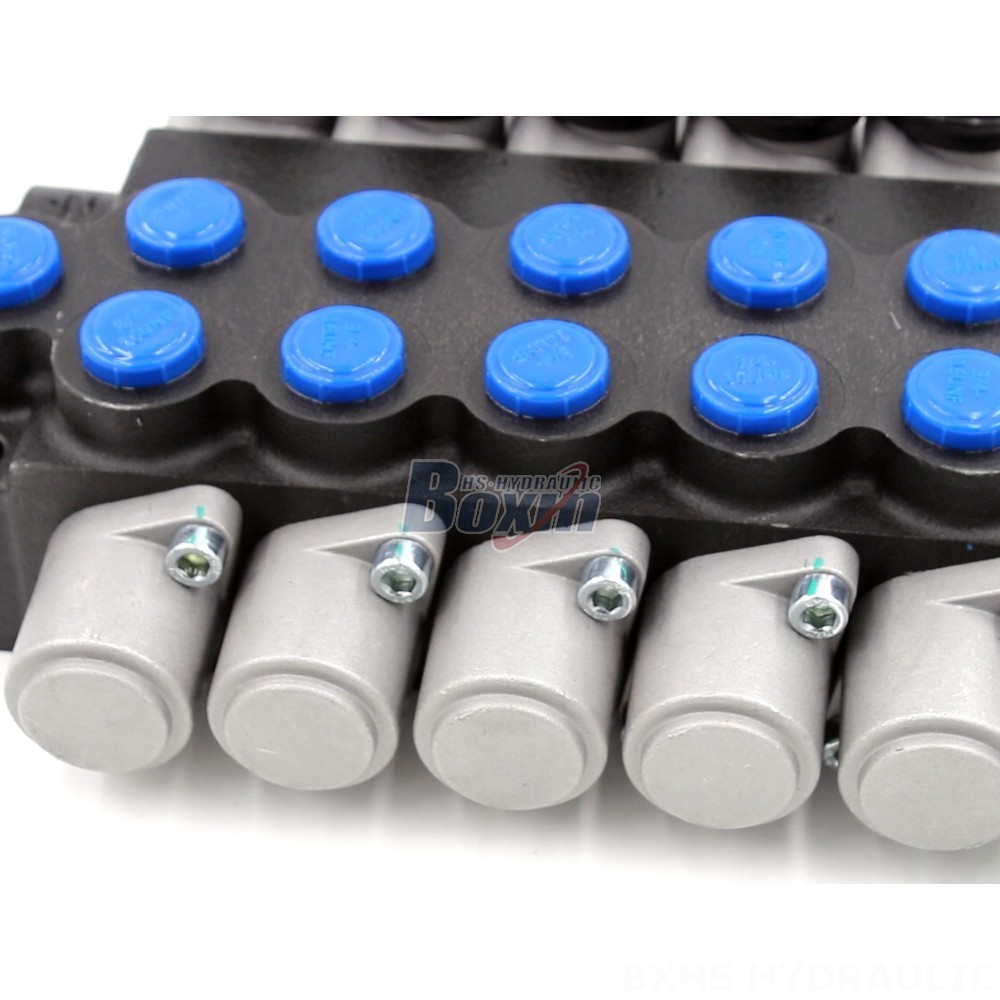

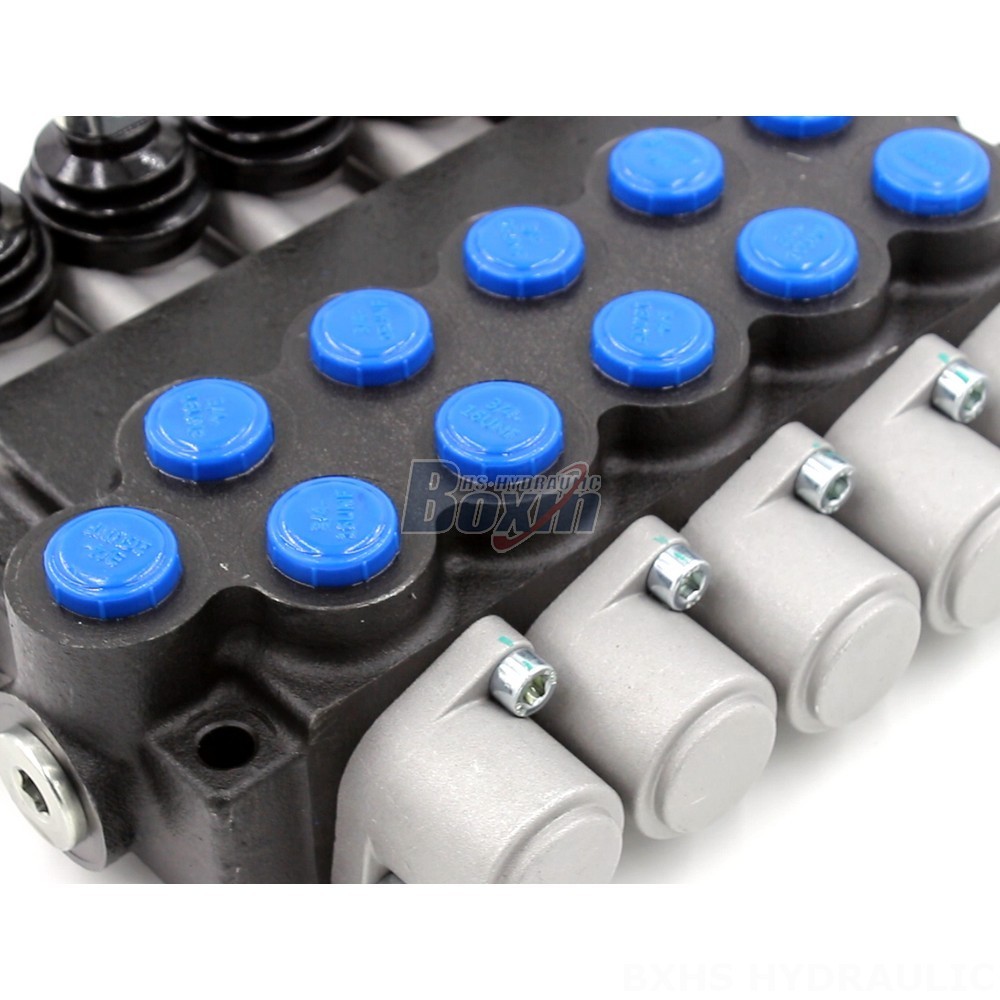

The P40-U78 5-Spool Hydraulic Directional Valve is a high-performance valve designed for use in a wide range of applications. It features a robust monoblock construction, 5-spool design, and a rated flow of 40 L/min. The valve is suitable for use with hydraulic systems operating at pressures up to 250 bar and temperatures from -40°C to +80°C.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-U78 5-Spool Hydraulic Directional Valve is a versatile and reliable valve that is ideal for use in a variety of applications. Its key features include:
- Monoblock construction for strength and durability
- 5-spool design for precise control
- Rated flow of 40 L/min for high performance
- Max pressure of 250 bar for demanding applications
- Operating viscosity range of 15 - 75 mm²/s for compatibility with a wide range of fluids
- Ambient temperature range of -40°C to +80°C for use in harsh environments
- Suitable for use in a variety of applications, including MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES
