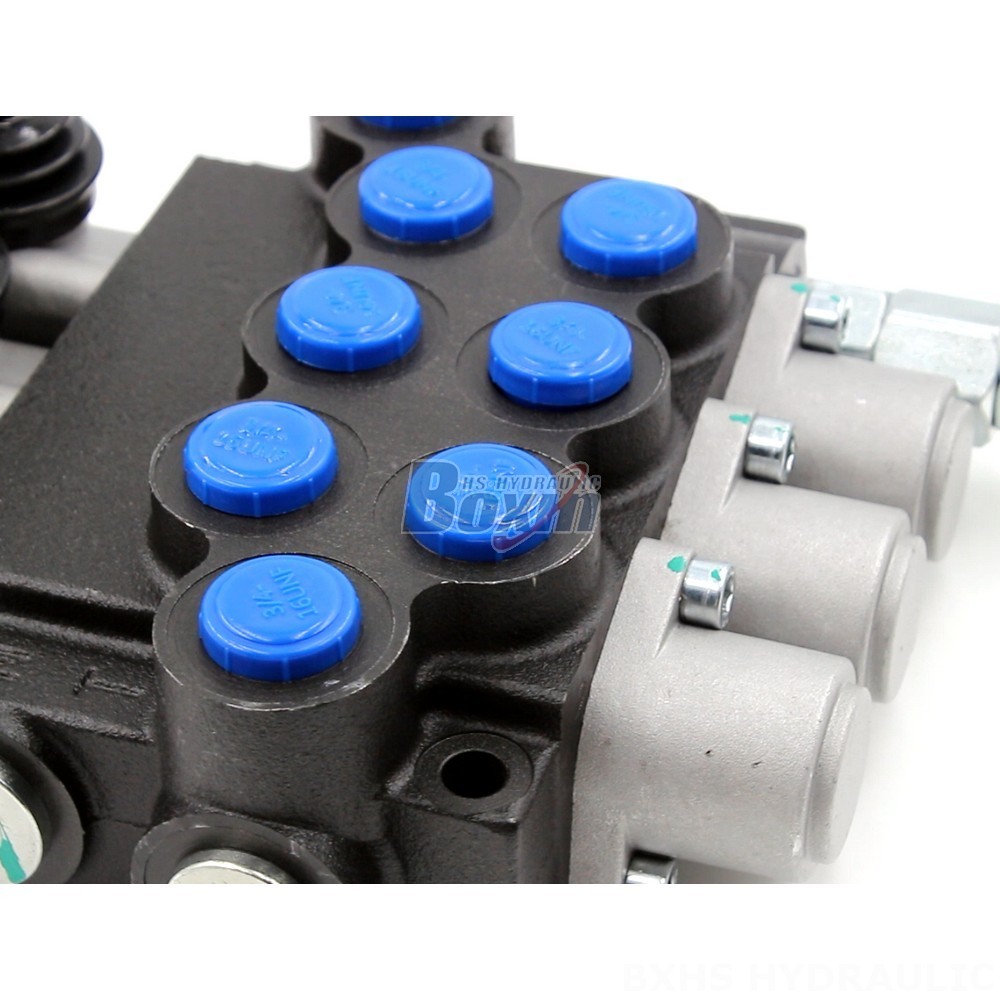

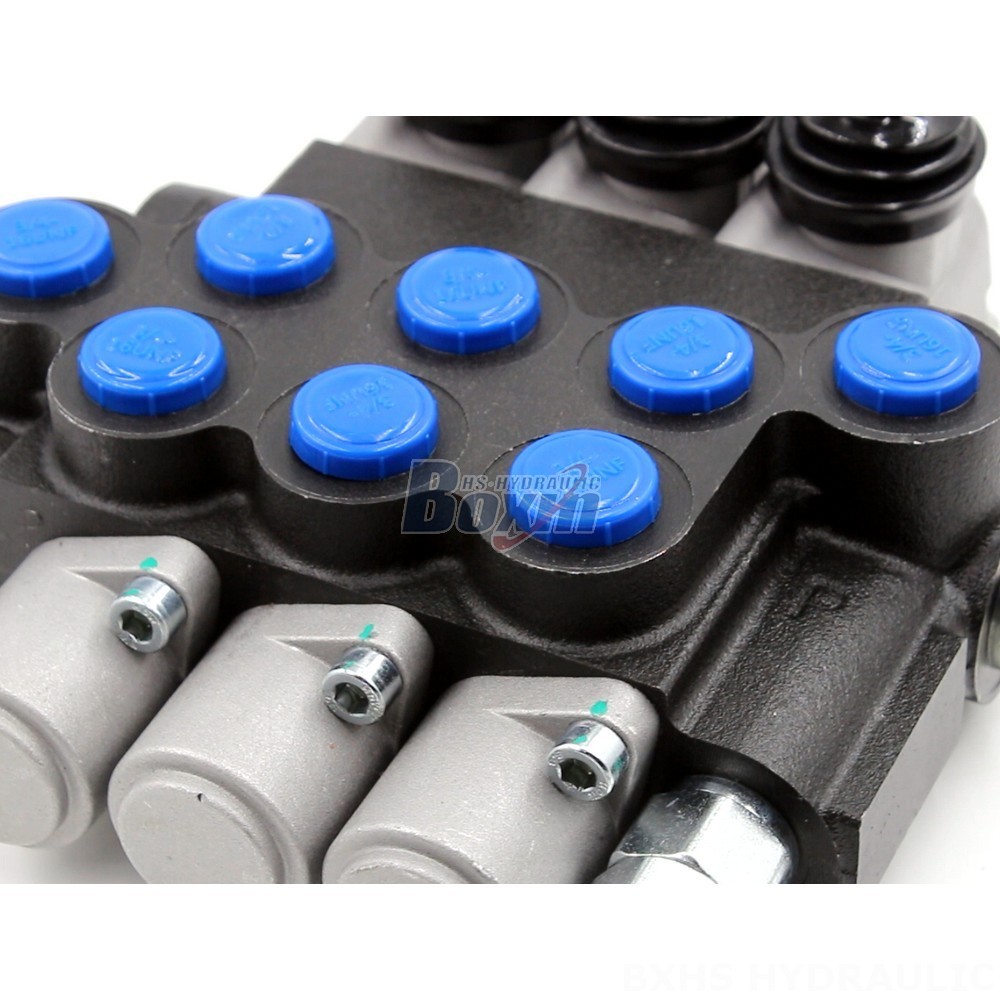

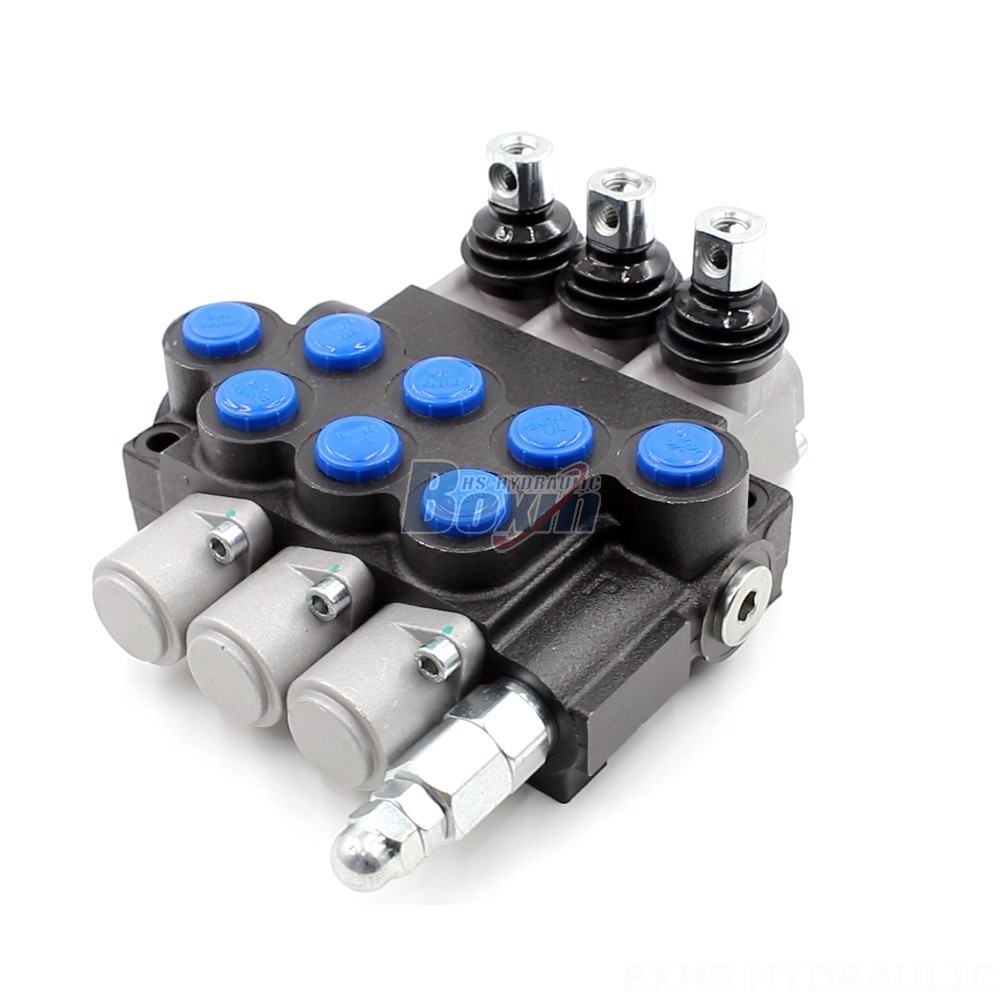

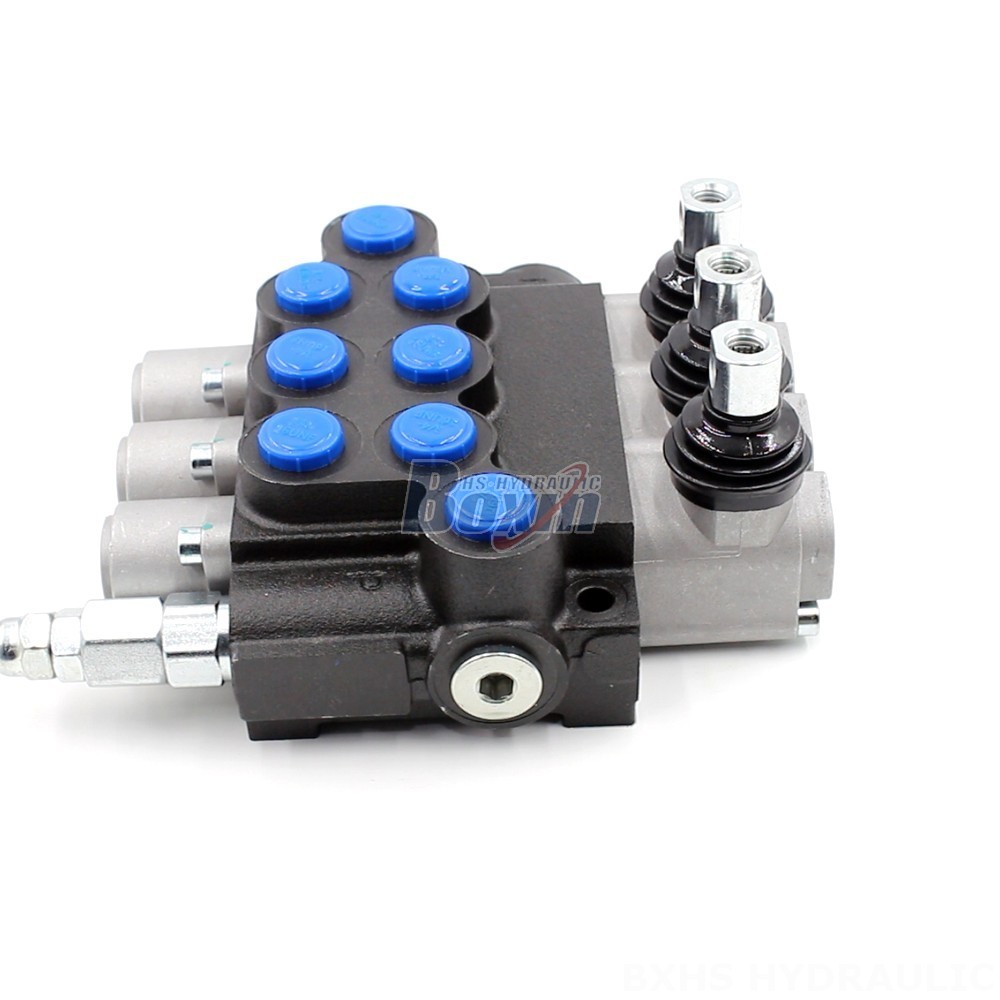

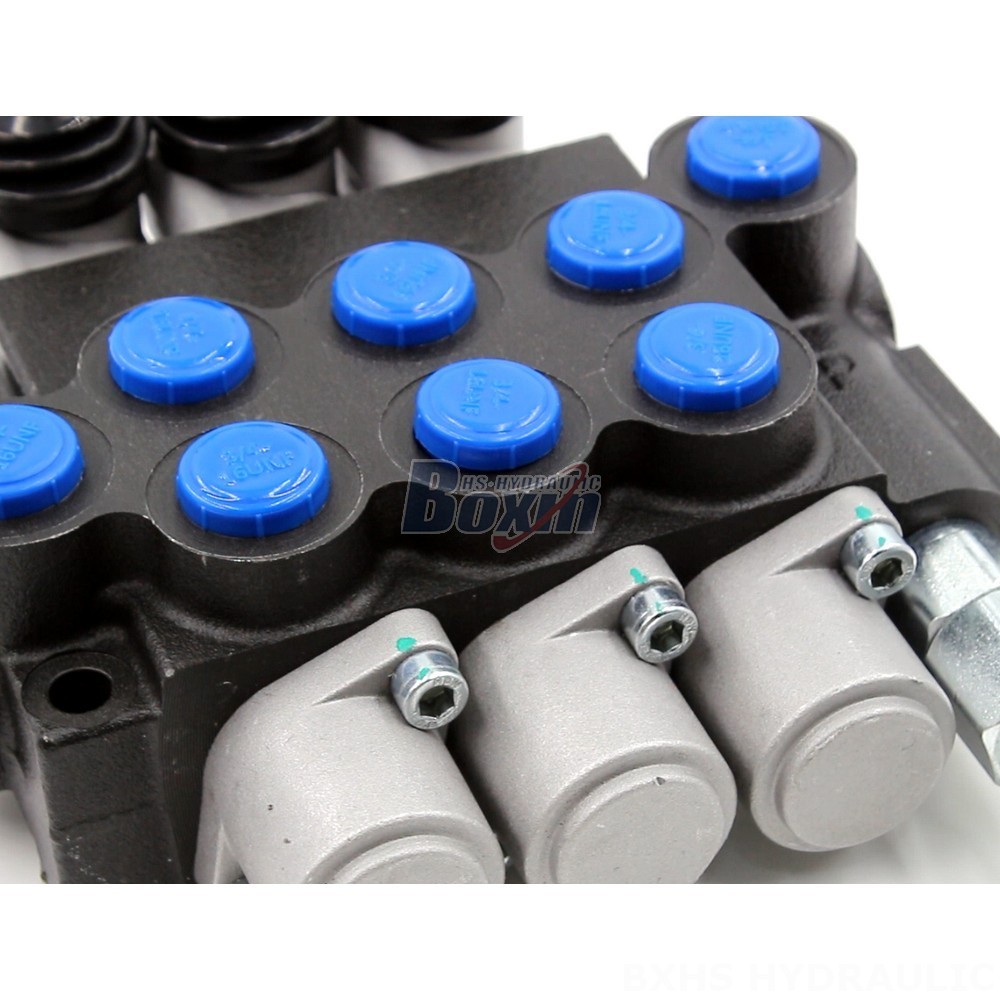

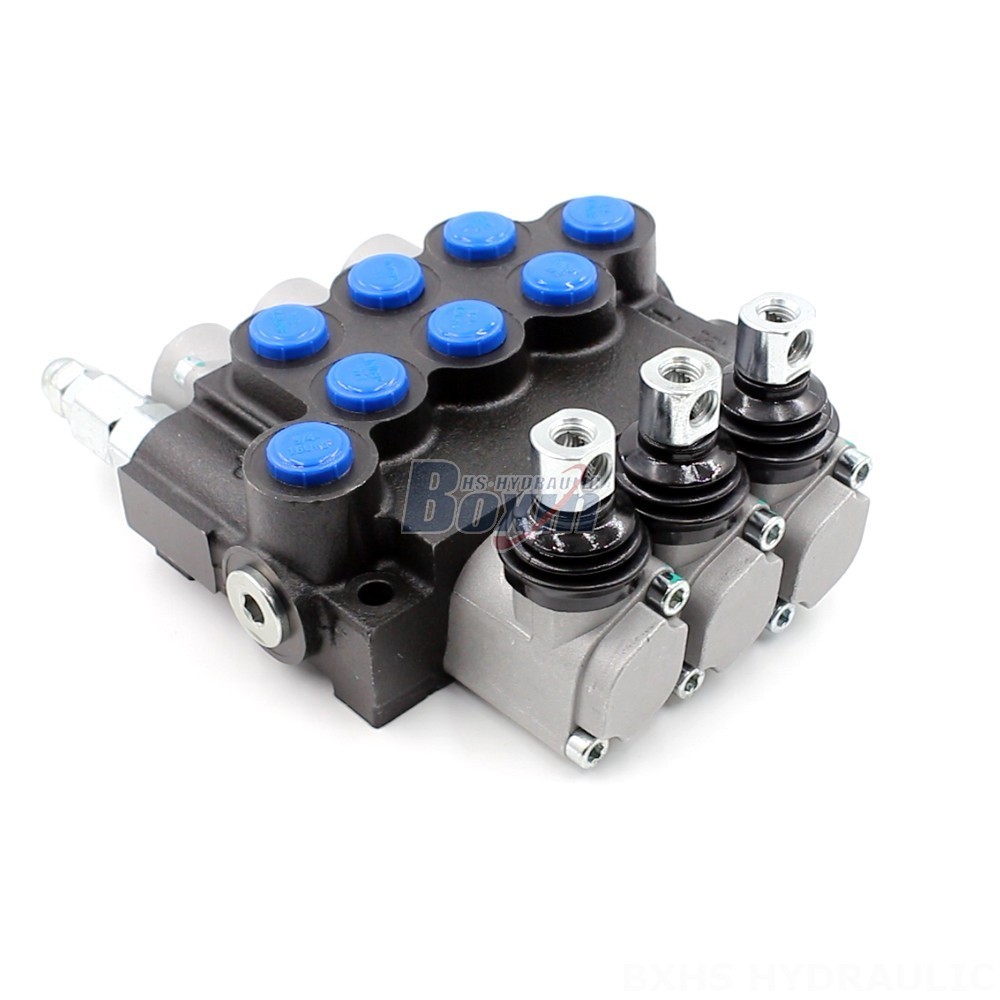

The P40-U78 Directional Control Valve is a high-performance hydraulic component designed for OEM and ODM manufacturing. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), it is suitable for various applications in material handling, construction, agriculture, and industrial vehicles.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**OEM/ODM Manufacturing Capabilities**
We offer comprehensive OEM and ODM manufacturing services, enabling you to customize our valves based on your specific requirements. Our experienced engineers can assist you with design optimization, prototyping, and mass production to meet your unique needs.
**Key Features:**
- 3 Section configuration for versatile control
- Monoblock valve design for compact and durable performance
- Manual control method for precise operation
- Wide operating viscosity range (15 - 75 mm²/s) for compatibility with different hydraulic fluids
- Extended ambient temperature range (-40°C to +80°C) for reliable operation in challenging conditions
**Applications:**
The P40-U78 Directional Control Valve is widely used in a range of applications, including:
- Telehandlers and forklifts
- All-terrain cranes and stackers
- Aerial platforms and motor graders
- Excavators and skid steer loaders
- Wheel loaders and backhoe loaders
- Dumpers and concrete boom pumps
- Paving rollers and rotary drilling equipment
- Crushers and stone cutters
