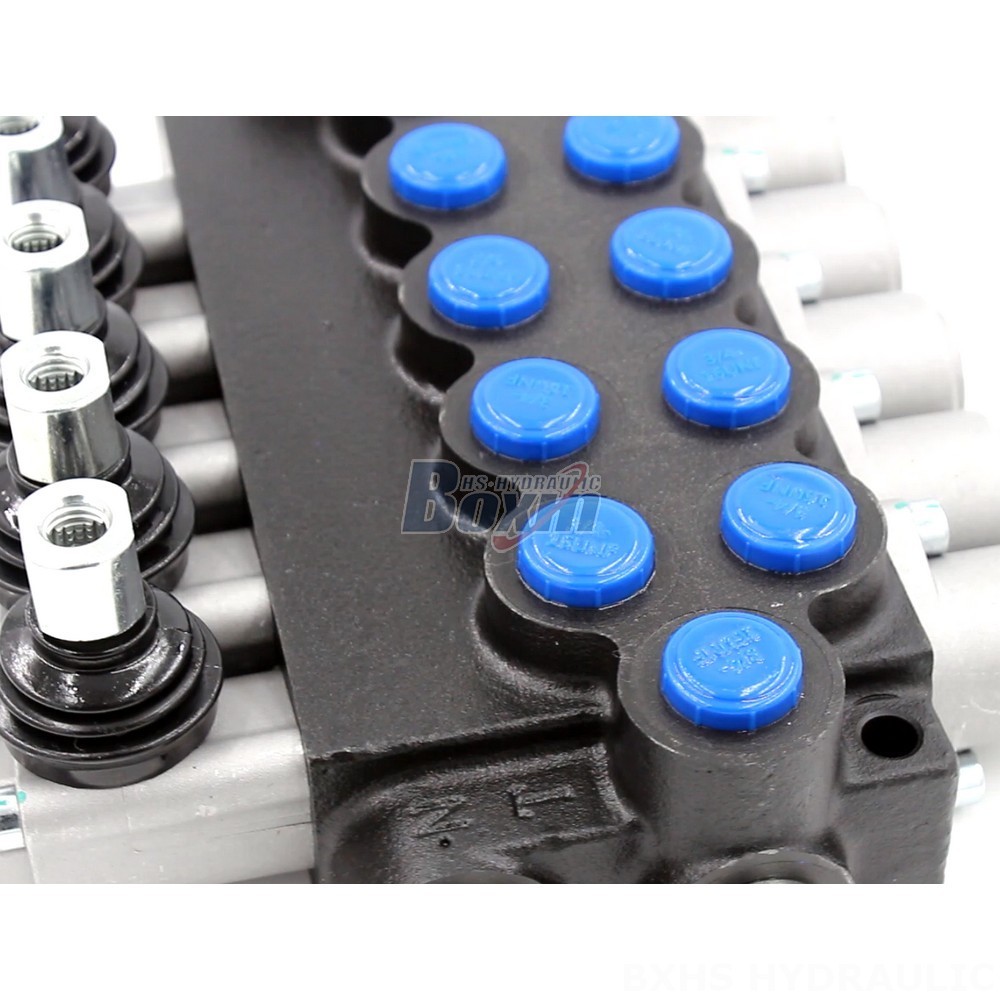

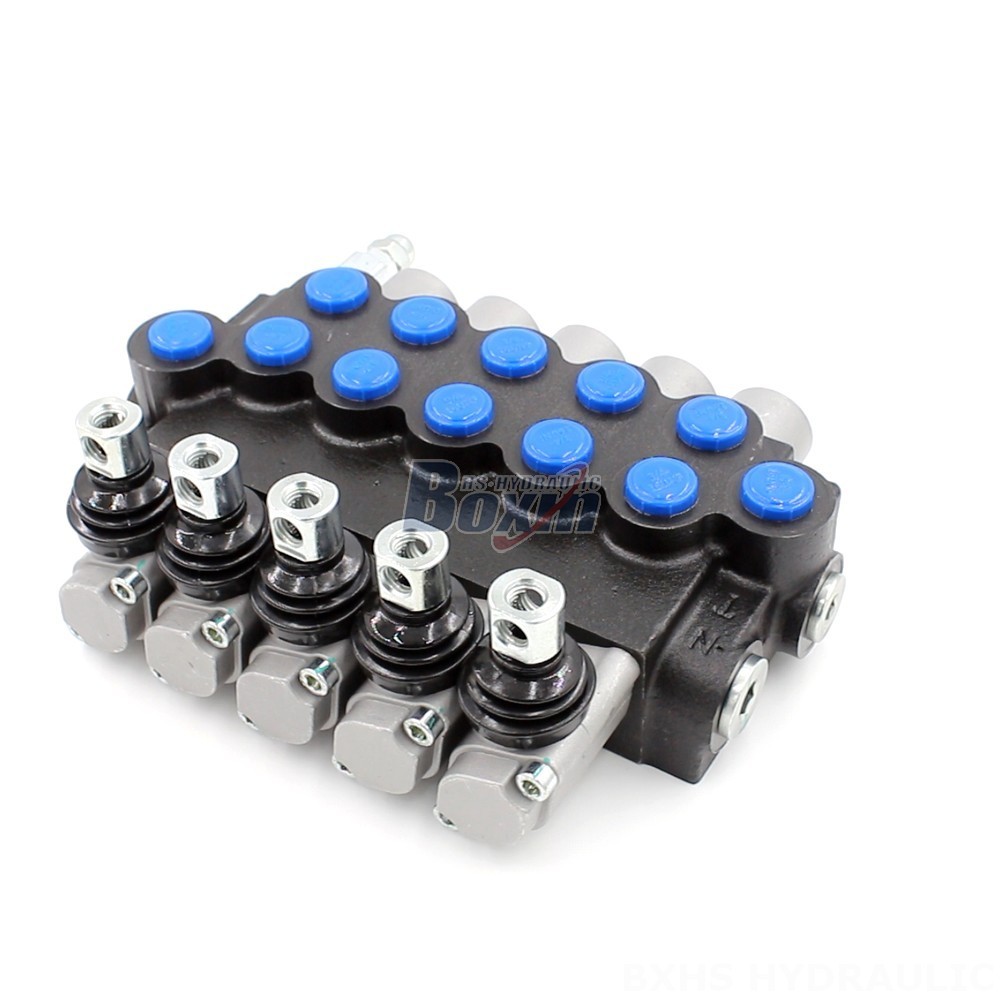

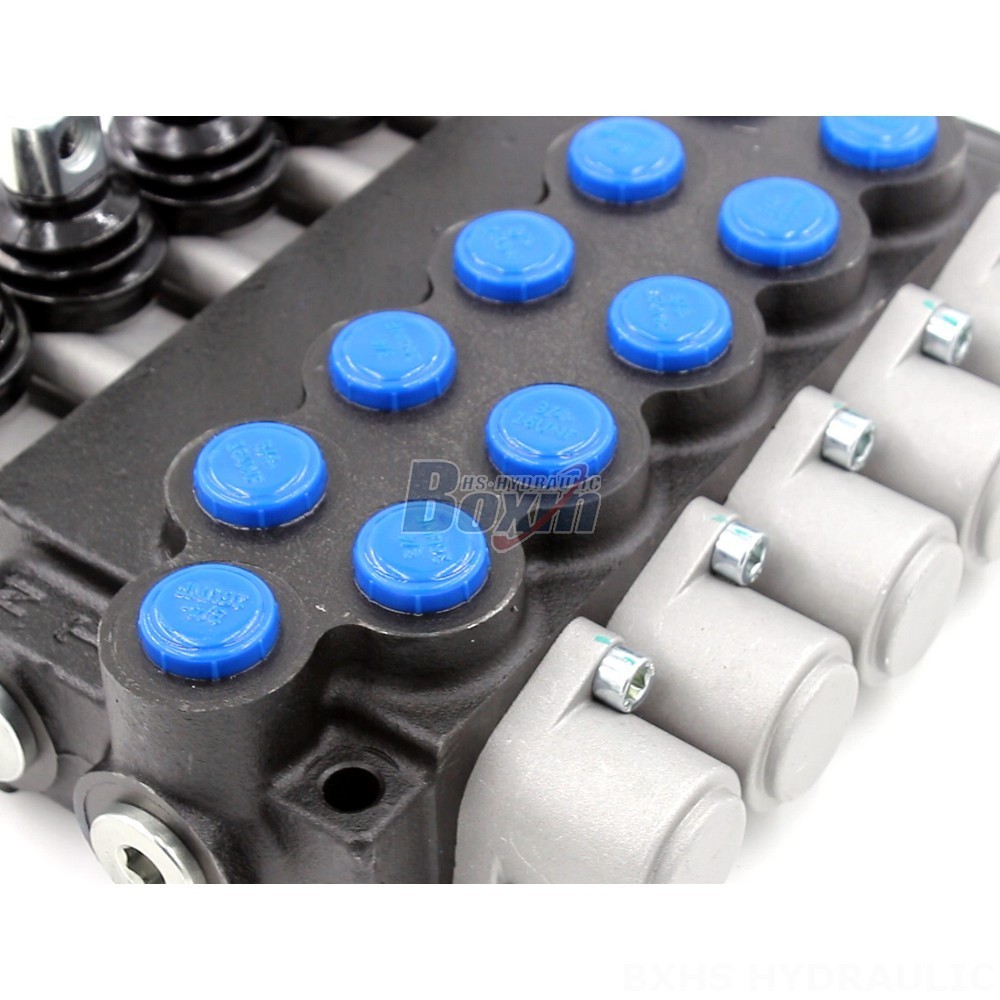

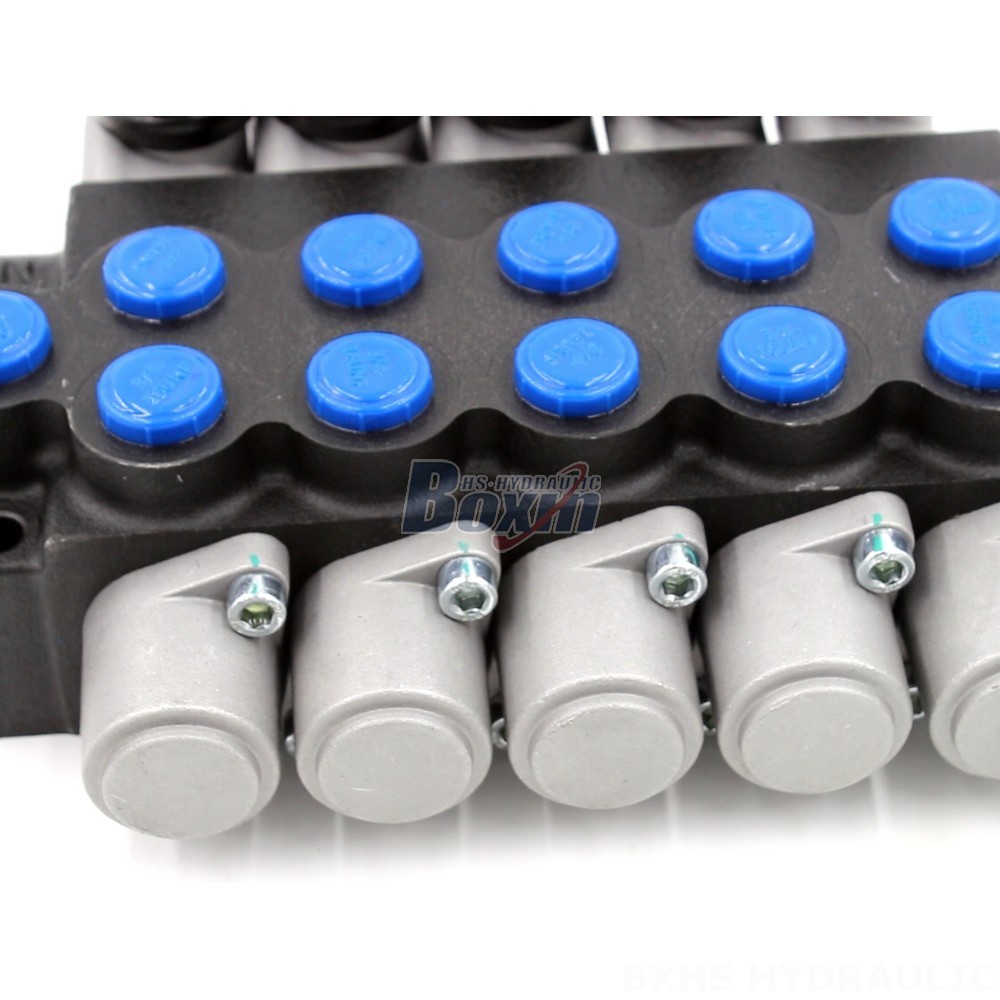

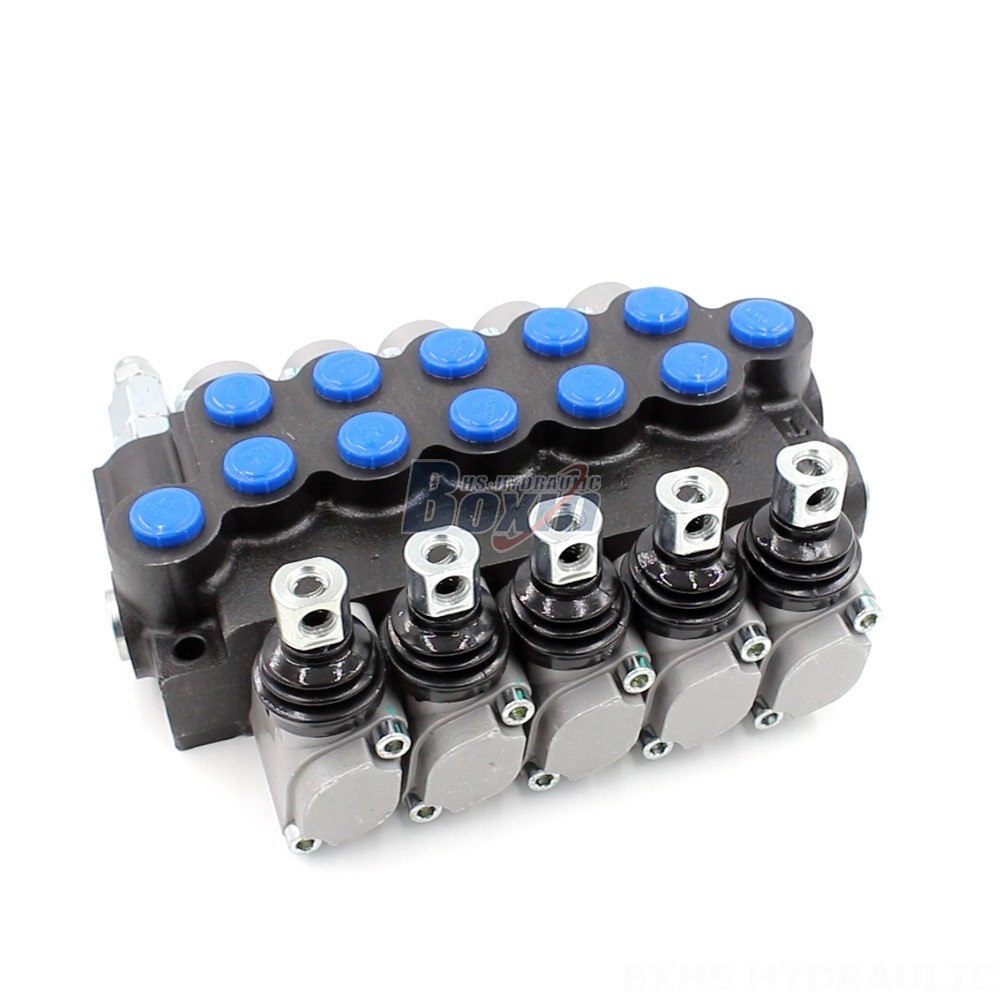

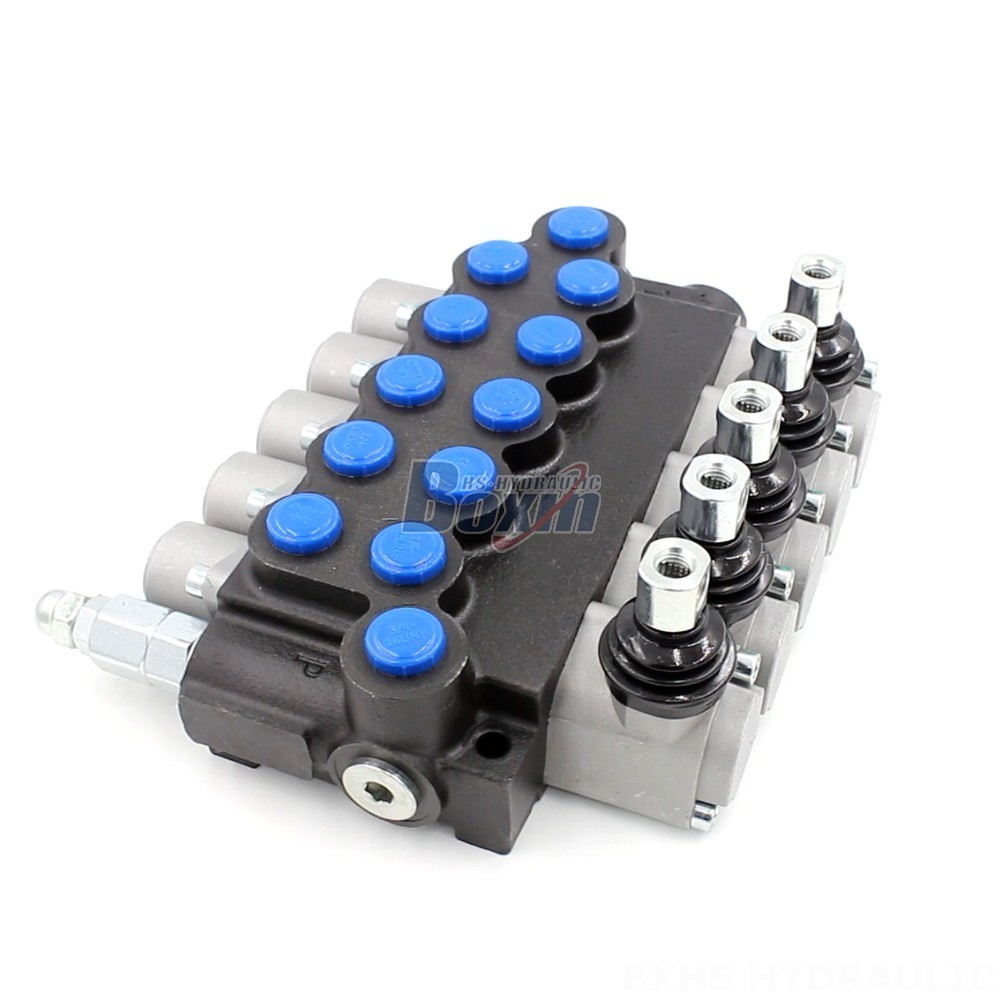

Introducing the P40-U78 Manual 5 Spool Monoblock Directional Valve, engineered to provide exceptional flow control and reliability in demanding hydraulic systems. With a rated flow of 40 L/min and a max pressure of 250 bar, this valve ensures efficient and precise hydraulic operations across various applications.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Key Features:**
- Manual Control for precise and responsive operation
- 5 Spool design for versatile flow management
- Monoblock construction for compact integration and durability
- Rated Flow: 40 L/min (10.5 US gpm)
- Max Pressure: 250 bar (3600 psi)
- Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
**Applications:**
This P40 Series valve finds applications in:
- Material Handling Equipment
- Construction and Earth Moving Machinery
- Agricultural Vehicles
- Industrial Vehicles
**Applicable Models:**
Specifically designed for use in:
- Telehandlers
- Forklifts
- All Terrain Cranes
- Stackers
- Aerial Platforms
- Motor Graders
- Midi-Excavators
- Mini-Excavators
- Skid Steer Loaders
- Compact Wheel Loaders
