Produksi & Pengiriman
Waktu Produksi 15-30 Hari

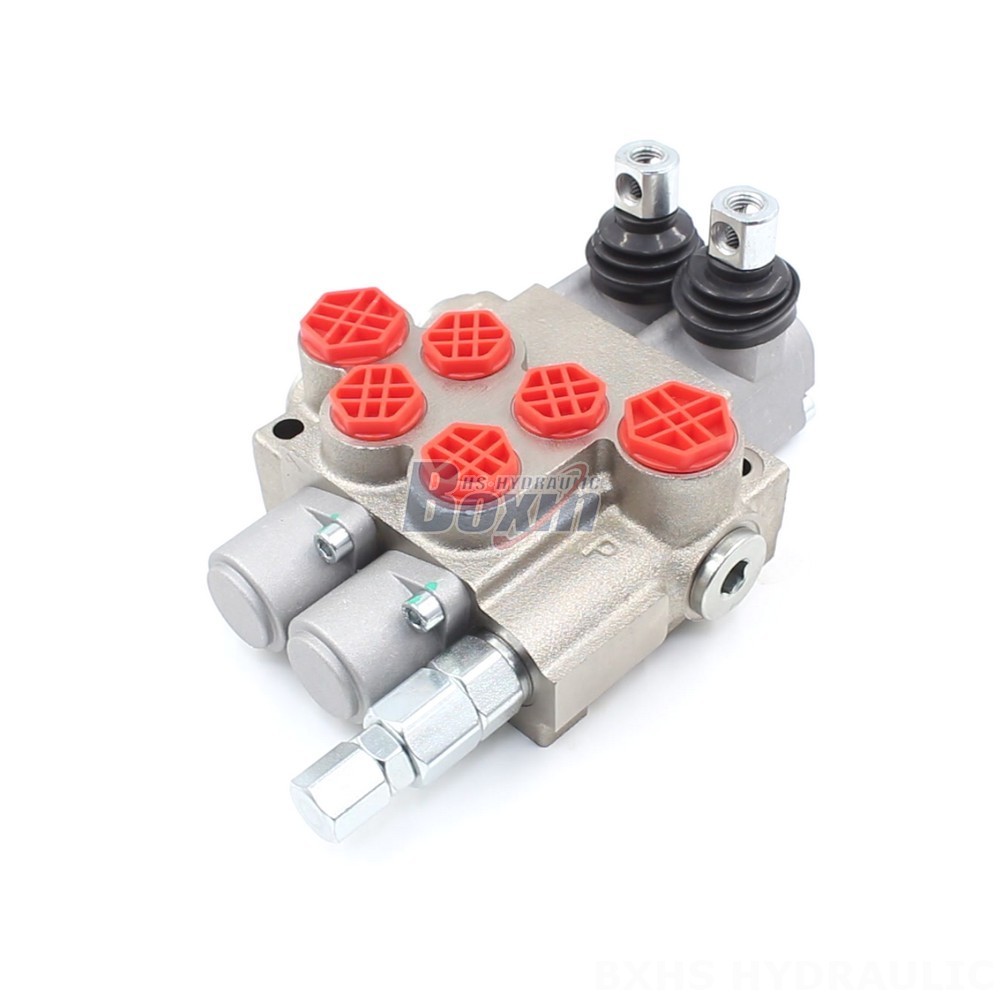

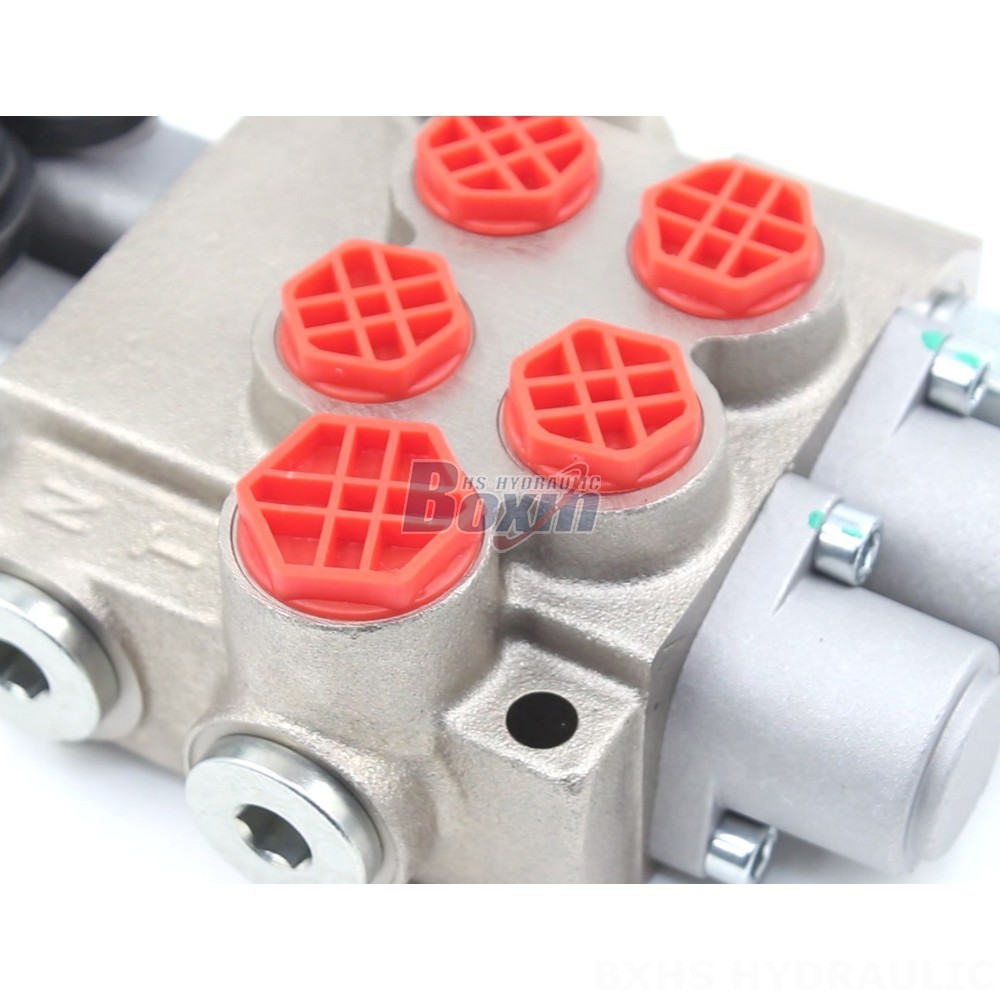

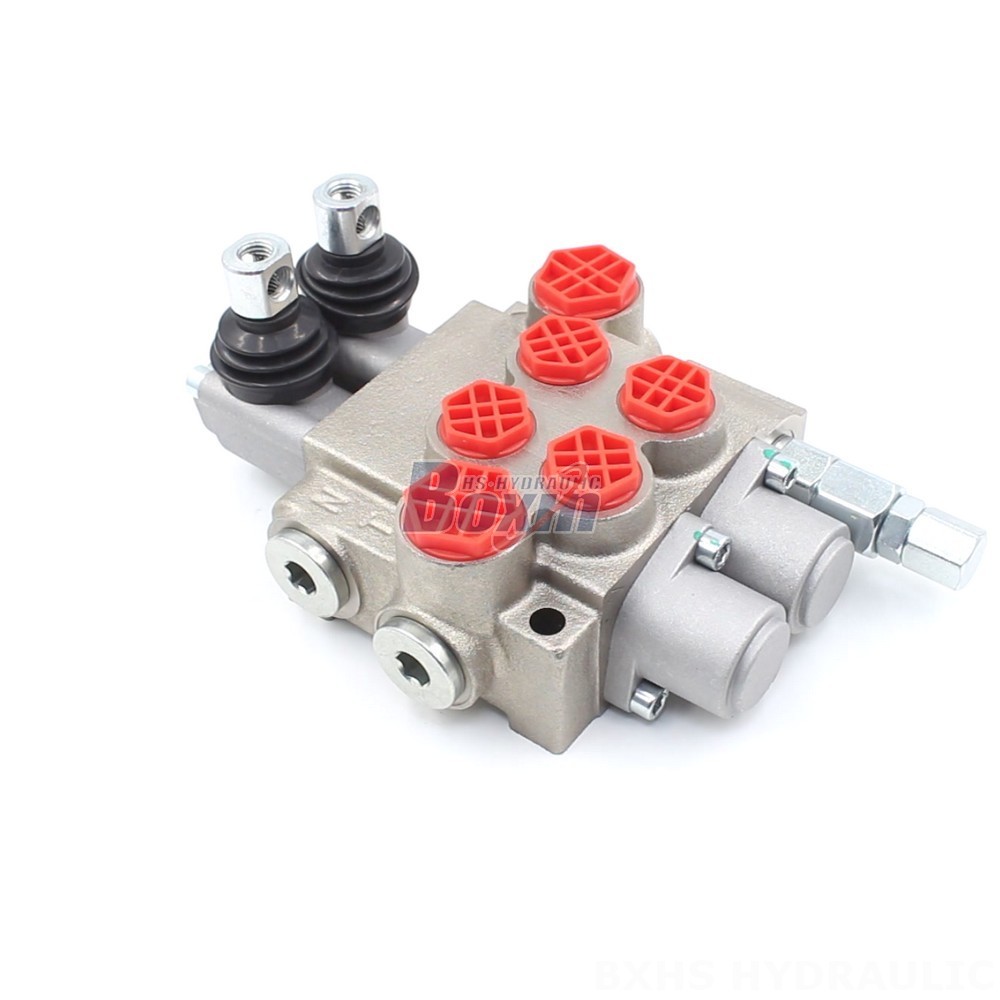

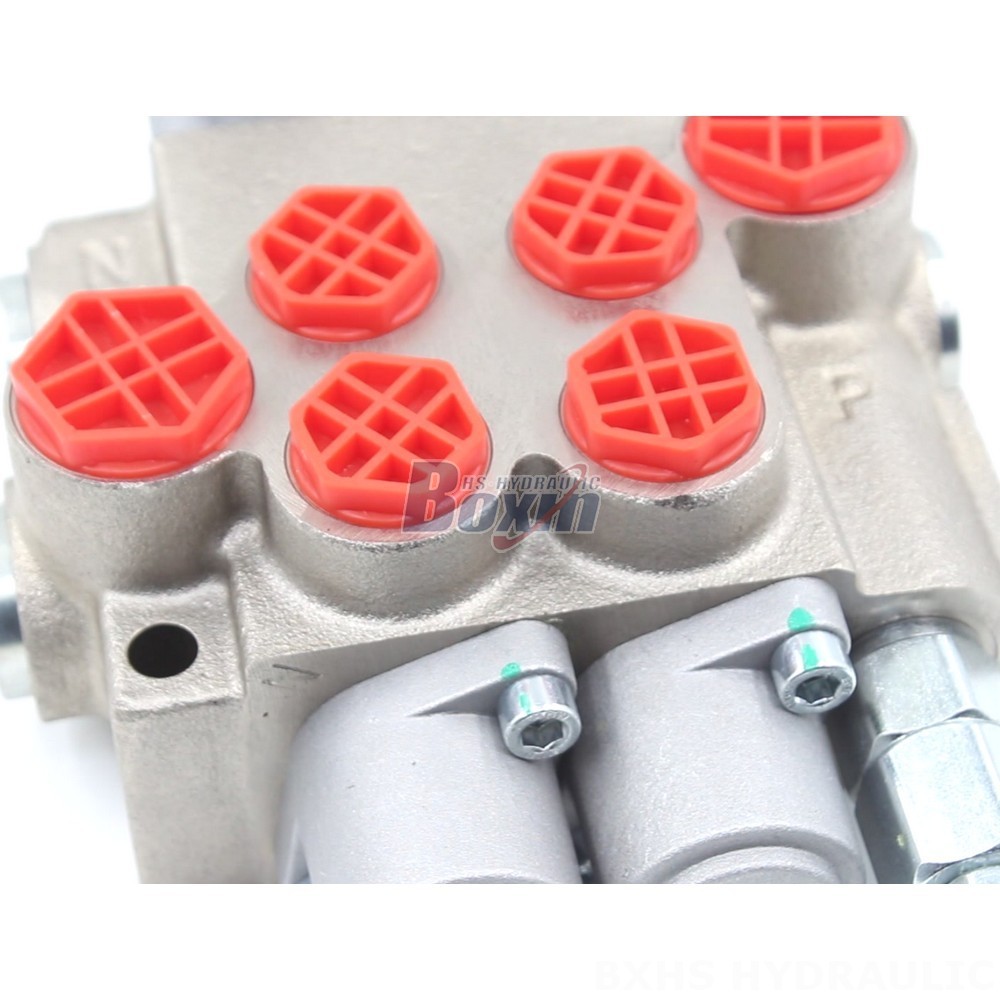

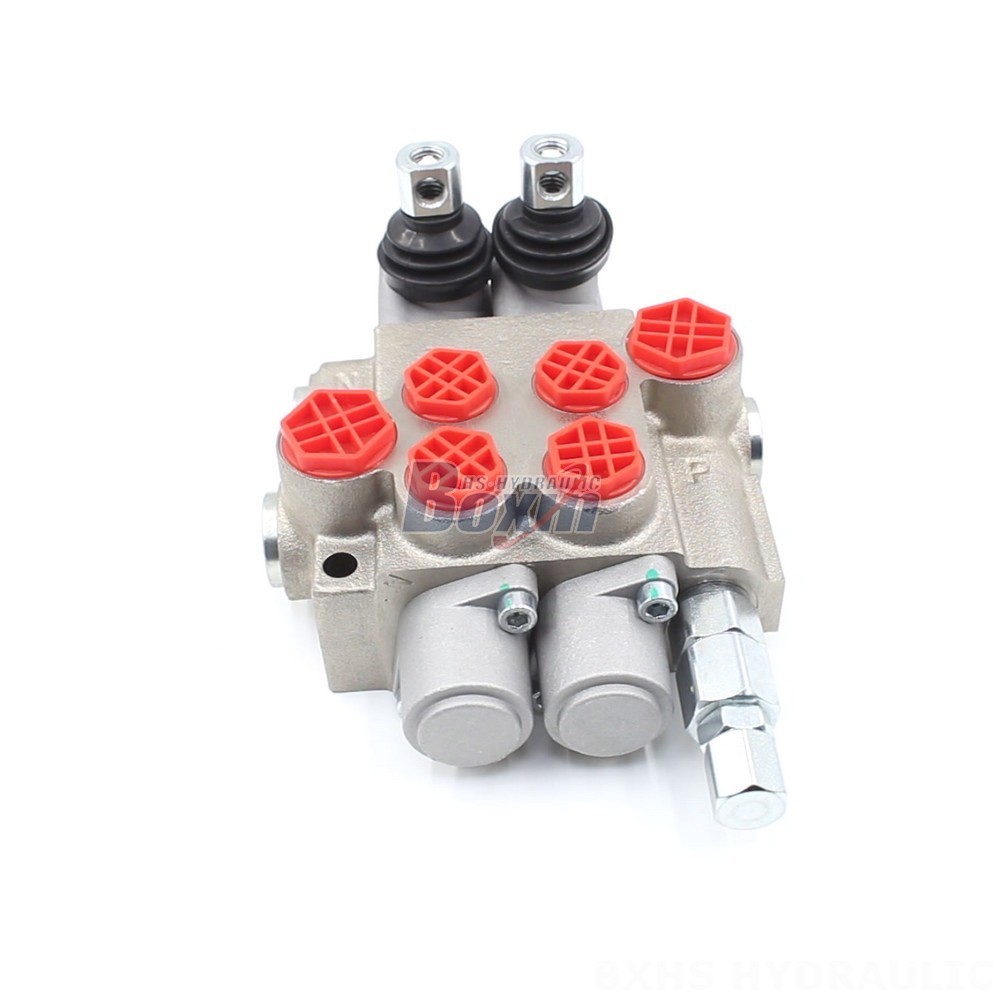

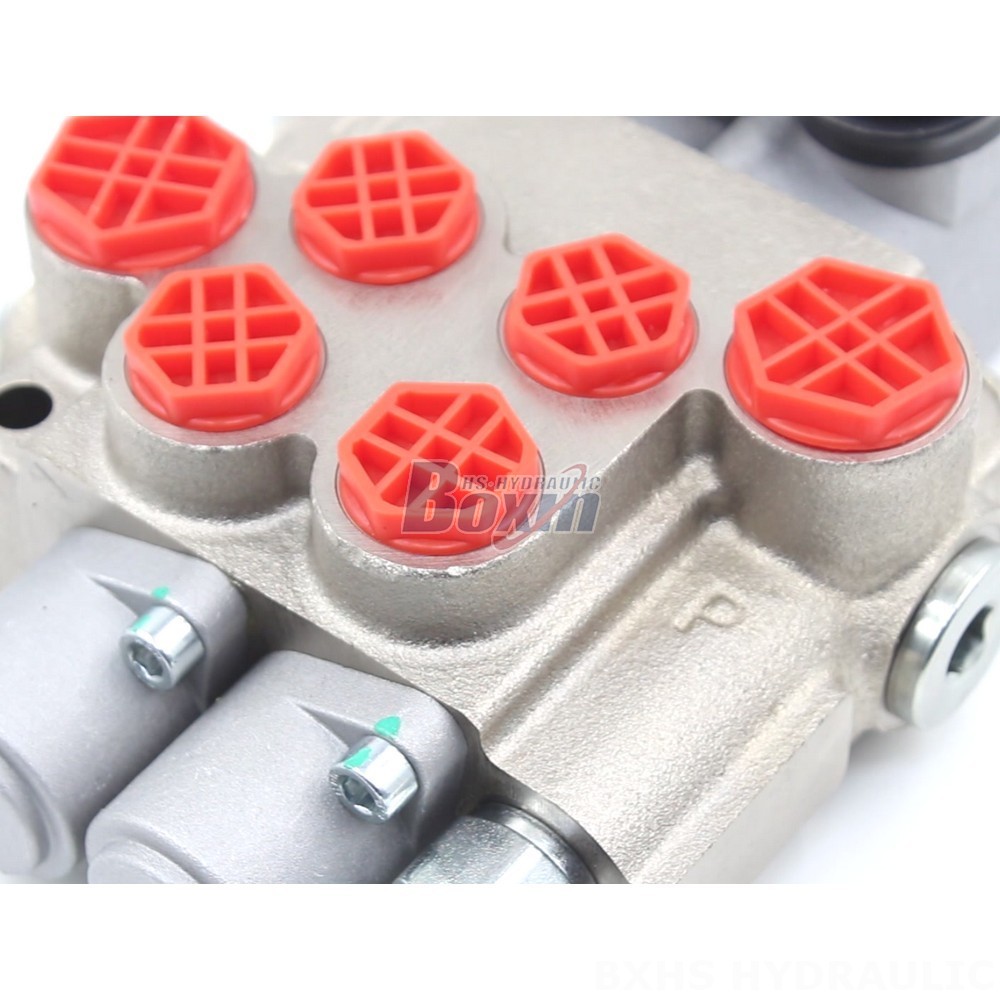

The P40-XNHJ series hydraulic valve is a robust, high-performance 2-section monoblock valve rated at 40 L/min and 250 bar, ideal for various applications in material handling, construction, and agriculture. We are a manufacturer seeking global distributors, wholesalers, and trading partners.
| Seri P40-XNHJ Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
We are a global manufacturer of high-quality hydraulic valves, specializing in the P40-XNHJ series. This manual, 2-section monoblock valve boasts a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). It operates within a viscosity range of 15-75 mm²/s (15-75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve features a 2-spool design and is perfect for a wide range of applications including material handling, construction, and agriculture equipment such as forklifts, telehandlers, skid steer loaders, tractors, mini-excavators, backhoes, balers, harvesters, and sprayers.
We offer a full range of services including manufacturing, OEM, private labeling, customization, and wholesale distribution. We are actively seeking reliable distributors, wholesalers, and trading partners worldwide to expand our market reach. As a factory direct supplier, we offer competitive pricing and high-quality products. Partner with us to provide your customers with superior hydraulic valve solutions. Contact us today to discuss collaboration opportunities and explore the potential of a mutually beneficial partnership. Benefit from our factory direct wholesale pricing and exceptional product quality. We are committed to providing excellent service and support to all of our partners.
