Produksi & Pengiriman
Waktu Produksi 15-30 Hari

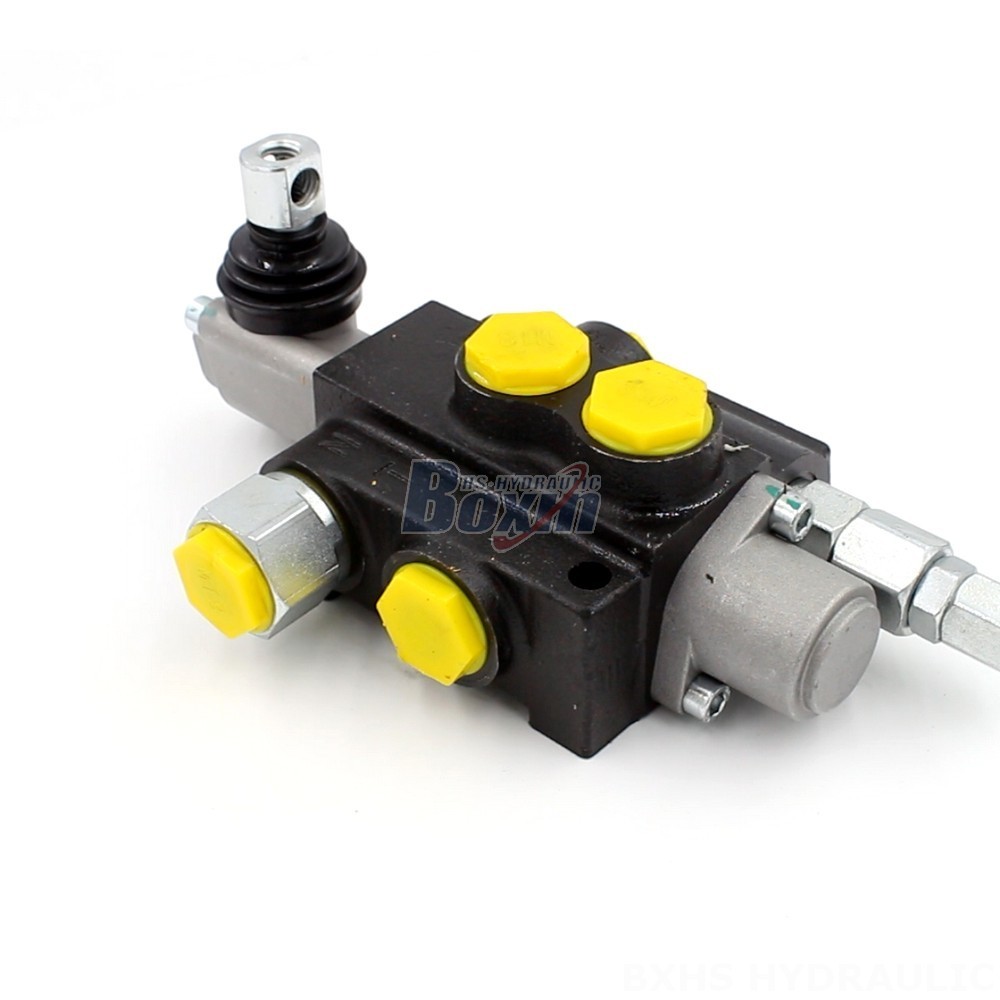

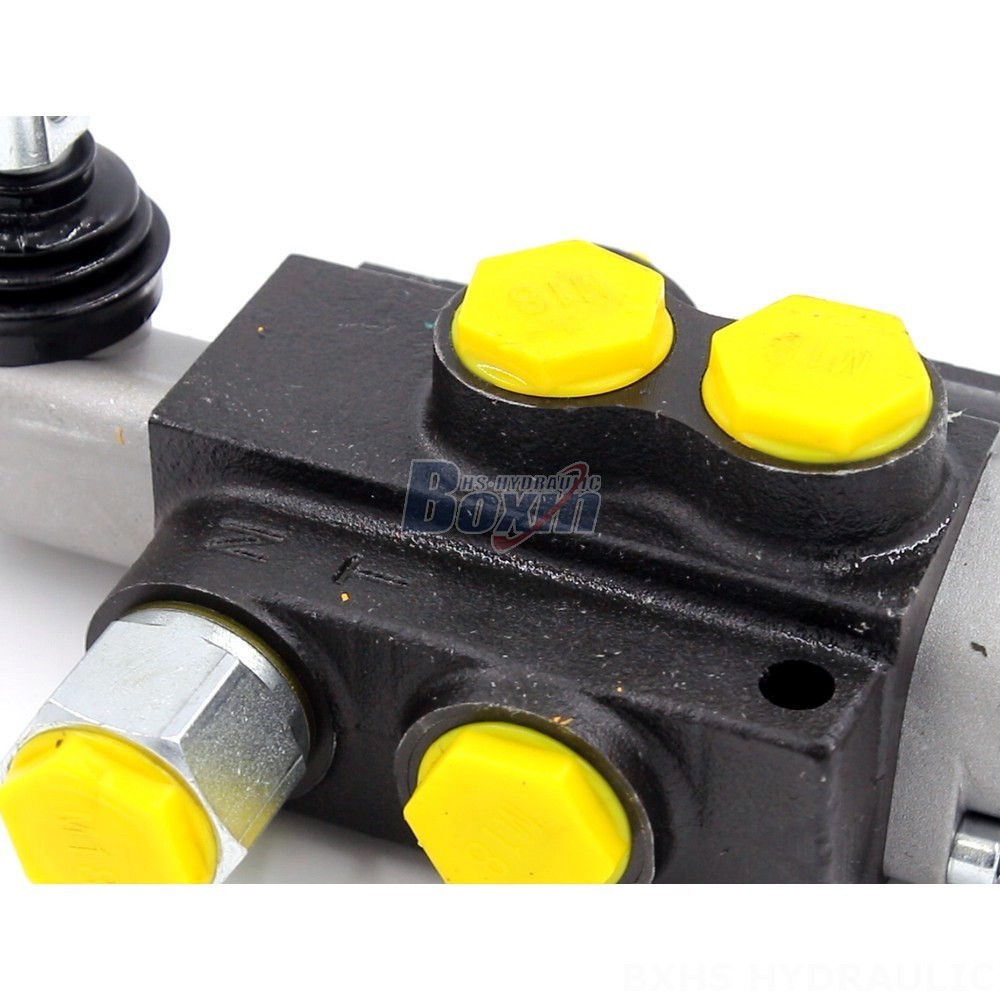

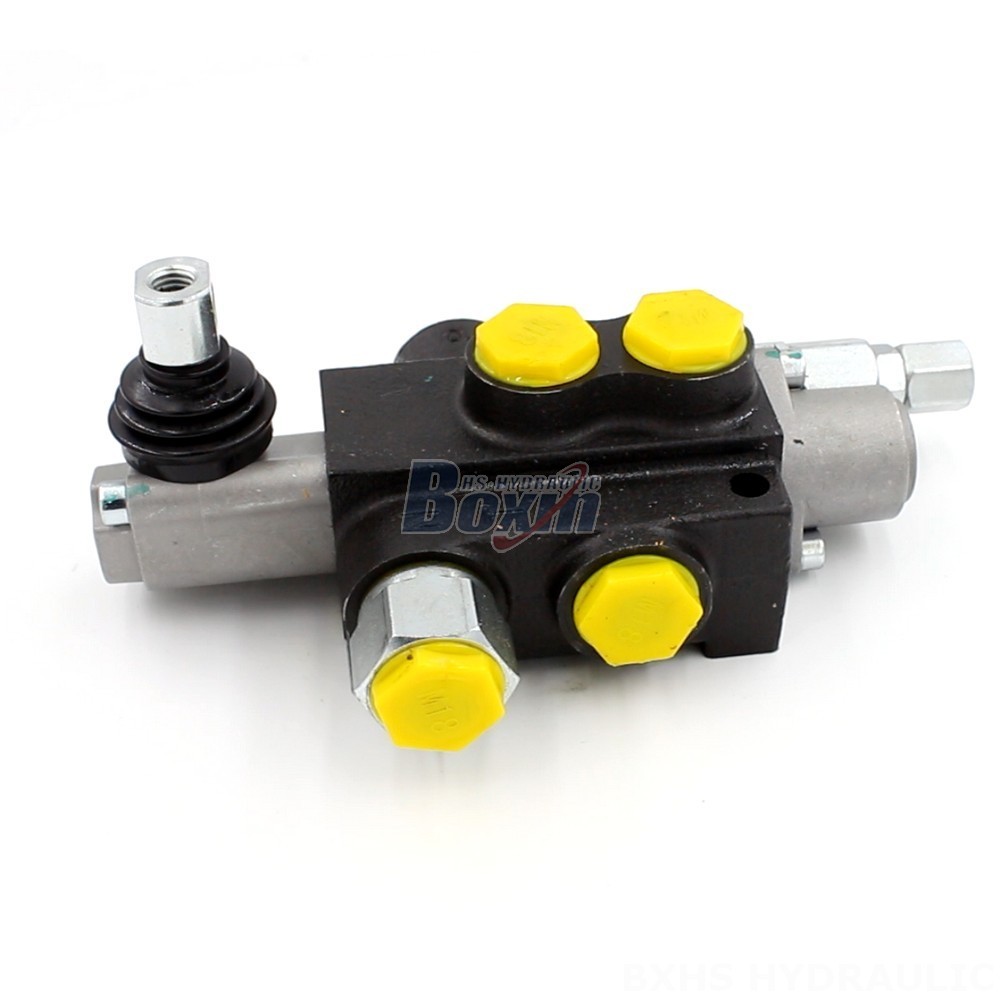

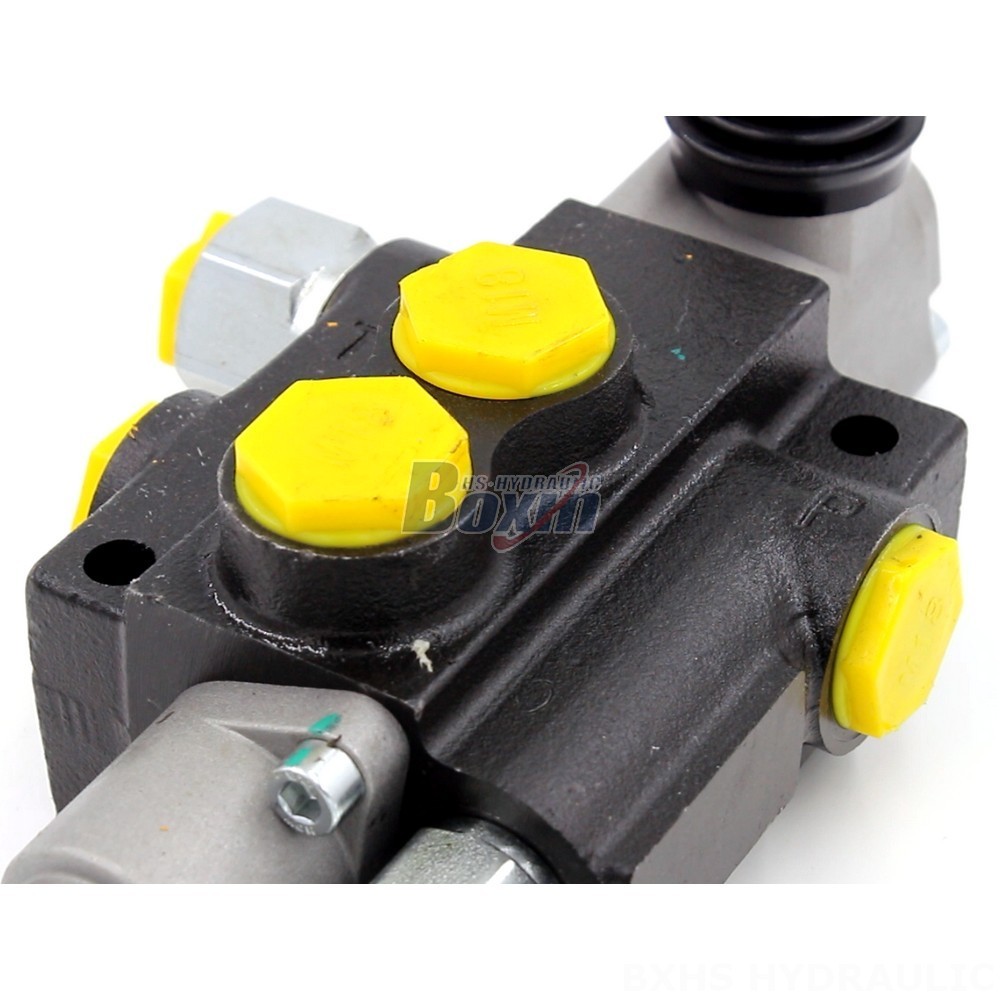

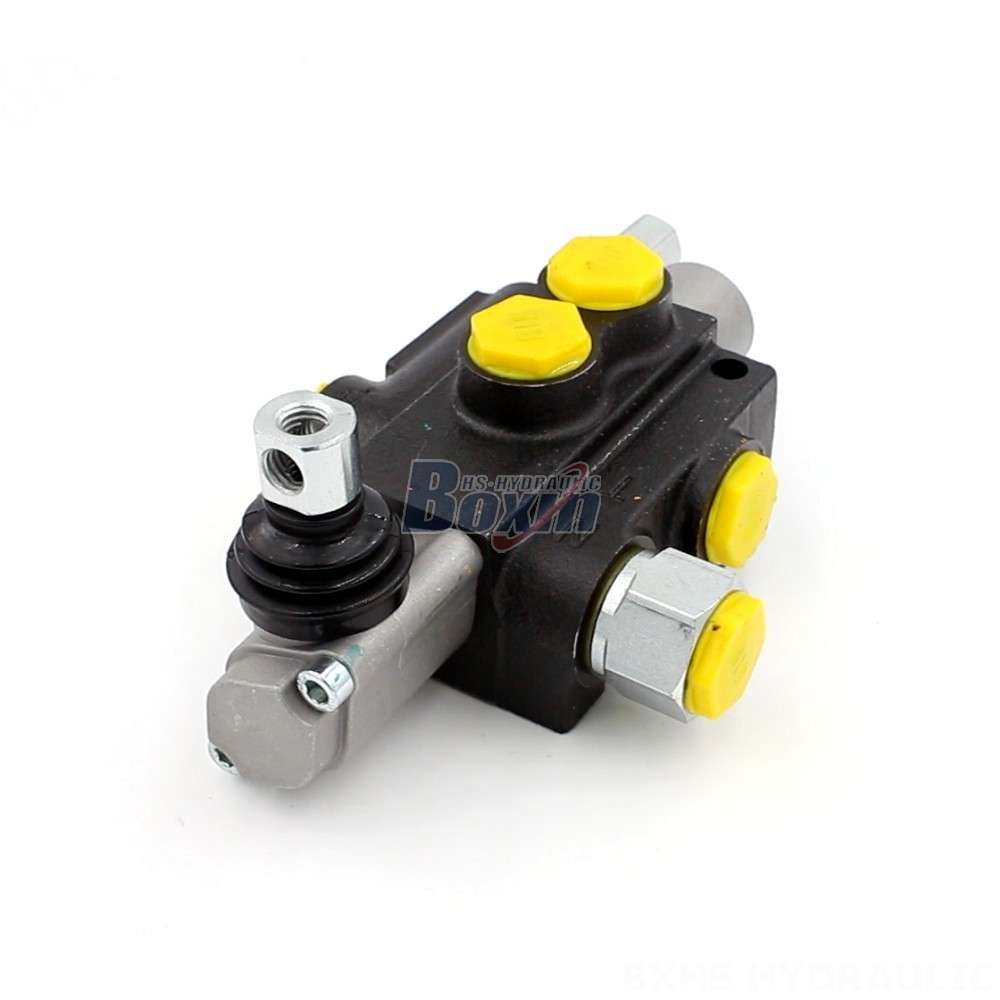

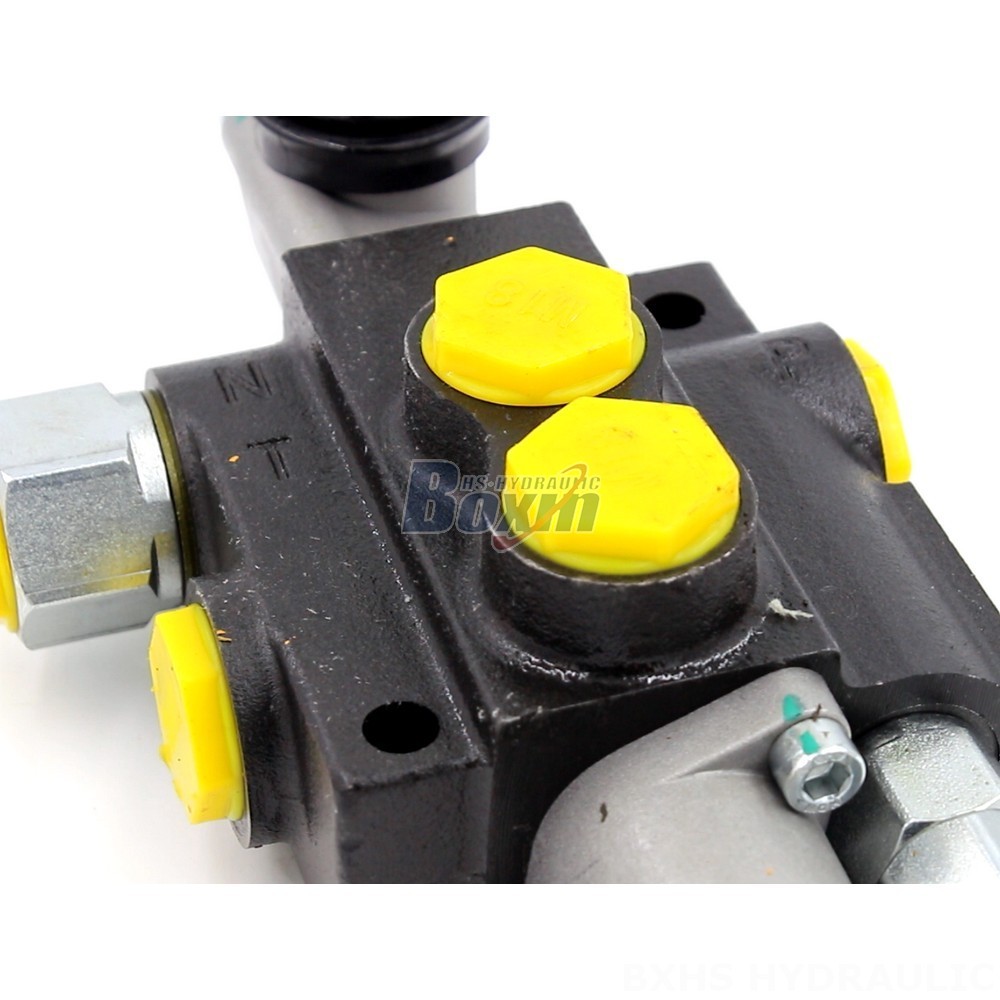

The P40J Hydraulic Directional Valve is a remote control, monoblock valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. It features a compact design, high flow rate, and robust construction, making it an ideal choice for various mobile equipment.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40J Hydraulic Directional Valve is a high-performance, remote control valve offering exceptional reliability and durability. This monoblock valve is specifically engineered for demanding applications in construction, material handling, agriculture, and industrial vehicles. Featuring a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure rating of 250 bar (3600 psi), the P40J valve provides ample power for a wide range of hydraulic systems. Its compact design and robust construction ensure long-term performance in challenging environments. The P40J valve is compatible with various mobile equipment including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. It's a versatile solution for various hydraulic system configurations and applications.
