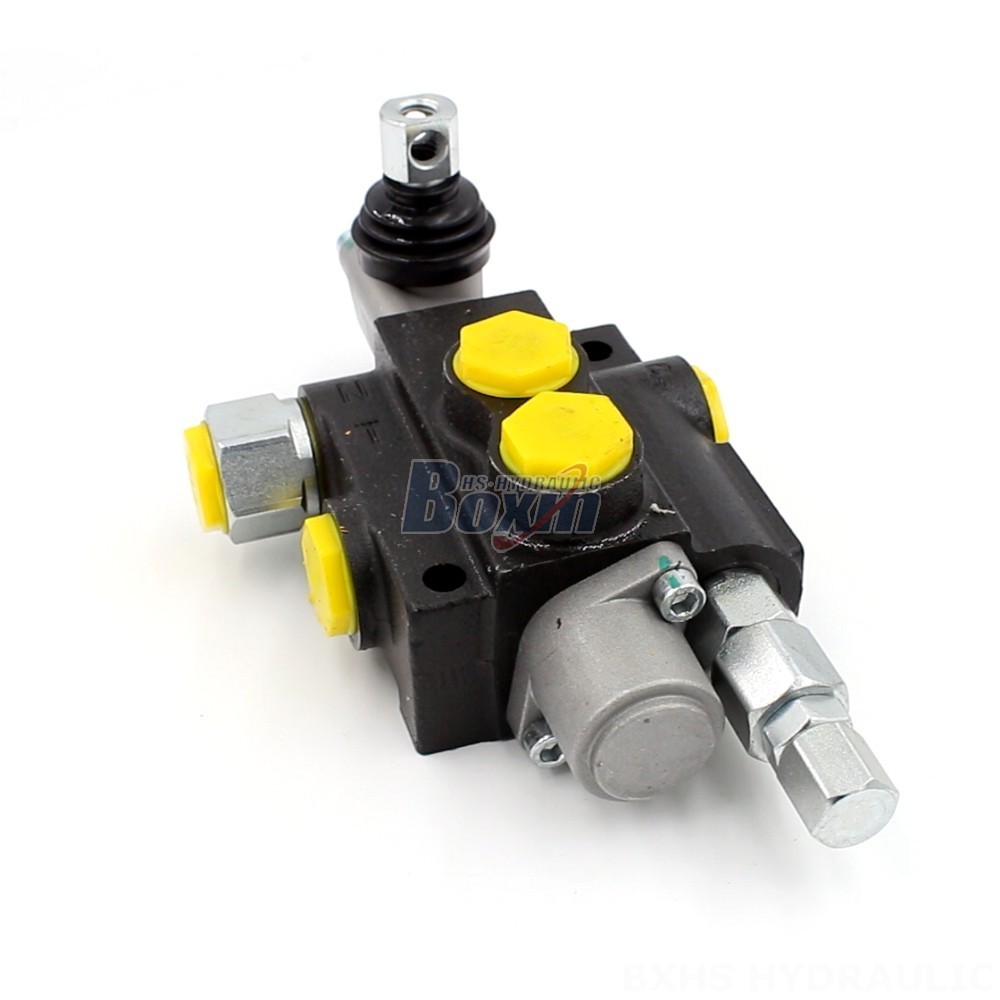

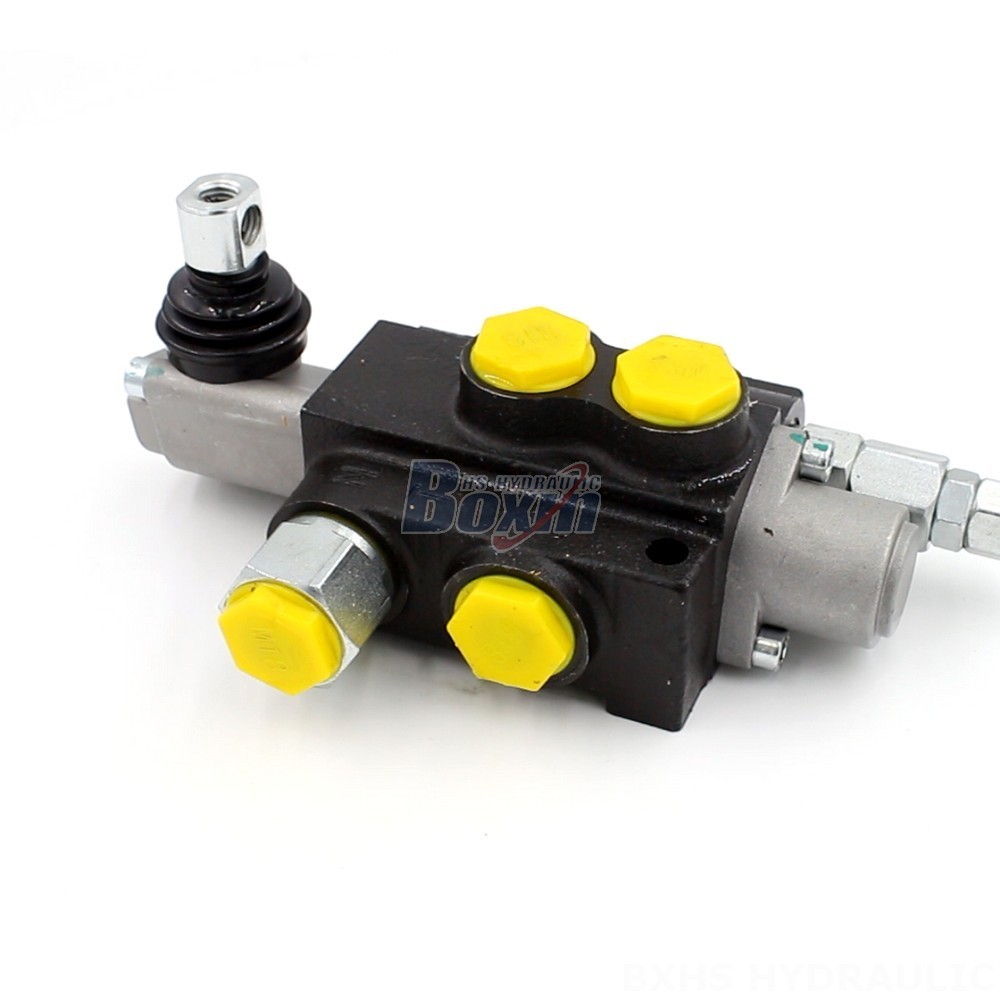

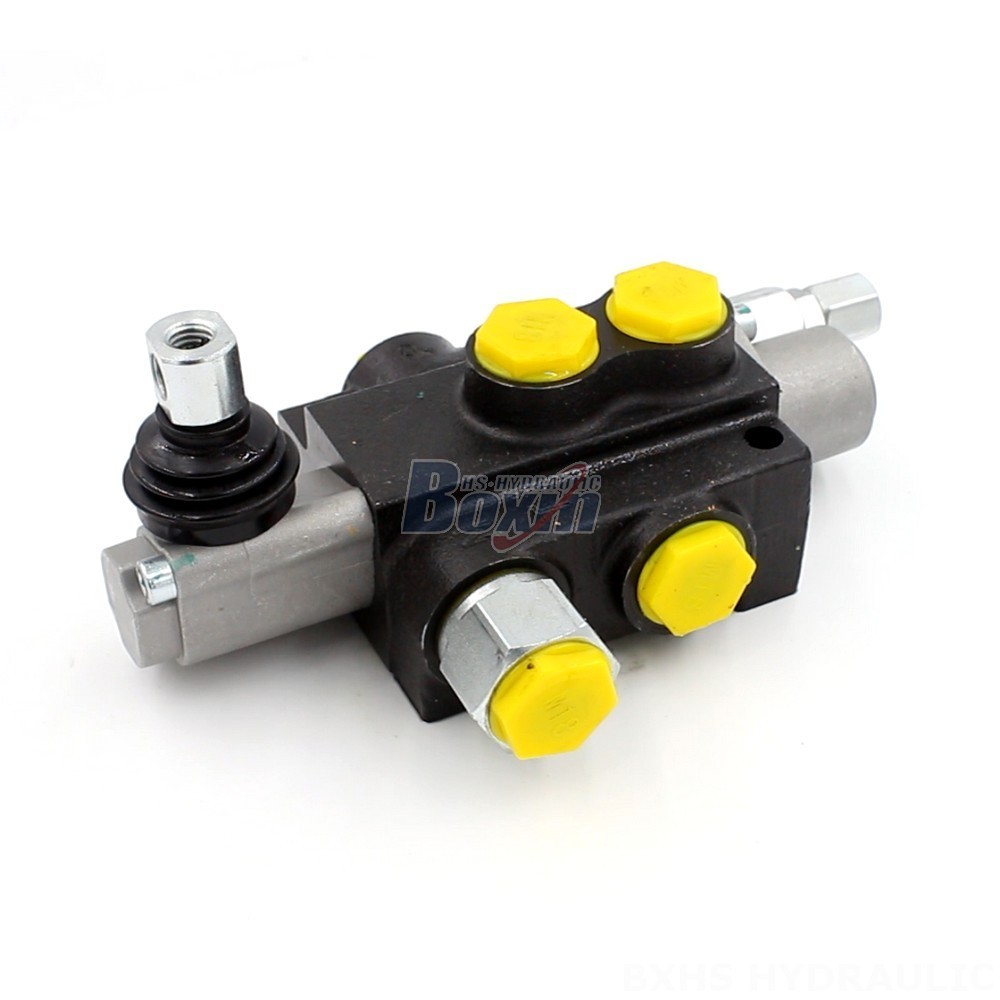

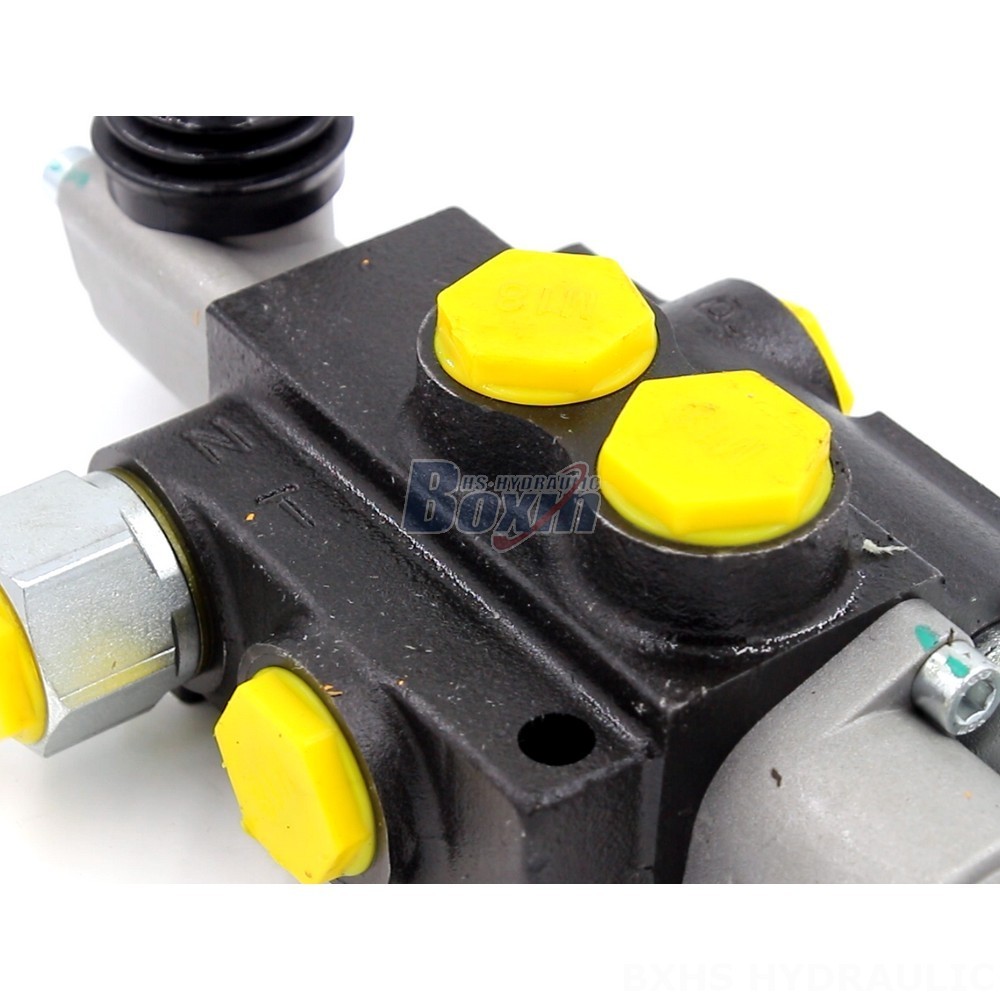

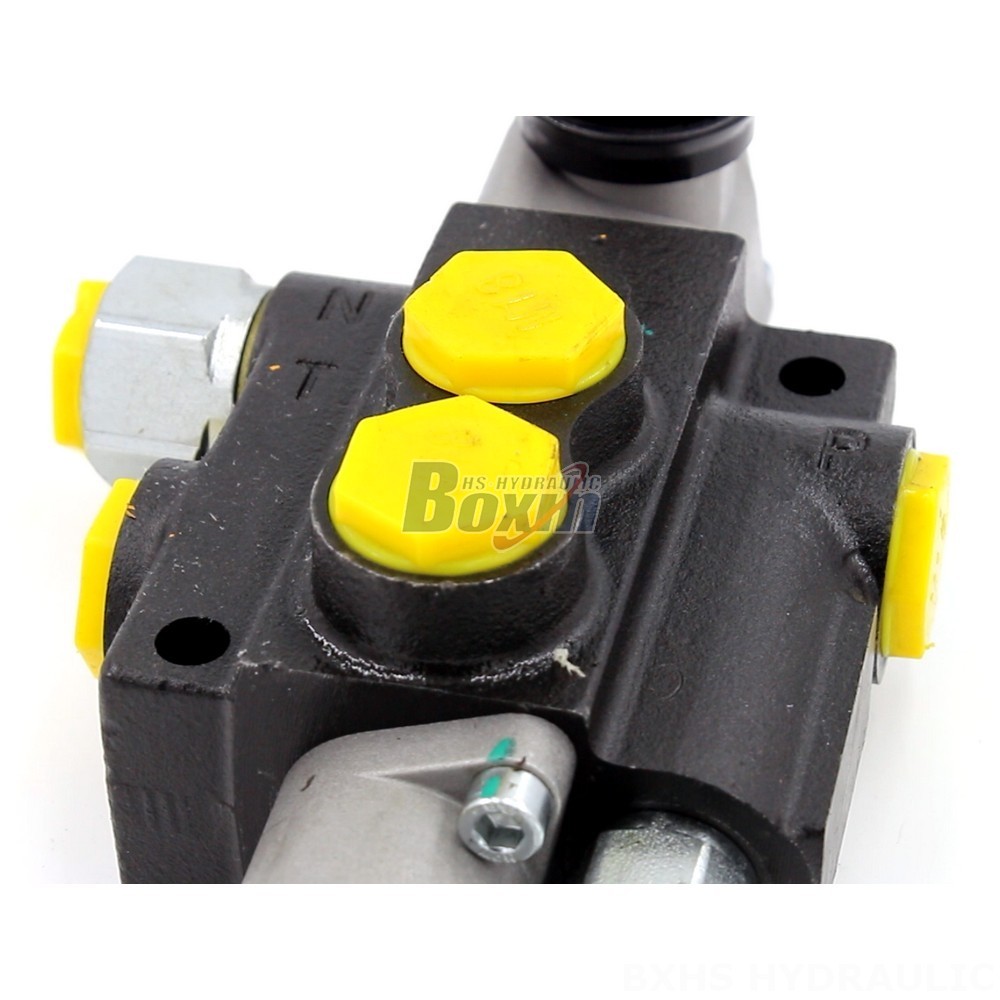

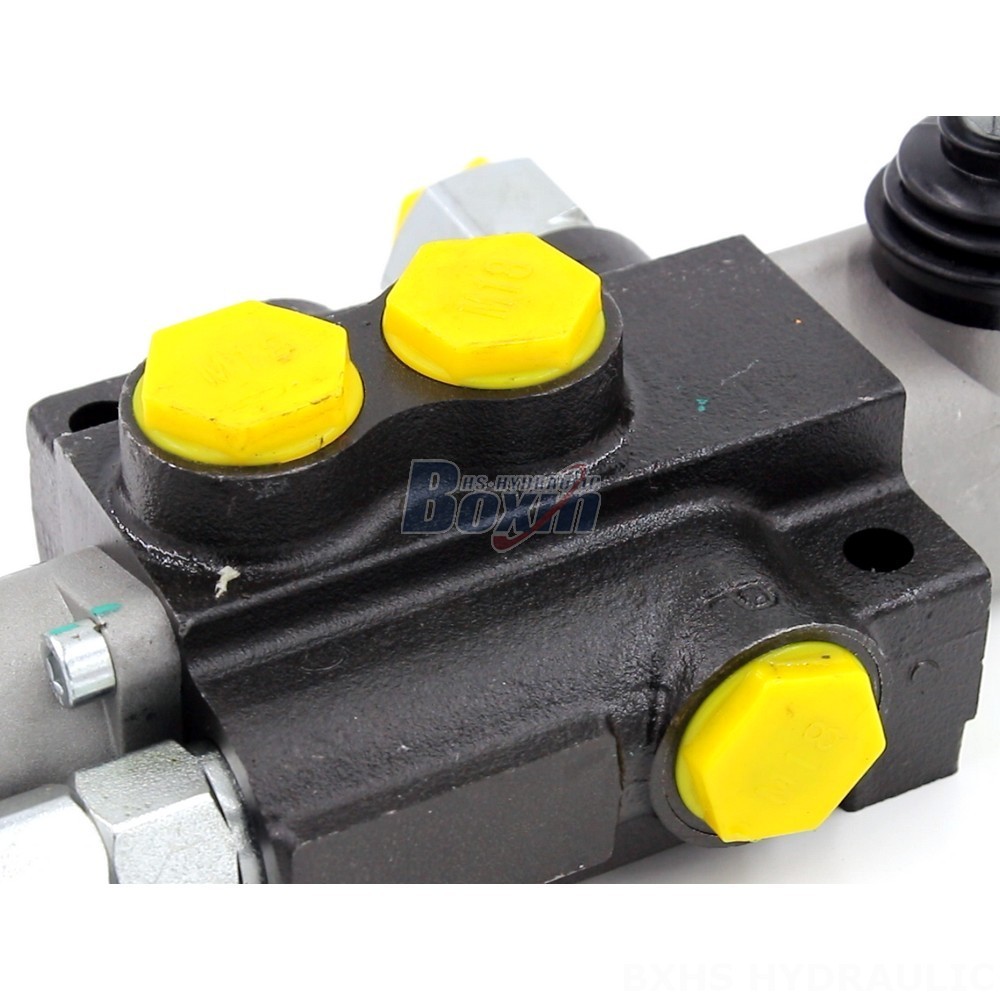

The P40J Hydraulic Directional Control Valve is a robust and reliable monoblock valve designed for a variety of applications, including material handling, construction, and agriculture. This manual control valve features a 40 L/min flow rate and a 250 bar maximum pressure, making it suitable for various hydraulic systems.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40J Hydraulic Directional Control Valve is a single-section monoblock valve with a manual control method. It features a 40 L/min flow rate and a 250 bar maximum pressure, making it ideal for applications requiring reliable and efficient hydraulic control. The valve operates within a viscosity range of 15-75 mm²/s and is designed to withstand ambient temperatures from -40°C to +80°C. This versatile valve is suitable for a wide range of applications including material handling equipment like telehandlers, forklifts, and stackers, as well as construction and earthmoving equipment like cranes, motor graders, excavators, and skid steer loaders. It's also suitable for agricultural equipment and industrial vehicles.
