P40Q-OT Pneumatic Operated 1 Spool Hydraulic Monoblock Valve

Metode Kontrol:Pneumatik

Spul:1 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:29*16*11

Kelas kotor:3.50 kg

Ketersediaan: Tersedia

68 Pandangan Mencari Produk Ini

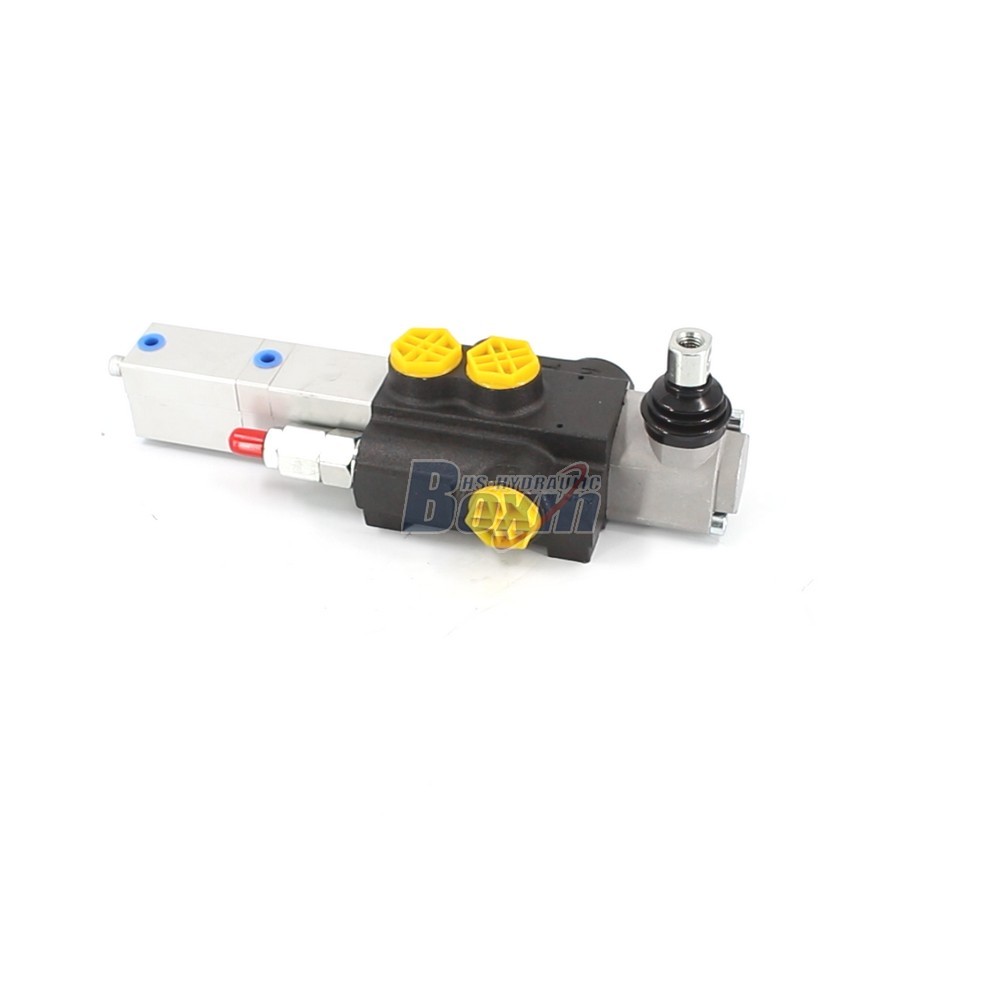

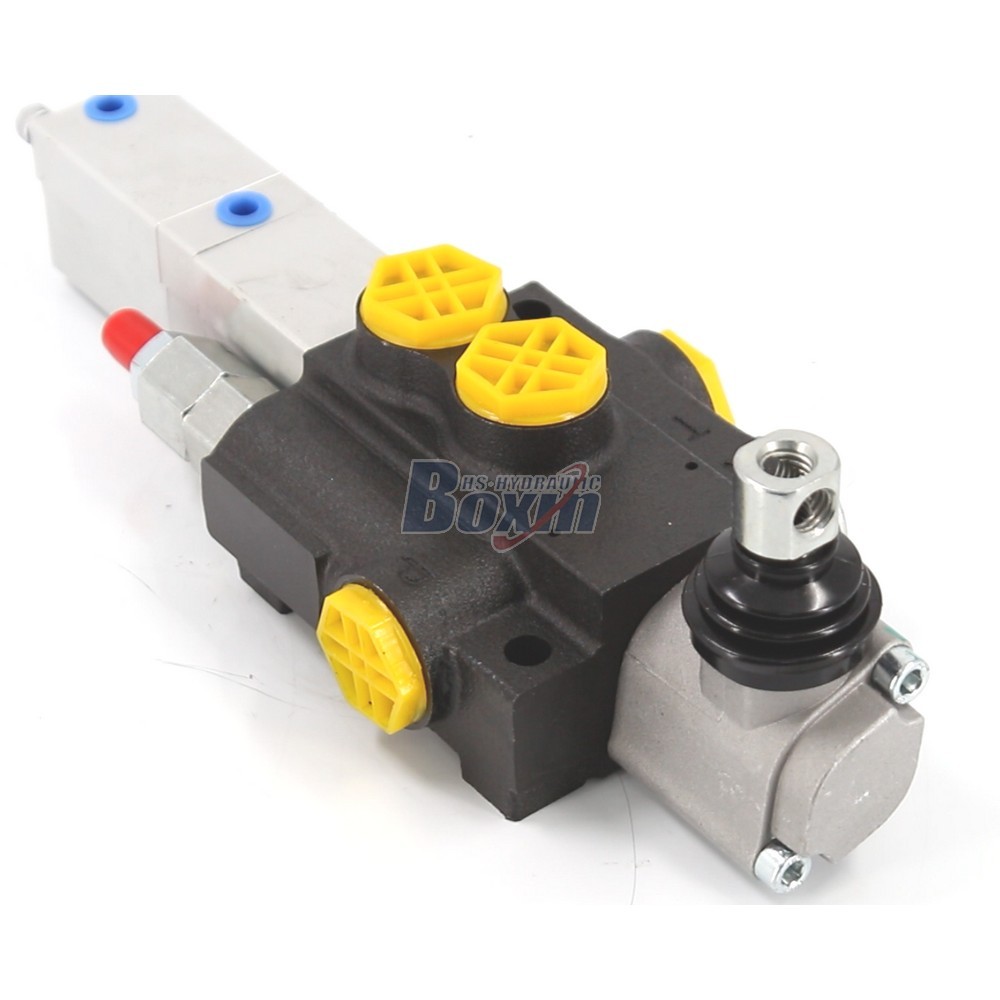

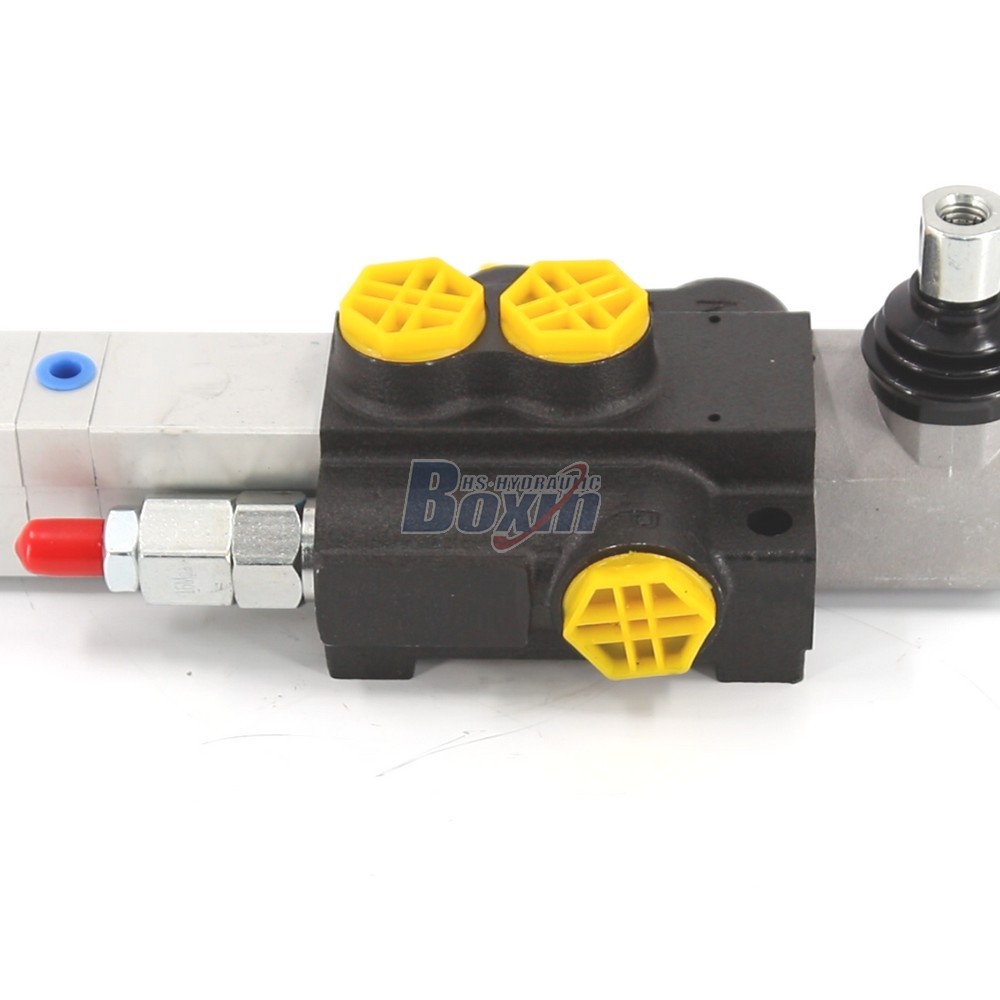

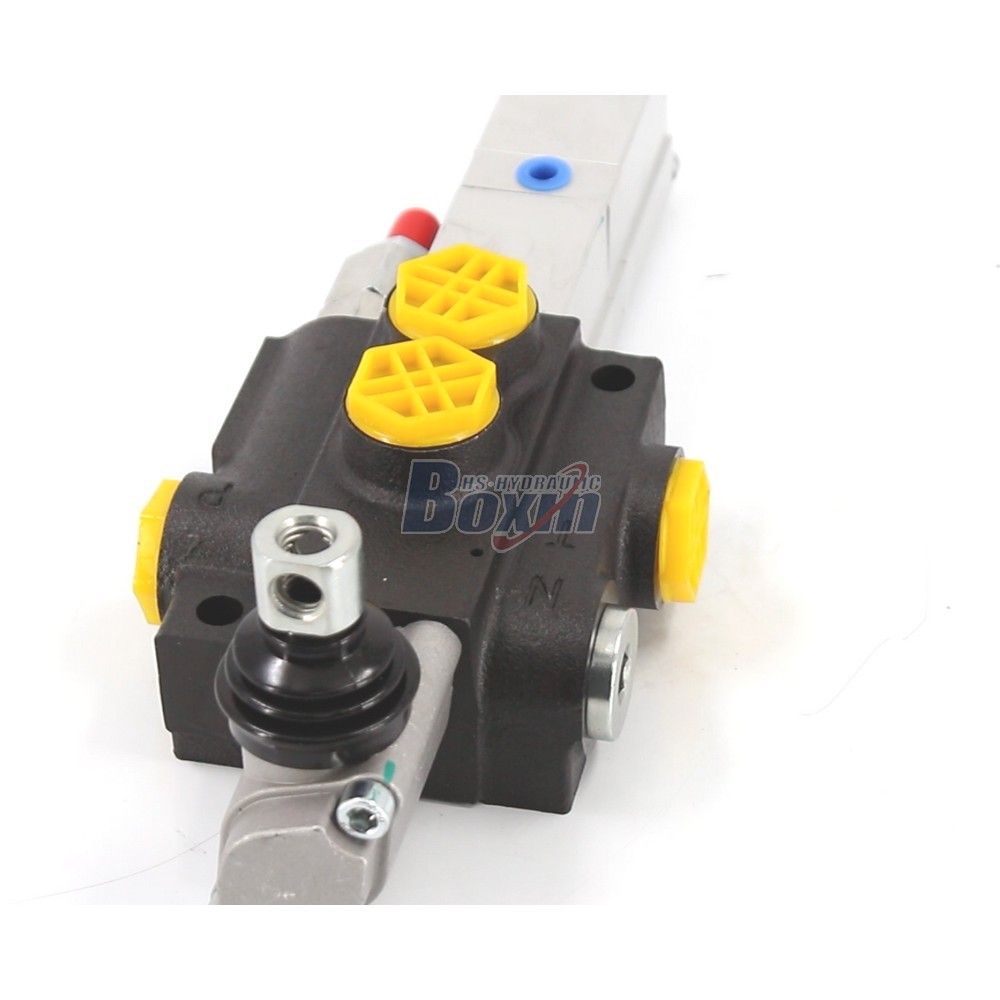

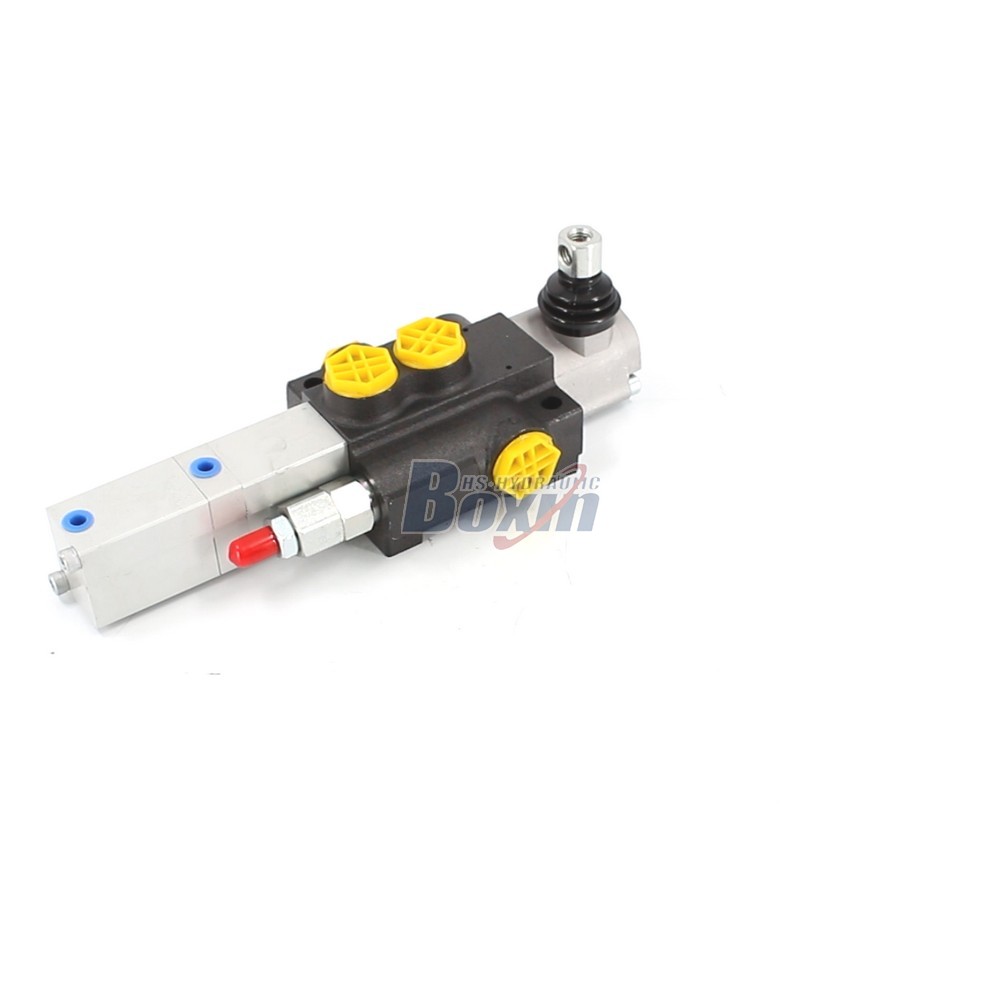

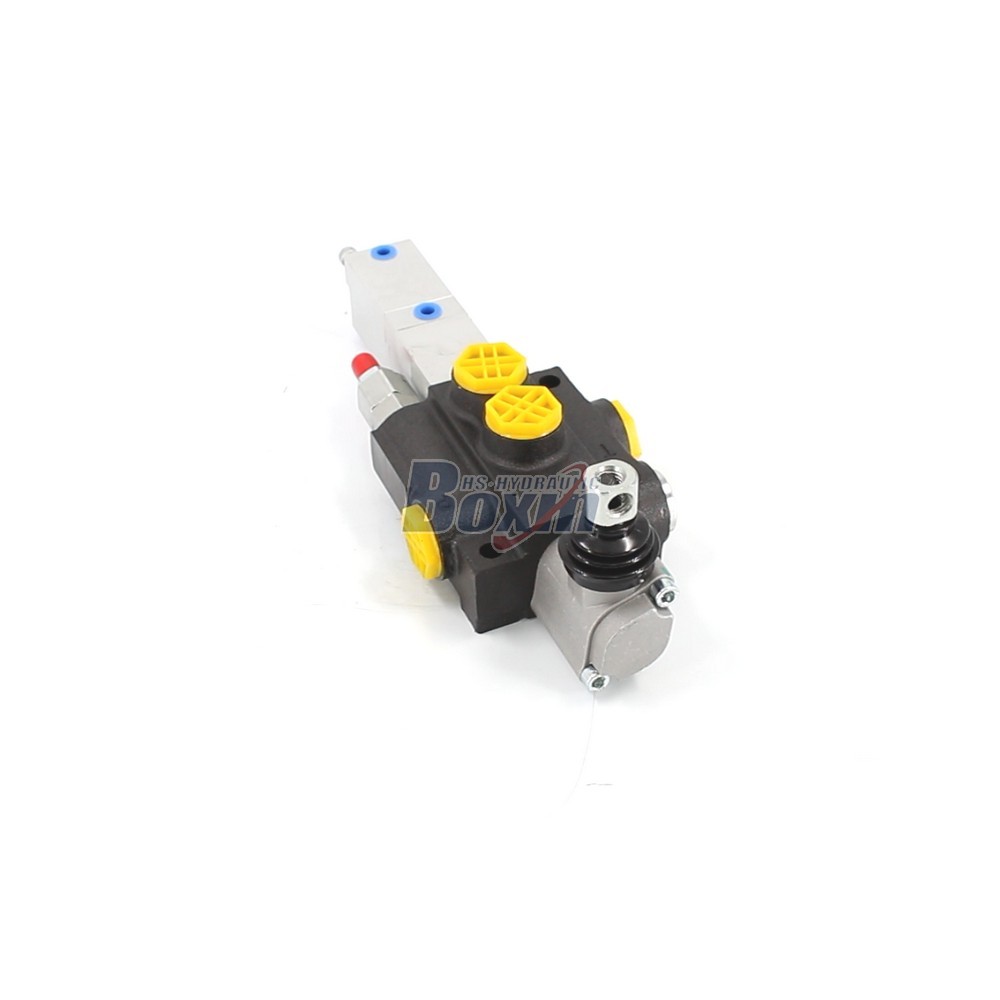

P40Q-OT Pneumatic Operated 1 Spool Hydraulic Monoblock Valve

P40Q-OT Pneumatic Operated 1 Spool Hydraulic Monoblock Valve

P40Q-OT Pneumatic Operated 1 Spool Hydraulic Monoblock Valve drawing image

The P40Q-OT is a high-performance 1-spool pneumatic operated hydraulic monoblock valve designed for precise flow control in mobile and industrial machinery. Featuring a rated flow of 40 L/min and a maximum pressure of 250 bar, this robust valve is ideal for applications requiring remote air-actuated control in demanding environments like agriculture and construction.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

Our P40Q-OT series pneumatic operated hydraulic monoblock valve is engineered for professional-grade performance in material handling and earth-moving equipment. As a leading hydraulic products manufacturer, we provide reliable factory supply for global markets. This 1-spool valve supports flow rates up to 40 L/min (10.5 US gpm) and pressures up to 3600 psi, making it suitable for forklifts, mini-excavators, and wood splitters. We specialize in OEM, ODM, and private labeling services, offering extensive customization to meet specific technical requirements. We are actively seeking long-term cooperation with distributors, wholesalers, agents, and traders worldwide. Whether you need bulk wholesale orders or tailored manufacturing solutions, our factory provides consistent quality and competitive pricing. This valve features G1/2 inlet/outlet ports and G3/8 working ports, ensuring versatility across various industrial vehicles and agricultural machinery like tractors and harvesters.
