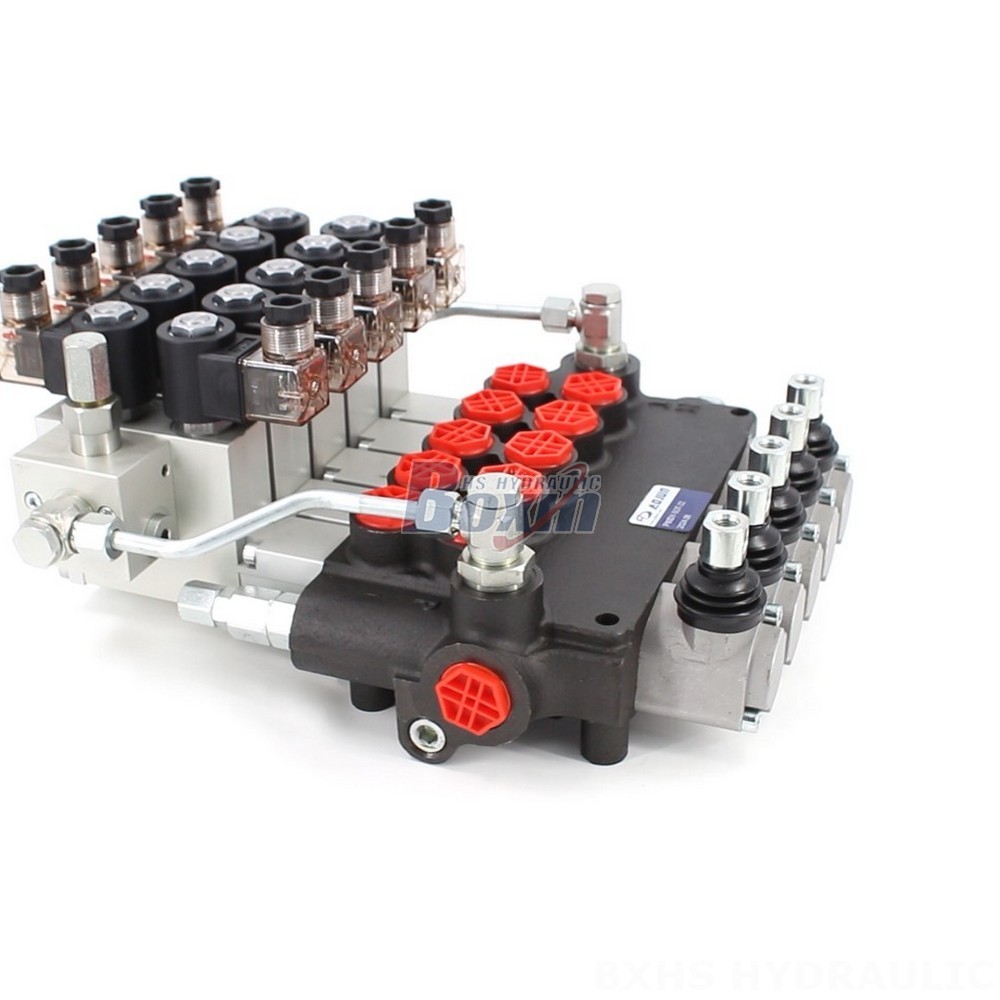

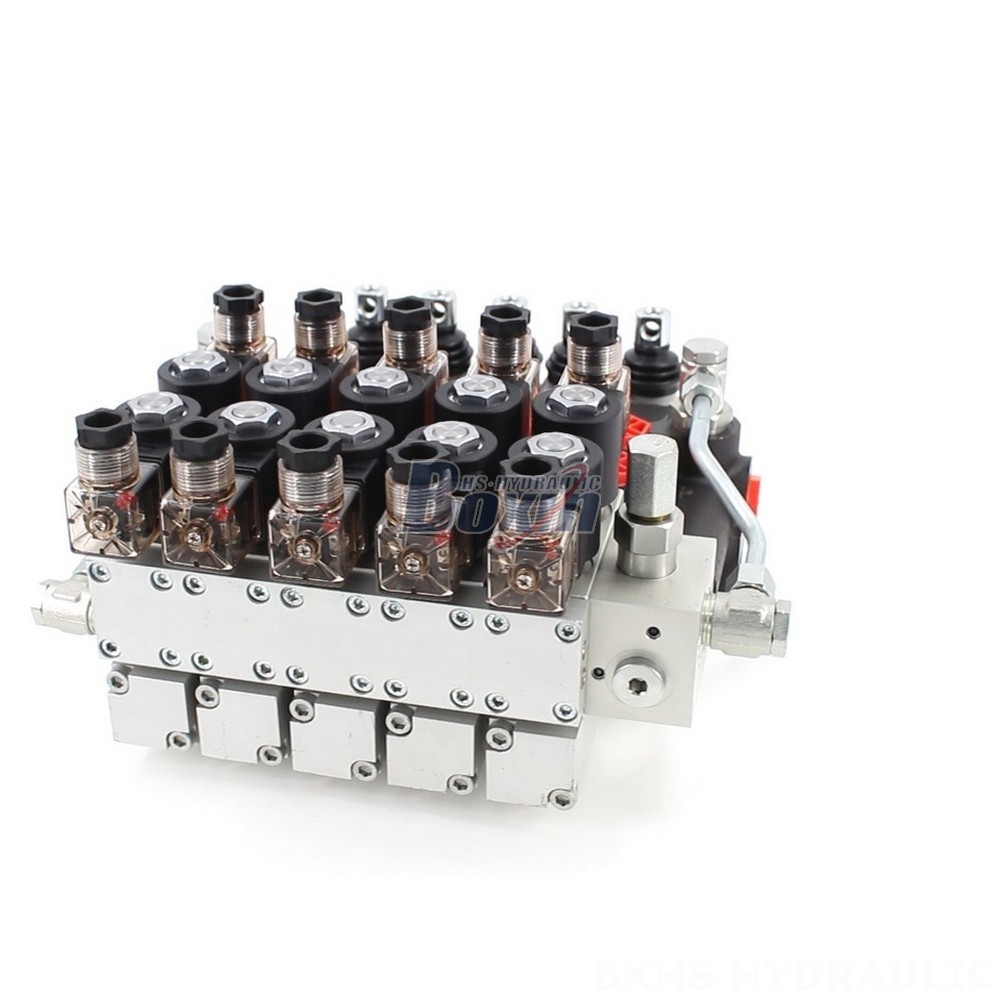

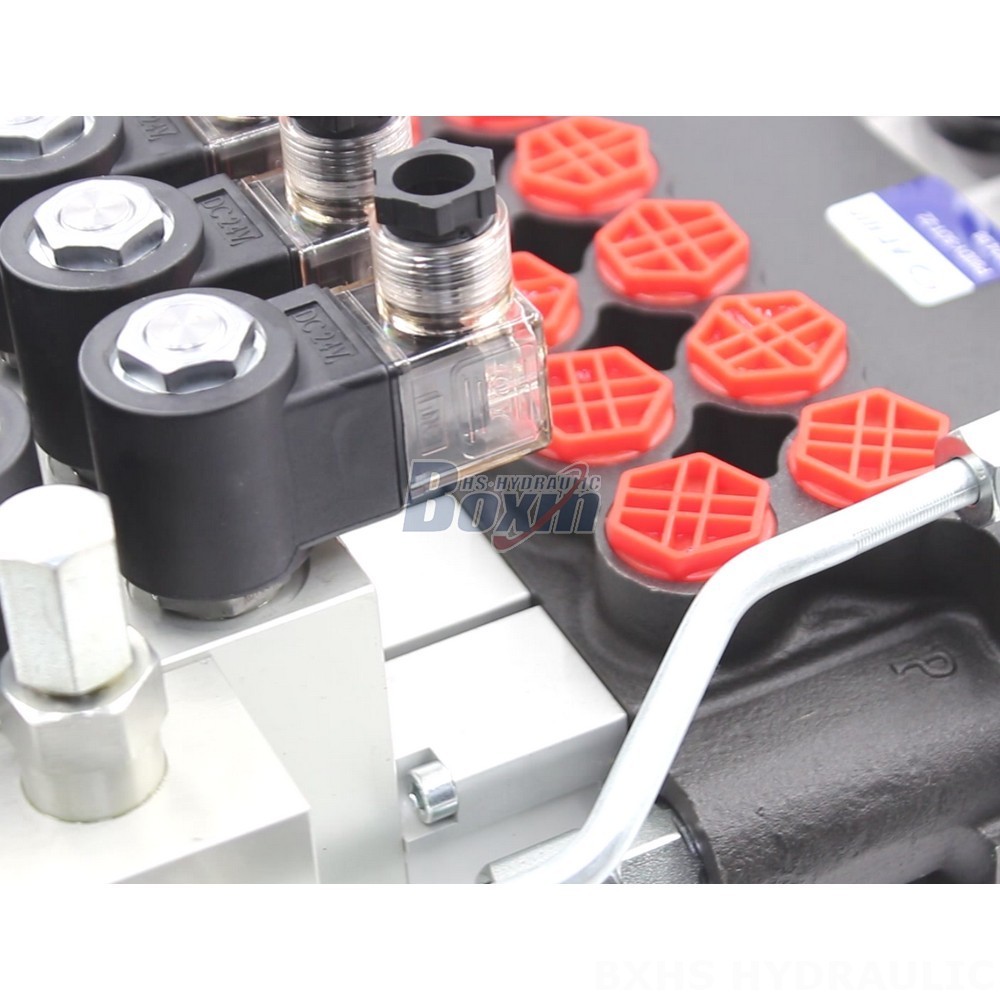

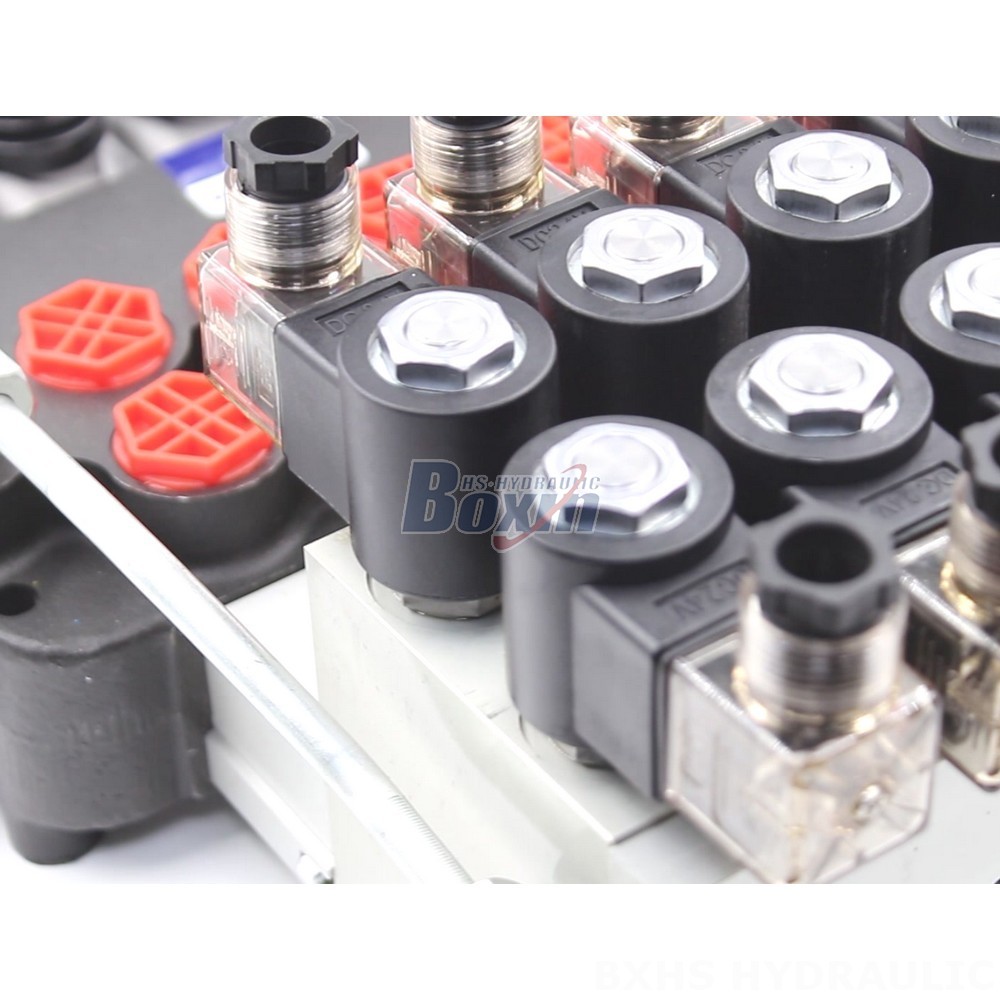

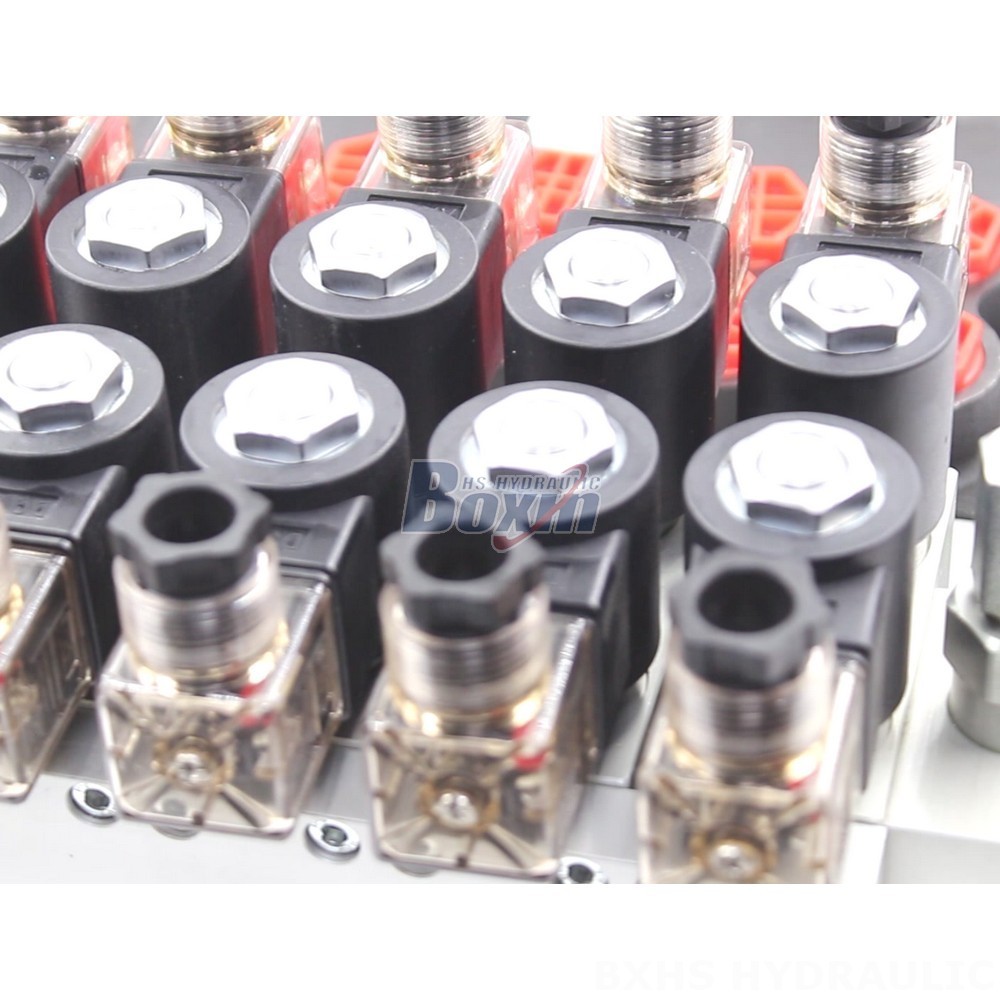

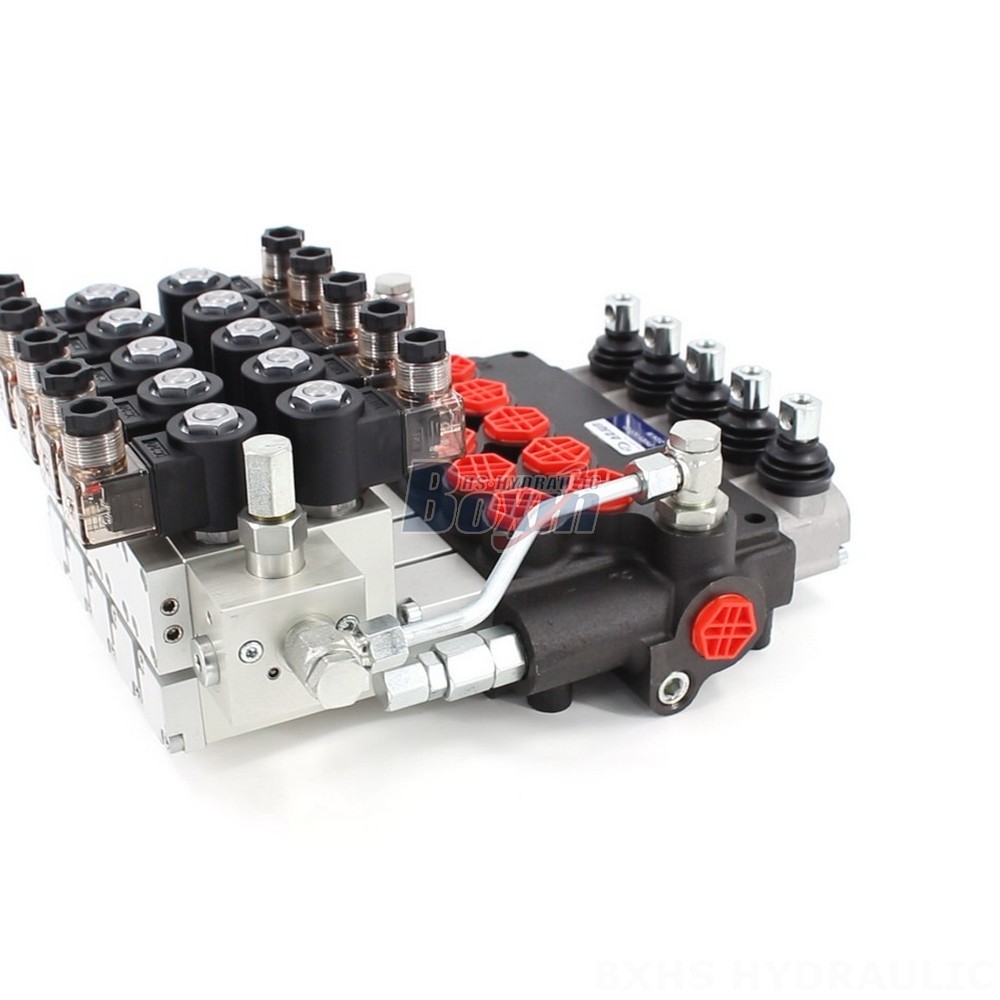

P80 5-Spool Monoblock Directional Valve: Electro-Hydraulic Control, Factory Supply

Metode Kontrol:Elektro-hidraulik

Spul:5 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80 Katup Arah Monoblok

Ukuran kemasan:52*42*20

Kelas kotor:30.00 kg

Ketersediaan: Tersedia

556 Pandangan Mencari Produk Ini

P80 5-Spool Monoblock Directional Valve: Electro-Hydraulic Control, Factory Supply

P80 5-Spool Monoblock Directional Valve: Electro-Hydraulic Control, Factory Supply

P80 5-Spool Monoblock Directional Valve: Electro-Hydraulic Control, Factory Supply drawing image

High-performance P80 5-spool monoblock directional valve with electro-hydraulic control, rated at 80 L/min and 315 bar, ideal for construction, agriculture, and industrial applications. Factory direct supply, OEM/ODM available.

Seri P80 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

We are a leading hydraulic product manufacturer offering global supply of the P80 5-Spool Monoblock Directional Valve. This electro-hydraulic control valve boasts a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 315 bar (4600 psi). Its robust design and wide operating temperature range (-40°C to +80°C) make it suitable for demanding applications in various industries.

**Key Features:**
* **Electro-hydraulic control:** Precise and reliable operation.
* **Monoblock structure:** Compact and robust design.
* **5-spool design:** Versatile functionality.
* **High flow rate (80 L/min):** Efficient performance.
* **High pressure rating (315 bar):** Suitable for heavy-duty applications.

**Applications:** Construction and earth moving, material handling, industrial vehicles, agriculture. Specifically designed for forklifts, telehandlers, mini-excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, harvesters, balers, backhoes, and wheel loaders.

**Business Opportunities:** We offer comprehensive services including manufacturing, OEM (Original Equipment Manufacturing), ODM (Original Design Manufacturing), customization, and wholesale. We are actively seeking distributors, wholesalers, agents, and trading companies worldwide to partner with us and expand our global reach. As a factory direct supplier, we offer competitive pricing and reliable delivery. Contact us today to discuss potential collaborations and explore the benefits of partnering with a reliable and experienced hydraulic valve manufacturer. Our factory wholesale program offers significant volume discounts. Let us help you find the perfect hydraulic solution for your needs. **Contact us now!**
