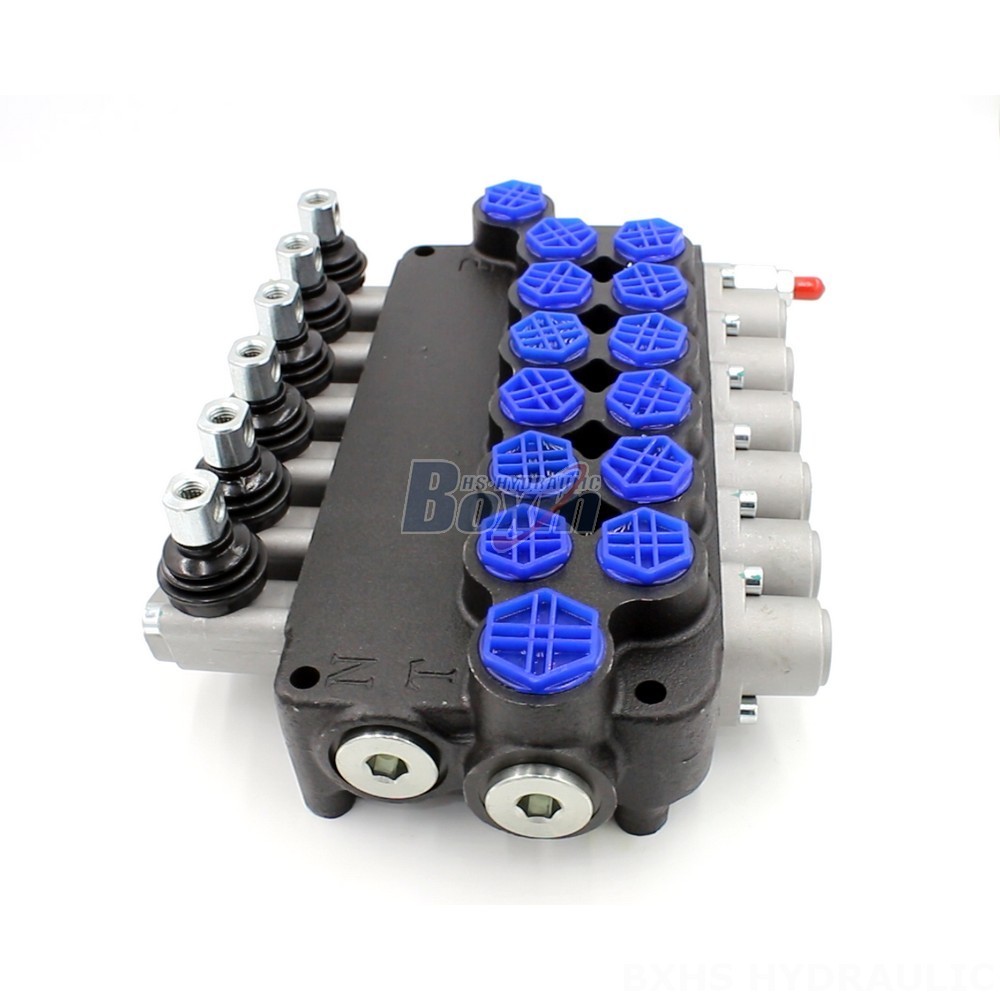

The P80-AQF-G12-G34-OT Directional Valve is a robust and reliable hydraulic multiway valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. Featuring a 6-section monoblock design, this valve offers high flow rates, maximum pressure handling, and exceptional durability.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This hydraulic multiway valve, part of the P80 series, is a 6-section monoblock valve with manual control. It provides a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). Designed for optimal performance, the valve features a 6-spool configuration and operates within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Its durable construction allows it to withstand ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). The P80-AQF-G12-G34-OT is ideal for a wide range of applications including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
