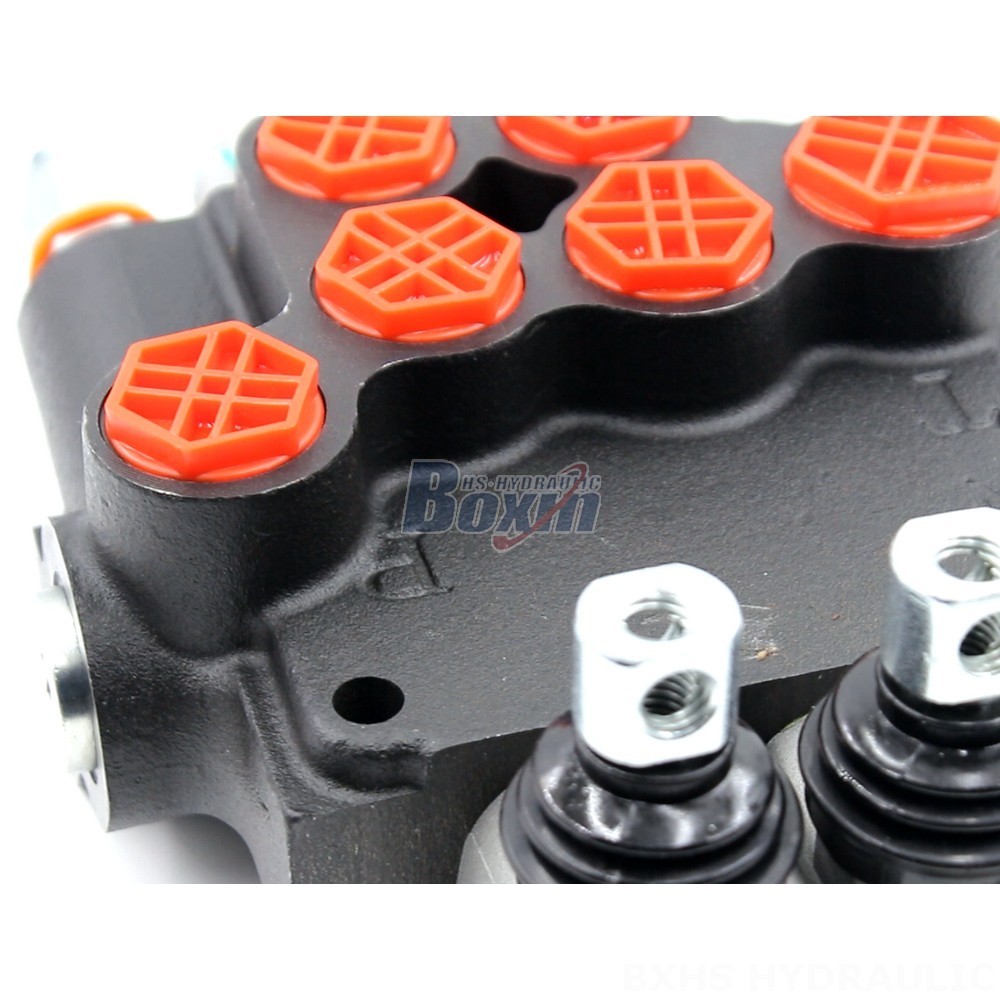

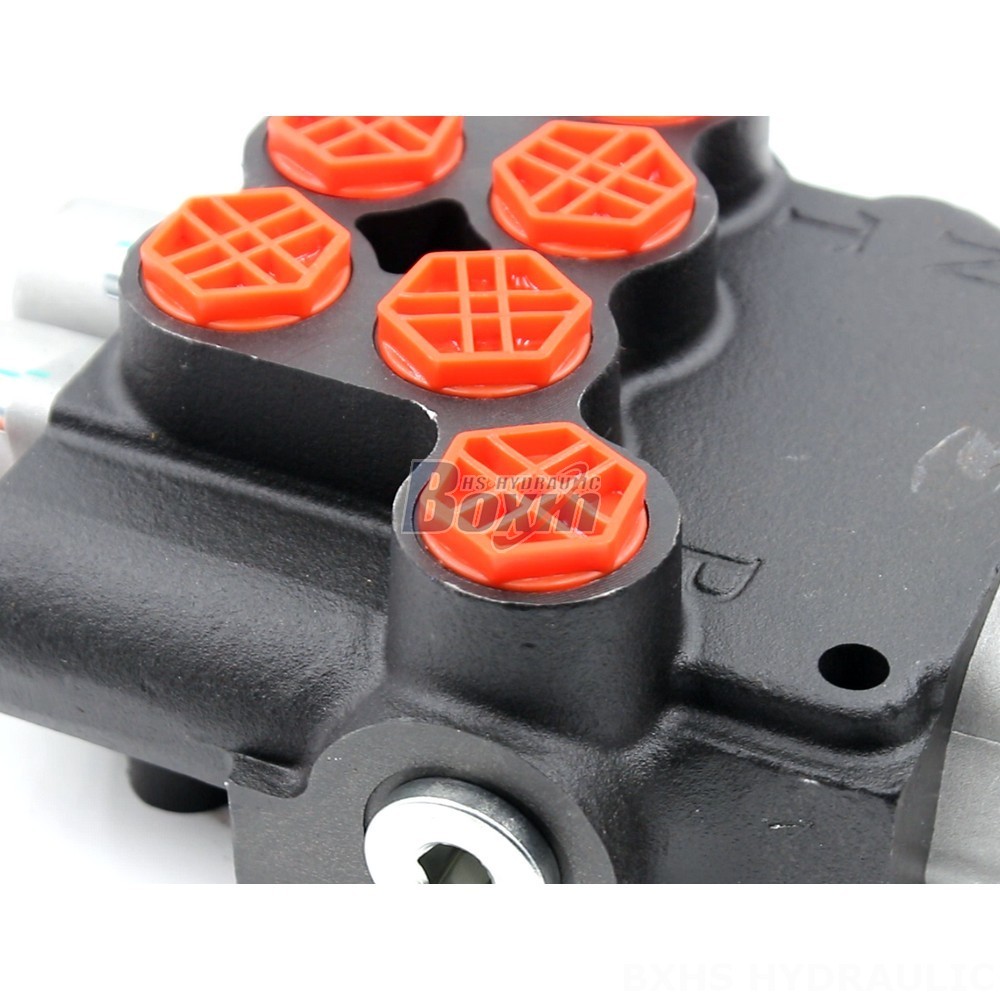

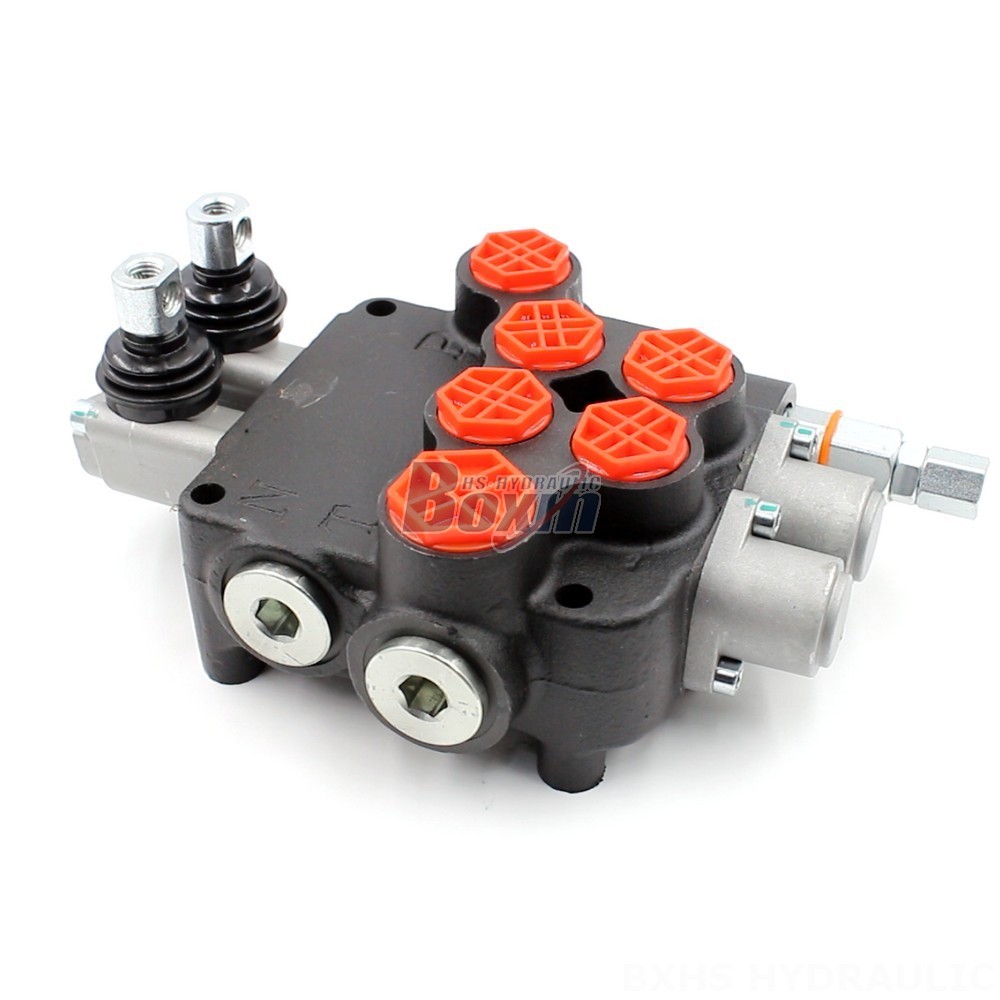

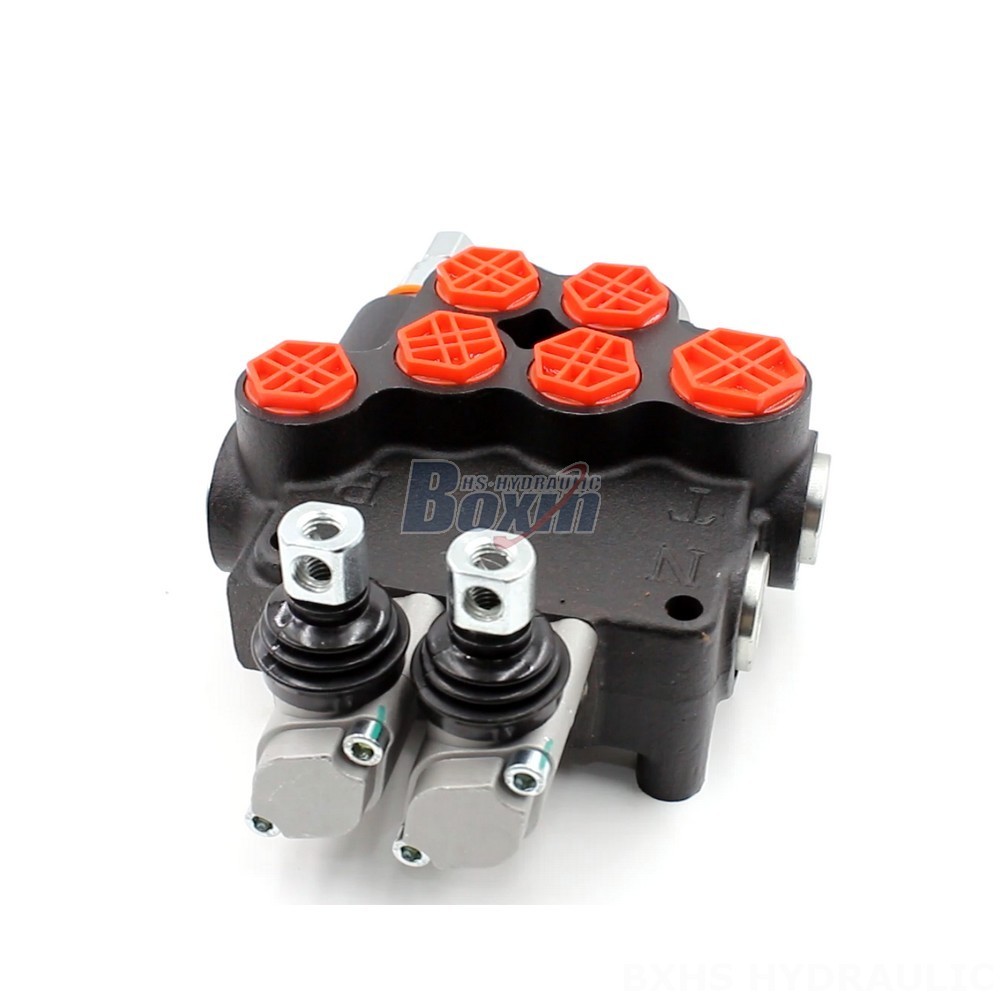

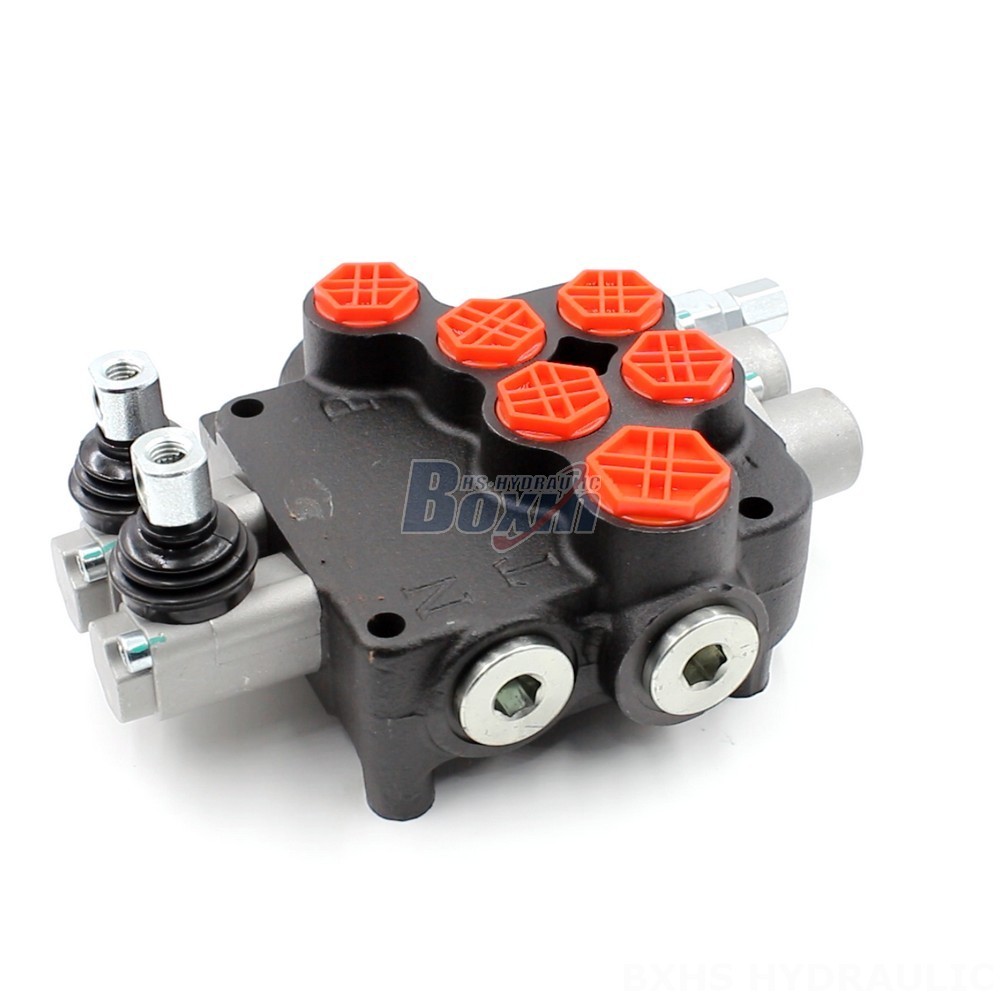

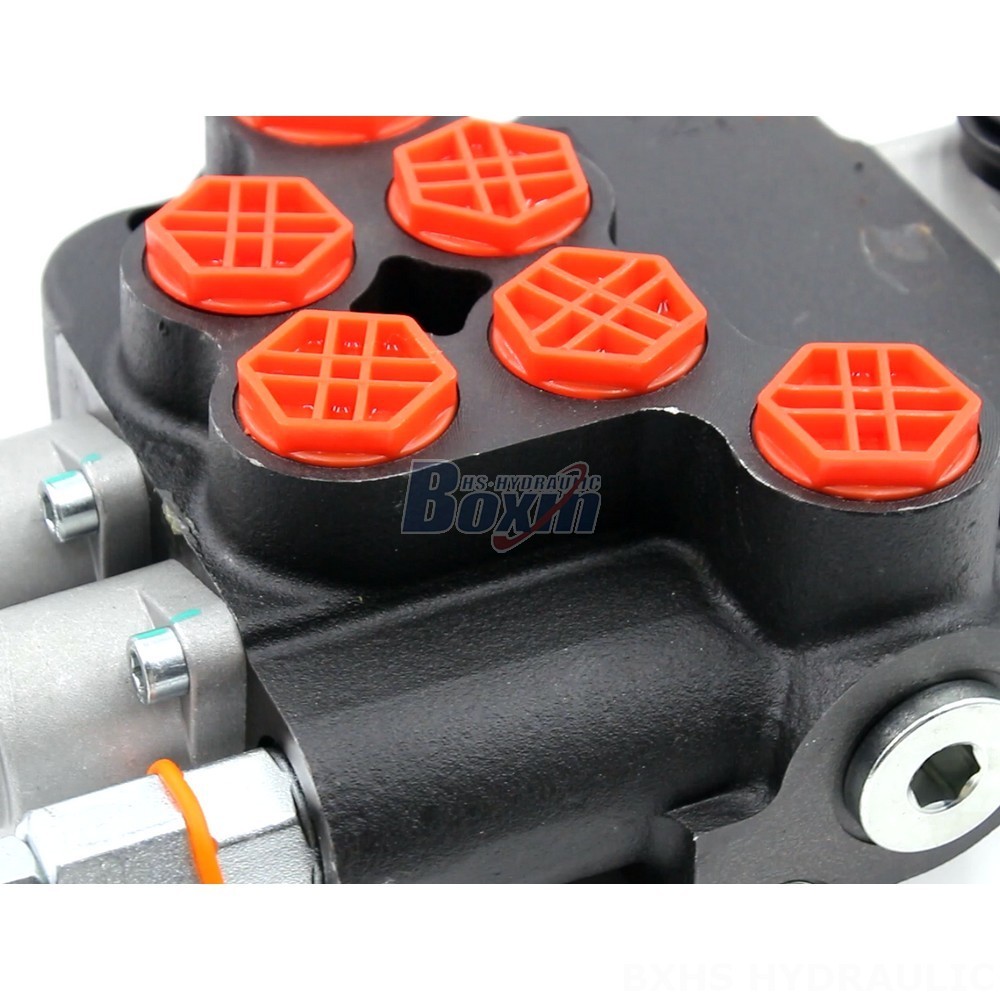

The P80-AQF-G34-G12-2OT Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding industrial applications. It features a manual control method, a compact monoblock structure, and a rated flow capacity of 80 L/min (21.2 US gpm). With a maximum pressure rating of 250 bar (3600 psi), this valve can withstand high system pressures.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features:**
* Manual control for precise operation
* Monoblock construction for compact and robust design
* 2 spool configuration for versatile flow control
* Rated flow capacity of 80 L/min (21.2 US gpm) for high flow applications
* Maximum pressure rating of 250 bar (3600 psi) for demanding hydraulic systems
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids
* Wide ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in challenging environments
**Applications:**
The P80-AQF-G34-G12-2OT Manual 2 Spool Monoblock Directional Valve is widely used in various industrial applications, including:
* Material handling equipment
* Construction and earth moving machinery
* Agricultural machinery
* Industrial vehicles
* Telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors and front-end loaders, harvesters, bale wrappers, backhoes, seeding machines, sprayers, balers
