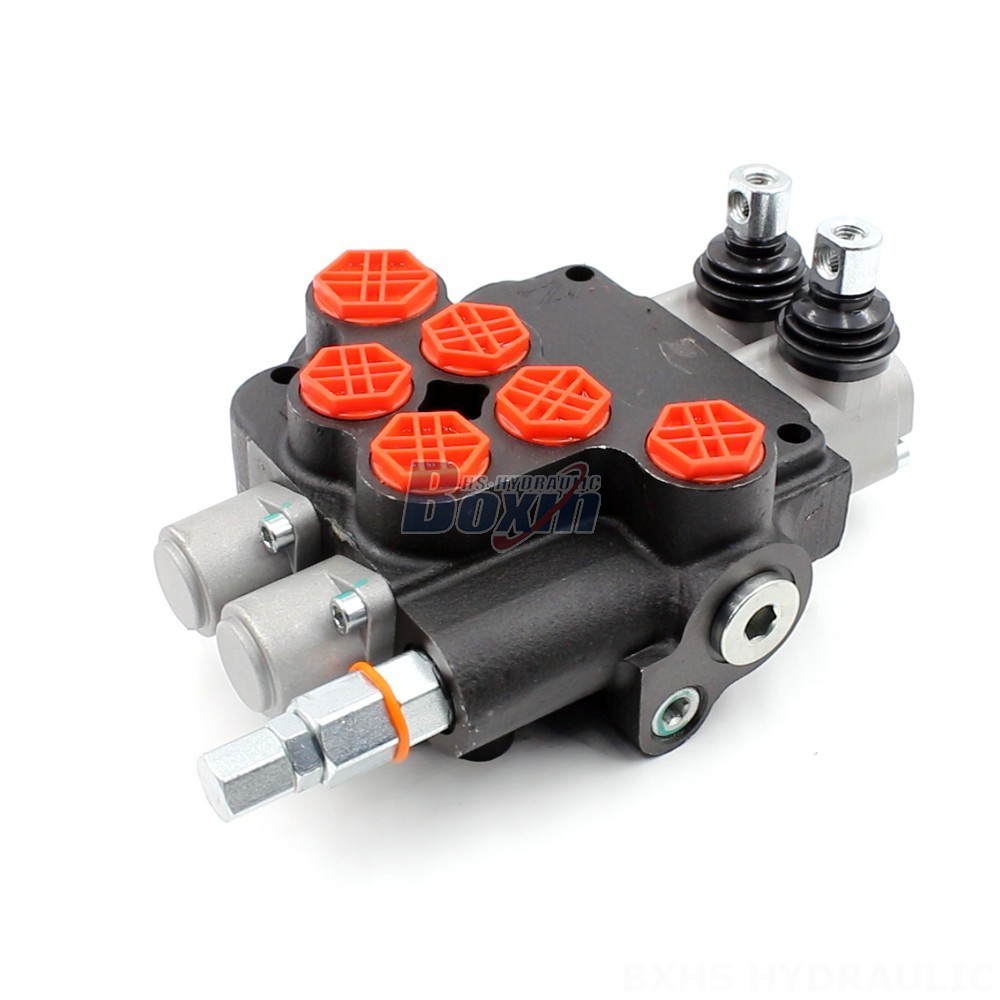

P80-AQF Hydraulic Valve | Customizable Solutions & Global Distribution

Metode Kontrol:Buku Panduan

Spul:2 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80 Katup Arah Monoblok

Ukuran kemasan:26*18*11

Kelas kotor:8.20 kg

Ketersediaan: Tersedia

1032 Pandangan Mencari Produk Ini

P80-AQF Hydraulic Valve | Customizable Solutions & Global Distribution

P80-AQF Hydraulic Valve | Customizable Solutions & Global Distribution

P80-AQF Hydraulic Valve | Customizable Solutions & Global Distribution drawing image

The P80 Series Hydraulic Valve is a 2-section, manual control monoblock valve with a rated flow of 80 L/min and a max pressure of 250 bar. This versatile valve is designed for use in various applications including construction, agriculture, material handling, and industrial vehicles.

Seri P80 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80 Series Hydraulic Valve is a high-performance, reliable valve designed for demanding applications. It features a robust monoblock construction, 2 sections for precise control, and a manual control method. This valve is suitable for a wide range of equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors, harvesters, bale wrappers, backhoes, seeding machines, sprayers, and balers. It offers a rated flow of 80 L/min and a max pressure of 250 bar, making it ideal for various hydraulic systems. Its operating viscosity range is 15-75 mm²/s, and it can withstand ambient temperatures from -40°C to +80°C. The valve is equipped with a 2-spool configuration, providing flexibility for different control needs. Whether you require a hydraulic valve for construction, agriculture, material handling, or industrial vehicles, the P80 Series offers a robust and reliable solution.
