The P80 Electro-hydraulic 3 Spool Monoblock Directional Valve is a high-performance valve designed for use in demanding hydraulic systems. It features a robust monoblock construction, electro-hydraulic control, and a flow rate of 80 L/min. The valve is suitable for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

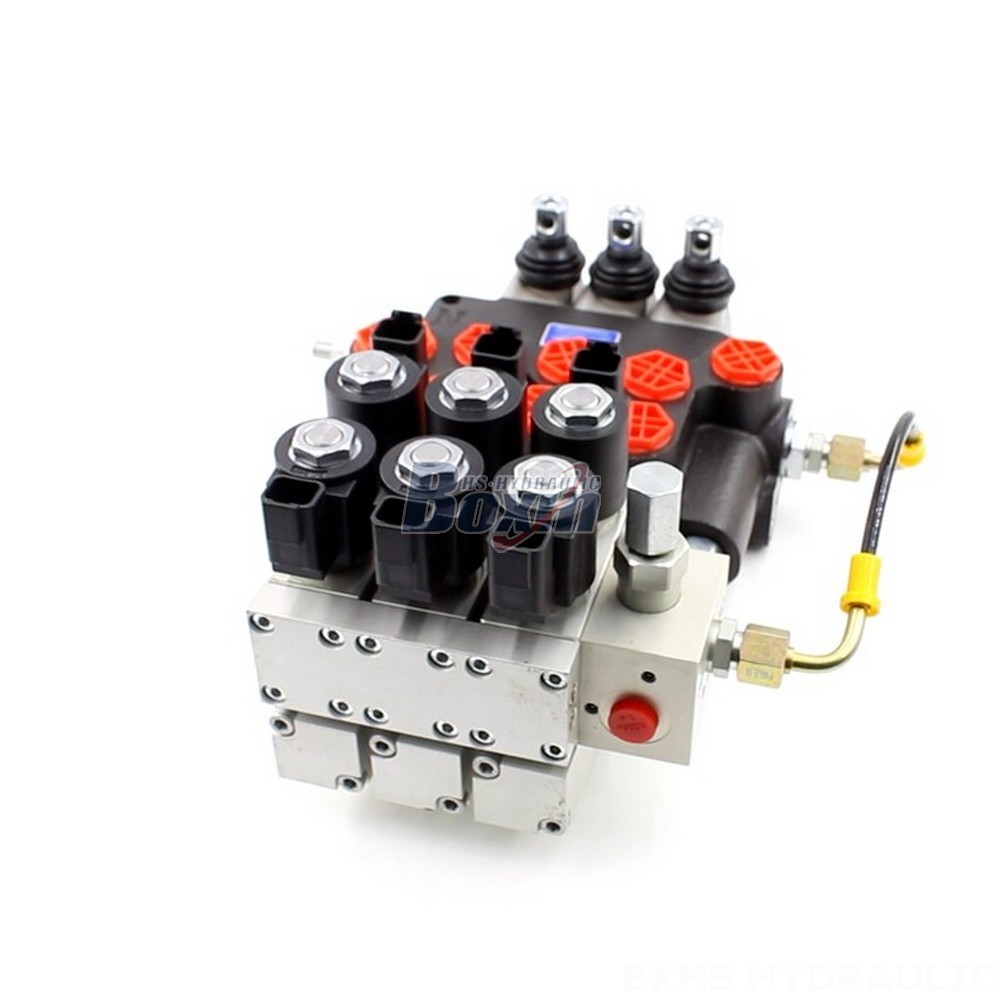

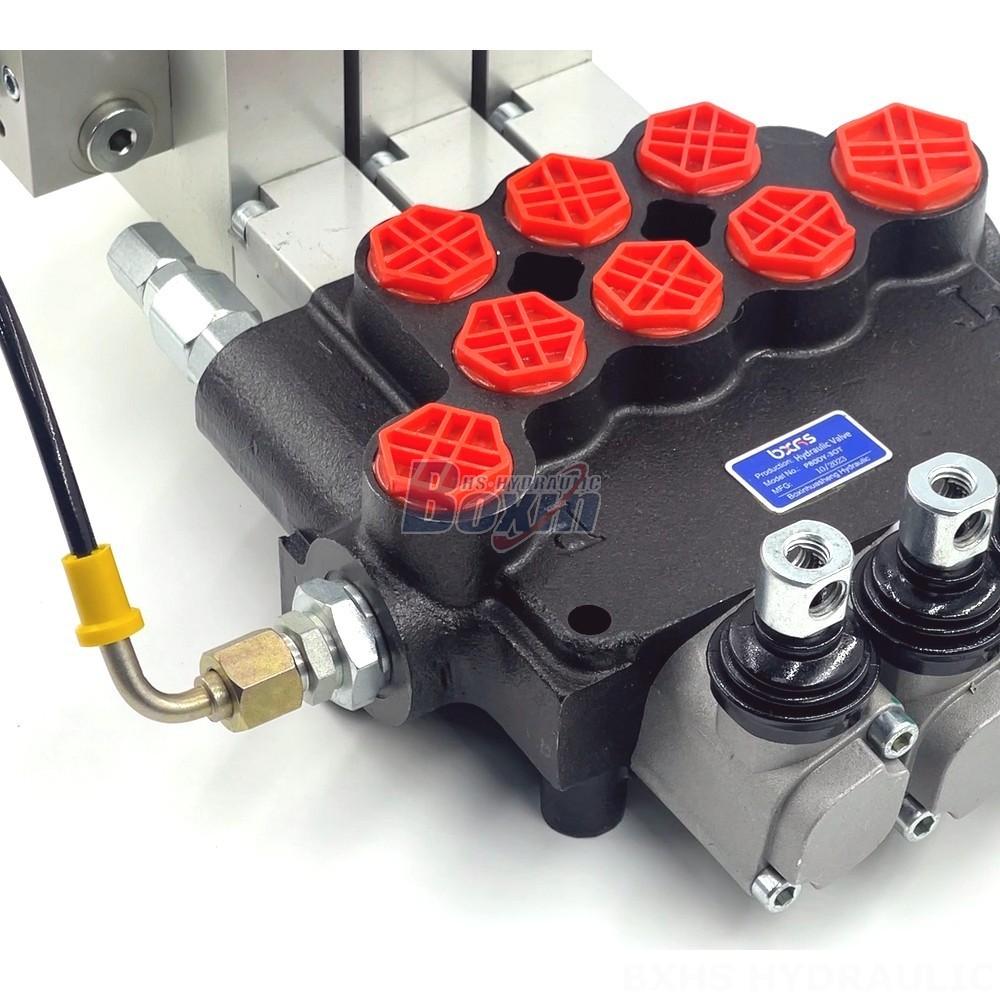

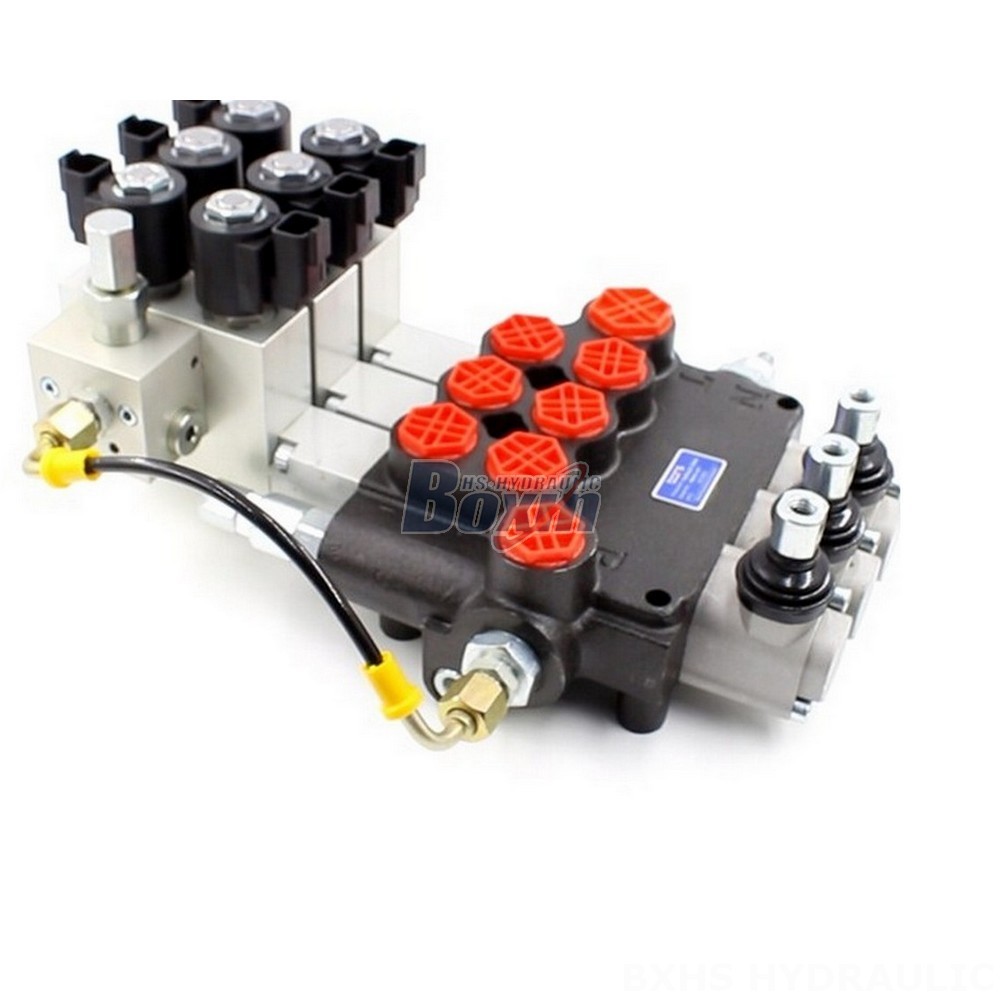

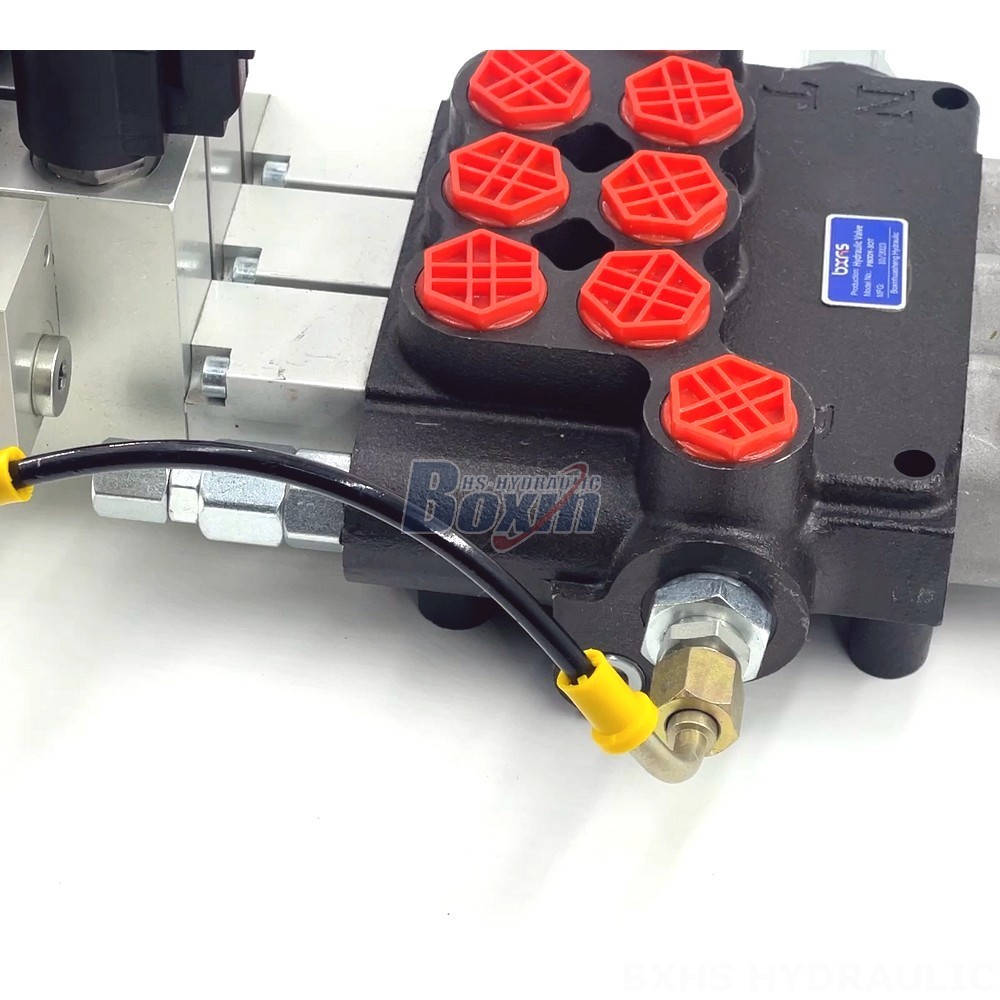

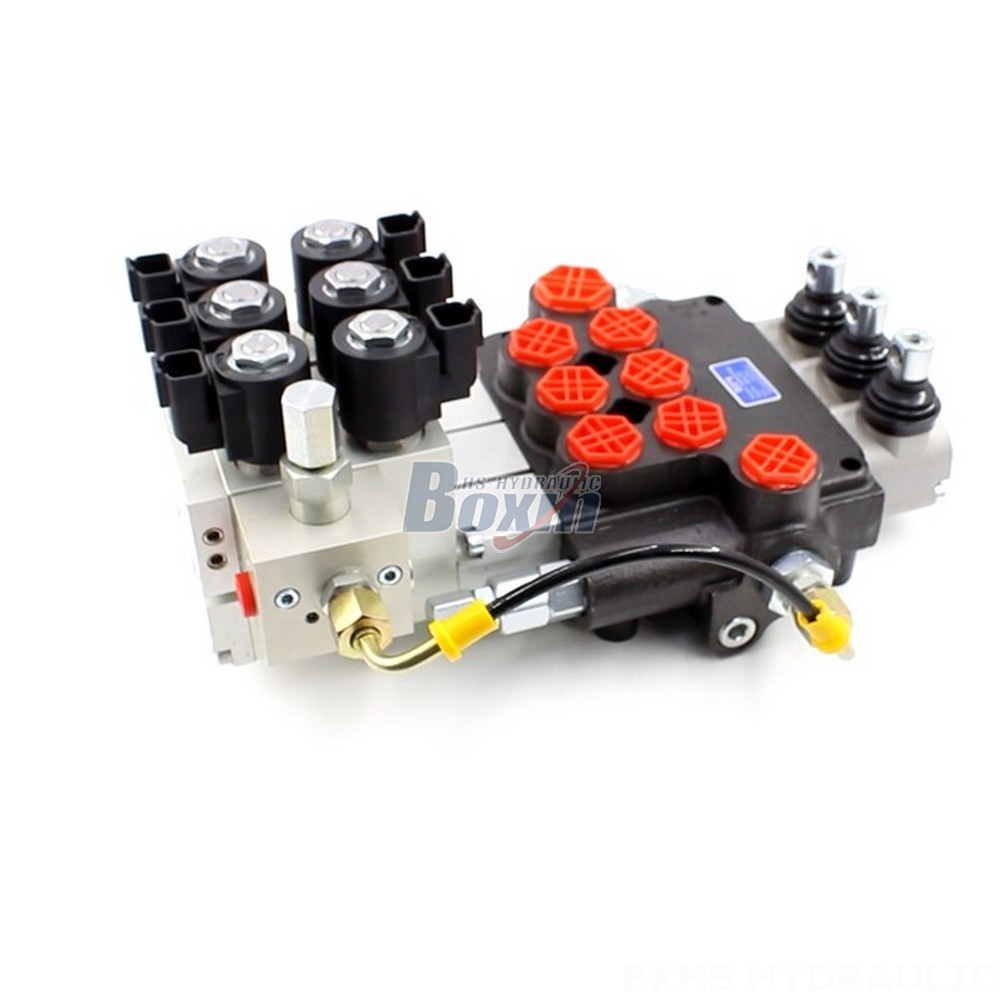

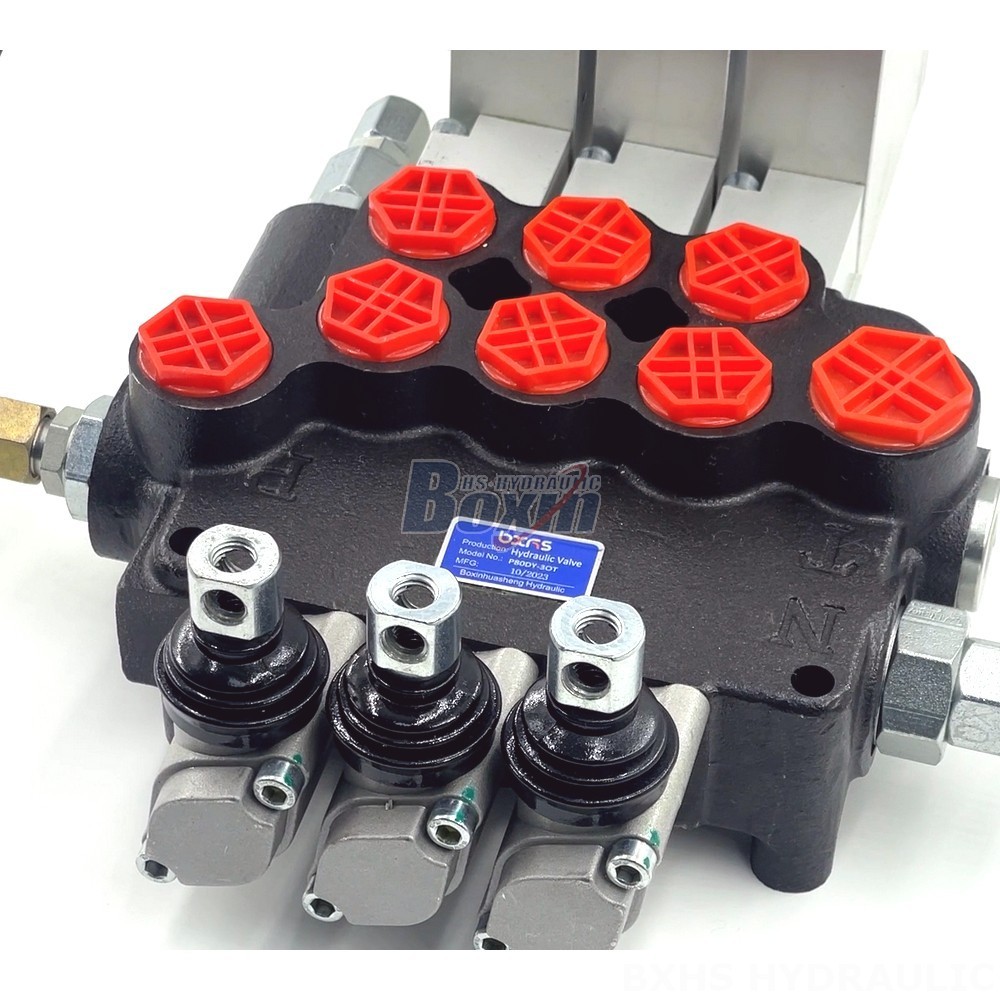

**P80 Electro-hydraulic 3 Spool Monoblock Directional Valve**
The P80 Electro-hydraulic 3 Spool Monoblock Directional Valve is a versatile and reliable valve that is ideal for use in a variety of hydraulic systems. It features a robust monoblock construction that provides excellent strength and durability. The valve is also equipped with electro-hydraulic control, which allows for precise and responsive operation. With a flow rate of 80 L/min and a maximum pressure of 250 bar, the P80 valve is capable of handling even the most demanding applications.
**Key Features:**
* Monoblock construction for strength and durability
* Electro-hydraulic control for precise and responsive operation
* Flow rate of 80 L/min
* Maximum pressure of 250 bar
* Suitable for a wide range of applications
**Applications:**
* Material handling
* Construction
* Agriculture
* Industrial vehicles
