Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1036 Pandangan Mencari Produk Ini

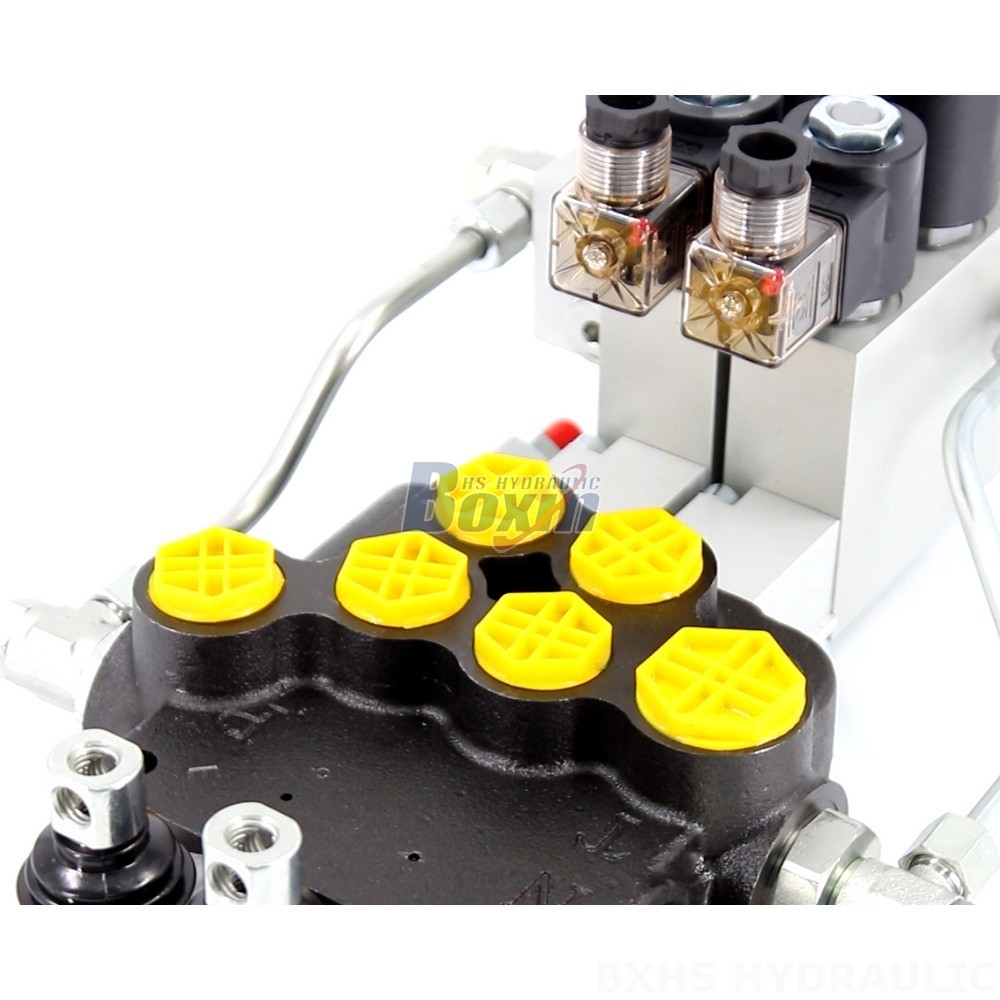

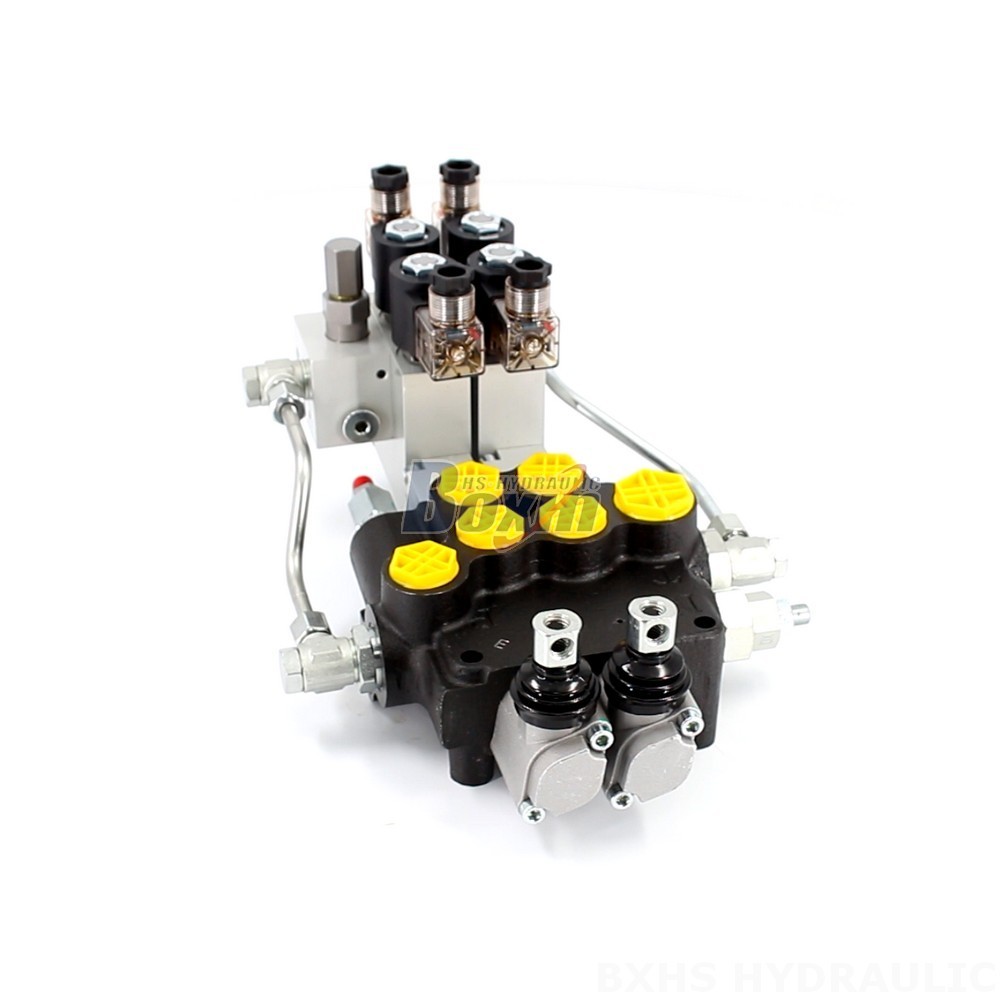

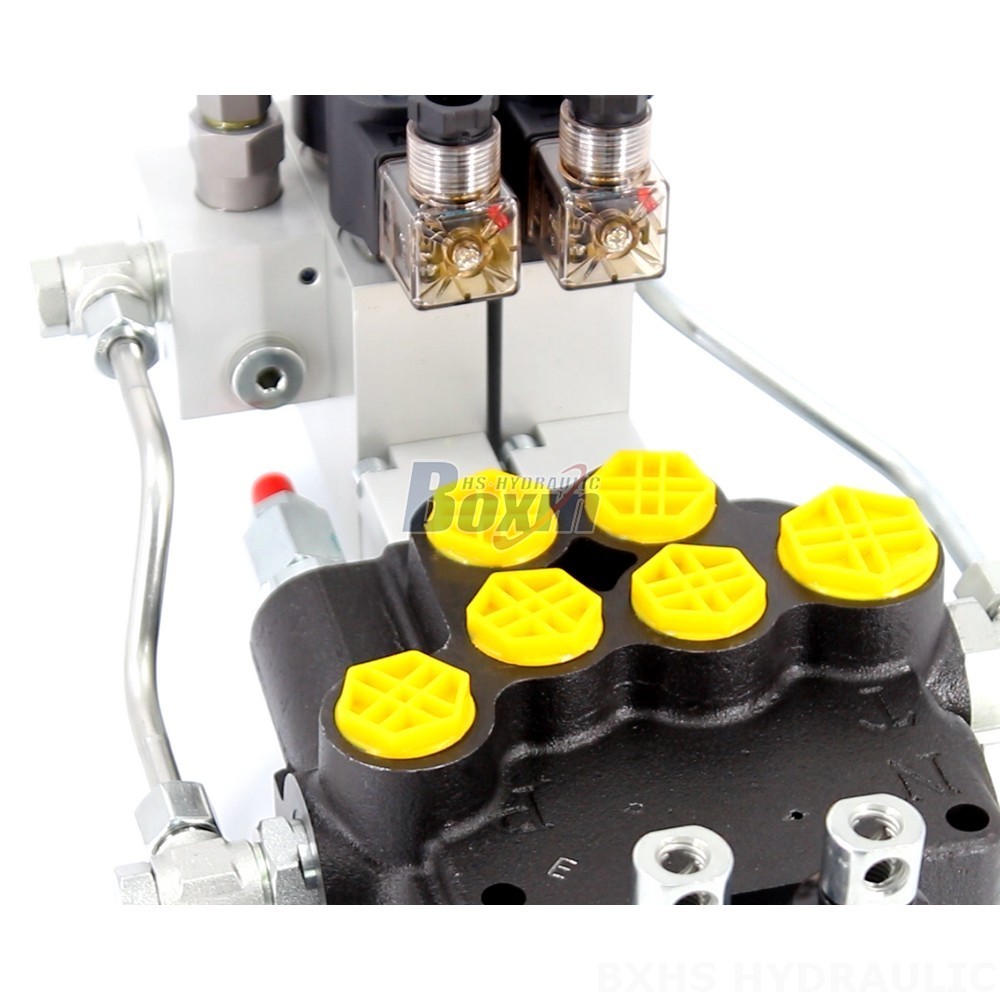

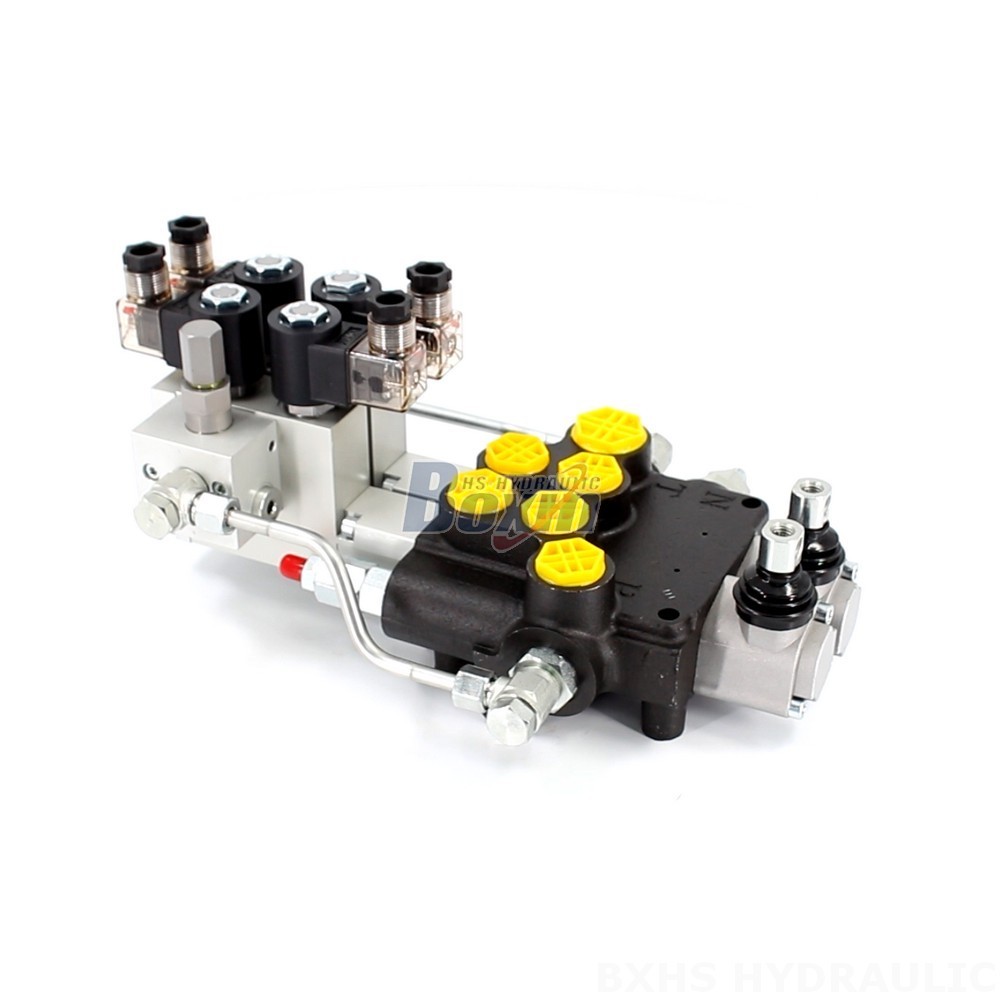

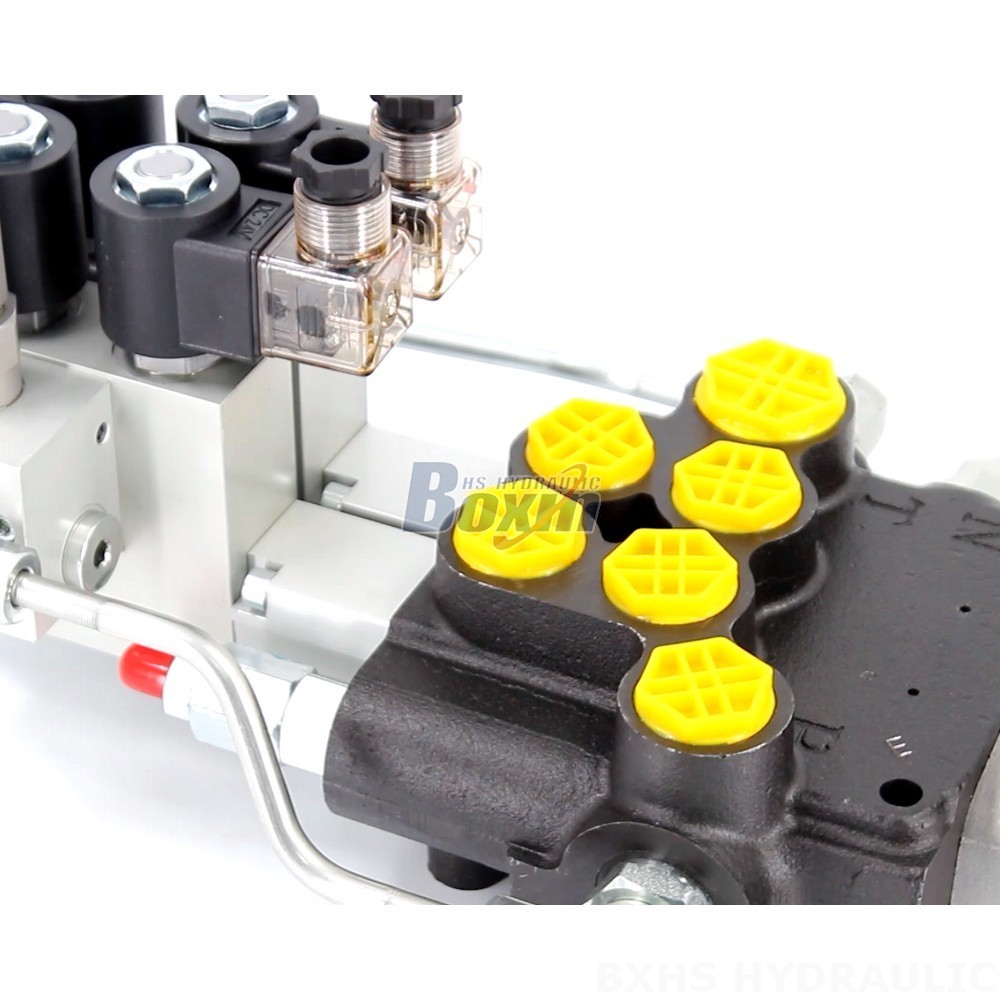

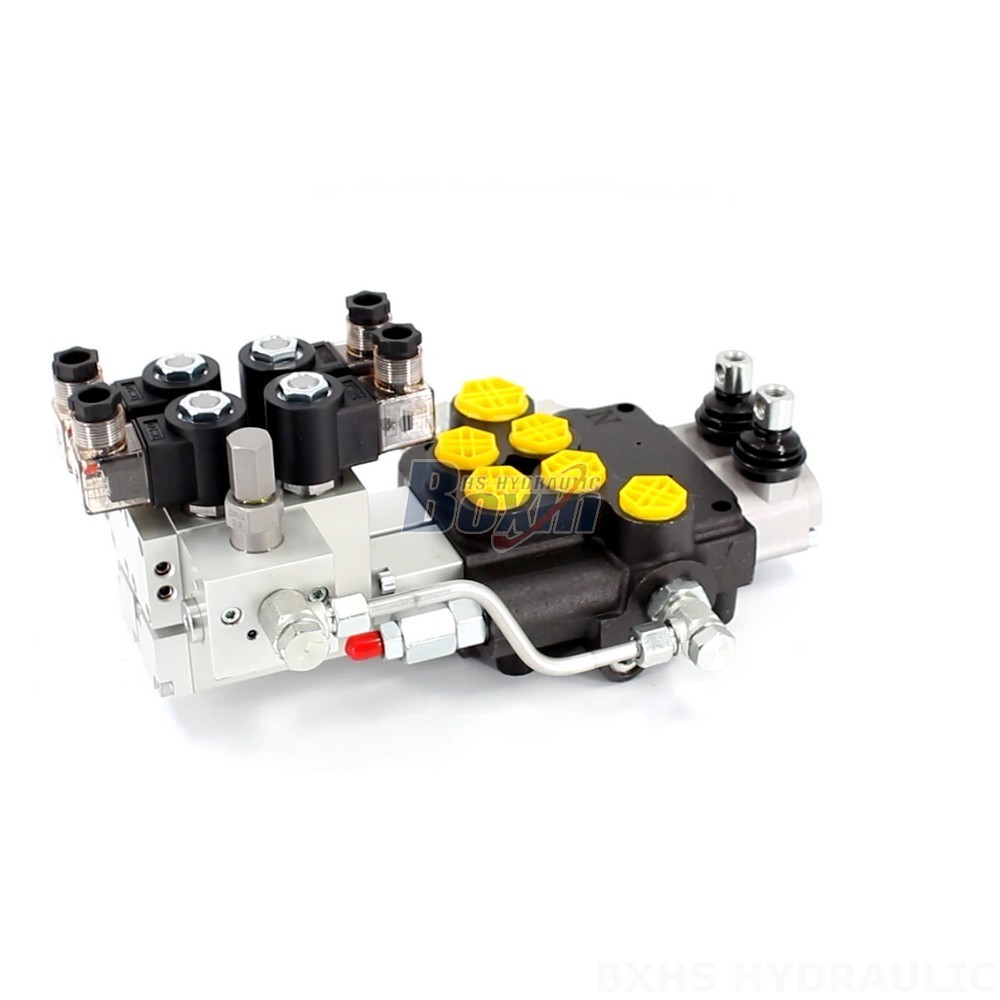

The P80 Electro-Hydraulic Directional Control Valve is a high-performance valve designed for use in a wide range of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles. With its advanced electro-hydraulic control system, 2 section design, and robust monoblock construction, the P80 valve provides precise and reliable control of hydraulic systems.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features and Benefits:**
* Electro-hydraulic control for precise and responsive operation
* 2 section design for increased flexibility and control
* Monoblock construction for durability and reliability
* Rated flow of 80 L/min for high flow capacity
* Max pressure of 250 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for compatibility with a wide range of fluids
* Ambient temperature range of -40°C to +80°C for use in extreme conditions
* 2 spool design for increased control options
* P80 Series for compatibility with other P80 series components
* Ideal for use in material handling, construction, earth moving, agriculture, and industrial vehicles
* Common applications include telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders
