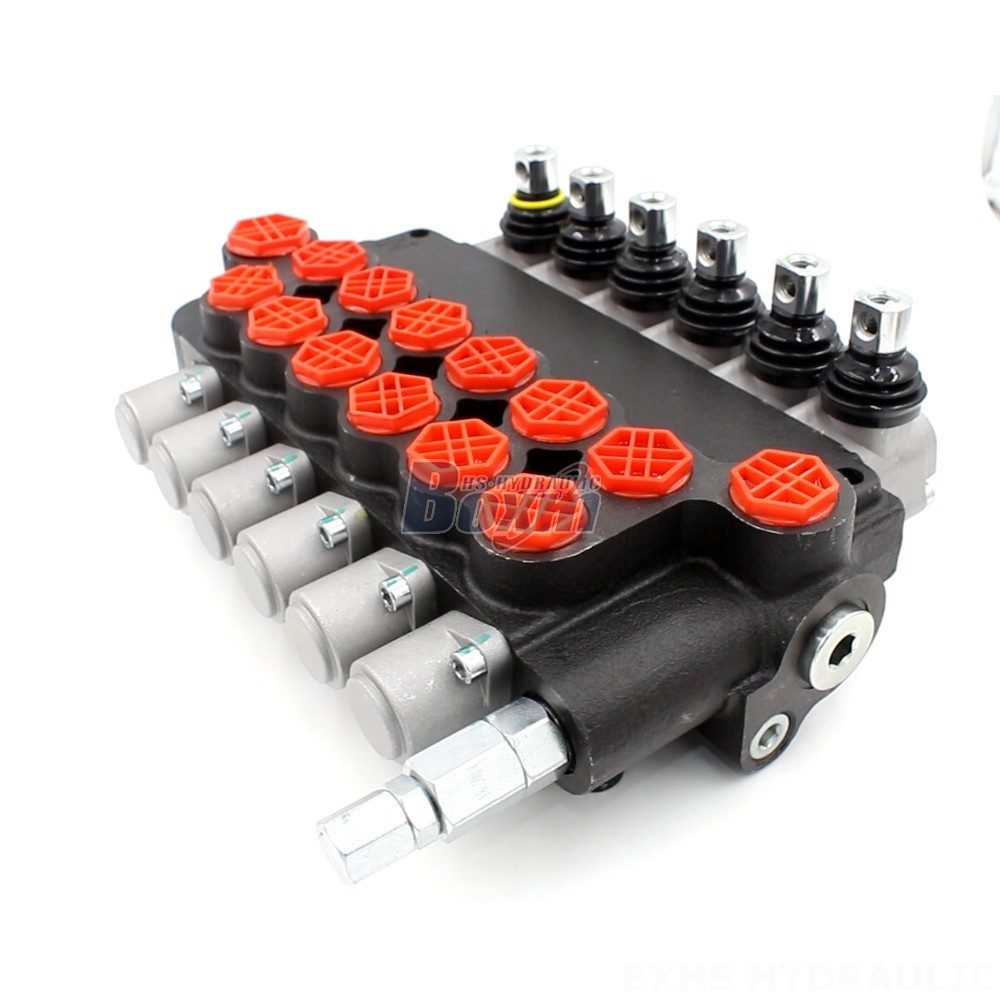

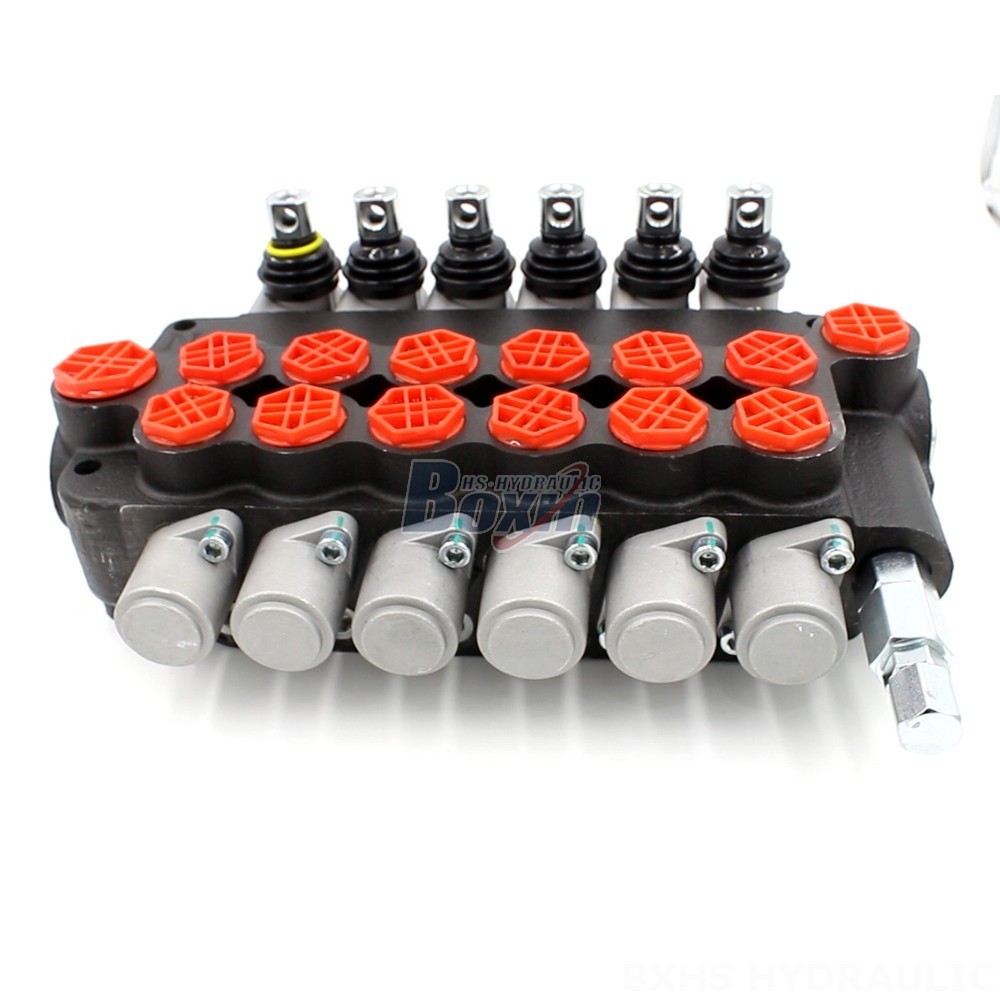

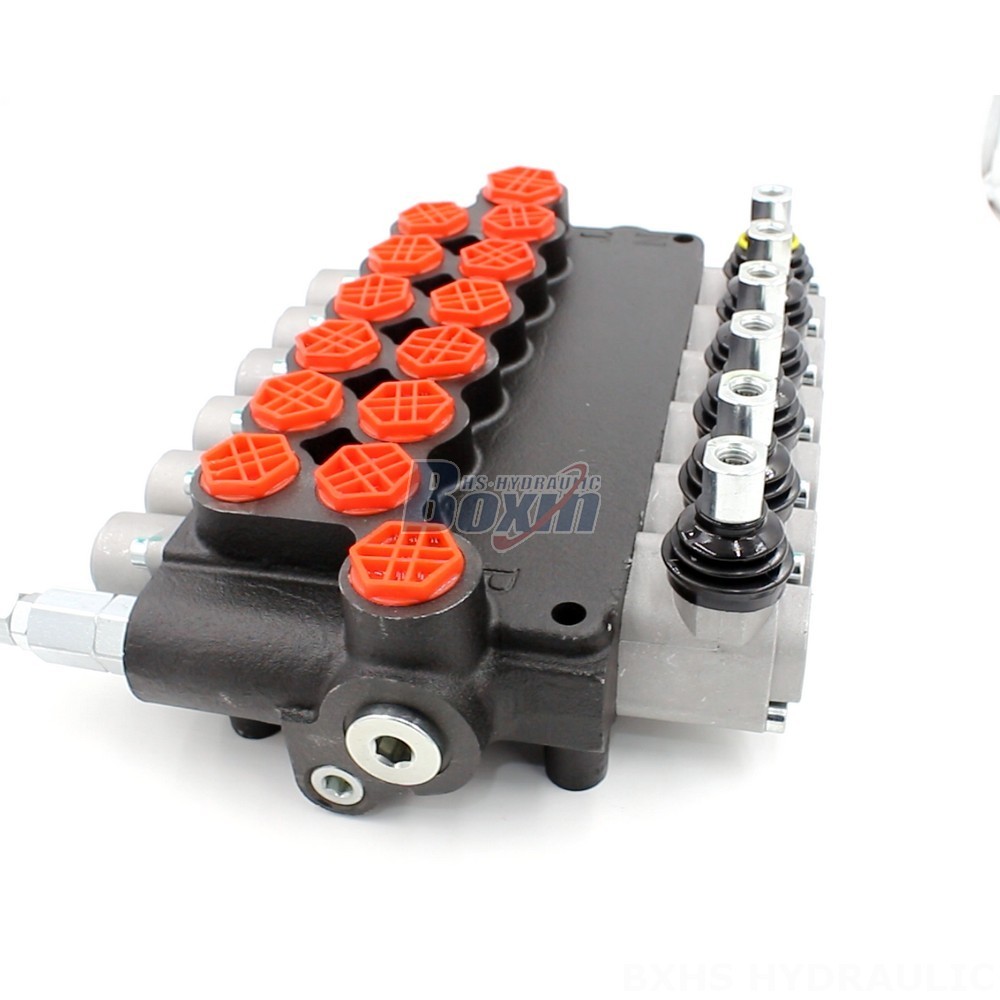

P80-G12-G34 6-Spool Hydraulic Directional Valve is a high-performance valve designed for use in various hydraulic systems. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve is suitable for demanding applications. Its manual control provides precise and responsive operation, while its monoblock construction ensures durability and reliability. This valve finds applications in material handling, construction, agriculture, and industrial vehicles.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-G12-G34 6-Spool Hydraulic Directional Valve features a compact and efficient design, making it ideal for space-constrained applications. Its operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) allows for compatibility with a wide range of hydraulic fluids. The valve operates within an ambient temperature range of -40°C to +80°C (-40°F to +176°F), ensuring reliable performance in diverse operating conditions. This valve is commonly used in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
