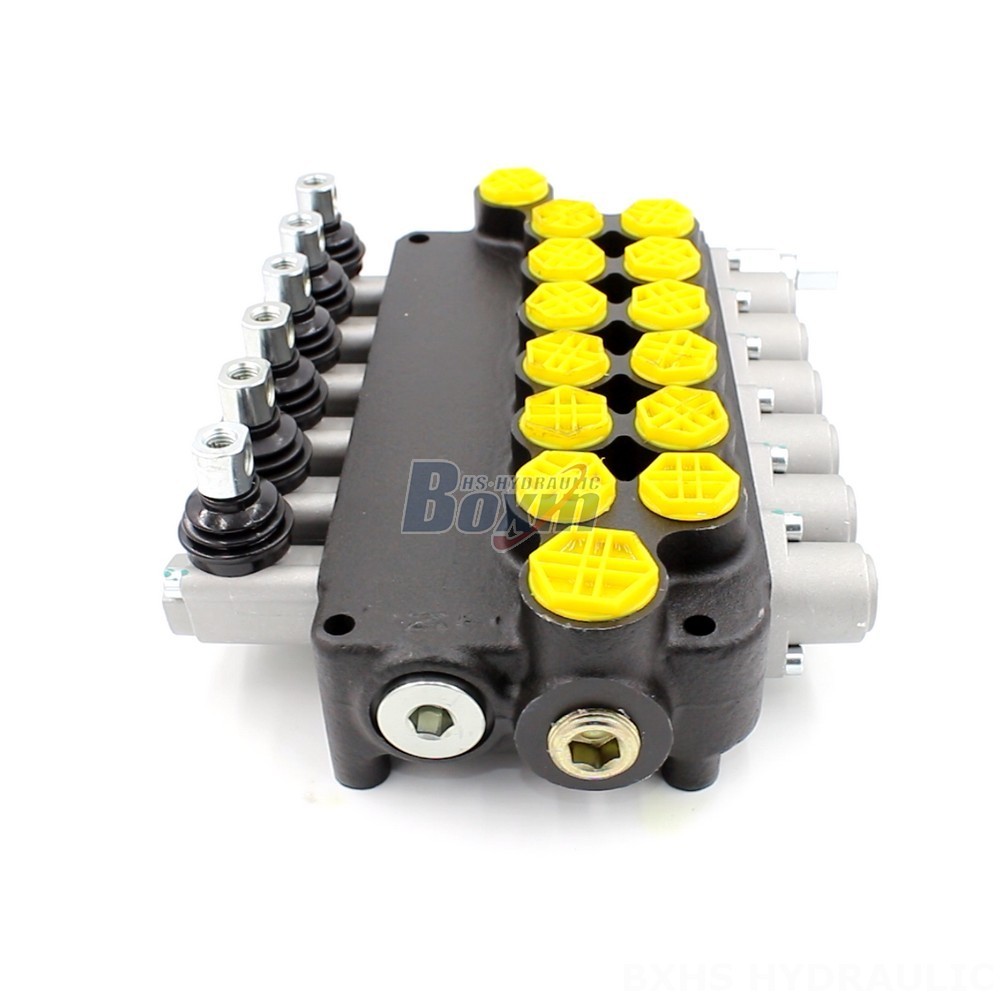

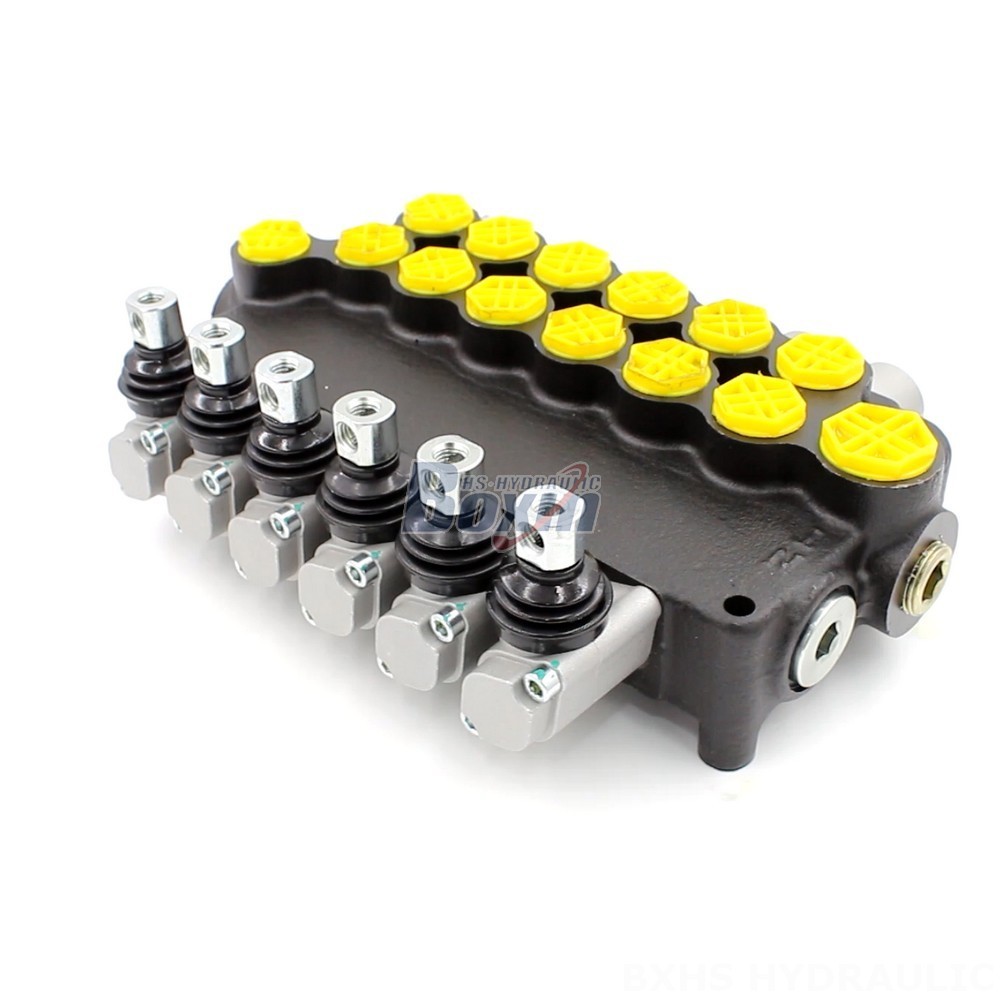

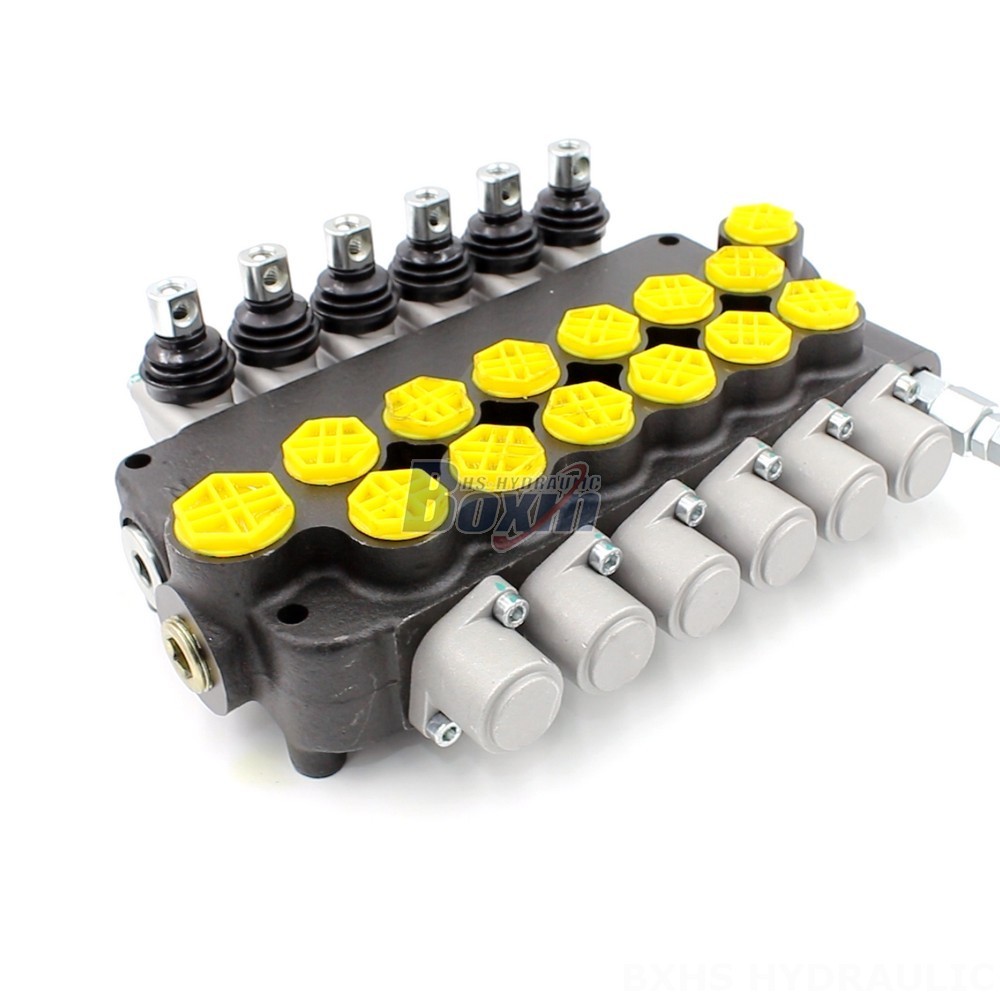

The P80-G12-G34-6OT Manual 6 Spool Monoblock Directional Valve is a heavy-duty hydraulic valve designed for demanding applications in construction, material handling, and industrial vehicles. This 6-section monoblock valve features a manual control method and a rated flow of 80 L/min (21.2 US gpm). With a maximum pressure rating of 250 bar (3600 psi) and a robust construction, this valve is ideal for a wide range of applications.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This P80 series hydraulic diverter valve is a 6-section monoblock valve with a manual control method. It features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi). The valve is designed for use in a wide range of operating temperatures, from -40°C to +80°C (-40°F to +176°F). This versatile valve is suitable for various applications in construction, material handling, and industrial vehicles, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, and compact wheel loaders.
