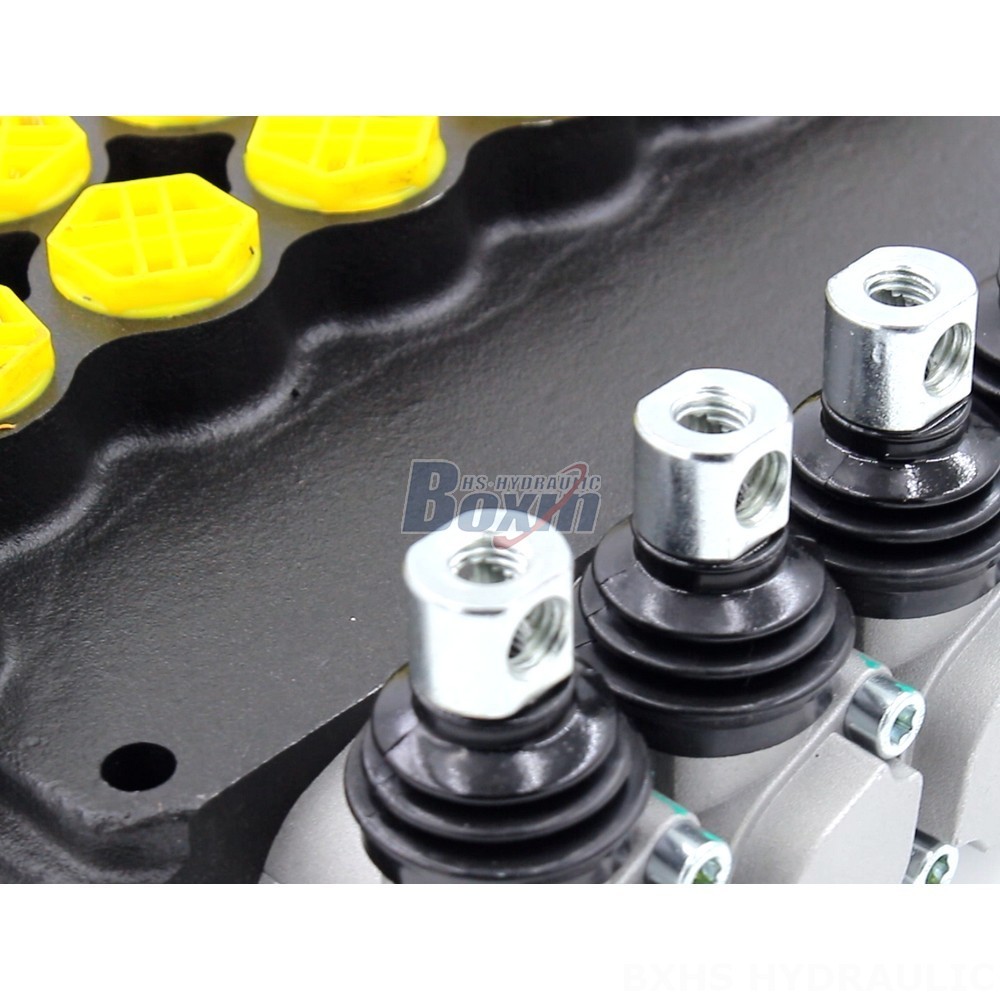

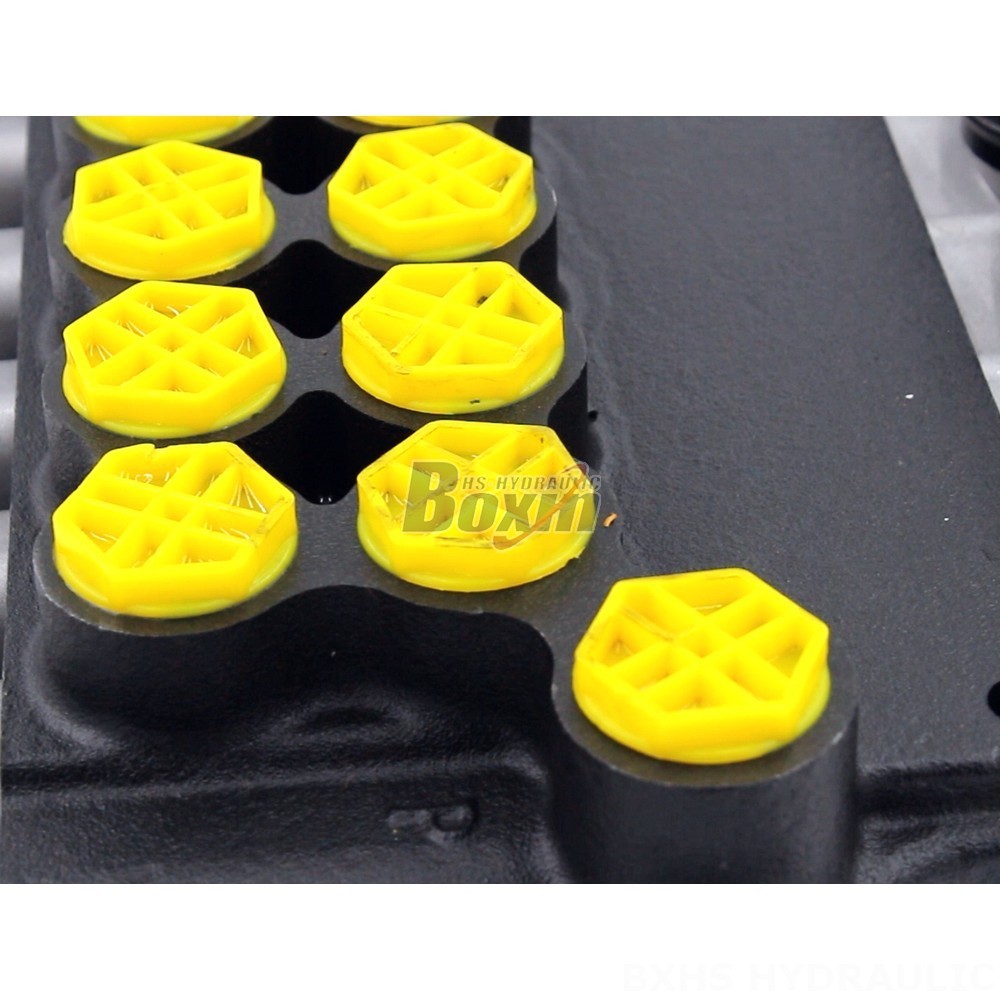

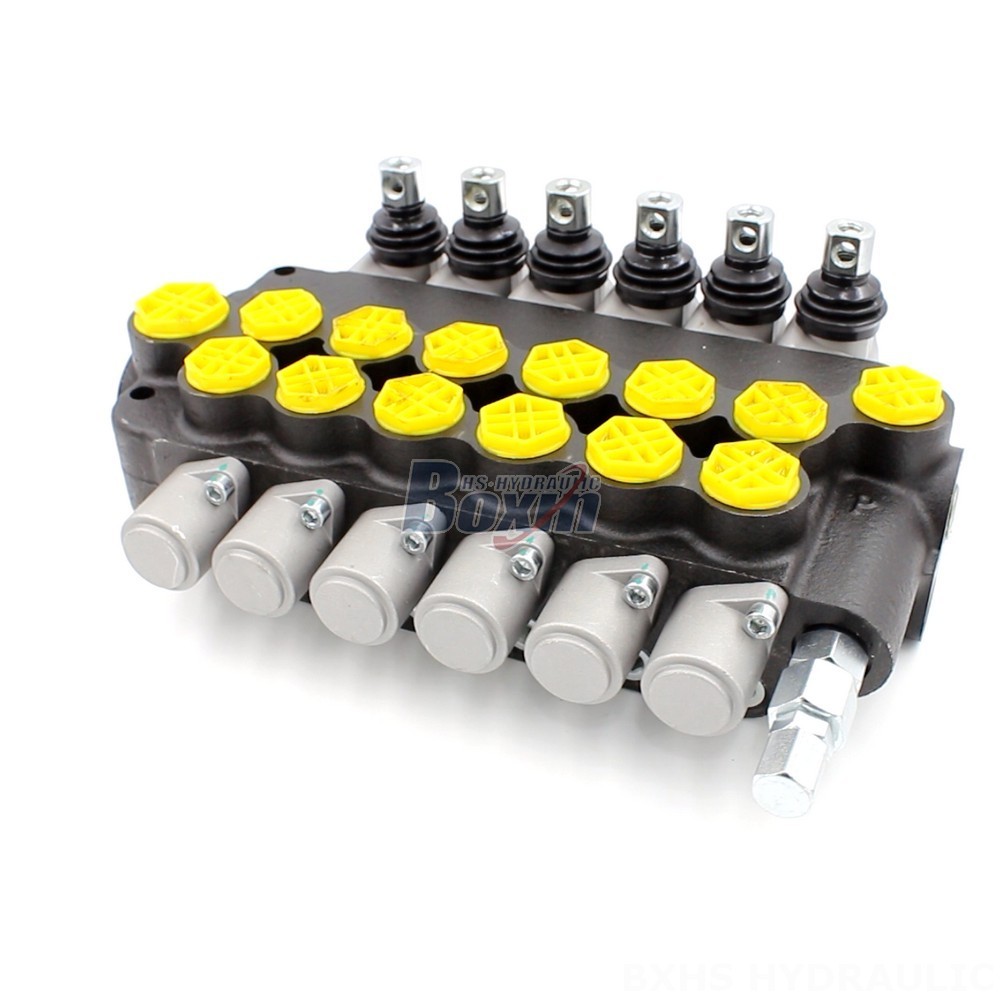

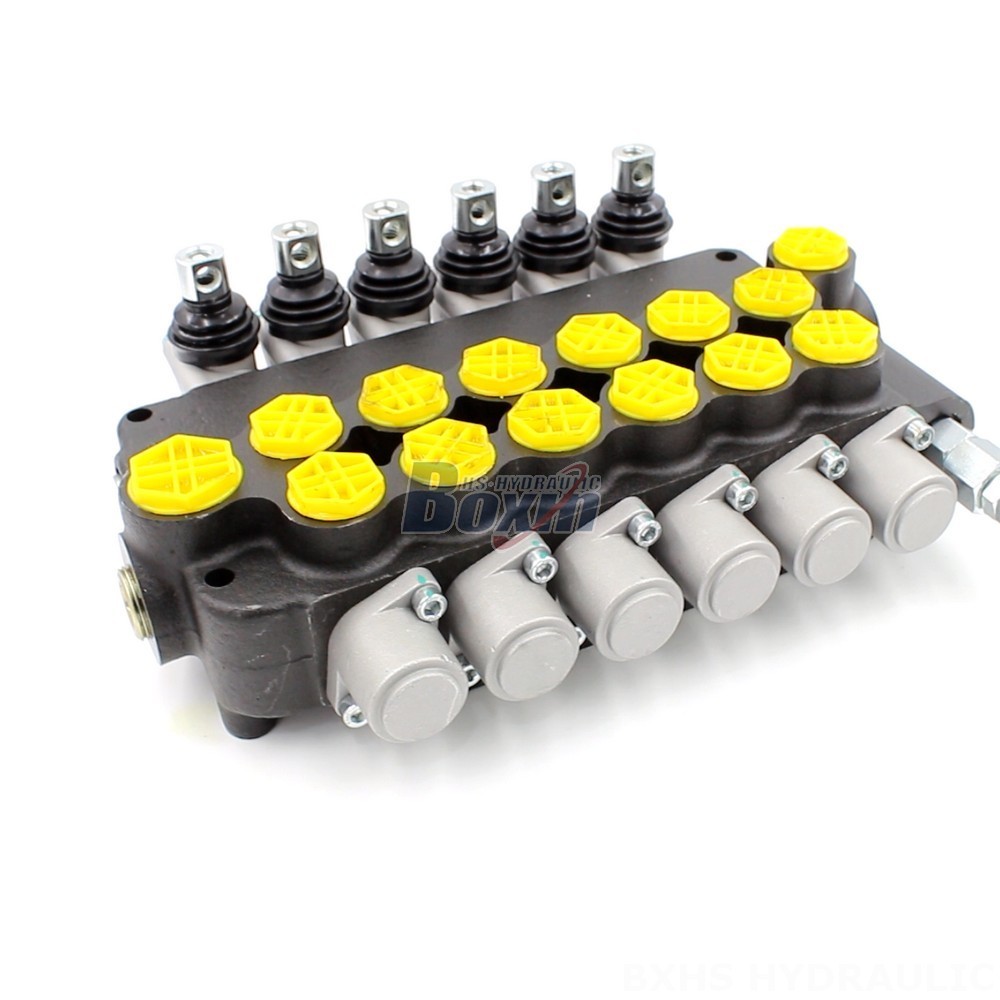

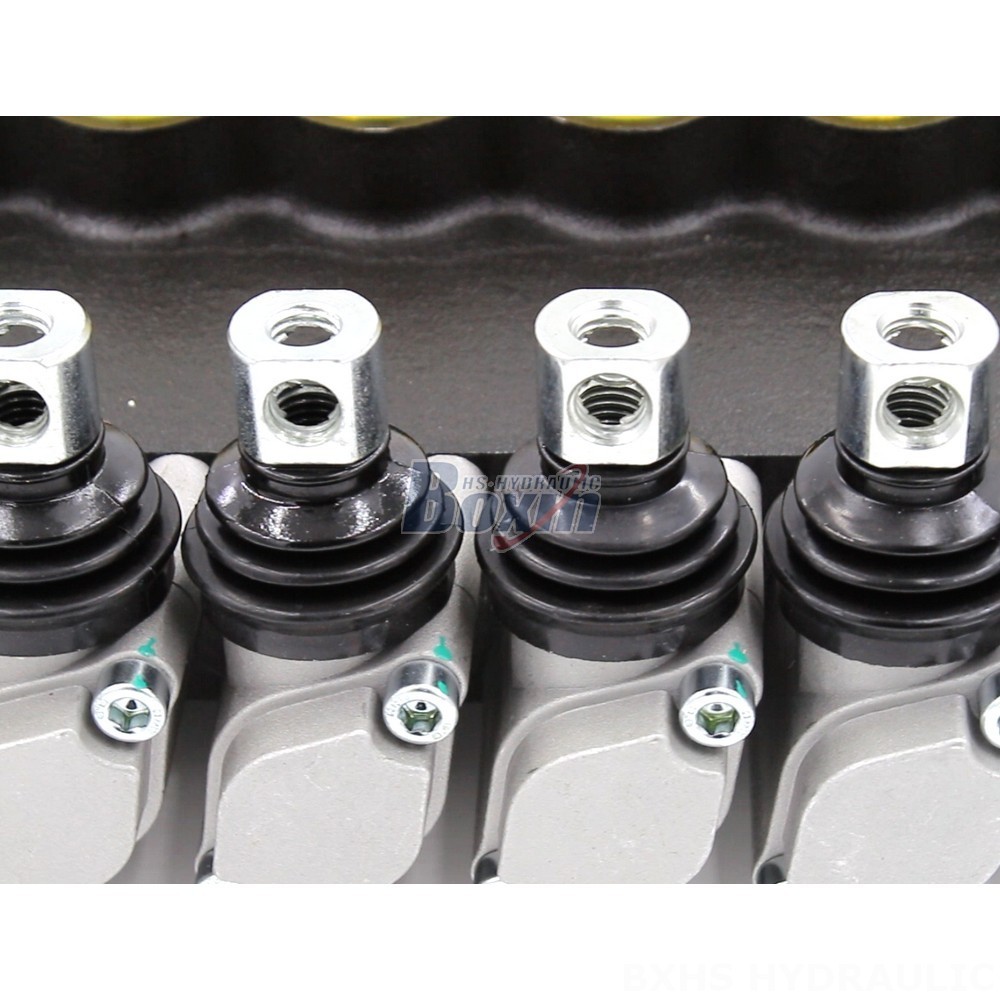

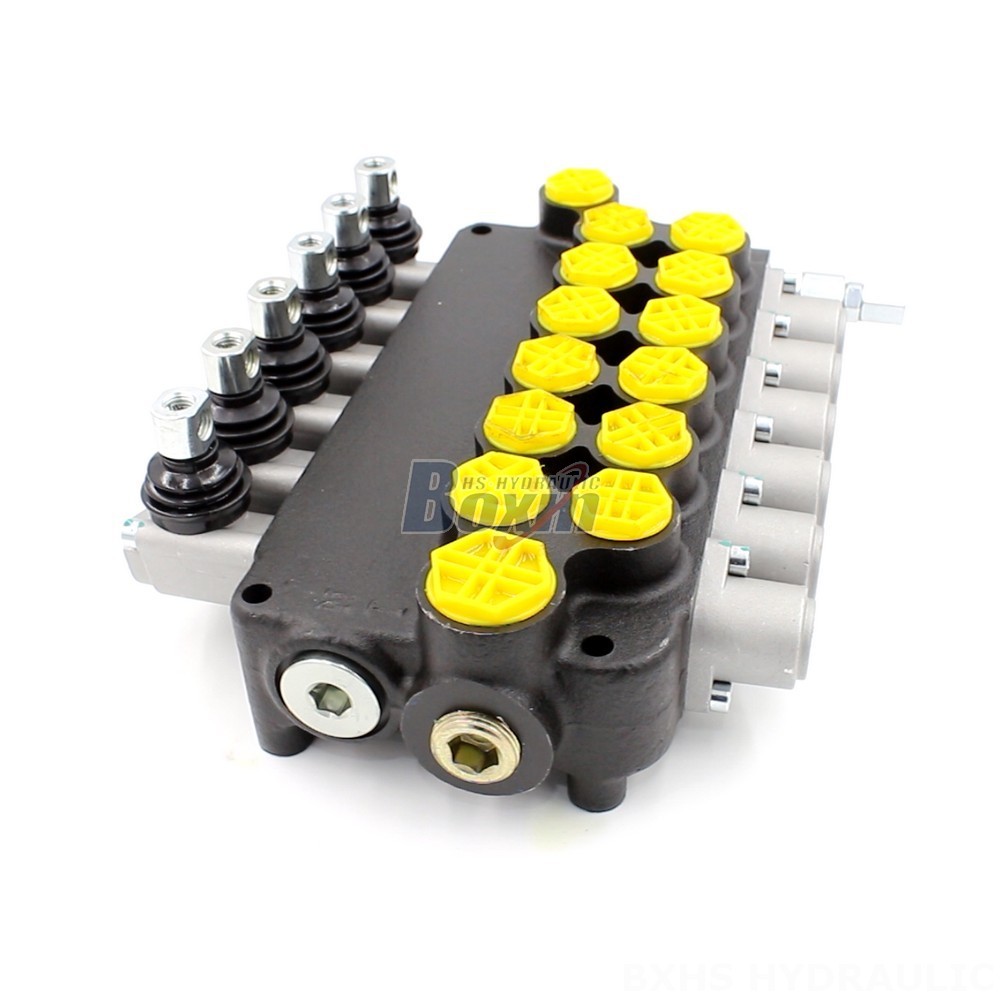

The P80-G12-G34-6OT Double Compartment Hydraulic Oil Control Valve is a 6 section, monoblock valve with manual control. It features a rated flow of 80 L/min and a maximum pressure of 250 bar. This valve is suitable for a wide range of applications, including material handling, construction, and agriculture.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This P80 series valve is a double compartment, 6 section monoblock valve with manual control. It offers a rated flow of 80 L/min and a maximum pressure of 250 bar. Designed for operating with hydraulic oil within a viscosity range of 15 - 75 mm²/s, the valve can withstand ambient temperatures from -40°C to +80°C. It's suitable for use in various applications such as material handling, construction and earth moving, agriculture, and industrial vehicles. This valve is particularly applicable to telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
