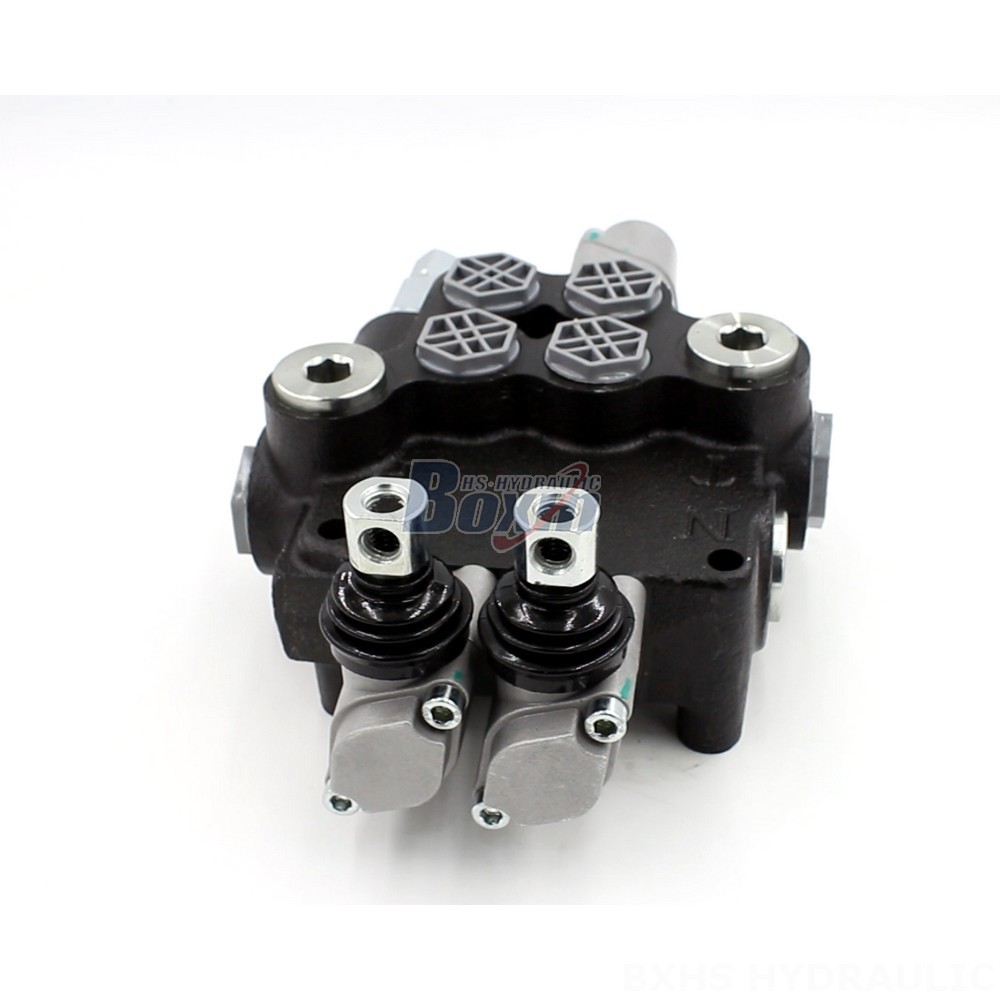

The P80-G12-G34 Hydraulic Valve is a high-performance manual valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This 2-section, monoblock valve offers reliable operation with a rated flow of 80 L/min and a maximum pressure of 250 bar.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This P80 Series manual valve features a robust monoblock construction and is designed for demanding applications. It is suitable for use in various equipment including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, and skid steer loaders. The valve has a 2-section design with a rated flow of 80 L/min and a maximum pressure of 250 bar. It operates within a viscosity range of 15 to 75 mm²/s and can withstand ambient temperatures from -40°C to +80°C. The P80-G12-G34 Hydraulic Valve is a high-quality, reliable solution for a wide range of applications.
