The P80-G12-G34-OT 4-Spool Hydraulic Directional Valve is a high-performance valve designed for demanding applications in various industries. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it ensures efficient and reliable operation. Its monoblock construction provides durability and compact size, making it ideal for space-constrained applications.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

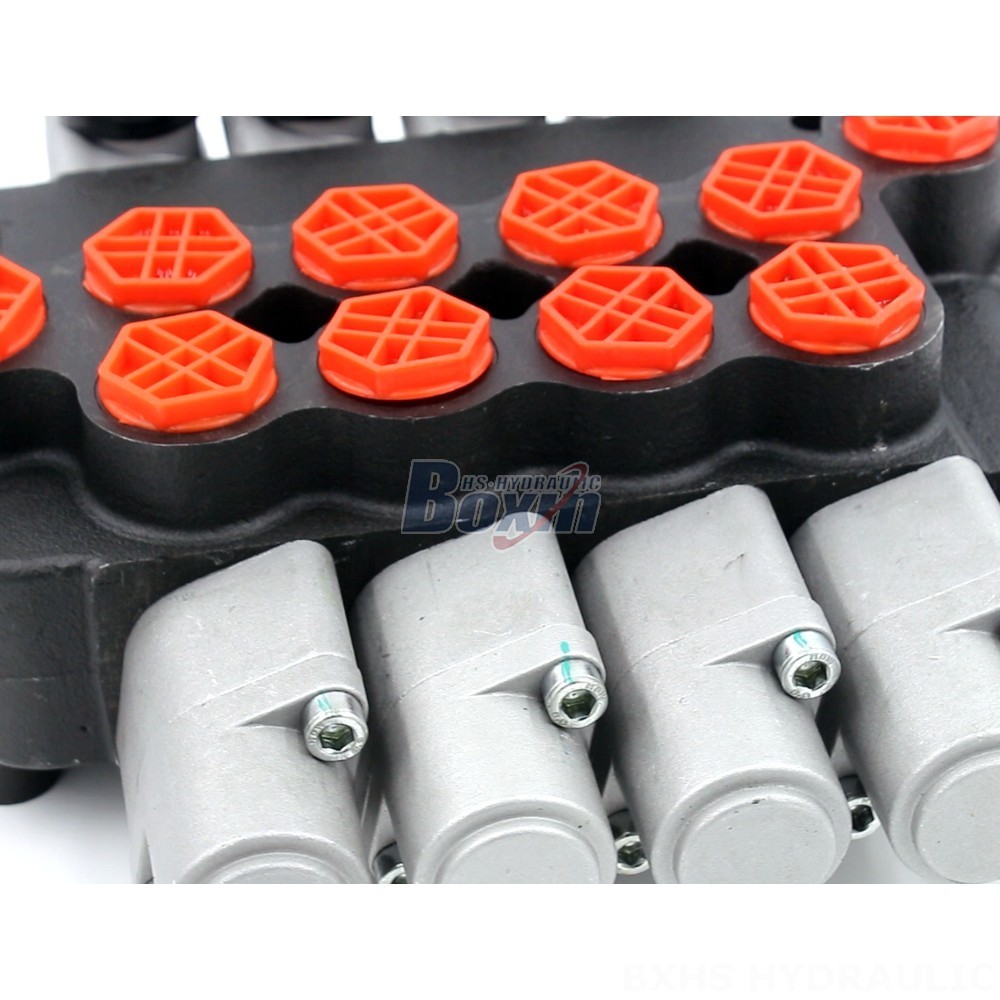

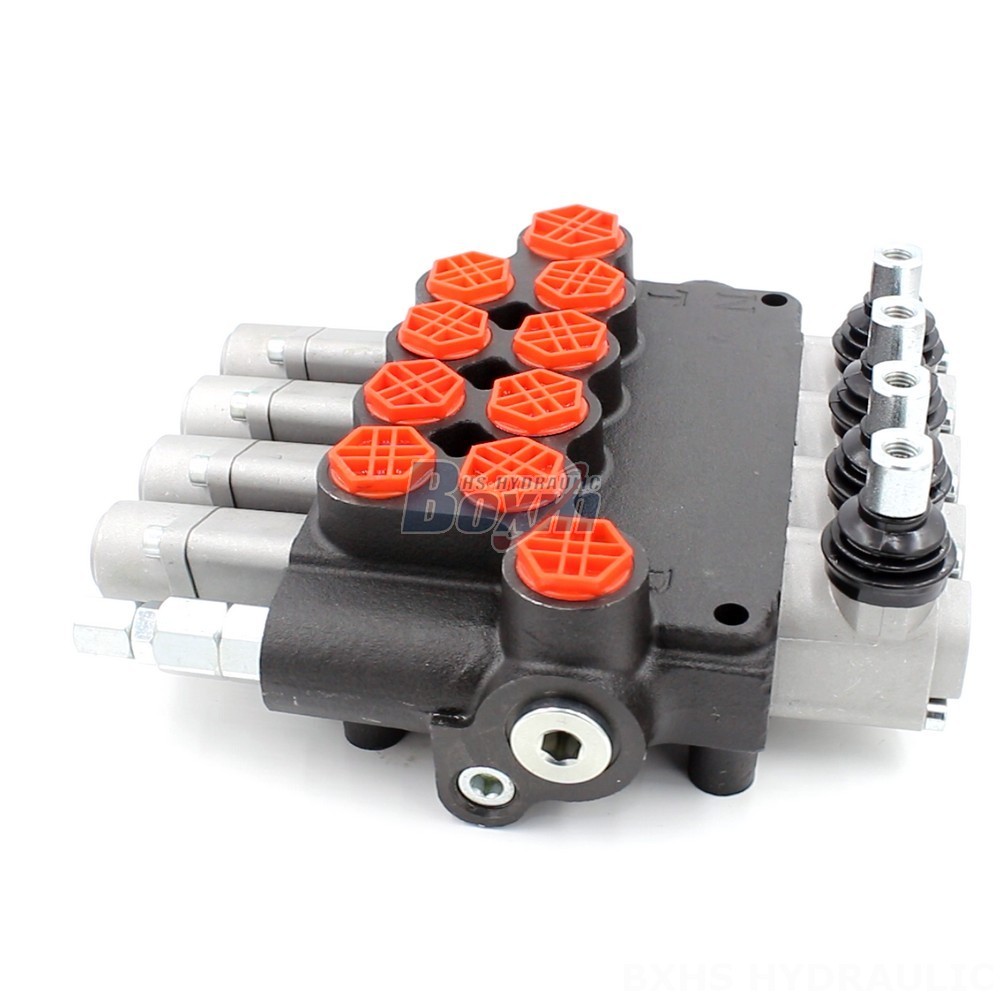

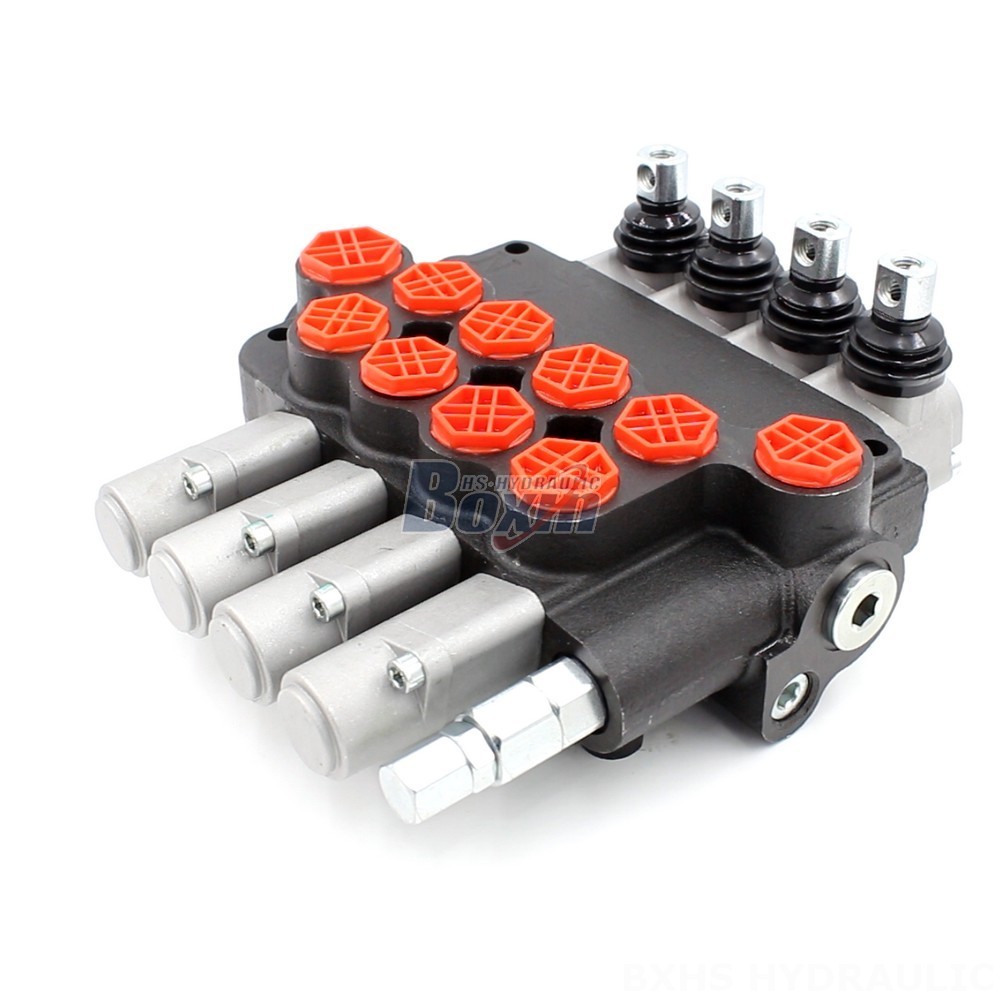

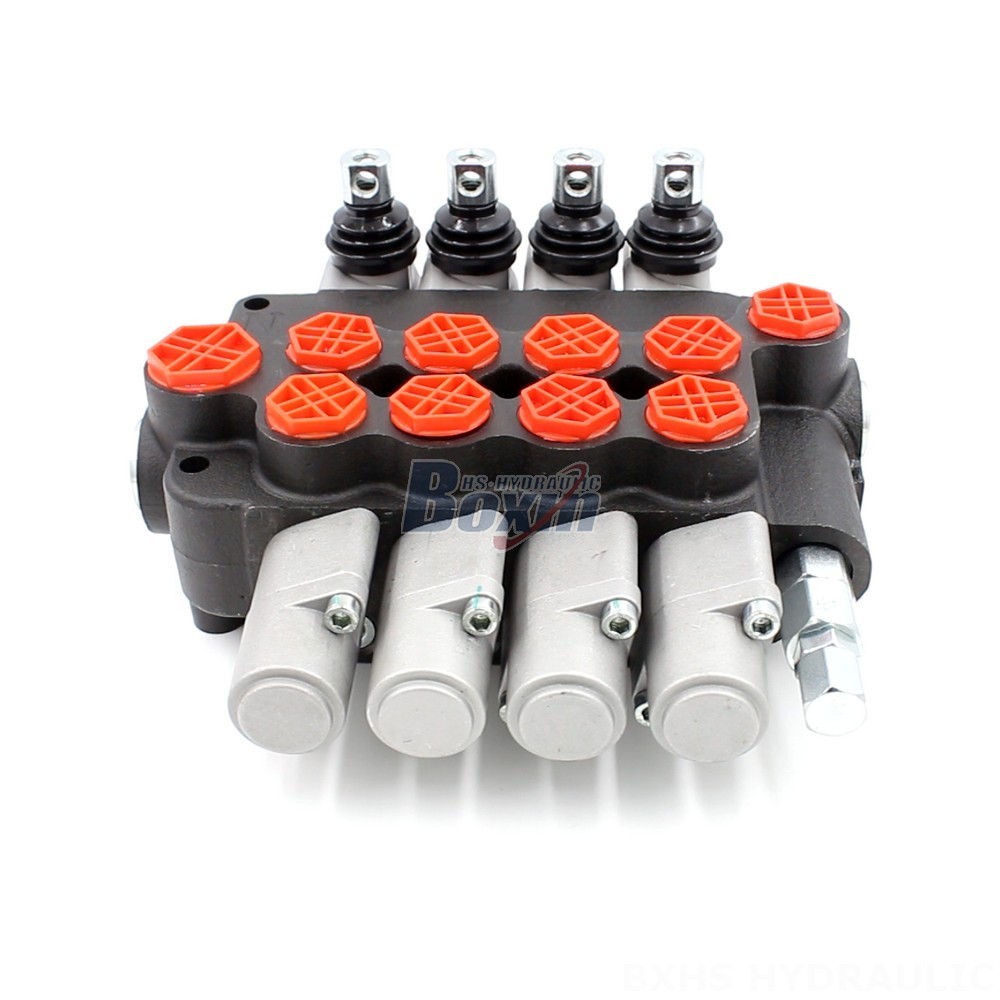

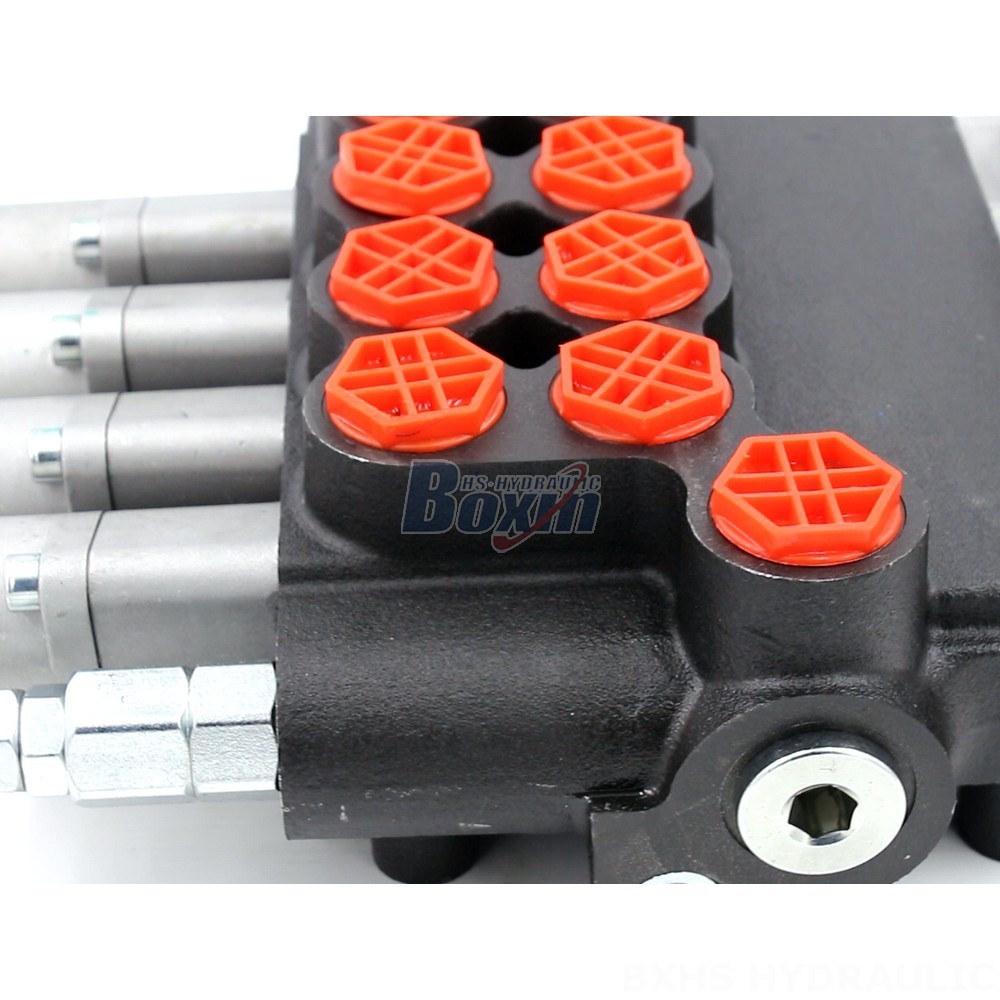

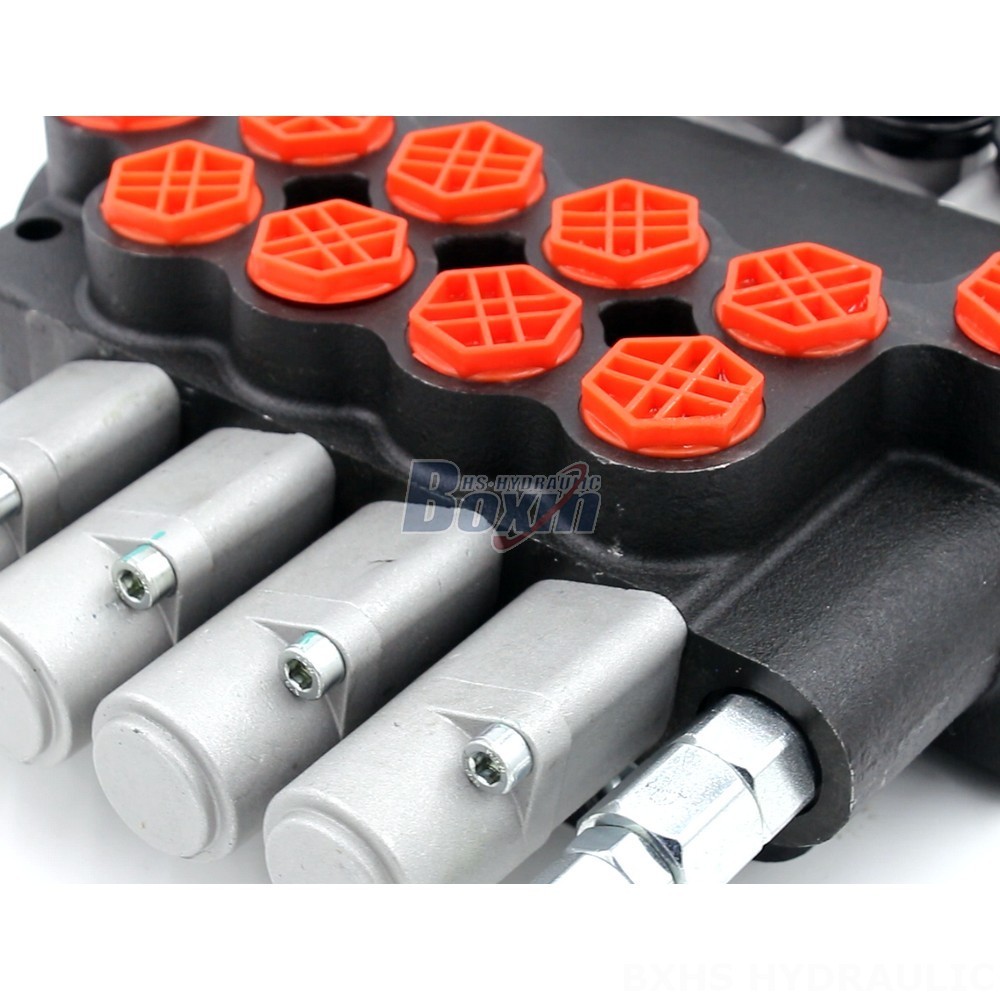

**P80-G12-G34-OT 4-Spool Hydraulic Directional Valve**
**Key Features:**
* Control Method: Manual
* Section: 4 Section
* Structure Type: Monoblock valve
* Rated Flow: 80 L/min (21.2 US gpm)
* Max Pressure: 250 bar (3600 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 4 Spool
* Series: P80 Series
**Applications:**
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
**Applicable Models:**
* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* AERIAL PLATFORM
* MOTOR GRADER
* MIDI-EXCAVATOR
* MINI-EXCAVATOR
* SKID STEER LOADER
* BACKHOE LOADER
The P80-G12-G34-OT 4-Spool Hydraulic Directional Valve is a versatile and robust component that meets the highest industry standards. Its exceptional performance and durability make it an ideal choice for a wide range of hydraulic systems in demanding applications.
