Produksi & Pengiriman
Waktu Produksi 15-30 Hari
938 Pandangan Mencari Produk Ini
The P80-G12-G38-QW Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial applications. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve provides reliable and efficient control of hydraulic systems.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

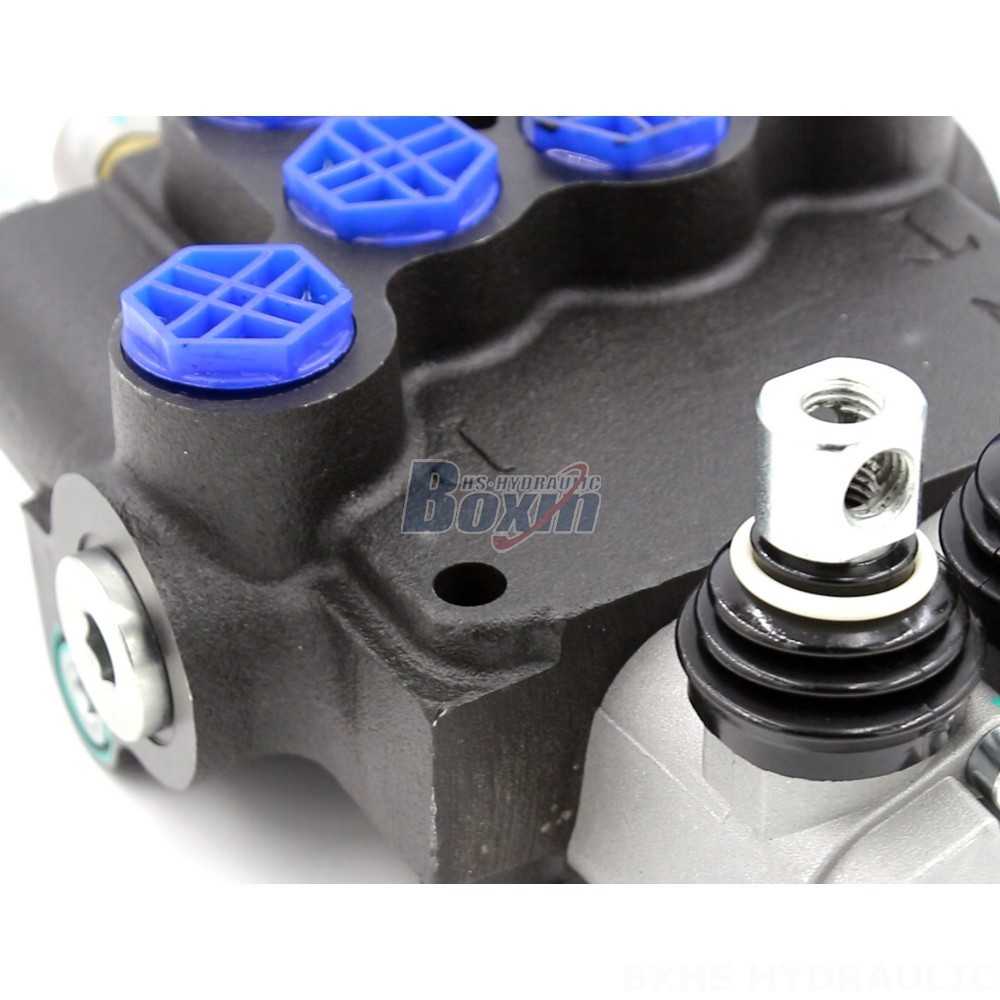

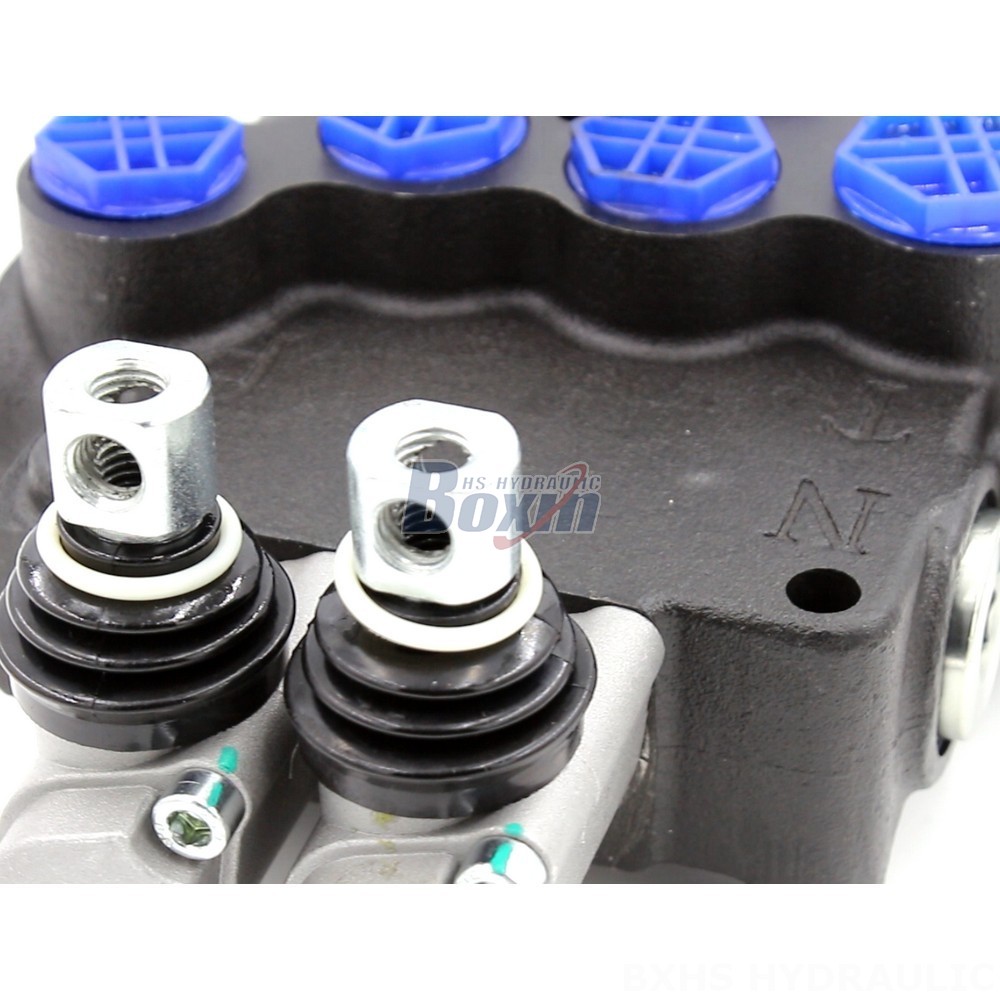

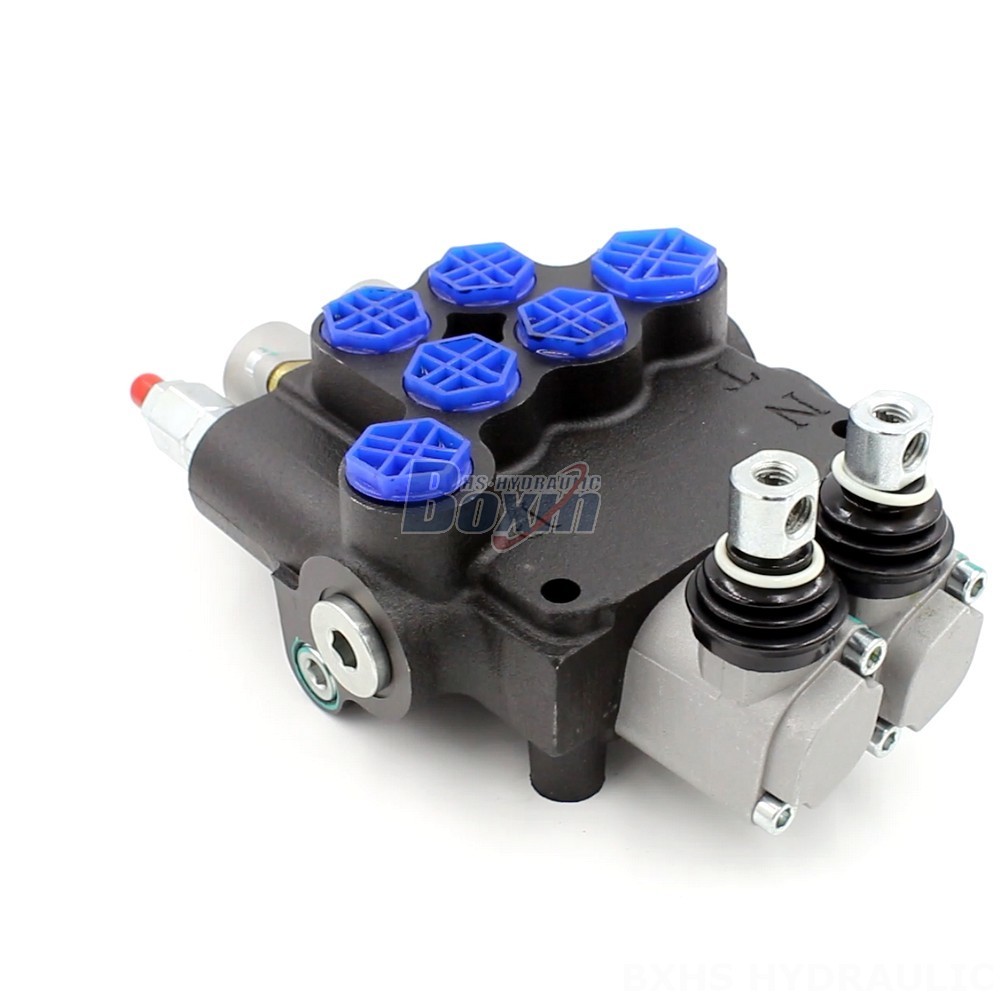

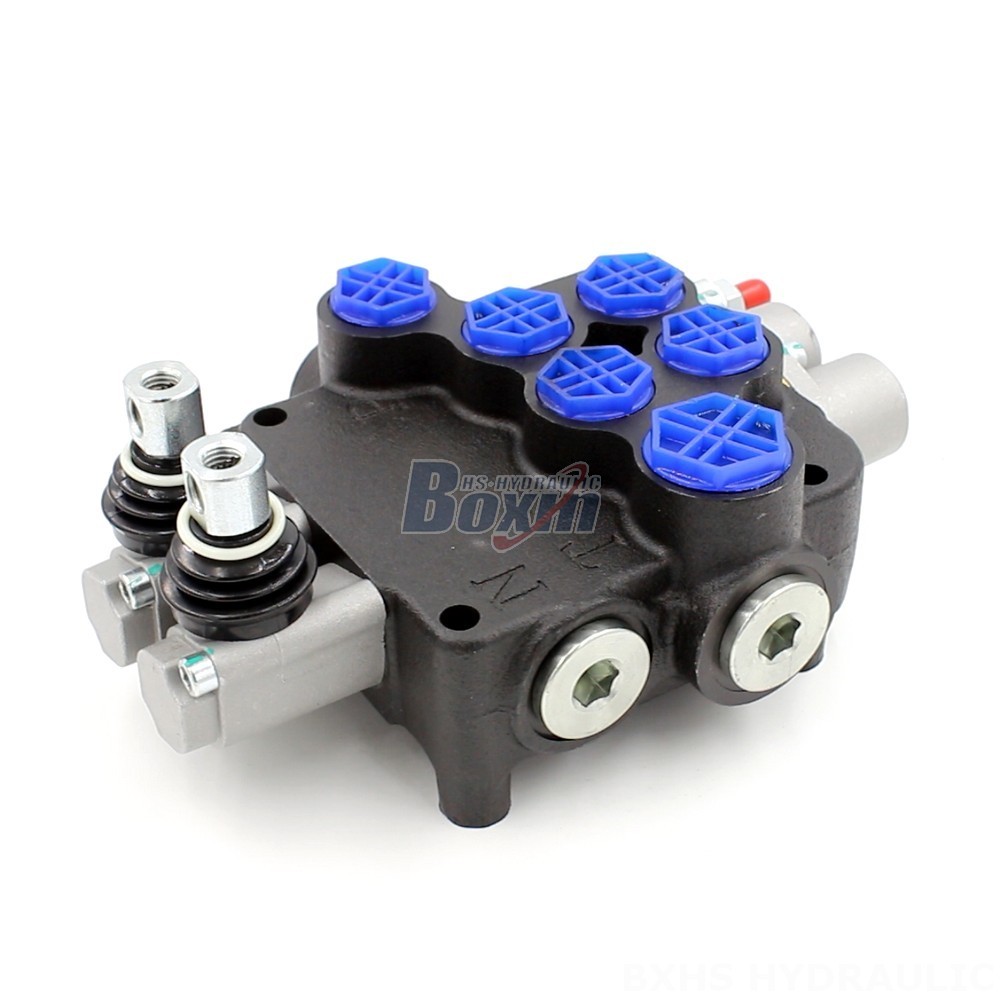

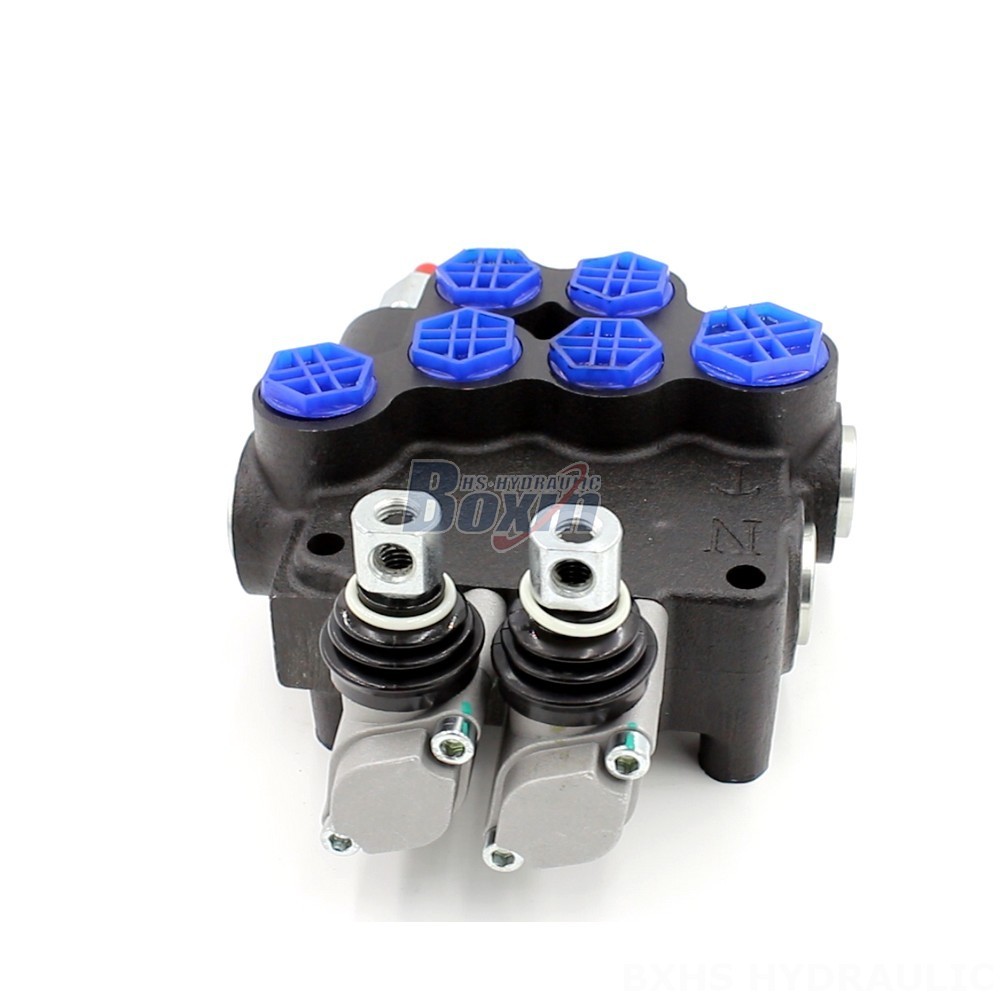

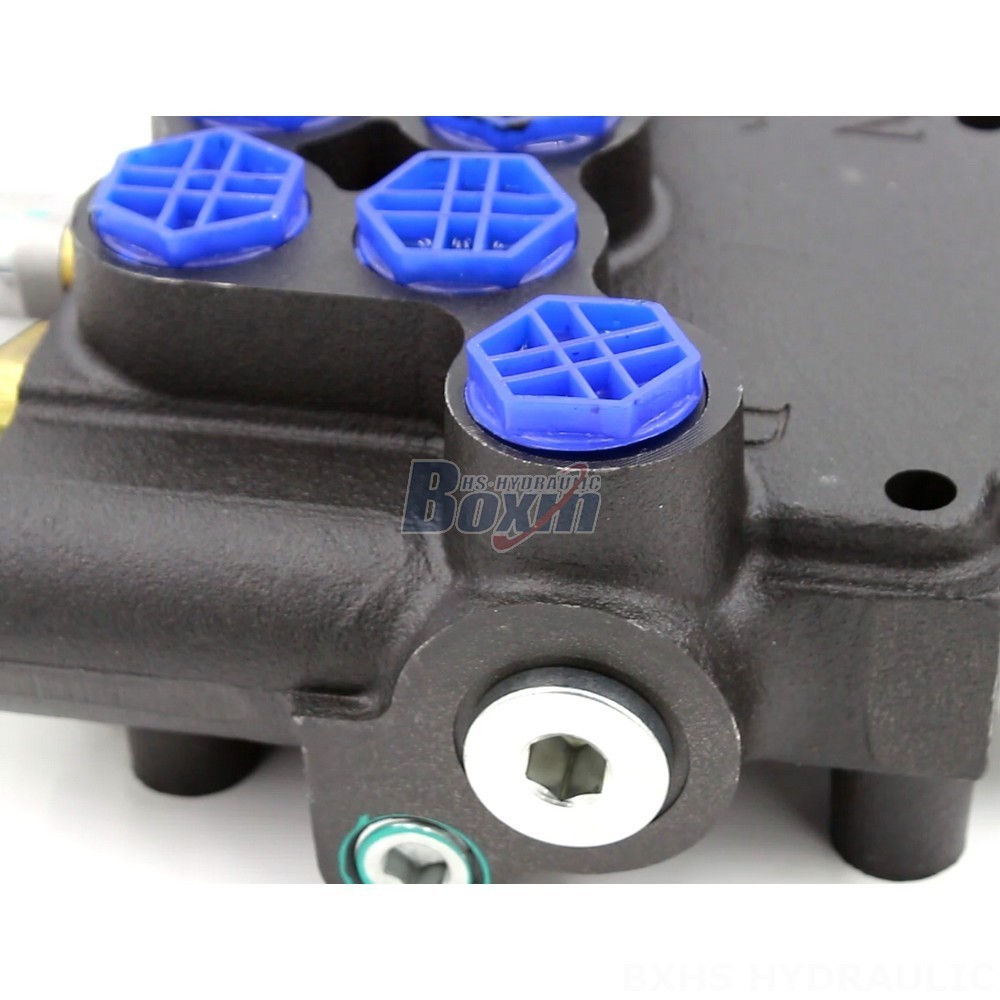

**P80-G12-G38-QW Manual 2 Spool Monoblock Directional Valve**
The P80-G12-G38-QW Manual 2 Spool Monoblock Directional Valve is a high-quality hydraulic valve that offers exceptional performance and durability. This valve is designed for use in a wide range of industrial applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
**Key Features:**
* Rated flow: 80 L/min (21.2 US gpm)
* Max pressure: 250 bar (3600 psi)
* Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
* Spool: 2 Spool
* Series: P80 Series
**Benefits:**
* Reliable and efficient control of hydraulic systems
* High flow capacity and pressure rating
* Wide operating temperature range
* Compact and lightweight design
* Easy to install and maintain
**Applications:**
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Backhoe loaders
* Skip loaders
